2011 Indian Chief Blackhawk

You are here: Home — 2011 Models — 2011 Indian Motorcycle Models

2011 Indian Chief Blackhawk
Back to 2011 Indian Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

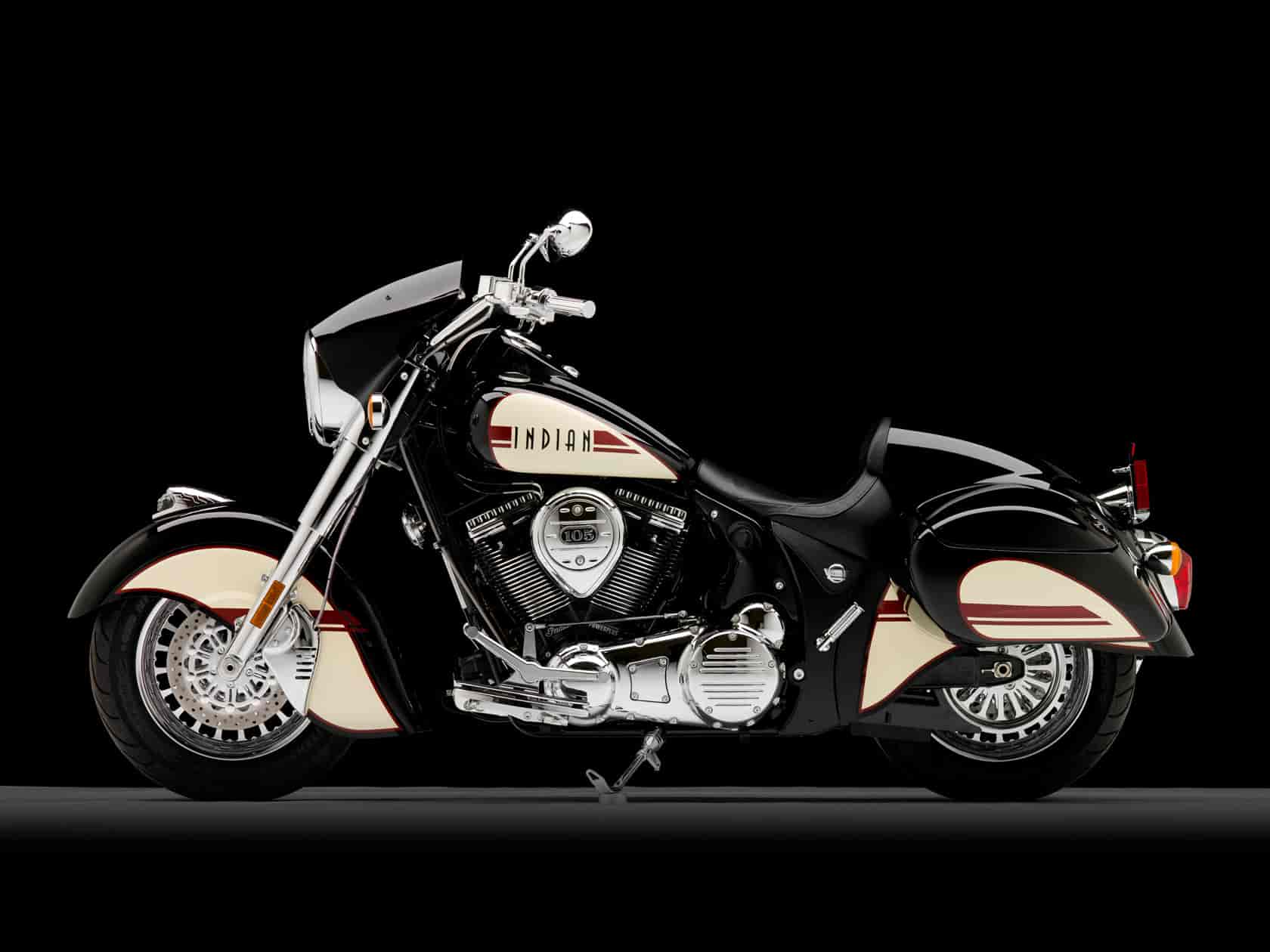

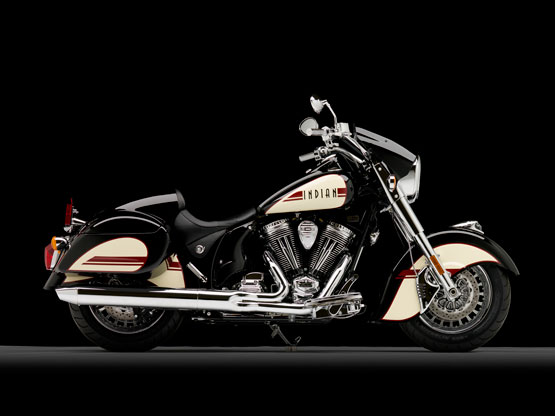

2011 Indian Chief Blackhawk

2011 Indian Chief Blackhawk

2011 Indian Chief Blackhawk

2011 Indian Chief Blackhawk

2011 Indian Chief Blackhawk

2011 Indian Chief Blackhawk

– 2011 Indian Chief Blackhawk

2011 Indian Chief Blackhawk

Key Indian Chief Blackhawk Key Features

New mini front fairing
New low seat
New Blackhawk seat concho
New rear seat cowling with rider backrest

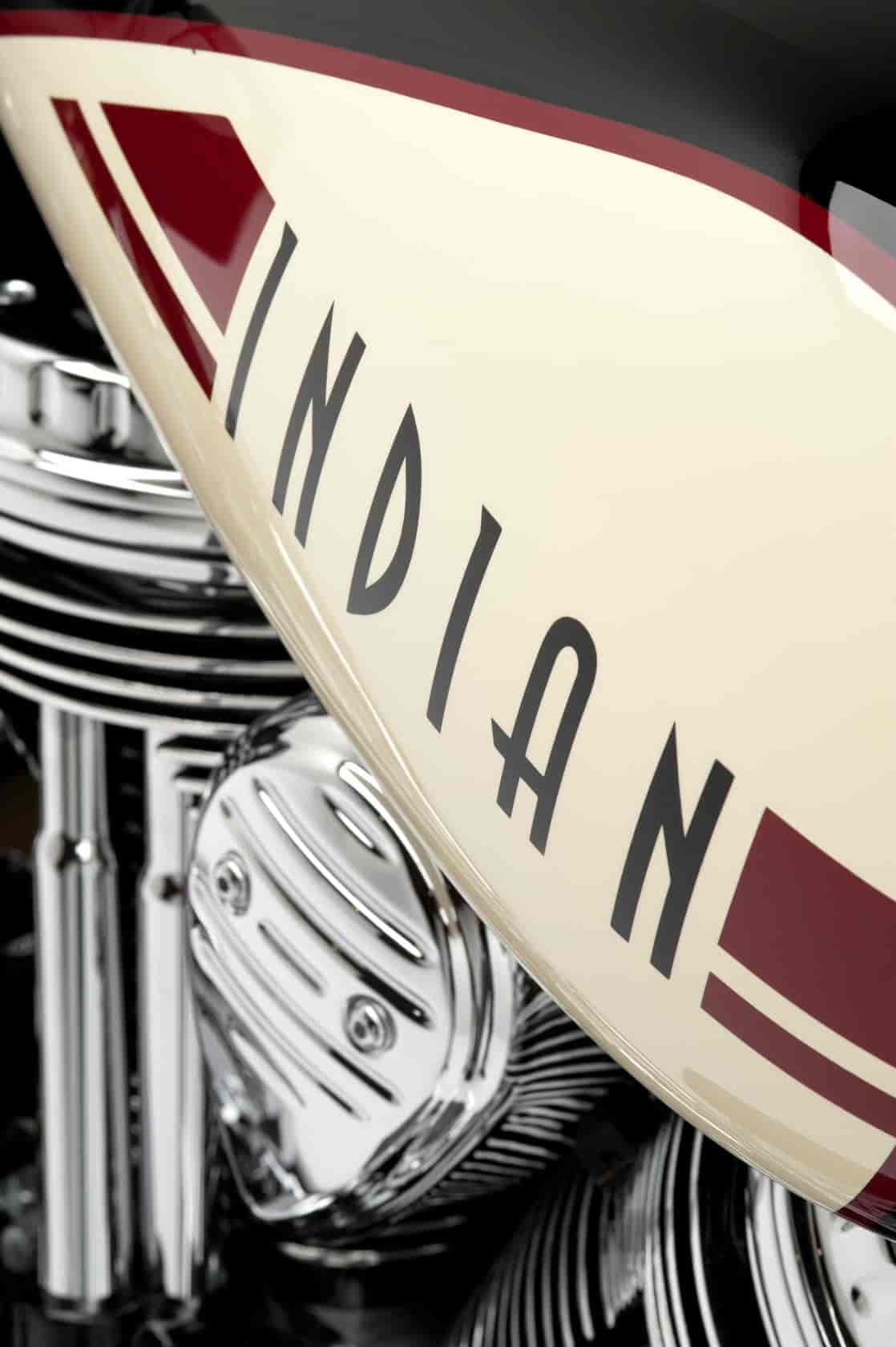

Custom art deco paint scheme
Millenium peg and grip set
Chrome caliper covers

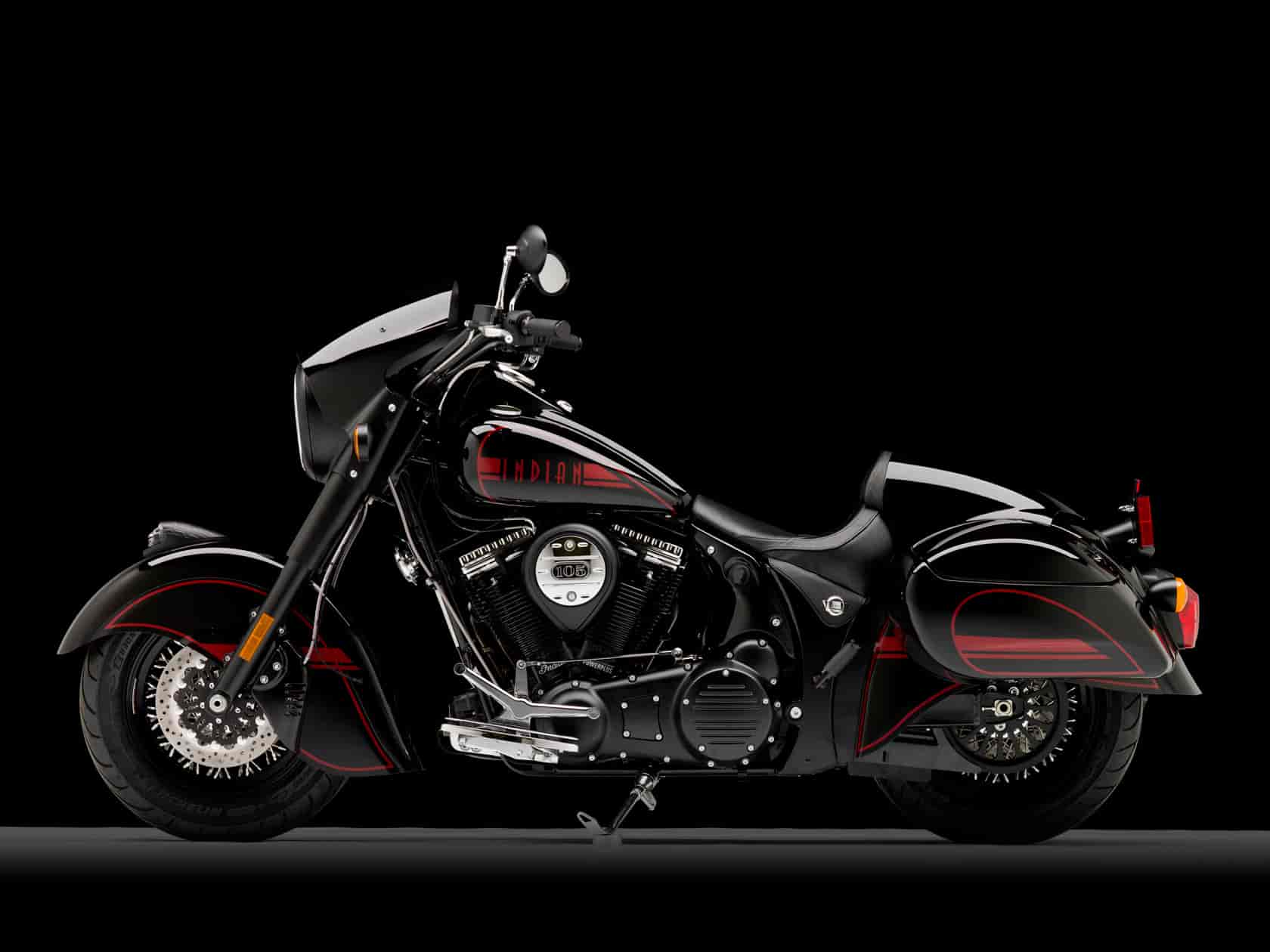

Blacked out finishes on Blackhawk Dark models
New Michelin Commander II tires
110th Anniversary frame badge
110th anniversary Speedometer
Chrome engine guards
Two into one stainless steel exhaust system with three way catalytic

Custom art deco paint scheme
Head dress inspired mini-fairing
Low seat in black leather
Blackhawk seat concho
Custom hardbags
Millenium grips and footpegs
110th Anniversary badge
110th Anniversary speedometer

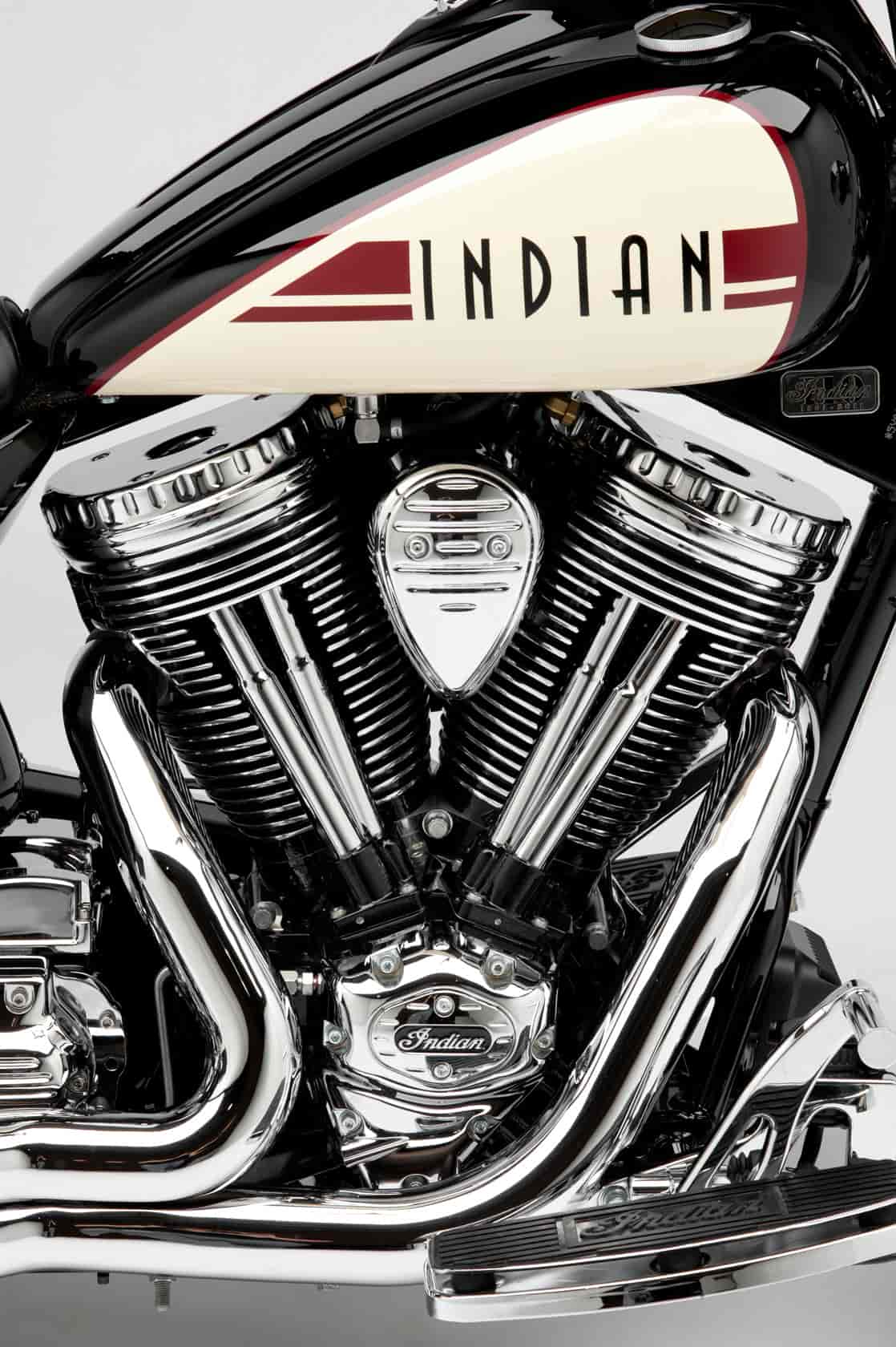

Black and polished engine with chrome covers
Chrome caliper covers
Rear cowl with leather rider backrest





2011 Indian Chief Blackhawk – Specifications
U.S. MSRP – $29,999 Delivery, set-up and local taxes not included

ENGINE
Engine Type Power Plus 105, Air-Cooled
Displacement 105 Cubic Inches
Bore x Stroke 3.966 x 4.25
Compression Ratio 9 to 1
Engine Torque 100 ft*lbs
Fuel System Closed Loop Sequential Port Fuel
Injection

DRIVETRAIN
Primary Drive Chain
Gearbox Six Speed
Gear Ratio (overall)
1st 10.44:1
2nd 7.09:1
3rd 5.17:1
4th 3.98:1
5th 3.19:1
6th 2.77:1
Final Drive Belt

CHASSIS
Frame High tensile steel, monoshock
Suspension/Front Diameter 41 mm/Travel 108 mm
Suspension/Rear Single shock/travel 73 mm
Brakes/Front Dual Caliper with Floating Rotors 11.5”
Diameter
Brakes/Rear Single Caliper Floating Rotor 11.5”
Diameter
Tires/Front 130/90-16 Michelin Commander II
Tires/Rear 150/16 Michelin Commander II
Wheels Wire spoked
Exhaust System Two Into One Stainless Steel With
Chromed Shields

STYLING
New mini front fairing
New low seat
New Blackhawk seat concho
New rear seat cowling with rider backrest
Custom art deco paint scheme
Millenium peg and grip set
Chrome caliper covers
Blacked out finishes on Blackhawk Dark models
New Michelin Commander II tires
110th Anniversary frame badge
110th anniversary Speedometer
Chrome engine guards
Two into one stainless steel exhaust system with three way catalytic

POWERTRAIN
Power Plus 105ci engine
6 speed transmission
Electronic Fuel Injection

CHASSIS
5.5 gallon fuel tank
New Brembo brake system with dual calipers and floating rotors
Two accessory 12V outlets
Custom hard bags

ELECTRICAL
Charging system 42 Amps converter and chromed shields
Lamps: Tear drop head lamp, glass front fender light
There are no electrical relays in the system
2011 Chief Blackhawk & Blackhawk Dark

DIMENSIONS
Note: All specification subject to change
Length 100.5”
Width 40.5”
Height 50.5”
Seat Height Laden 26.5”
Seat Height Unladen 27.75”
Wheelbase 68.4”
Dry Weight (will vary for each
model)
766 lbs
Running Order Weight 798 lbs
Rake Steering Head/Trail 34°/5.92”
GVW – Gross Vehicle Weight 1220 lbs

DIMENSIONS
Electrical Instruments Tank mounted analog speedometer and
multi-function digital display
Charging System 42 Amps
Lamps
Tear drop head lamp, glass front fender
light

WARRANTY
2 Years

PRICING
$29,999 Delivery, set-up and local taxes not
included

STANDARD COLORS
Thunder Black, Ivory Cream and Indian
Red

Thunder Black and Indian Red

WARRANTY
2 Years

STANDARD EQUIPMENT
Custom art deco paint scheme
Head dress inspired mini-fairing
Low seat in black leather
Blackhawk seat concho
Custom hardbags
Millenium grips and footpegs
110th Anniversary badge
110th Anniversary speedometer
Black and polished engine with chrome
covers
Chrome caliper covers
Rear cowl with leather rider backrest

AVAILABLE EQUIPMENT

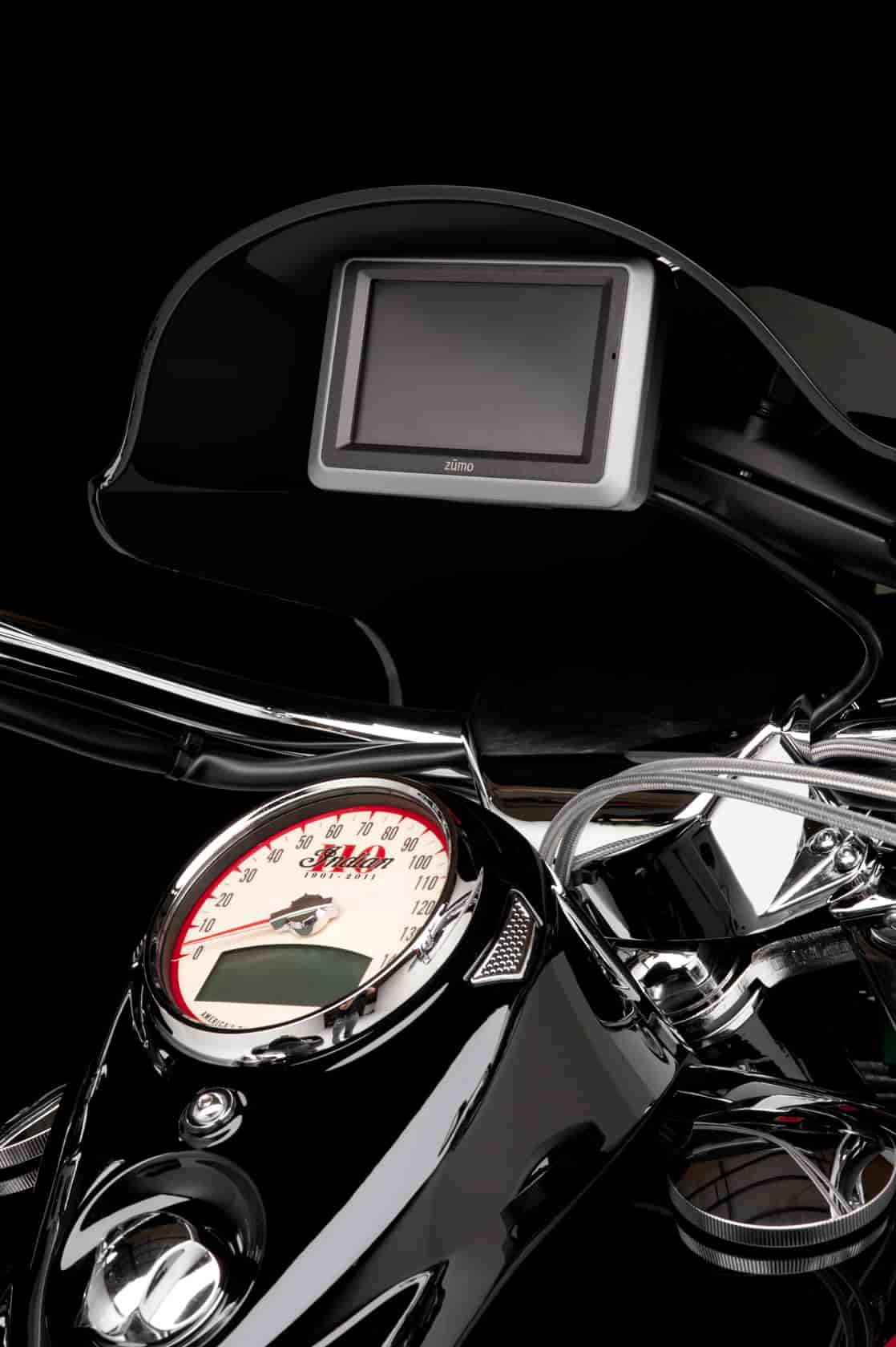

$999 Garmin Zumo 665 GPS
ELECTRICAL
