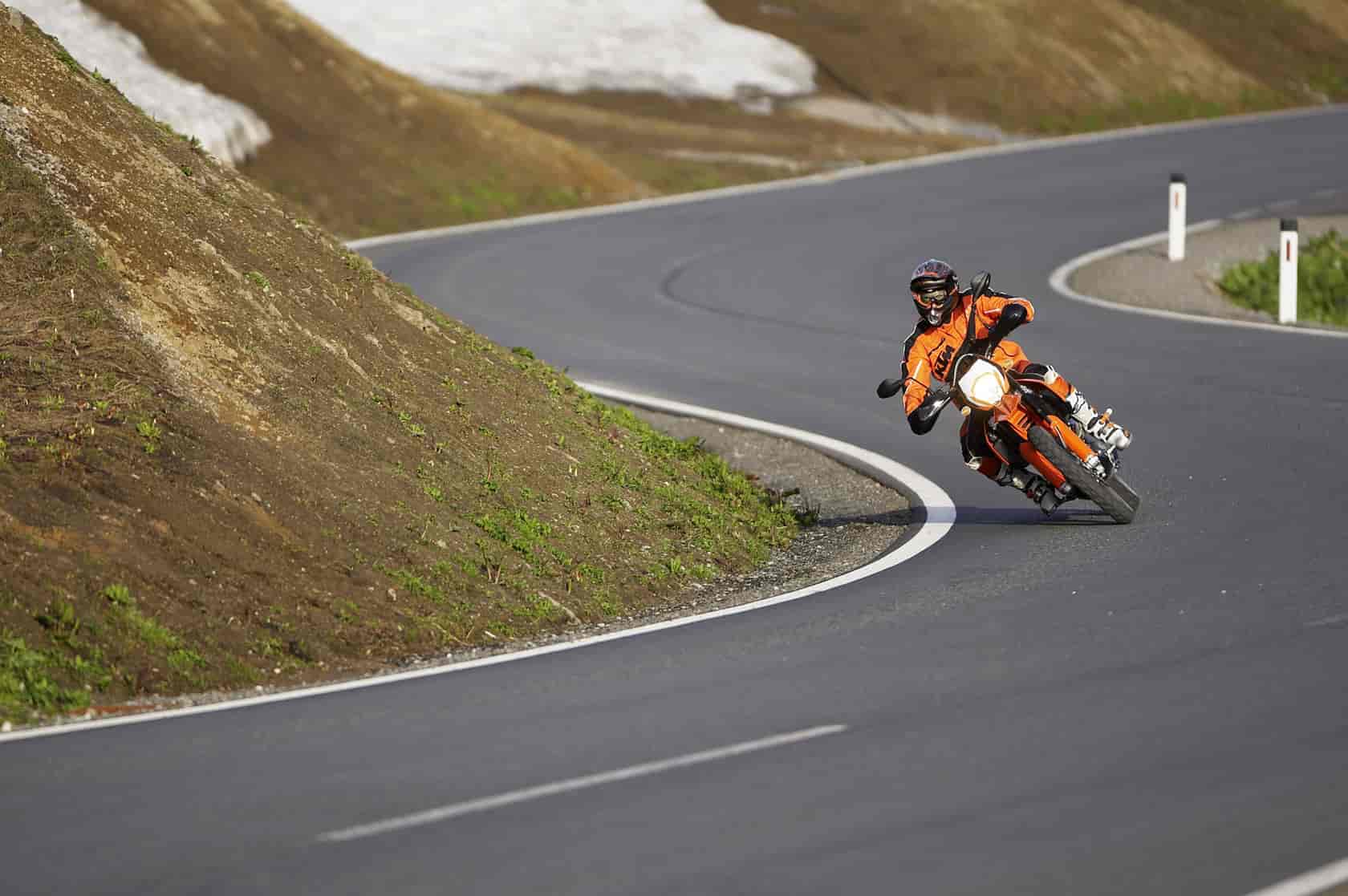

2010 KTM 690 Enduro R

2010 KTM 690 Enduro R

2010 KTM 690 Enduro R

2010 KTM 690 Enduro R

2010 KTM 690 Enduro R

– 2010 KTM 690 Enduro R

2010 KTM 690 Enduro R

Robust, light and the measure of all things in terms of power and performance: its power-to-weight ratio has been the decisive argument in the its class for years. No bike whips through the curves better and yet remains easily controllable. With its re-vamped chassis and broadly usable rev range, the 105 SX leaves the competition’s 4-strokes in the dust. Details like the adjustable CNC-machined triple clamp are normally available only on expensive factory bikes. But they’re standard equipment in our SX models.

2010 KTM 690 Enduro R – Specifications
MSRP: See Dealer

Engine type Single cylinder, 4-stroke
Displacement 654 cc
Bore x stroke 102 / 80 mm (4.02 / 3.15″)
Performance (homologated) 46.3 kW / 7500 rpm
Max. torque 64 Nm / 6000 rpm
Compression ratio 11.8:1
Starter/Battery E-Starter / 12 V 8.6 Ah
Transmission 6 gears, dog clutch engagement
Fuel Mixture Generation Keihin EMS with EPT (Electr. Power Throttle)
Control 4 V / OHC with roller rocker arms
Lubrication Pressure lubrication with 2 Eaton pumps
Engine lubrication Motorex, SAE 10W60
Primary drive 36:79
Final drive 15:45
Cooling Liquid cooled
Clutch APTC slipper clutch, hydraulically operated
Motor Management Keihin EMS with EPT (Electr. Power Throttle)


Frame Chromium-Molybdenum trellis frame, powder coated
Subframe Self-supporting plastic tank
Handlebar Aluminium Ø 28 / 22 mm (1.10 / 0.87″), tapered
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP mono shock with Pro Lever Linkage
Suspension travel front/rear 275 / 275 mm (10.83 / 10.83″)
Front brake Brembo two piston, floating caliper, brake disc Ø 300 mm
Rear brake Brembo single piston, floating caliper, brake disc Ø 240 mm
Rims, front/rear 1.85 x 21” / 2.50 x 18”
Tires, front/rear 90/90-21″; 140/80-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Stainless steel silencer with regulated catalytic converter
Steering head angle 63°
Trail 115 mm (4.53″)
Wheel base 1498 ± 15 mm (58.98 ± 0.59″)
Ground clearance (unloaded) 300 mm (11.81″)
Seat height 930 mm (36.61″)
Tank capacity approx. 12 liters (3.17 gal) / 2.5 liters reserve (0.66 gal)
Weight (no fuel) approx. 138.5 kg (305.4 lbs)
