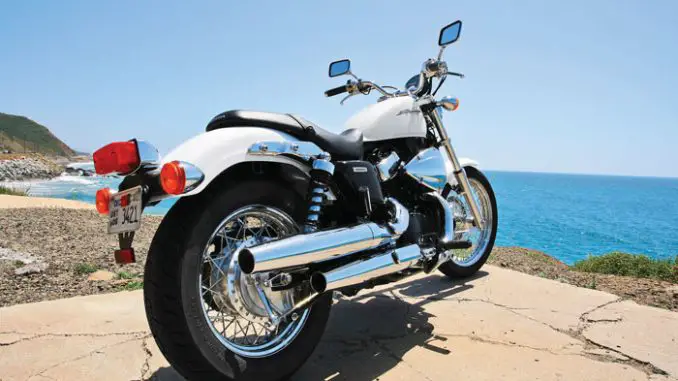

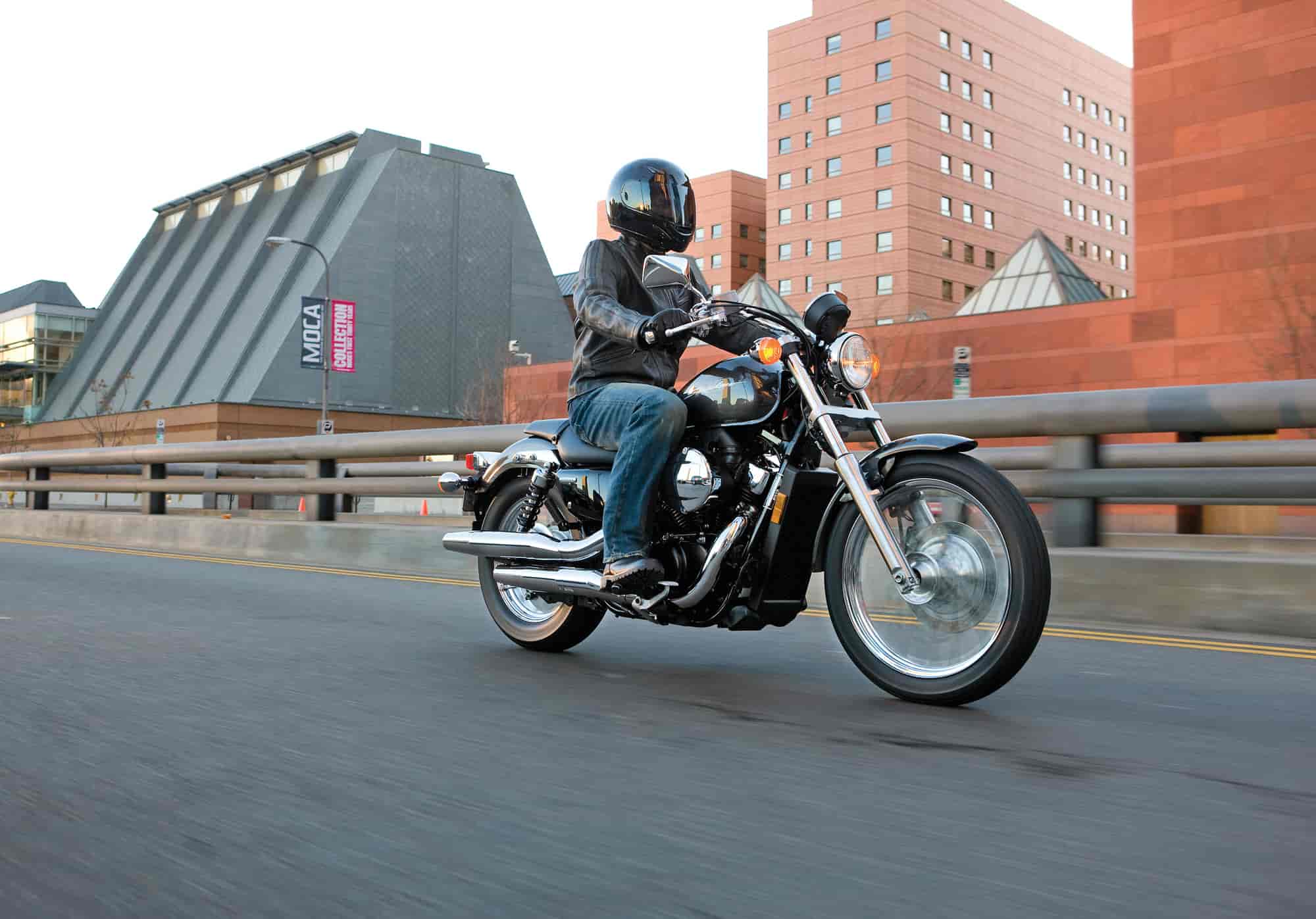

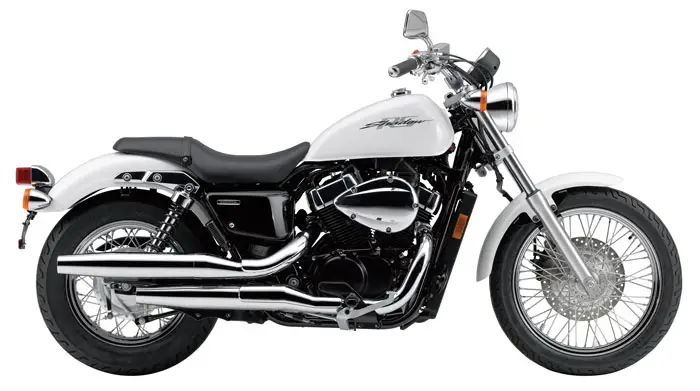

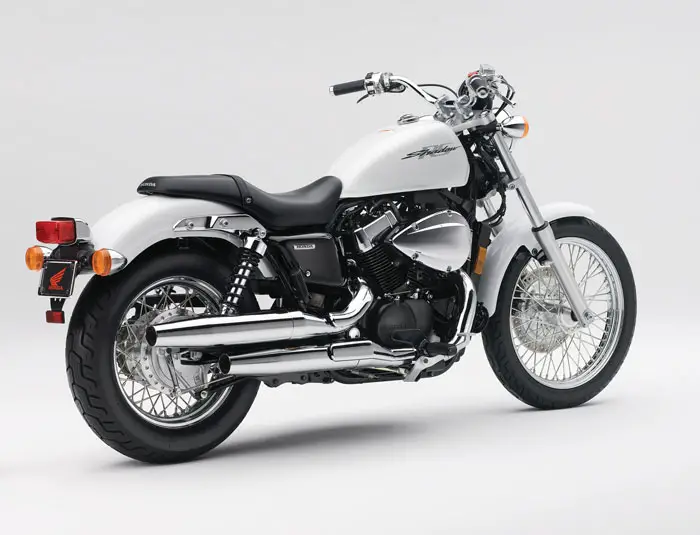

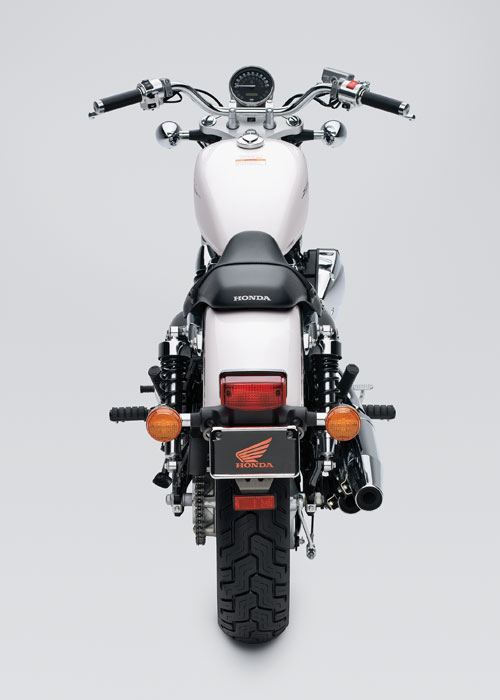

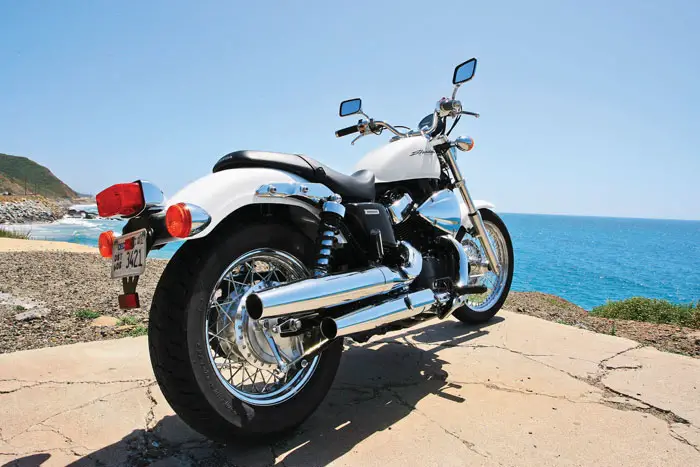

2010 Honda VT750RS Shadow RS

2010 Honda VT750RS Shadow RS

2010 Honda VT750RS Shadow RS

2010 Honda VT750RS Shadow RS

2010 Honda VT750RS Shadow RS

2010 Honda VT750RS Shadow RS

2010 Honda VT750RS Shadow RS

2010 Honda VT750RS Shadow RS

– 2010 Honda VT750RS Shadow RS

2010 Honda VT750RS Shadow RS

Here’s rolling proof that classic ideas never go out of style: the 2010 Honda Shadow® RS. This agile and responsive V-twin roadster has clean, crisp lines and standard-style riding ergonomics that promise plenty of fun times ahead. The Shadow RS’s higher pegs enhance ground clearance, and its thoroughly modern liquid-cooled 745cc V-twin engine with Honda’s sophisticated Programmed Fuel Injection adds to the riding pleasure. Savor the open road aboard the Honda Shadow RS.

Available in dealers March 2010



Key Features/Benefits

– Classic roadster tank shape and seat are inspired by the world of flat-track racing.

– A torquey 745cc liquid-cooled V-twin engine pumps out a strong spread of power over a broad rpm range.

– Programmed Fuel Injection (PGM-FI) incorporates a single 34mm-diameter throttle body.

– Sturdy 41mm front fork features a large-diameter billet-aluminum triple-clamp for a distinctive look plus confident, neutral handling and a plush 4.6 inches of wheel travel.

– Classic dual-shock rear suspension features five-position spring preload adjustability and 3.5 inches of wheel travel for a smooth ride.

– Lightweight chain final-drive system continues classic styling theme.



Features/Benefits

Engine/Drivetrain

Programmed Fuel Injection (PGM-FI) incorporates a single 34 mm throttle body..

745 cc liquid-cooled V-twin engine produces impressive power over a broad rpm range..

Crankshaft features long-stroke design to produce strong V-twin feel and low-rpm torque peak..

Three-valve cylinder-head design utilizes two sparkplugs per cylinder for excellent combustion efficiency and high power output..

Lightweight chain final drive system continues the classic styling theme..

Finned cylinders enhance appearance and give a big-bike look..

Wide-ratio five-speed transmission..

Reliable electric starting system..

Ignition with electronic advance offers dependability..

Air-injection system reduces emissions by injecting air into the exhaust ports to ensure complete combustion.



Chassis/Suspension

Sturdy 41mm front fork features a large-diameter billet-aluminum triple-clamp for a distinctive look plus confident, neutral handling and a plush 117 mm (4.6 in.) of wheel travel..

Classic dual-shock rear suspension features five-position spring preload adjustability for a smooth ride.





Additional Features

Classic roadster tank shape and seat are inspired by the world of flat-track racing..

Brilliant 60-/55-watt halogen headlight..

Large custom-styled taillight and attractive retro-styled turn indicators..

Light weight and comfortable seating position make the Shadow RS perfect for all sorts or riding, whether you’re an experienced

rider or new to motorcycling..

1 year, unlimited mileage, freely transferable warranty.





Honda Genuine Accessories

– Boulevard Screen (smoke), Backrest (low/tall), Backrest Mounting Bracket, Backrest Trim (low/tall), Touring Bag (plain/studded), Rear Carrier, Custom Grips, Master Cylinder Cap, License Plate Frame, Outdoor Cycle Cover.





2010 Honda VT750RS Shadow RS – Specifications
MSRP: $TBA USD

Engine

Model: VT750RS

Engine Type: 745cc liquid-cooled 52° V-twin

Bore and Stroke: 79mm x 76mm

Compression ratio: 9.6:1

Valve Train: SOHC; three valves per cylinder

Induction: PGM-FI with automatic enrichment circuit, one 34mm throttle body

Ignition: Digital transistorized with electronic advance

Transmission: Wide-ratio five-speed

Final Drive: O-ring-sealed chain

Suspension
Front: 41mm fork; 4.6 inches travel
Rear: Dual shocks with five-position spring preload adjustability; 3.5 inches travel

Brakes
Front: Single 296mm disc with twin-piston caliper
Rear: Drum

Tires
Front: 100/90-19
Rear: 150/80-16

Wheelbase: 61.5 inches

Rake (Caster Angle): 32° 30′

Trail: 134mm (5.3 inches)

Seat Height: 29.4 inches

Fuel Capacity: 2.8 gallons, including 0.7-gallon reserve

Estimated Fuel Economy: 56 mpg
(Honda’s fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.)

Color: Metallic Gray, Pearl White

Curb Weight*: 507 pounds

*Includes all standard equipment, required fluids and full tank of fuel–ready to ride.

Meets current EPA standards.

California version meets current CARB standards and may differ slightly due to emissions equipment.





2010 Honda VT750RS Shadow RS – Canada Specifications
Canada MSRP: $8,899 CDN



Engine Type

Liquid-cooled 52-degree V-twin

Displacement

745 cc

Bore & Stroke

79 mm x 76 mm

Compression Ratio

9.6:1

Valve Train

Chain-driven SOHC, 3 valves per cylinder

Fuel Delivery

PGM-FI electronic fuel injection

Transmission

Wide-ratio five-speed

Final Drive

O-ring-sealed chain

Front Suspension

41 mm fork, 117 mm (4.6 in.) travel

Rear Suspension

Dual shocks with adjustable spring preload; 89 mm (3.5 in.) travel

Tires

100/90 – 19 front; 150/80 – 16 rear

Brakes

Front single 296 mm disc with dual-piston caliper; rear drum

Ground Clearance

N/A

Seat Height

747 mm (29.4 in.)

Wheelbase

1,562 mm (61.5 in.)

Curb Weight

230 kg (507 lb) including required fluids and full tank of gas – ready to ride

Fuel Capacity

10.6 litres, including 2.6-litre reserve

Colour

Heavy Grey Metallic

Warranty

1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
