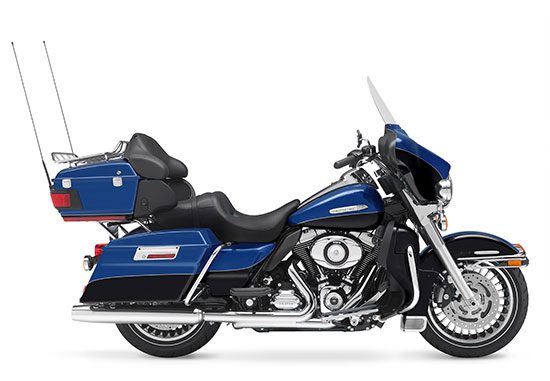

2010 Harley-Davidson Electra Glide Ultra Limited FLHTK

2010 Harley-Davidson Electra Glide Ultra Limited FLHTK

2010 Harley-Davidson Electra Glide Ultra Limited FLHTK

2010 Harley-Davidson Electra Glide Ultra Limited FLHTK

– 2010 Harley-Davidson Electra Glide Ultra Limited FLHTK

2010 Harley-Davidson Electra Glide Ultra Limited FLHTK

The new king of the Grand American Touring experience, the Electra Glide® Ultra Limited offers enhanced performance and features, with distinctive styling upgrades. The Twin Cam 103 engine that delivers 10 percent more torque than the Twin Cam 96™ engine offered in other Touring models.

The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s more-powerful engines.



Model Highlights

New Rubber-mounted Twin Cam 103™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI) and Electronic Throttle Control (ETC)
New Contrast Chrome, 28-spoke Cast Aluminum wheels with narrow whitewall tires
New Exclusive two-tone paint scheme in three color combinations
New Special FLHTK identifiers
New Helical cut 5th gear for improved transmission sound

– Black powder-coated powertrain with chrome covers
– Chrome 2-1-2 dual exhaust with tapered mufflers
– Bat-wing, fork-mounted fairing with clear, Lexan® windshield
– Smoked Lexan® adjustable fairing-mounted air deflectors
– Vented removable lower fairings with integral storage compartments
– Mid-frame air deflectors
– Chrome, low-profile fuel tank console
– Deep FL front fender with trim
– Stainless steel, classic touring handlebar
– One-piece, two-up Electra Glide® classic comfort stitch seat
– Passenger backrest with wrap-around armrests
– Injection-molded hard saddlebags with liners; 2.26 cu. ft. volume
– Injection Molded hard Tour-Pak® w/soft luggage liners, storage pockets, wrap-around rear tail/brake lights and 12-volt, 15 amp power supply; 2.26 cu. ft. volume
– Premium Tour-Pak luggage rack
– Titanium-faced, fairing-mounted electronic speedometer and tachometer plus fuel, voltage, oil pressure and ambient air temperature gauges with white LED lighting and larger font
– Heated hand grips
– 80-watt, four-speaker Advanced Audio System by Harman/Kardon wCD/MP3 player, and CB/
Intercom
– LED rear fender tip light
– Auxiliary passing lights



Key Features

The new king of the Grand American Touring experience, the Electra Glide® Ultra Limited offers enhanced performance and features, with distinctive styling upgrades. The Twin Cam 103 engine that delivers 10 percent more torque than the Twin Cam 96™ engine offered in other Touring models.

The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame
and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s
more-powerful engines.

– Twin Cam 103™ engine with Electronic Sequential Port Fuel Injection (ESTI) with heated O2 sensors and Electronic Throttle Control (ETC)
– Integrated oil cooler
– 6-Speed Cruise Drive® transmission with integrated Isolated Drive System (IDS)
– Dunlop® “Multi-Tread” rear tire construction extends tire life by 25 percent
– Brembo® 4-piston front and rear caliper with dual front rotor brake system
– Air-adjustable rear shocks
– Full-length rider footboards
– Height-adjustable passenger footboards
– Six-gallon fuel tank
– Anti-lock Braking System (ABS)
– Harley-Davidson® Smart Security System with hands-free security fob
– Electronic cruise control
– Optional Original Equipment Custom Color paint program







2010 Harley-Davidson Electra Glide Ultra Limited FLHTK – Specifications
USA MSRP: Two-Tones $24,699, Custom Colors $25,899
Canada MSRP: See Local Canadian Dealer For Pricing

Engine
Engine5 Air-cooled, Twin Cam 103™ with integrated oil cooler
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.88 in. x 4.38 in. (98.43 mm x 111.25 mm)
Displacement5 103 cu. in. (1690 cc)
Compression Ratio 9.7:1
Fuel System6 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump with oil cooler

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
o 1st 9.593
o 2nd 6.650
o 3rd 4.938
o 4th 4.000
o 5th 3.407
o 6th 2.875

Chassis
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic, triple-circuit damping
Rear Shocks Air-adjustable

Wheels7: Contrast Chrome, 28-spoke Cast Aluminum
o Front 17 in. x 3 in. (431.80 mm x 76.20 mm)
o Rear 16 in. x 5 in. (406.40 mm x 127.0 mm)

Brakes:
o Caliper Type 32 mm, 4-piston fixed front and rear
o Rotor Type (diameter x width): Patented, fixed rotors
o Front (dual) 11.81 in. x .20 in. (299.97 mm x 5.08 mm)
o Rear 11.81 in. x .28 in. (299.97 mm x 7.11 mm)
o Anti-Lock Braking System (option)

Available Suspension Travel:
o Front Wheel 4.60 in. (116.84 mm)
o Rear Wheel 3 in. (76.20 mm)
Engineered for Sidecar Use Available

Performance
Engine Torque8 (per SAE J1349):
o North America 102 ft. lbs. @ 3500 rpm (138.29 Nm @ 3500 rpm)
Lean Angle (per SAE J1168):
o Right 33°
o Left 31°

Fuel Economy9
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)
electric
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system
(585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Auxiliary Lamps Two @ 35W each (except where prohibited by law)
o Tail/Stop Lights 8W/28W (5W/21W)
o Turn Signal Lights 28W (21W) self-canceling
o Indicator Lamps
High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS
o Electric Power Outlet Tour-Pak® 12 volt – 15 amp power supply

Dimensions
Length 98.60 in. (2504.44 mm)
Overall Width 38.0 in. (965.20 mm)
Overall Height 61.0 in. (1549.40 mm)

Seat Height:
o Laden2 27.30 in. (693.42 mm)
o Unladen 30.70 in. (779.78 mm)
Ground Clearance 5.10 in. (129.54 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.69 in. (169.93 mm)
Wheelbase 63.50 in. (1612.90 mm)
Tires (Dunlop® Harley-Davidson Series, bias narrow whitewall):
o Front – D408F NW 130/80B17 65H
o Rear – D407 NW 180/65B16 81H
Fuel Capacity 6 gal. (22.71 L) (warning light at approximately 1 gal.)
Oil Capacity3 (w/filter) 4 qts. (3.78 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity4 1.40 qts. (1.32 L)

Weight:
o As Shipped 857 lbs. (388.74 kg)
o In Running Order 901 lbs. (408.69 kg)
o Gross Vehicle Weight Rating 1360 lbs. (616.90 kg)
o Gross Axle Weight Rating
o Front 500 lbs. (226.80 kg)
o Rear 927 lbs. (420.49 kg)

Color Options
Two-Tones
– Scarlet Red/Vivid Black
– Vivid Black/Black Ice Pearl
– Flame Blue Pearl/Vivid Black

Custom Colors
– Merlot Sunglo/Cherry Red Sunglo
– White Ice Pearl/Black Ice Pearl

U.S. MSRP
Two-Tones $24,699
Custom Colors $25,899

Warranty
Warranty10 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional fuel systems may vary by country and region.
6 U.S. and HDI markets, except Japan: Belt, 32/64 ratio.
7 Standard and optional wheels may vary by country and region.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.
