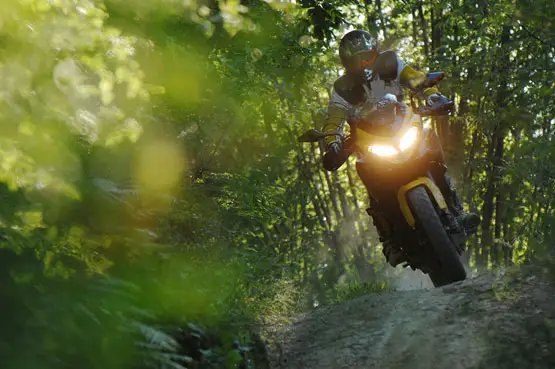

2010 Benelli Tre 1130K Amazonas

2010 Benelli Tre 1130K Amazonas

2010 Benelli Tre 1130K Amazonas

– 2010 Benelli Tre 1130K Amazonas

2010 Benelli Tre 1130K Amazonas

2010 Benelli Tre 1130K Amazonas – Specifications

ENGINE
TYPE In line 3 cylinders, 4-stroke, liquid cooled , 4 valves per cylinder double overhead camshaft, with balancer shaft
DISPLACEMENT 1131 cc
BORE x STROKE 88 x 62 mm
COMPRESSION RATIO 11.6:1
RATED OUTPUT 92 kW (123 cv) @ 9000 rpm
MAX. TORQUE 112 Nm (11.4 kgm) @ 5000 rpm
FUEL SUPPLY Electronic injection with three throttle bodies ø53 mm
EXHAUST SYSTEM With catalytic converter and oxigen sensor
CERTIFICATION Euro 3
CLUTCH Wet clutch
GEARBOX 6 speed
FINAL DRIVE Chain drive, ratio 16:37

CHASSIS
FRAME Decomposable, front steel trestle, rear aluminium alloy casting
FRONT SUSPENSION Ø48 mm upside-down fork, with hydraulic extension / compression and spring preload adjustments
FRONT SUSPENSION STROKE 175 mm
REAR SUSPENSION Steel trestle swingarm, progressive rear dumper with hydraulic extension and spring preload adjustments
REAR SUSPENSION STROKE 180 mm
FRONT BRAKE Twin floating disk ø320 mm with 4 piston calipers
REAR BRAKE Single disk ø255 mm with double piston caliper
FRONT RIM 3.00”x19”
REAR RIM 4.25”x17”
FRONT TYRE 110/80 – R19
REAR TYRE 150/70 – R17

SIZES
LENGHT 2200 mm
WIDHT EXCLUDING MIRRORS 865 mm
HEIGHT EXCLUDING MIRRORS 1370 mm
SEAT HEIGHT 840 mm
WHEELBASE 1530 mm
UNLADEN WEIGHT* 215 kg
ROAD READY WEIGHT** 240 kg
PERMITTED TOTAL WEIGHT 440 kg
USABLE TANK VOLUME 22 lt
RESERVE 4 lt

* without fluids
** According to guideline 93/93/CEE with all fluids, fuelled with at least 90% of usable tank volume

(Benelli Q.J. reserves the right to change technical specifications, equipment, set ups, and colours without prior notice.)
