2009 Victory Vision Tour

You are here: Index2009 Models — 2009 Victory Motorcycle Models

2009 Victory Vision Tour
Back to 2009 Victory Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

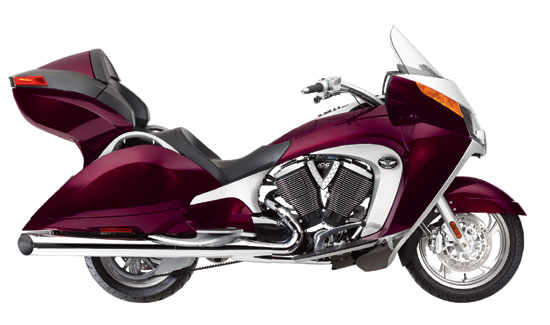

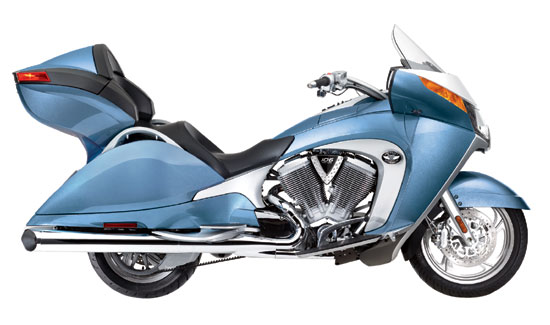

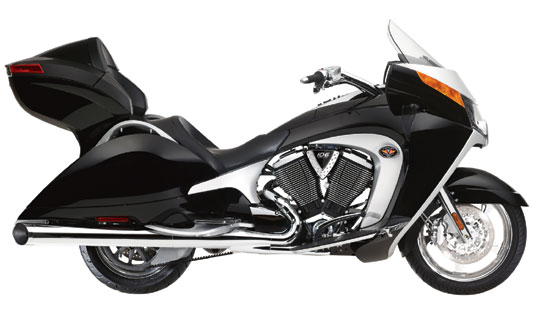

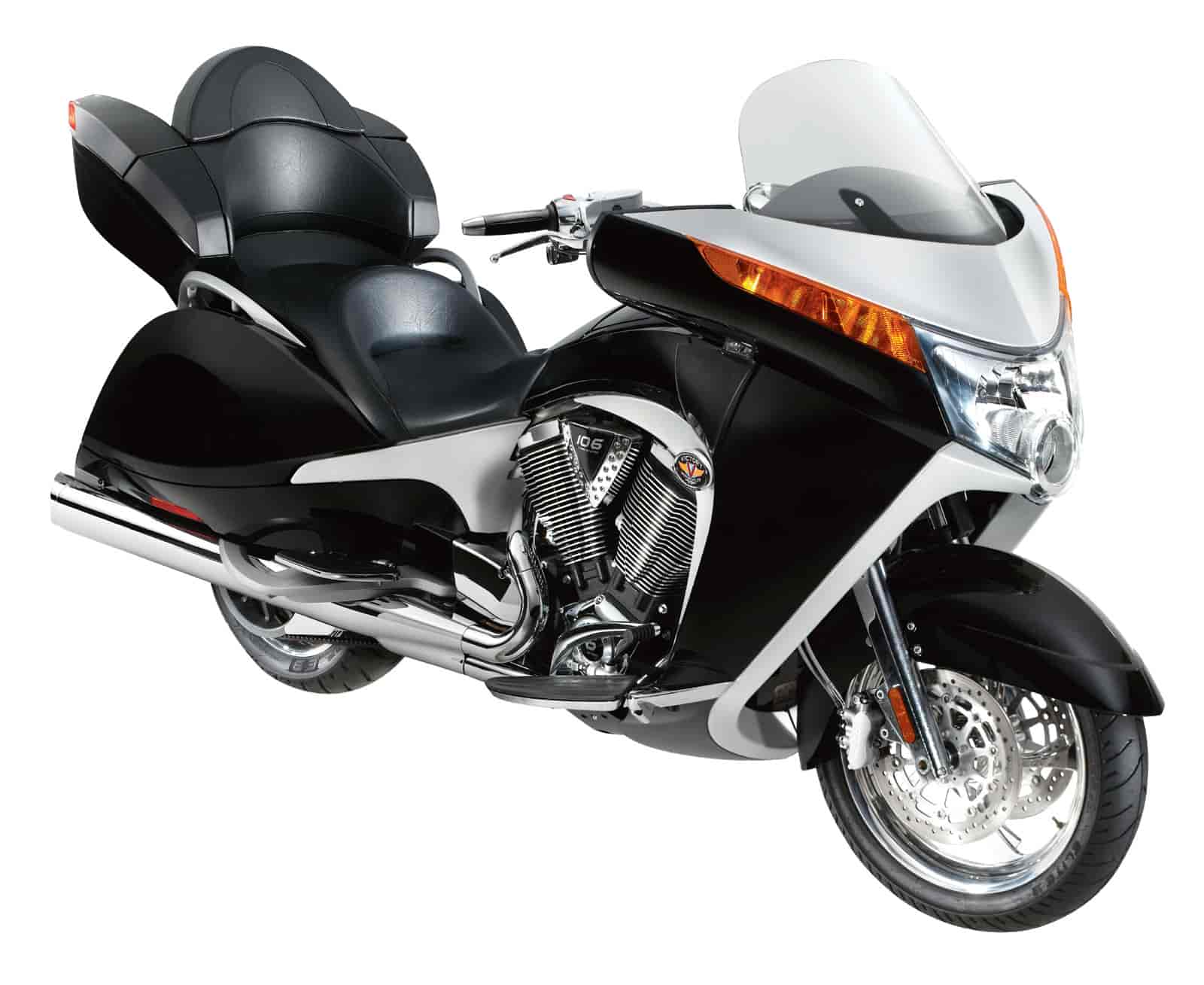

2009 Victory Vision Tour
2009 Victory Vision Tour

2009 Victory Vision Tour
2009 Victory Vision Tour

2009 Victory Vision Tour
2009 Victory Vision Tour

2009 Victory Vision Tour
2009 Victory Vision Tour

2009 Victory Vision Tour
2009 Victory Vision Tour

• 2009 Victory Vision Tour

2009 Victory Vision Tour

When the open road calls, answer it on one of these incredible Touring models. Great power, great comfort and great times await, so saddle up today and answer the call.


Features & Benefits

• Freedom 106 Cubic Inch V-Twin Engine

• Spacious trunk and side storage (29.2 gal. cap.)

• Modern console and controls

• Low 26.5″ driver seat height

• Ergonomcially-designed driver seat and passenger seat with backrest

• MP3 compatible







2009 Victory Vision Tour – USA Specifications
MSRP $19,999.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters

Displacement 106 ci (1,731 cc)

Bore x Stroke 101 x 108 mm

Compression Ratio 9.4:1

Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies

Clutch Wet, multi-plate

Cooling Air / oil

Exhaust Split dual exhaust with crossover


DIMENSIONS
Length 103.5 in. (2,629 mm)

Weight Dry: 849 lbs. (385 kg)

GVWR: 1,414 lbs. (641 kg)

Ground Clearance 5.8 in. (148 mm)

Wheelbase 65.7 in. (1,670 mm)

Fuel Capacity 6 gal. (22.7 l) with 1 gal. (3.8 l) reserve

Oil Capacity 5 qt. (4.75 l)

Seat Height 26.5 in. (673 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh

Primary Drive Gear drive with torque compensator

Final Drive Carbon fiber reinforced belt

Suspension Front: Conventional telescopic fork, 46 mm fork tube; 5.1 in. (130 mm) travel

Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, air adjustable; 4.7 in. (120 mm) travel


BRAKES/WHEELS/TIRES
Brakes Front: Dual 300 mm floating rotor with 3-piston calipers

Rear: 300 mm floating rotor with 2-piston caliper

Tires Front: 130/70R18 Dunlop Elite 3

Rear: 180/60R16 Dunlop Elite 3

Rake 29°

Trail 5.4 in. (137 mm)

Colors Black, Midnight Cherry, Blue Ice







2009 Victory Vision Tour – Canada Specifications
MSRP C$22,299.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters

Displacement 106 ci (1,731 cc)

Bore x Stroke 101 x 108 mm

Compression Ratio 9.4:1

Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies

Clutch Wet, multi-plate

Cooling Air / oil

Exhaust Split dual exhaust with crossover

DIMENSIONS
Length 103.5 in. (2,629 mm)

Weight Dry: 849 lbs. (385 kg)

GVWR: 1,414 lbs. (641 kg)

Ground Clearance 5.8 in. (148 mm)

Wheelbase 65.7 in. (1,670 mm)

Fuel Capacity 6 gal. (22.7 l) with 1 gal. (3.8 l) reserve

Oil Capacity 5 qt. (4.75 l)

Seat Height 26.5 in. (673 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh

Primary Drive Gear drive with torque compensator

Final Drive Carbon fiber reinforced belt

Suspension Front: Conventional telescopic fork, 46 mm fork tube; 5.1 in. (130 mm) travel

Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, air adjustable; 4.7 in. (120 mm) travel


BRAKES/WHEELS/TIRES
Brakes Front: Dual 300 mm floating rotor with 3-piston calipers

Rear: 300 mm floating rotor with 2-piston caliper

Tires Front: 130/70R18 Dunlop Elite 3

Rear: 180/60R16 Dunlop Elite 3

Rake 29°

Trail 5.4 in. (137 mm)

Colors Black, Midnight Cherry, Blue Ice
