2009 Victory Jackpot
Back to 2009 Victory Motorcycle Index Page
Click photos to enlarge.
They make great desktop images.

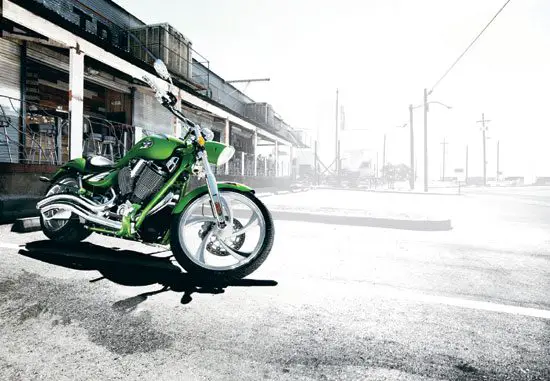

2009 Victory Jackpot
2009 Victory Jackpot
2009 Victory Jackpot
2009 Victory Jackpot
2009 Victory Jackpot
2009 Victory Jackpot
• 2009 Victory Jackpot
2009 Victory Jackpot
With unique styling that looks like it’s straight from the custom shop, these Custom Cruisers turn heads up and down the street and also deliver a great Victory riding experience.
New for 2009
– New Freedom 106 – 6 Speed
-Stage 2 Cams
-97 HP and 113 Ft Lbs of Torque
-New Stingray cast wheels are 17.8 lbs lighter
-New LED tail light is twice as bright
-New Headlight lighter and better pattern
-New one piece set
Key Features
-Xtreme Custom Cruiser introduced in 2006
-Fat rear tire w/ color matched frame and swing arm
-Radical paint & lots of chrome
Features & Benefits
• Freedom 106 Cubic Inch V-Twin Engine
• Ultra Fat 9.84 inch (250mm) rear tire
• Custom-inspired headlight
• Custom colour-matched frame
• Raised tip to tail spine
• 21″ custom front wheel
• Mutli LED Tail light
• 1 piece seat
• Stingray wheels
2009 Victory Jackpot – USA Specifications
MSRP $18,499.00
ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters
Displacement 106 ci (1,731 cc)
Bore x Stroke 101 x 108 mm
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies
Clutch Wet, multi-plate
Cooling Air / oil
Exhaust Staggered slash-cut dual exhaust with crossover
DIMENSIONS
Length 95.9 in. (2,435 mm)
Weight Dry: 649 lbs. (294 kg)
GVWR: 1,171 lbs. (531 kg)
Ground Clearance 5.3 in. (135 mm)
Wheelbase 66.3 in. (1,684 mm)
Fuel Capacity 4.5 gal. (17 l)
Oil Capacity 5 qt. (4.75 l)
Seat Height 25.7 in. (653 mm)
DRIVETRAIN
Transmission 6-speed overdrive constant mesh
Primary Drive Gear drive with torque compensator
Final Drive Carbon fiber reinforced belt
Suspension Front: Conventional telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3 in. (75 mm) travel
BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper
Rear: 300 mm floating rotor with 2-piston caliper
Tires Front: 90/90 21 Dunlop Elite 3
Rear: 250/40R18 Dunlop Elite 3
Rake 32.9°
Trail 4.9 in. (125 mm)
Colors Black, Boardwalk Blue, Sunset Red, Orange Crush with Extreme Graphics, Lucky Lime with Extreme Graphics
2009 Victory Jackpot – Canada Specifications
MSRP C$20,626.00
ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters
Displacement 106 ci (1,731 cc)
Bore x Stroke 101 x 108 mm
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies
Clutch Wet, multi-plate
Cooling Air / oil
Exhaust Staggered slash-cut dual exhaust with crossover
DIMENSIONS
Length 95.9 in. (2,435 mm)
Weight Dry: 649 lbs. (294 kg)
GVWR: 1,171 lbs. (531 kg)
Ground Clearance 5.3 in. (135 mm)
Wheelbase 66.3 in. (1,684 mm)
Fuel Capacity 4.5 gal. (17 l)
Oil Capacity 5 qt. (4.75 l)
Seat Height 25.7 in. (653 mm)
DRIVETRAIN
Transmission 6-speed overdrive constant mesh
Primary Drive Gear drive with torque compensator
Final Drive Carbon fiber reinforced belt
Suspension Front: Conventional telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3 in. (75 mm) travel
BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper
Rear: 300 mm floating rotor with 2-piston caliper
Tires Front: 90/90 21 Dunlop Elite 3
Rear: 250/40R18 Dunlop Elite 3
Rake 32.9°
Trail 4.9 in. (125 mm)
Colors Black, Boardwalk Blue, Sunset Red, Orange Crush with Extreme Graphics, Lucky Lime with Extreme Graphics
