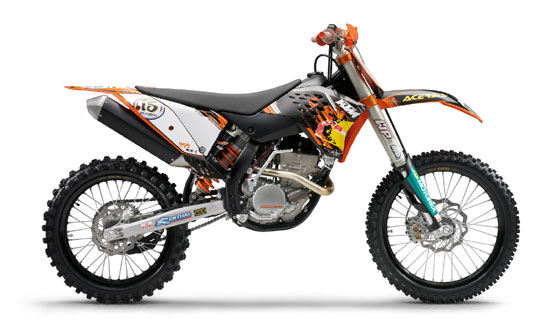

2009 KTM 250SX-F

2009 KTM 250SX-F

2009 KTM 250SX-F

• 2009 KTM 250SX-F

2009 KTM 250SX-F

With the ultra-powerful 250 cc DOHC power unit, this lively four-stroke forges ahead into areas where some two-strokes surrender. Integral engine protector, the orange anodized triple clamps and cool race graphics put the 250 SX-F in a class of its own!

2009 KTM 250SX-F – Specifications

Engine type Single cylinder, 4-stroke
Displacement 248.6 cc
Bore x stroke 76 x 54.8 mm (2.99 x 2.16″)
Compression ratio 12.8:1
Starter Kickstarter
Transmission 6 gears
Carburetor Keihin FCR MX 39
Control 4 V / DOHC with finger followers
Lubrication Pressure lubrication
Engine lubrication Motorex, SAE 10W50
Primary drive 22:68
Final drive 13:48
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium
Handlebar Renthal, Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300 / 335 mm (11.81 / 13.19″)
Brakes, front/rear Disc brakes 260 / 220 mm (10.24 / 8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 19″ Excel
Tires, front/rear 80/100-21″; 100/90-19″
Chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1475 ± 10 mm (58.07 ± 0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 8 liters (2.11 gal)
Weight (no fuel) approx. 98 kg (216 lbs)
