2009 Harley-Davidson Peace Officer Heritage Softail Classic

You are here: Home — 2009 Models — 2009 Harley-Davidson Motorcycle Models

2009 Harley-Davidson Peace Officer Heritage Softail Classic
Back to 2009 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

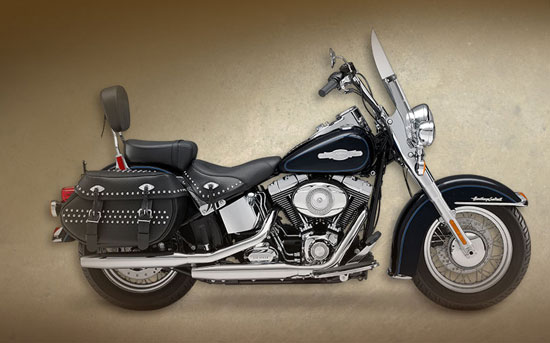

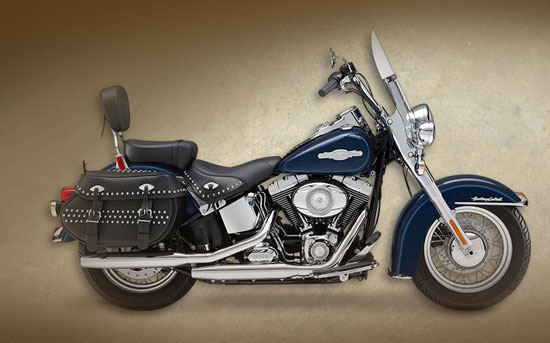

2009 Harley-Davidson Peace Officer Heritage Softail Classic

2009 Harley-Davidson Peace Officer Heritage Softail Classic

– 2009 Harley-Davidson Peace Officer Heritage Softail Classic

2009 Harley-Davidson Peace Officer Heritage Softail Classic

PEACE OFFICER SPECIAL EDITION
Harley-Davidson offers these motorcycles as a proud tribute to law enforcement personnel.



MOTORCYCLES DESIGNED TO HONOR THOSE WHO SERVE
Harley-Davidson® Peace Officer and Firefighter Special Edition motorcycles are offered as a
proud tribute to law enforcement and firefighter personnel for use in their off duty hours.

Harley-Davidson offers a limited number of these exclusive Special Edition models, available
only to active and retired members of the law enforcement and firefighter profession. These
motorcycles feature distinctive designs and special graphics that allow these riders to travel
down the highway in style while displaying their professional pride in a unique and satisfying way.



NEW IN 2009
NEW STYLING
on Heritage Softail Classic Special Editions.
NEW FRAME AND SWINGARM
on Road King and Ultra Classic Electra Glide Special Editions.
INCREASED LOAD CAPACITY
on Road King and Ultra Classic Electra Glide Special Editions.
NEW COLOR OPTION
Firefighter Special Edition available in Vivid Black with gold and red pinstripes.
NEW CHROME LOW PROFILE CONSOLE
NEW HALF MOON RIDER FOOTPADS
NEW RETOOLED SADDLEBAGS
NEW SCULPTERED PASSENGER PILLION

ALSO AVAILABLE
– FLHR ROAD KINGR PEACE OFFICER SPECIAL EDITION
– FLSTF FAT BOYR PEACE OFFICER SPECIAL EDITION
– FLSTC HERITAGE SOFTAILR CLASSIC FIREFIGHTER SPECIAL EDITION
– FLHTCU ULTRA CLASSICR ELECTRA GLIDER FIREFIGHTER SPECIAL EDITION







2009 Harley-Davidson Peace Officer Heritage Softail Classic – Specifications

U.S. UNITS

DIMENSIONS U.S. UNITS
Length 94.5 in.
Seat Height
Laden 1 25.5 in.
Unladen 27.1 in.
Ground Clearance 5.10 in.
Rake Steering Head/Trail 31° / 5.80 in.
Wheelbase 64.5 in.
Track Width N/A
Fuel Capacity 5.0 gal.
Oil Capacity 3.5 qt.
Weight
Dry Weight 718.0 lbs.
Running Order 765.0 lbs.
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 96B™
Displacement 96.00 cu. in.
Bore x Stroke 3.75 in. / 4.38 in.
Engine Torque 3 87.90 ft lbs @ 2750 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.2:1
Miles per Gallon 5
ESPFI 54 hwy / 35 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.312
2nd 6.421
3rd 4.774
4th 3.926
5th 3.279
6th 2.79

WHEELS/TIRES
Wheels 6
Front Chrome, Laced Steel
Rear Chrome, Laced Steel
Wheel Option Chrome, Profile Laced Aluminum
Tire Size
Front MT90B16 72H
Rear 150/80B16 71H

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Indicator Lamps 7 High beam, front fender running lights, neutral, low oil pressure, turn signals, engine diagnostics, security system6 (optional), 6-speed, low fuel warnings
Reverse Function N/A

CHASSIS
Brakes 4-piston front and 2-piston rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 26° / 29°
Exhaust System Chrome, staggered shorty exhaust w/ dual mufflers

COLOR OPTIONS
Vivid Black; Solid Dark Peace Officer Blue

PRICING 8
MSRP
Black $18,187
Color $18,532
Two-Tone $ N/A
Custom Color $ N/A
Security $345
Wheel Option $500
ABS Option $ N/A
Reverse Option $ N/A
Cruise Control $ N/A
California Emissions $200
Freight $330



METRIC UNITS

DIMENSIONS METRIC UNITS
Length 2400.30 mm
Seat Height
Laden 1 647.70 mm
Unladen 688.34 mm
Ground Clearance 129.54 mm
Rake Steering Head/Trail 31° / 147.32 mm
Wheelbase 1638.30 mm
Track Width N/A
Fuel Capacity 18.93 L
Oil Capacity 3.31 L
Weight
Dry Weight 325.68 kg
Running Order 347.00 kg
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 96B™
Displacement 1584 cm³
Bore x Stroke 95.25 mm x 111.25 mm
Engine Torque 3 119.19 Nm @ 2750 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.2:1
Liters per 100 KM
ESPFI 4.36 hwy / 6.72 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.312
2nd 6.421
3rd 4.774
4th 3.926
5th 3.279
6th 2.79

WHEELS/TIRES
Wheels 5
Front Chrome, Laced Steel
Rear Chrome, Laced Steel
Wheel Option Chrome, Profile Laced Aluminum
Tire Size
Front MT90B16 72H
Rear 150/80B16 71H

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Indicator Lamps 6 High beam, front fender running lights, neutral, low oil pressure, turn signals, engine diagnostics, security system6 (optional), 6-speed, low fuel warnings
Reverse Function N/A

CHASSIS
Brakes 4-piston front and 2-piston rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 26° / 29°
Exhaust System Chrome, staggered shorty exhaust w/ dual mufflers

COLOR OPTIONS
Vivid Black; Solid Dark Peace Officer Blue

PRICING 7
MSRP
Black $18,187
Color $18,532
Two-Tone $ N/A
Custom Color $ N/A
Security $345
Wheel Option $500
ABS Option $ N/A
Reverse Option $ N/A
Cruise Control $ N/A
California Emissions $200
Freight $330

1 Measurement reflects 180 lb./81.7 kg operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered.
All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed.

Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information.

All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
