2007 Harley-Davidson FXDB Dyna Street Bob

– 2007 Harley-Davidson FXDB Dyna Street Bob

2007 Harley-Davidson FXDB Dyna Street Bob

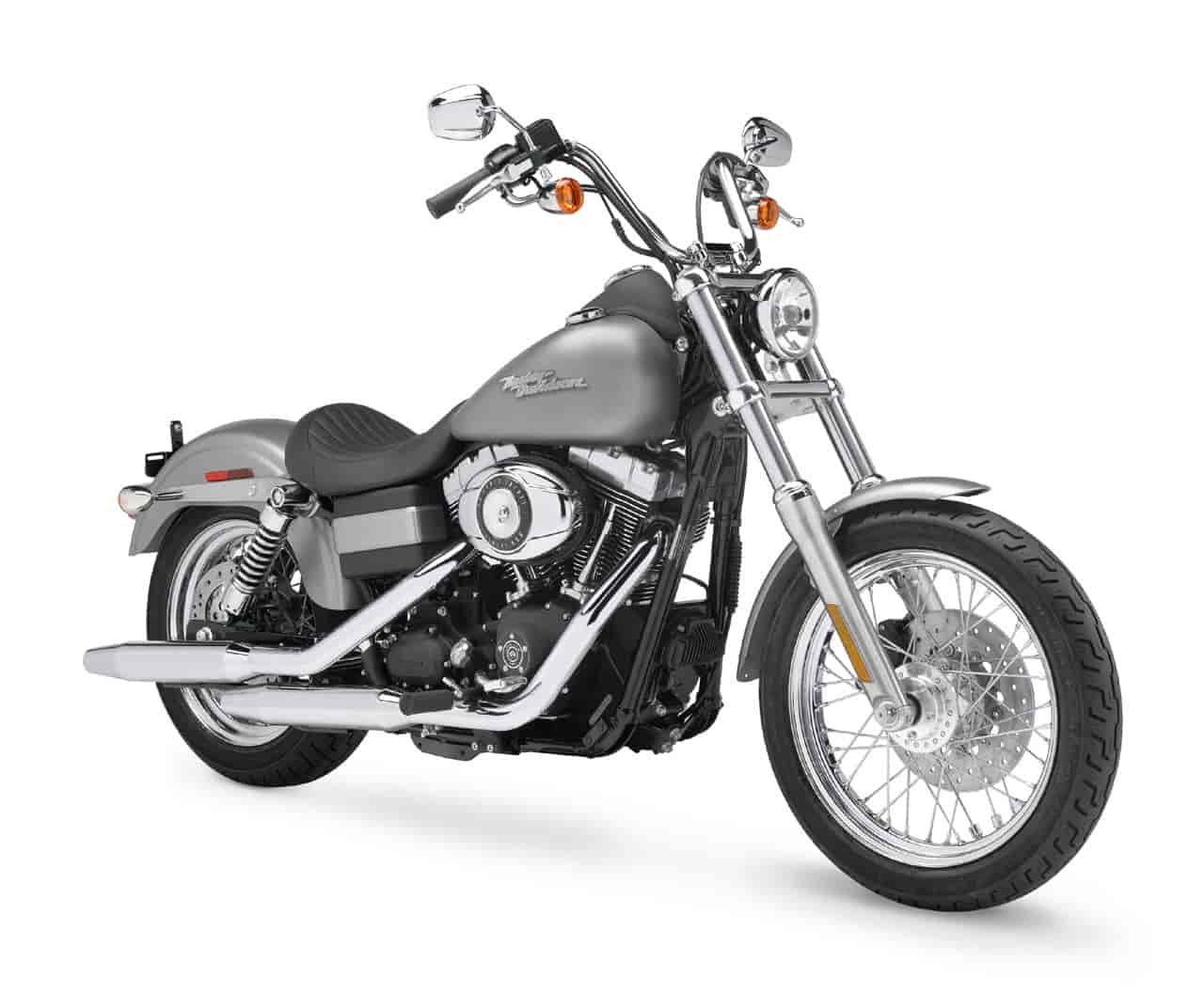

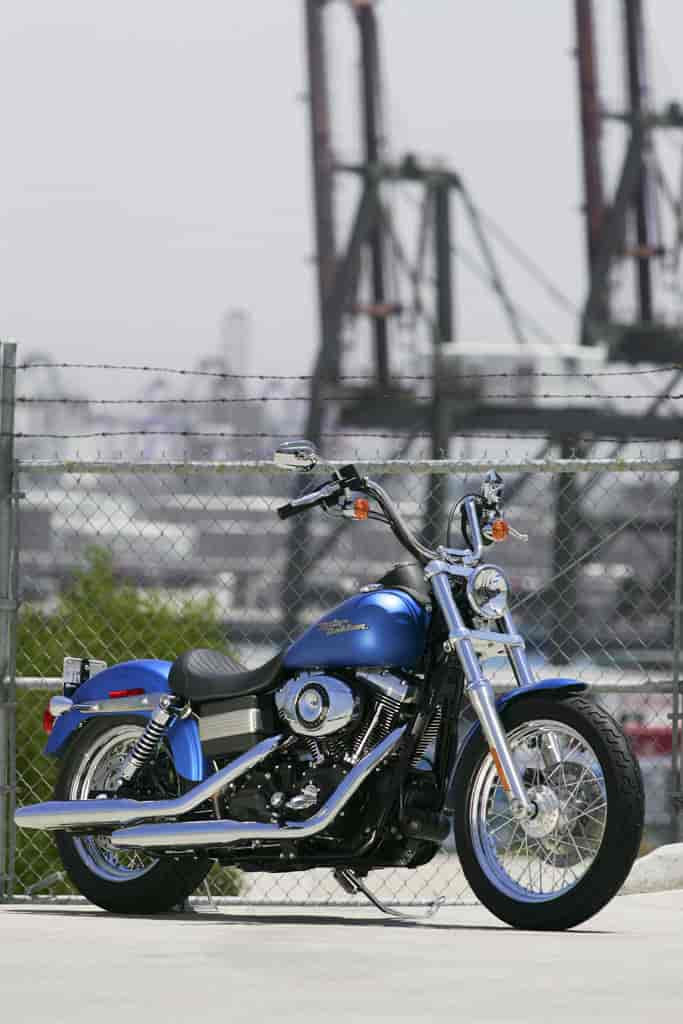

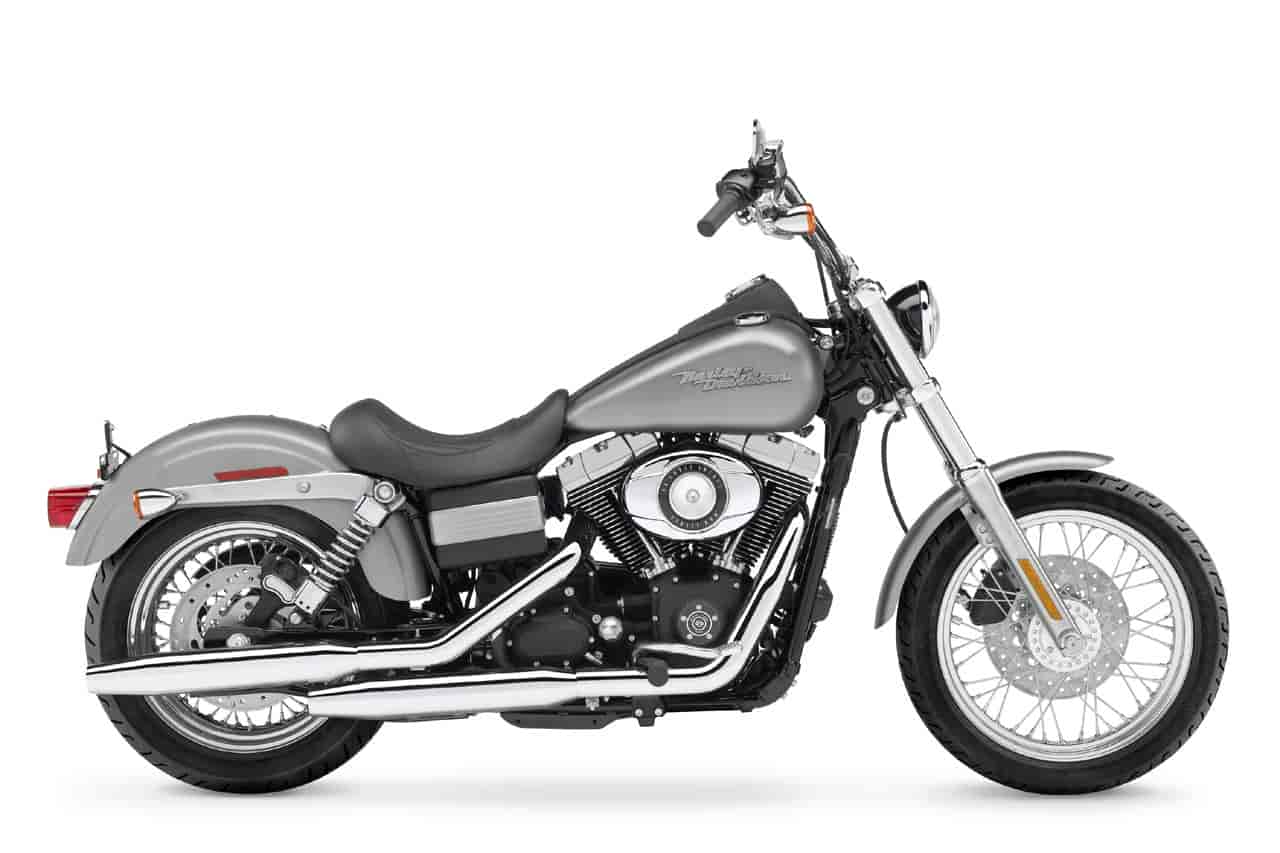

FXDB Dyna™ Street Bob™ Model Overview
The 2007 FXDB Dyna Street Bob again proves less can be more taking minimalist styling cues from the post-World War II “bobber” movement and the custom choppers of the 1970s to a modern motorcycle. The Street Bob shuns components like a passenger seat and pegs. A solo seat at 25.8 inches high clearly states that this is a motorcycle for the individualist. Features like a mini ape-hanger handlebar, the classic Fat Bob fuel tank, a wrap-around rear fender and Chrome, Laced Steel wheels combine with the Twin Cam 96 engine for a stylish and powerful ride. A wrinkle-black finish applied to the battery box, console and belt guard completes the street-ready look. The Street Bob is available in six solid colors and a new Olive Pearl/Vivid Black two-tone.

FXDB Street Bob features:

New vibration-isolated Twin Cam 96 engine with ESPFI
Black powder-coated engine with polished covers
Chrome, staggered shorty dual exhaust
6-speed Cruise Drive transmission
Enhanced clutch lever interlock operations
Redesigned gauges with clock, 6-speed indictor light and LED
49mm forks
29-degree fork angle/29-degree steering head angle

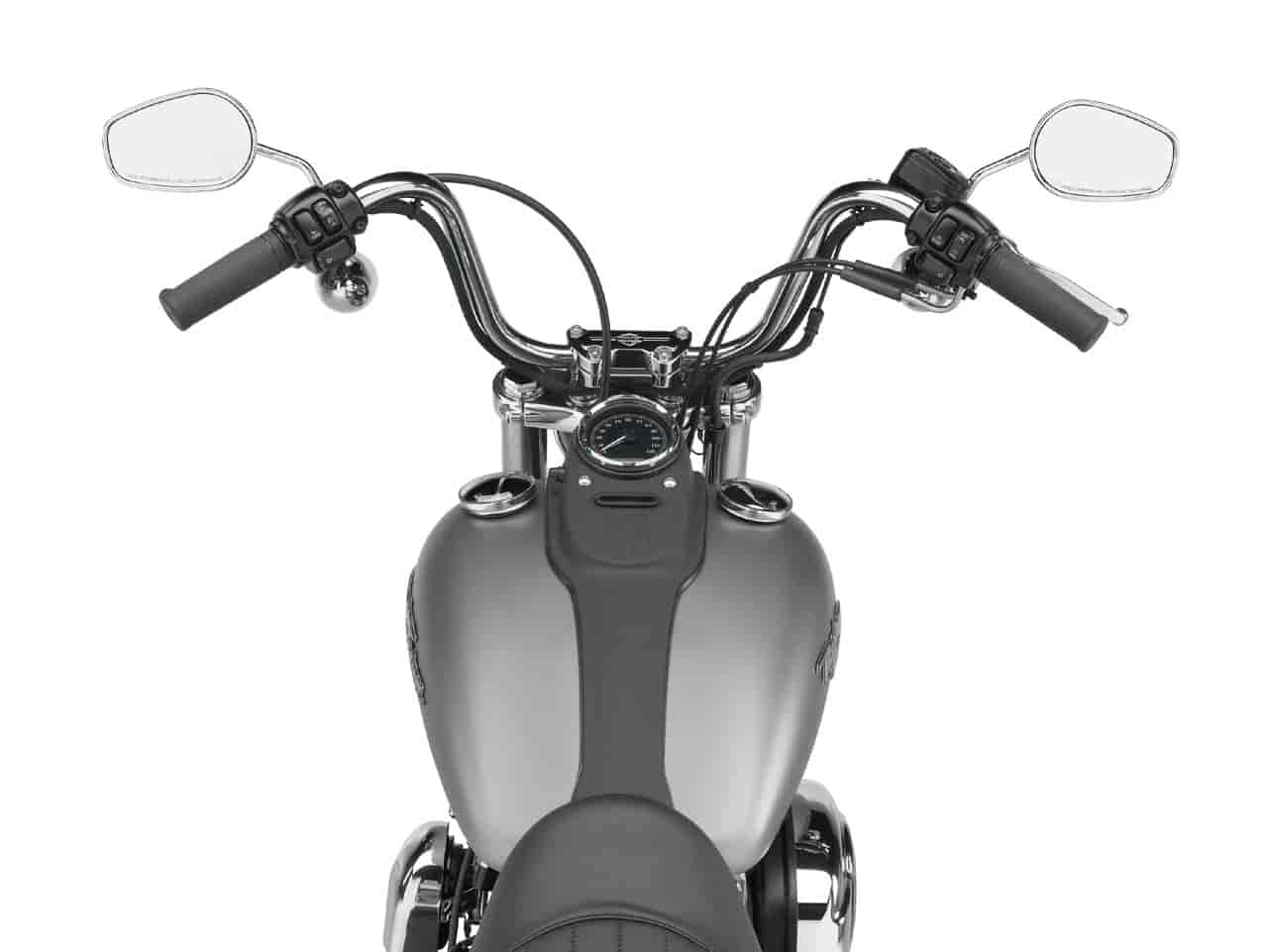

Mini ape-hanger handlebar
Fat Bob fuel tank
Street Bob air cleaner trim ring
Special tank emblems
Wrinkle-black console with turn signal indicators
Wrinkle-black battery cover with polished trim
Wrinkle-black belt guard
Tank-mounted speedometer
Solo seat
Mid-mount foot controls

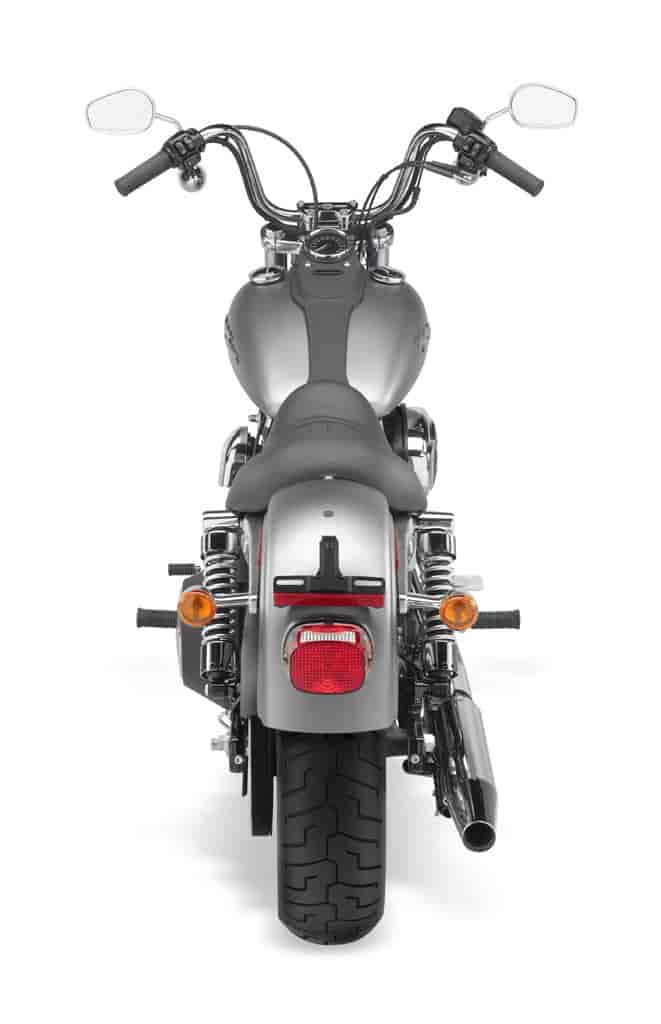

Wrap-around rear fender
160mm rear tire
Chrome, Laced Steel wheels

SPECIFICATIONS:

Dimensions
Length 92.8 in. (2358.0 mm)
Overall Width 37.5 in. (953.0 mm)
Overall Height 50.4 in. (1279.0 mm)
Seat Height:
– Laden2
– Unladen
25.8 in. (655.3 mm)
26.8 in. (680.0 mm)
Ground Clearance 5.6 in. (142.0 mm)
Rake (steering head) 29°
Fork Angle 29°
Trail 4.7 in. (119.4 mm)
Wheelbase 64.2 in. (1630.0 mm)
Tires (Dunlop® Harley-Davidson Series, blackwall):
– Front – D401F
– Rear – K591
100/90-19 57H
160/70B17 73V
Fuel Capacity 4.8 gal. (18.2 L)
(warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3.0 qts. (2.8 L)
Transmission Capacity 1.0 qts. (.95 L)
Primary Chain Case
Capacity11
1.0 qts. (.95 L)
Weight:
– As Shipped
– In Running Order
– Gross Vehicle Weight
Rating
634 lbs. (288 kg)
667 lbs. (303 kg)
1085 lbs. (492 kg)

Engine
Engine Air-cooled, Twin Cam 96®
Valves Pushrod-operated, overhead valves
with hydraulic, self-adjusting lifters;
two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in.
(95.25 mm x 111.25 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System3 Electronic Sequential Port Fuel Injection
(ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive10 Belt, 32/66 ratio
Clutch 9-plate, wet
Transmission 6-speed Cruise Drive™
Gear Ratios (overall):
– 1st
– 2nd
– 3rd
– 4th
– 5th
– 6th
U.S. HDI JPN
9.312 9.312 9.030
6.421 6.421 6.266
4.774 4.774 4.630
3.926 3.926 3.807
3.279 3.279 3.179
2.790 2.790 2.706

Chassis
Frame Mild steel, tubular frame; rectangular
section backbone; stamped, cast, and
forged junctions; forged fender supports;
MIG welded
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Forks 49 mm with polished aluminum fork triple
clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels4: Chrome, Laced Steel
– Front
– Rear
19 in. x 2.5 in. (482.6 mm x 63.5 mm)
17 in. x 4.5 in. (431.8 mm x 114.3 mm)
Brakes:
– Caliper Type
– Rotor Type
(diameter x width):
– Front (floating)
– Rear
4-piston front and rear
Patented, uniform expansion rotors
11.8 in. x .20 in. (300.0 mm x 5.08 mm)
11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
– Front Wheel
– Rear Wheel
5.0 in. (127.0 mm)
3.1 in. (78.7 mm)

Performance
Engine Torque (per SAE J1349)5:
– North America 91 ft. lbs. @ 3000 rpm
(123 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
– Right
– Left
30.5°
31°
Fuel Economy9
(EPA urban/highway test)
34/53 mpg (6.92/4.4 L/100 km)

Electric
Battery (per Battery Council
International Rating)
Sealed, maintenance-free, 12V,
19-amp/hour, 270 cca
Charging Three-phase, 40-amp system
(493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter
motor engagement
Lights (as per country regulation):
– Headlamp
(quartz halogen)
– Tail/Stop Lights
– Turn Signal Lights
– Indicator Lamps
55-watt low beam, 60-watt high beam
8W/28W (5W/21W)
28W (21W) self-canceling
High beam, directional light bar, neutral,
low oil pressure, engine diagnostics,
turn signals, security system6 (optional),
6-speed , low fuel warnings
Electric Power Outlet Standard

Styling / Convenience
Engine Trim Black powder-coated with
Wrinkle-Black treatment
Exhaust System Chrome, staggered shorty duals
Oil Tank Under transmission
Fenders and Supports Front: sport style with painted brace;
Rear: sport wrap-around with stainless
steel brushed finish supports
Foot Supports
and Controls
Mid-mounted rider footpegs with brake
and shift levers; no passenger footpegs
Handlebars Stainless steel, mini “ape-hanger” style
Seat Solo
Instruments Electronic speedometer (tank-mounted) with
odometer, time-of-day clock on odometer,
resettable tripmeter, fuel gauge with low
fuel warning light, low oil pressure indicator
light, diagnostics readout, LED lights,
6-speed indicator light
Fork Lock Barrel key on steering head; common
with ignition key
Hazard Warning Integrated into turn signal controls
Smart Security System Optional, next-generation hands-free
security fob; operates based on proximity
to vehicle

Colors12
Vivid Black, Black Cherry Pearl, Deep Cobalt Pearl, Black Denim, Pacific
Blue Denim (new), Pewter Denim (new), Olive Pearl/Vivid Black (new)

Warranty
Warranty7 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km),
every 5,000 miles (8,000 km) thereafter8

1 Harley-Davidson reserves the right to discontinue models or change specifications at
any time without incurring any obligations. Vehicle specifications may vary by country
and region depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL 883 models).
Standard and optional fuel systems may vary by country and region.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 North America security system includes immobilizer; outside North America the security
system includes immobilizer and siren.
7 See motorcycle owner’s manual for complete details.
8 Inspections of certain systems and components are required at 2,500 mile
(4,000 km) intervals.
9 Estimated from fuel economy tests on a sample motorcycle from the corresponding
family conducted by Harley-Davidson under ideal laboratory conditions. Not all
motorcycle models undergo fuel economy testing. Fuel economy and mileage may
vary among motorcycle models within a family. Your mileage may vary depending on
your personal riding habits, weather conditions, trip length, vehicle condition and vehicle
configuration, and other conditions. Break-in mileage may vary.
10 U.S. and HDI markets except Japan: Belt 32/64 ratio.
11 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
12 Availability may vary from dealer to dealer, and is subject to change without notice.
