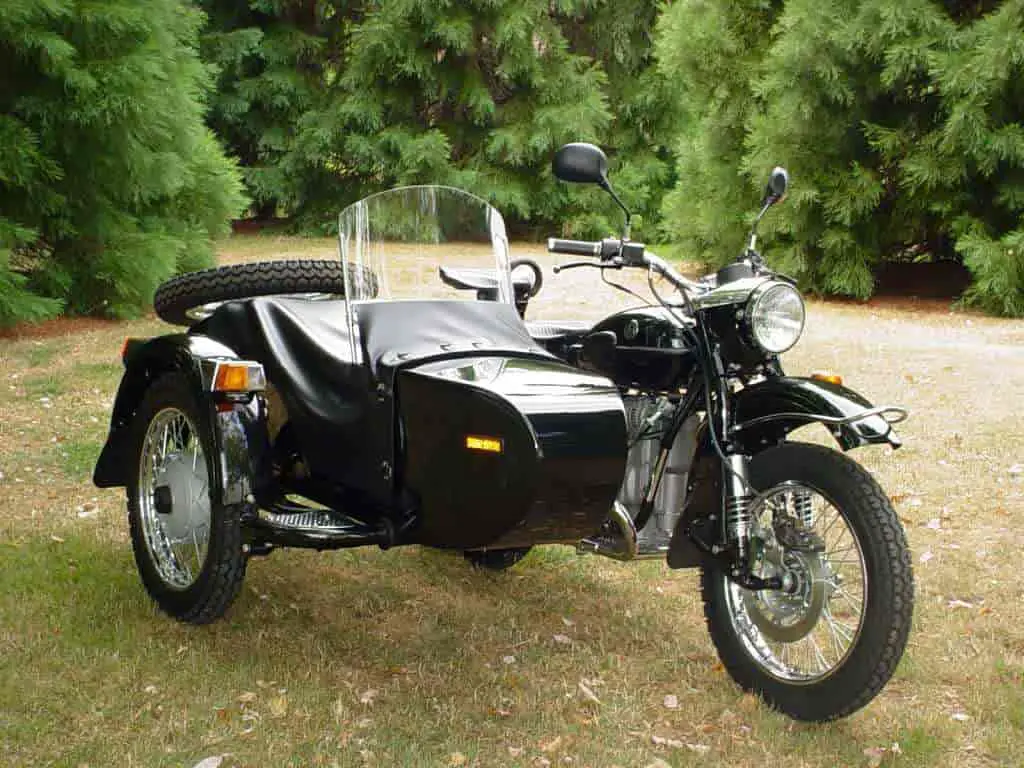

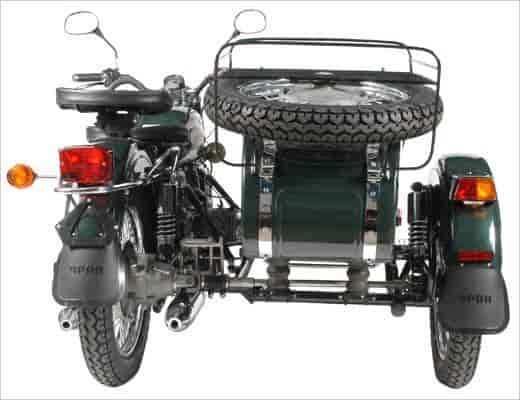

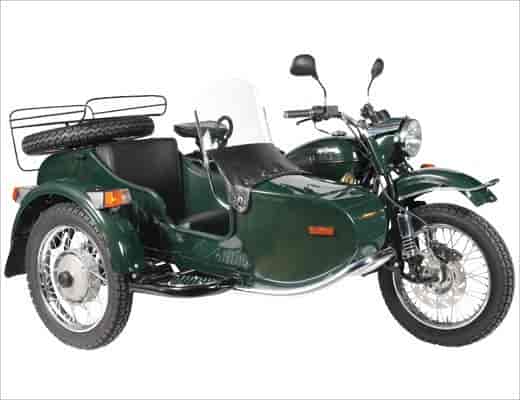

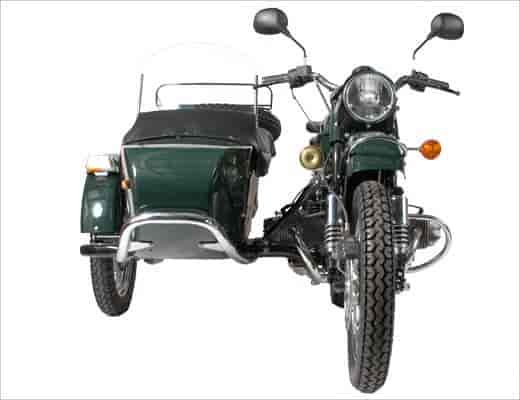

Total Motorcycle Website – 2006 Ural Patrol

– 2006 Ural Patrol

Want to get dirty? Looking for a bike that can travel those snow-covered roads like no other? Look no further.

In a class by itself, the Patrol is the only motorcycle in the world manufactured with an on-demand sidecar drive. This street legal ATV gives you the ability to switch between single-wheel drive and the unbelievable traction of dual-wheel drive with the flip of a lever!

SPECIFICATIONS:

Patrol with Sidecar

Model number IMZ-8.1037
Dimensions (L x W x H) 2580 x 1700 x 1100 mm / 101.6 x 66.9 x 43.3 inches
Seat height 785 mm / 30.9 inches
Road clearance 125 mm / 4.9 inches
Dry weight 335 kg / 739 lbs
Est. max speed 95 km/h / 62 mph
Engine OHV Air-cooled, four-stroke, flat twin cylinder
Bore & Stroke 78 & 78 mm
Compression ratio 8.6:1
Displacement 745 cc
Rated HP @ 5600 RPM 40
Carburetion Twin KEIHIN L 22 AA Carburetors
Clutch Dry double disc
Rated Torque @ 4000 RPM 52 Nm / 38 ft-lbs
Alternator (14 Volt) 35 Amps / 300 Watts
Starting Electric and Kick-start
Gearbox 4 forward, 1 reverse, shaft drive
Fuel 91 Octane Unleaded
Tank Capacity 19 liters / 5.0 US gallons
Front Brakes Front – BREMBO disk brake
Rear and Sidecar Brakes Rear and sidecar wheel – IMZ drum brake
Ignition Electronic
Front suspension Leading link forks
Rear suspension Hydraulic spring shock absorbers
Wheels Chrome steel spokes and cast aluminum hubs, Front, rear & sidecar 19″
Special features Engageable sidecar drive shaft
