2006 Triumph Tiger

You are here: HomeNew 2006 Models — 2006 Triumph Motorcycle Models

2006 Triumph Tiger
Back to 2006 Triumph Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

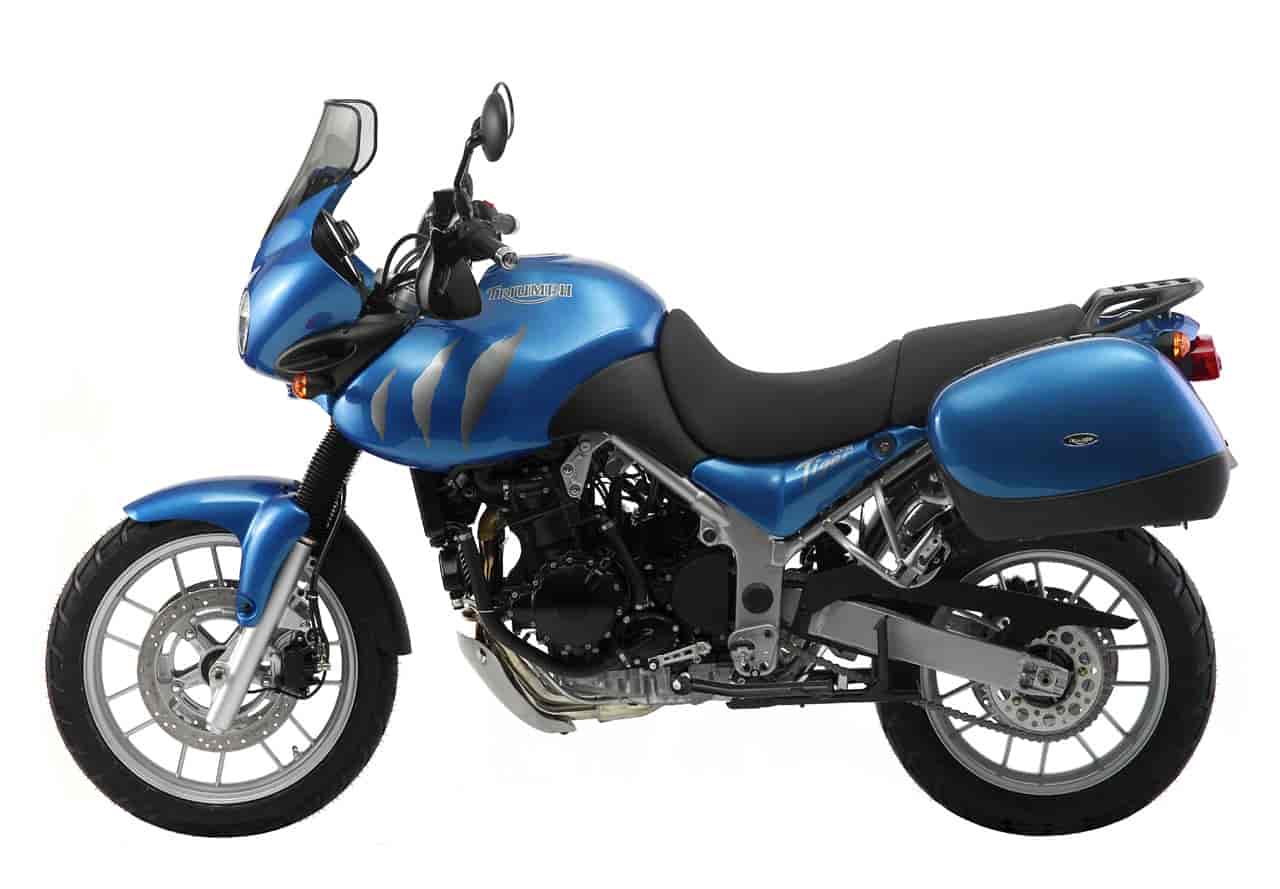

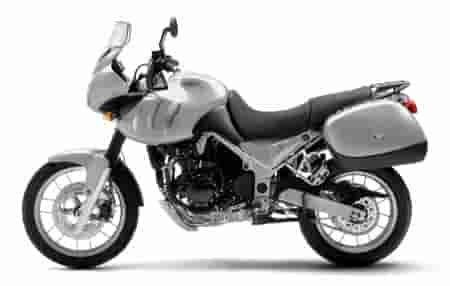

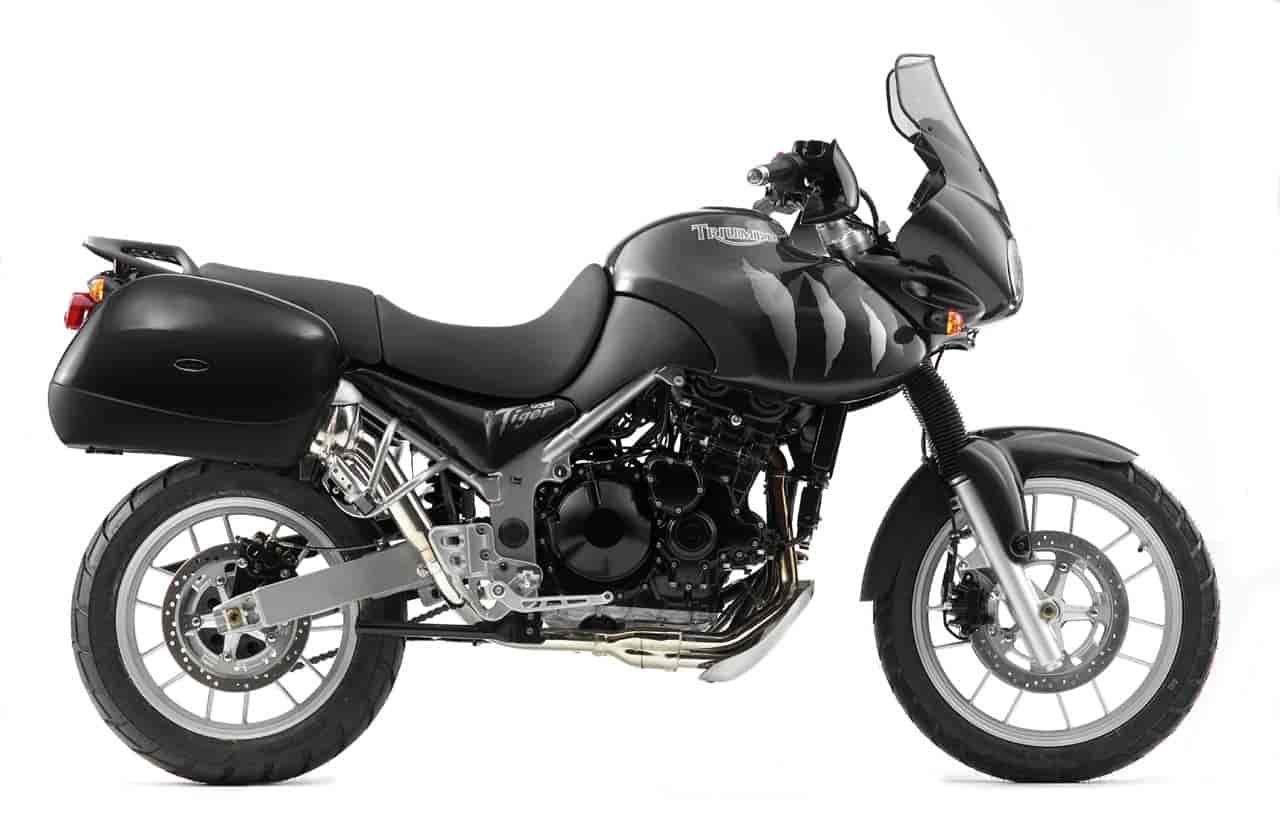

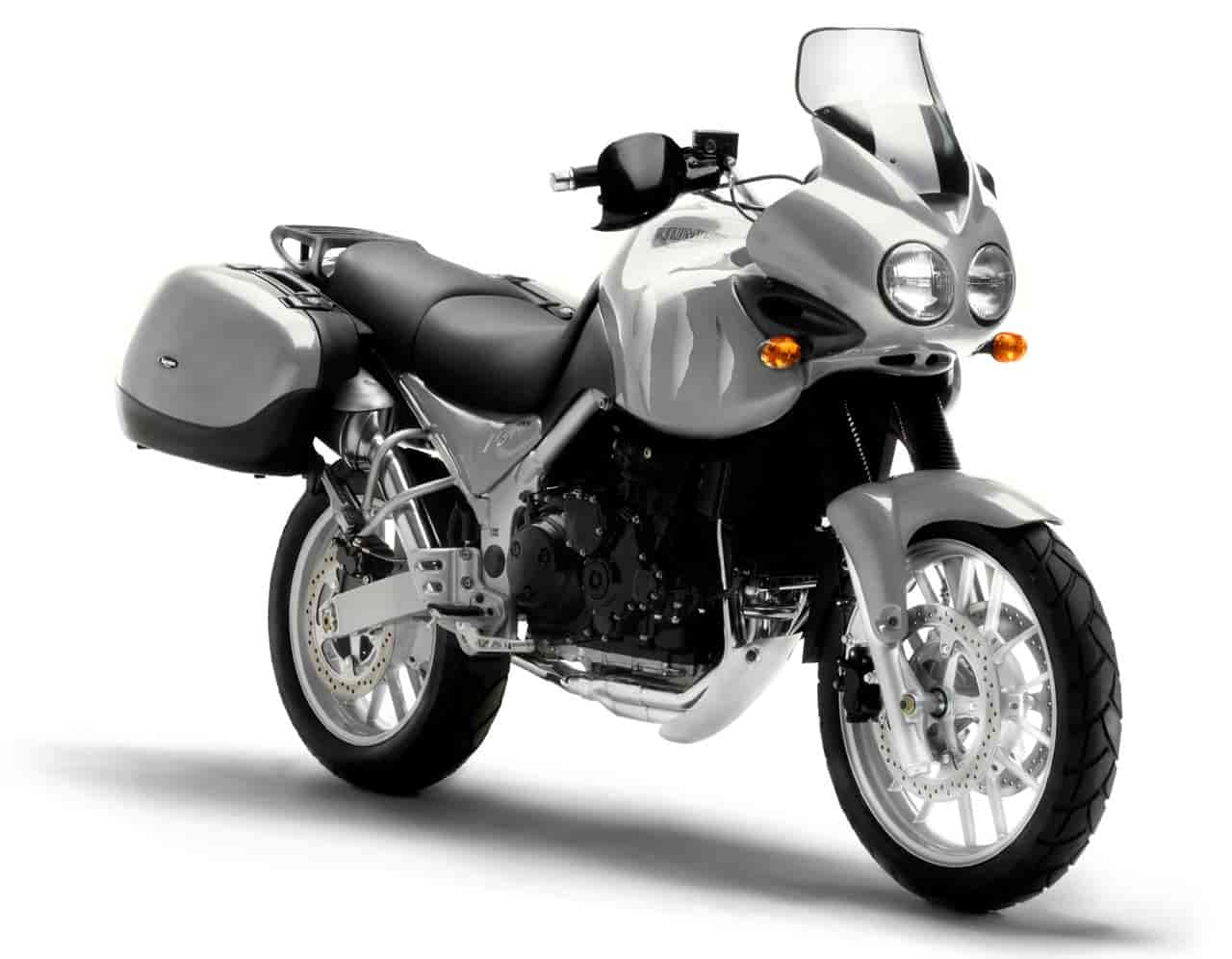

2006 Triumph Tiger
2006 Triumph Tiger

2006 Triumph Tiger
2006 Triumph Tiger

2006 Triumph Tiger
2006 Triumph Tiger

2006 Triumph Tiger
2006 Triumph Tiger

2006 Triumph Tiger
2006 Triumph Tiger

– 2006 Triumph Tiger

2006 Triumph Tiger

Changes for 2006:
– New cylinder head and crankcases with revised cooling hose routing for a visually tidier engine
– Backlash eliminator gear for reduced noise and vibration
– Revised gear change internals
– New Jet Black and Caspian Blue colour options



Features

The Tiger is one of the ultimate do-it-all motorcycles that can tour continents two-up, commute effortlessly or scythe a set of corners. At its core is a seminal fuel-injected, 955cc, three-cylinder engine – revised for 2006 with a new cylinder head, crankcases and visually neater exterior – punching out a solid 105PS peak power output matched by a walloping 92Nm torque. Further refinement is added by a backlash eliminator gear and slicker shifting gearbox. The Tiger’s motor is the very definition of real-world drivability. Its character instantly involves the rider and its unflagging, completely linear response can always be relied upon.

An upright, comfortable riding position gives a commanding view of the road ahead and scenery flashing by. The Tiger’s quick steering frame geometry has rake set at 25.8°, trail at 92mm with a wheelbase of 1515mm. The compliant front forks employ single rate springs while the rear shock’s spring preload can be remotely adjusted. The cast, 14-spoke, aluminium wheels take tubeless tyres – 110/80 V19 front and 150/70 V17 rear.

The Tiger’s rugged enduro styling exudes toughness and the far horizon is the Tiger’s destination. It thrives on an all-day riding challenge and lives for the journey, two-up and fully loaded. But when it comes to a sinuous, twisting switchback or daily commute to work the Tiger’s equally at home.

With practical touches like the large 24 litre (6.3 gallon US) fuel tank, lockable hard cases, hand guards, heated grips and centre stand fitted as standard plus the efficient, frame mounted fairing to keep the windblast and weather at bay the Tiger’s usability factor multiplies. The seat height also adjusts through a 20mm range. As with all Triumphs, an extensive range of accessories is available – including soft luggage and gel seats. Silver frame and wheels complement the three colour options of Jet Black, reintroduced by popular demand, Aluminium Silver and Caspian Blue.

It’s been said that the journey is sometimes as important as the destination. The Tiger’s one of those bikes that helps prove this theory. There are very few genuine all-round motorcycles around – the Tiger is one of them.



Colour Options

Jet Black
Caspian Blue
Aluminium Silver



Triumph Accessories

Panniers Tank Bag
Top Box Higher Screen
Top Box Back Rest Sports Screen
Pannier Inner Bags Centre Stand
Accessory Silencer (for off road use only) Heated Grips
Gel Seat – Rider All Weather Bike Cover
Gel Seat – Pillion Alarm/Immobiliser



Specification

Engine Type Liquid-cooled, DOHC, in-line 3-cylinder
Capacity 955cc
Bore/Stroke 79 x 65mm
Compression Ratio 11.65:1
Fuel System Multipoint sequential electronic fuel injection
Ignition Digital – inductive type – via electronic engine management system
Primary Drive Gear
Final Drive X ring chain
Clutch Wet, multi-plate
Gearbox 6-speed
Frame Tubular steel perimeter
Swingarm Twin-sided, aluminium alloy
Wheels Front Cast, 14-spoke, 19 x 2.5in
Rear Cast, 14-spoke, 17 x 4.25in
Tyres Front 110/80 V 19
Rear 150/70 V 17
Suspension Front 43mm forks
Rear Monoshock with remotely adjustable preload and rebound damping
Brakes Front Twin 310mm discs, 2 piston calipers
Rear Single 285mm disc, 2 piston caliper
Length 2250mm (88.6in)
Width (Handlebars) 860mm (33.8in)
Height 1390mm (54.7in)
Seat Height 840-860mm (33.1-33.8in)
Wheelbase 1515mm (59.6in)
Rake/Trail 25.8º/87.9mm
Weight (Dry) 215kg (474lbs)
Fuel Tank Capacity 24 litres (6.3 gal US)
Maximum Power 106PS (105bhp) at 8,900 rpm
Maximum Torque 98Nm (71ft.lbf) at 5,700 rpm

PERFORMANCE MEASURED AT CRANKSHAFT TO DIN 70020
