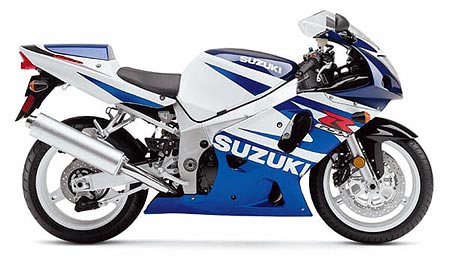

2002 Suzuki GSX-R600M Telefonica

Back to 2002 Suzuki Motorcycle Index Page

Click photo to enlarge.
It makes a great desktop image.

2002 Suzuki GSX-R600M Telefonica



– 2002 Suzuki GSX-R600M Telefonica

2002 SUZUKI SUPERSPORT MACHINES:
GSX-R600, 750, 1000 & TL1000R

If there ever was a family of motorcycles that “owned the racetrack” the GSX-R line is it. Not surprising considering the thousands of GSX-R motorcycles sold worldwide since the model’s inception, and their popularity at all levels of roadracing. The complete line of high performance GSX-R’s is here for 2002 featuring the supersport GSX-R600, the superbike GSX-R750 and the open-class GSX-R1000. Rounding out the supersport line-up is the TL1000R – a V-twin powered machine with outstanding performance on the street or the track.



GSX-R600/GSX-R600M Telefonica: MIDDLEWEIGHT MONSTER

The GSX-R600 is back for 2002 with several bold new looks and the proven performance that you’ve come to expect from this lightweight machine. New features for 2002 include; new bolt-on bungee hooks, a new polished stainless steel exhaust pipe, and both headlights are now operational in low beam mode. Building on the proven performance of the GSX-R750, the fuel injected GSX-R600 has been designed to be the lightest, fastest and best handling 600 on the market, bar none.

Also new for ’02, Suzuki is proud to announce the Team Telefonica Movistar Suzuki Limited Edition GSX-R600M. The Telefonica Movistar Limited Edition GSX-R600 replicates the exact look of the Suzuki RGV-500 that Kenny Roberts used to win the 500cc World Championship, combined with the proven performance of the incredible GSX-R600 for the street.

Although the basic engine design is based on the successful GSX-R750, the GSX-R600 has many unique parts including the cylinder head and block, valves, camshafts, cam chain, crankshaft, connecting rods, wrist pins, pistons, clutch assembly and most of the transmission gears. To improve engine output and throttle response, the GSX-R600 features an electronic fuel injection system with the Suzuki Dual Throttle Valve System (SDTV). This system features two butterfly valves per throttle body and uses an electronic servo motor to control the secondary valves. As the rider opens the primary valves via the throttle cable the throttle body mounted servo motor progressively opens the secondary valves to maintain maximum intake velocity at all engine speeds.

In an effort to keep the GSX-R600 lightweight and agile, a twin spar aluminum allow frame is utilized along with a bolt on subframe and lightweight aluminum swingarm. Front forks are lightweight, fully adjustable, feature a conventional design and are positioned to reduce frontal area of the GSX-R for maxi-mum performance. The rear suspension features an aluminum-bodied shock absorber, with a full array of adjustments as well as a ride height adjustment bracket at the top mount. Wheels are lightweight 17-inch aluminum-type equipped with radial tires front and rear. Brakes are lightweight 4-piston caliper units with aluminum pistons and dual 320 mm rotors, while a single 220 mm rear disc brake works with a dual opposed piston caliper. Wrap it all up in a clean and aerodynamic package with twin headlights, step-motor-powered instruments and you’ve got the 2002 GSX-R600.

The 2002 Suzuki GSX-R600M Telefonica, own the racetrack!



GSX-R600/GSX-R600M Telefonica (K2) AT A GLANCE

Suggested Retail: $7.999.00/ $8,249.00
Engine Type: 4-stroke, liquid-cooled
Bore and Stroke: 67.0 mm x 42.5 mm
Front Brake: Dual Hydraulic Disc
Rear Brake: Single Hydraulic Disc
Wheelbase: 1400 mm (55.1 in.)
Dry Weight: 163 kg (359 lbs)



Specifications:

2002 GSX-R 600
Overall Length: 2,040 mm (80,3 in)
Overall Width: 715 mm (28,1 in)
Overall Height: 1,135 mm (44,6 in)
Seat Height: 830 mm (32,3 in)
Ground Clearance: 130 mm (5,1 in)
Wheelbase: 1,400 mm (55.1 in)
Dry Weight: 163 kg (359 lbs)
Engine type: Water-cooled 599 cc inline-4, DOHC, 16 valves. 115 hp (85 kW)/ 13 000 rpm, 67.6 Nm / 10.800 rpm.

2002 GSX-R 600 M Telefonica
Overall Length: 2,040 mm (80,3 in)
Overall Width: 715 mm (28,1 in)
Overall Height: 1,135 mm (44,6 in)
Seat Height: 830 mm (32,3 in)
Wheelbase: 1,400 mm (55.1 in)
Dry Weight: 163 kg (359 lbs)
Engine type: Water-cooled 599 cc inline-4, DOHC, 16 valves. 115 hp (85 kW)/ 13 000 rpm, 67.6 Nm / 10.800 rpm. Telefonica Movistar replica.

Specifications are subject to change without notice, in accordance with national regulation and legislations.
