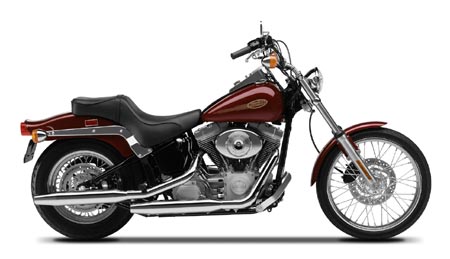

2001 Harley-Davidson FXST/FXSTI Softail Standard



– 2001 Harley-Davidson FXST/FXSTI Softail Standard

FEATURES
The Softail® Standard is classically and conservatively styled so owners can customize from mild to wild. At its heart is the Twin Cam 88B™ engine, filled with smooth power. Underneath is the unique suspension, which provides the clean lines of a hardtail. Classic laced wheels, a custom seat and wide handlebar give the Softail® Standard an authentic look that’s just the starting point for many owners.

-Rigid mount, 1450cc Twin Cam 88B™ balanced engine
-Silver powdercoated engine
-Hardtail styling with hidden horizontal rear shocks
-Laced wheels
-Black horseshoe oil tank
-Bobtail fender

Vehicle specifications and features may vary from country to country depending on local laws, and some models are not available in certain countries.

Specifications:

DIMENSIONS
Length 95.0 in. (2410.1 mm)
Seat Height (measure laden w/ 180 lb. rider) 26.1 in. (662.4 mm)
Seat Height TUV (measure unladen; int’l measure) (720 mm)
Ground Clearance 5.6 in. (140.9 mm)
Rake 34.0 degrees
Trail 5.0 in. (126.9 mm)
Wheelbase 66.9 in. (1697.9 mm)
Tires: Dunlop Harley-Davidson Series II D402
Front MH90-21
Rear MT90B 16
Fuel Capacity (includes 0.5 gal. reserve) 5.0 gal. (18.9 L)
Reserve Fuel Capacity 0.5 gal. (1.9 L)
Oil Capacity 3.5 qts. (3.3 L)
Dry Weight 628.6 lbs. (285.4 kg)
Vehicle Weight In Running Order (int’l measure) (302.4 kg)
Gross Vehicle Weight Rating 1125.0 lbs. (510.8 kg)

ENGINE
Engine OHV Twin Cam 88B (balanced)
Valves Pushrod-operated overhead valves; with hydraulic
self-adjusting lifters; two valves per cylinder
Bore and Stroke 3.75 x 4.0 in. (95.25 x 101.6 mm)
Displacement 88 cu. in.(1450 cc)
Compression Ratio 8.9:1
Fuel System Carburetion (40 mm constant velocity with enrichener and accelerator pump);
Electronic Sequential Port Fuel Injection (Single runner, 45 mm throttle bore ESPFI)
Air Cleaner/Filter Elliptical style chrome with spun aluminum insert;
high-efficiency, pleated paper filtration
Ignition Single-fire, non-waste, map-controlled spark ignition system;
electronic breakerless with multiple advance curve matrix
Lubrication System Dry sump, internally mounted, crank driven gerotor pressure and
dual scavenge pump with spin on 10ì pressurized oil filter

DRIVETRAIN
Primary Drive Double-row chain; oil bath; mechanical tensioner;
25/36-tooth sprockets (1.44:1)
Final Drive Gates aramid fiber reinforced Poly Chain belt;
32/70-tooth sprockets; 2.188:1
Clutch Multi-plate with diaphragm spring in oil bath
Transmission Five-speed,constant mesh
Gear Ratio:
1st 10.11
2nd 6.958
3rd 4.953
4th 3.862
5th 3.15

CHASSIS
Frame Mild steel, rectangular section backbone w/twin downtubes
Swing Arm Tubular mild steel
Front Fork Wide 41.3 mm custom fork
Wheels 22 in. (53.34 cm) laced front wheel, 16 in. (40.64 cc) laced rear wheel
Wheel Bearings Dual-sealed, automotive-style, ball-type
Brakes:
Caliper type Four-piston front and rear
Rotor type (diameter x width): Patented, Uniform Expansion Rotors
Front 11.5 in. x .20 (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 (292.1 mm x 5.82 mm)
Suspension travel:
Front Wheel 5.61 in. (142.5 mm)
Rear Wheel 4.34 in. (110.24 mm)

PERFORMANCE
Engine Torque 85 ft. lbs. @ 3000 rpm (106.9 NM @ 3000 rpm)
Mileage (per E.P.A. test regulations):
City 42 mpg (17.9 km/L)
Highway 50 mpg (21.3 km/L)
Braking at 60 mph (97 kph):
Maximum load 160 ft. (48.8 m)
Lean Angle (per SAEJ1168):
Right 31 degrees
Left 30 degrees

ELECTRIC
Battery Sealed, maintenance-free, 12-volt, 19 amp-hour, 270 cca
(per Battery Council International rating)
Charging 38-amp permanent magnet alternator with solid-state regulator
(488 watts @ 3,000 rpm, 494 watts peak)
Starting 1.2 kW electric with Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz halogen 55-watt low beam, 60-watt high beam
Tail/stop lights 8w/28w
Turn signal lights (self-canceling) 28w
Running lights Front turn signals (except where prohibited by law)
Indicator lamps High beam, neutral, oil, turn signals,
engine diagnostics, and security system (optional)

STYLING/CONVENIENCE
Engine Trim Powder-coated silver w/polished covers
Exhaust System Staggered shorty duals
Oil Tank Chrome “Horseshoe” with chrome external oil lines
Ignition Barrel keyed
Handlebars Wide
Seat Custom style seat
Passenger Backrest Available Genuine Motor Accessories
Brake and Shift Lever Forward foot controls
Rear Fender Supports Chrome
Fork Lock Common with ignition key
Instruments Electronic speedometer with odometer and resettable tripmeter
w/diagnostic capabilities and solid state tell-tale indicator module
Flasher Hazard warning integrated into turn signal controls

COLORS
Vivid Black, Luxury Blue Pearl, Luxury Rich Red Pearl, Diamond Ice Pearl

WARRANTY
Warranty 12 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 Km); every 5,000 miles (8,000 Km) thereafter.
– Inspections of certain systems and components are required at 2,500 mile (4,000 Km) intervals –
