EXACTLY AS MUCH FUN AS IT LOOKS.

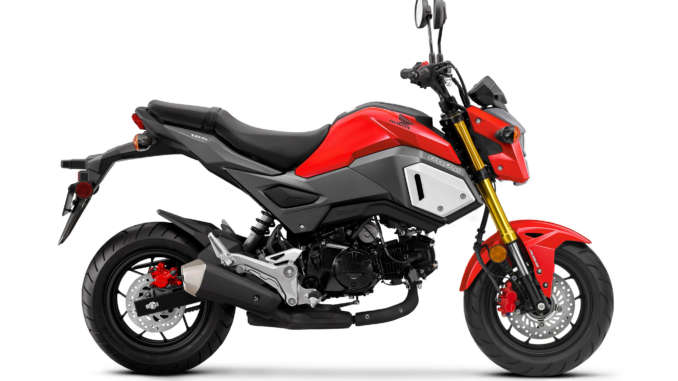

2020 Honda Grom ABS:

Does that thing look like fun or what? It’s the 2020 Honda Grom, and it’s ready to make the most boring parts of your day the most fun. It sports a 125cc engine that delivers loads of usable power. New riders will love the light weight and approachable size, but even experienced motorcyclists can’t resist the Grom’s agility and total fun factor. And of course, it’s built with legendary Honda quality and reliability, so you’re getting around practically hassle-free. Turn the shortest trips into the most epic adventures and save a bunch on gas with a new Honda Grom.

The sporty, pocketsize model that inspired a cultural revolution returns for 2020 with fun new colors, but it still has a serious side, with a SOHC four-stroke engine, fuel injection, four-speed transmission with manual clutch, LCD dash, stacked LED headlight layout and available ABS. It all adds up to excellent throttle response, remarkable fuel efficiency, nimble handling and a road-hugging but compliant ride, but the Grom’s most noteworthy feature is inarguably the diminutive size that promises approachability to new riders and fun to more experienced customers, contributing to its status as the industry’s best-selling sport bike.

Premium Features
Anti-lock braking system

Standard Features
Single-cylinder 125cc SOHC four-stroke engine

Four-speed manual gearbox

Low seat height

2020 Honda Grom ABS Totalmotorcycle.com Key Features

Steel Mono-Backbone Frame
The Grom’S chassis provides a sturdy base for a practical bike easily manouevred by new riders whilst needing to be just as adaptable on more advanced terrain and readily accepting a pillion. The rigid, square-section tube of the steel-monobackbone frame joins the headstock directly to the swingarm pivot plates, keeping a minimalistic look.

Aggressive Street Fighter Style
The Grom builds on the original ground breaking design it first hit the world with, this time in the form of an aggressive street fighter style.

LCD Digital Dash and Glimmering LED Headlight
Grom features a newly stacked LED headlight giving the model a distinctive, ultra-modern face. An easy-to-read compact LCD digital dash features a speedometer, twin trip meters, fuel gauge and clock. Switches either side of the display allow the rider to reset the trip meters and clock, or alternate between odometer and tripmeter.

Improved 125cc Two-Valve Air-Cooled Engine
Known for its fuel efficiency, ease of use and longevity, Grom’s 125cc two-valve air-cooled engine has been further developed to produce an improvement in fuel economy. The engine uses low-friction technology such as an off-set cylinder and a reduction in crank inertia means an improved throttle feel and a smoother power delivery.

12-inch cast aluminium wheels
Grom’s 12-inch cast aluminium wheels are a fundamental part of the form and function of this innovative new model. The wheels feature 2.5-inch rims, and new “Y” shaped spokes save weight at the front 120/70-12 and 130/70-12 rear tyres. Hydraulic dual piston front and single piston rear brake calipers work front 220mm and rear 190mm discs.

Suspension Quality
One of the aims throughout the development of Grom was to provide exeptional suspension quality. The 31mm fork (a first on a 125cc Honda motorcycle) reduces upsrung weight and offers an improved dampning feel throughout the stroke, thanks to the piston’s greater pressure-bearing area. A lightweight and robust single rear shock operates a simple and tough “H” shaped structure.

Low seat height
The Grom has a low and manageable 765mm seat height ensuring that owners find it a simple process to load and unload.

2020 Honda Grom ABS Totalmotorcycle.com Features and Benefits

Engine/Drivetrain

• Single-cylinder 125cc SOHC four-stroke engine packs a perfect blend of performance with impressive fuel efficiency plus accessible and fun all-around ability.
• The engine uses low-friction technology such as an offset cylinder and a roller rocker arm for the valve gear.
• Programmed Fuel Injection (PGM-FI) offers excellent throttle response over a wide range of riding conditions by continuously monitoring several variables to ensure the correct fuel mixture for the existing riding and atmospheric conditions.
• The four-speed gearbox is managed via a manual clutch and offers smooth and consistent gear changes.

Chassis/Suspension

• Integrated fuel tank and side panels with an edgy look.
• Stacked LED headlight layout.
• Under-slung exhaust, upswept tail unit.
• Sporty handlebar bend.
• Compact chassis features a sturdy mono backbone steel frame.
• Telescopic inverted 31mm fork (like on a full-size motorcycle) delivers 3.9 inches of travel.
• Steel box-section rear swingarm and a sturdy single shock yield 4.1 inches of comfortable rear-wheel travel.
• Single front 220mm disc with hydraulic dual-piston caliper and single rear 190mm disc with hydraulic single-piston caliper deliver strong stopping power.
• Compact 47.4 inch wheelbase and light curb weight of 225 pounds results in amazing agility to boost rider confidence.
• LCD digital dash includes speedometer, odometer/A&B trip meters, clock and fuel gauge.
• Flip key.

Transferable one-year limited warranty; extended coverage available with a HondaCare Protection Plan

• Meets current EPA and CARB standards

2020 Honda Grom ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: starting from $3599 USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price:  £3389 GBP (On The Road inc 20% Vat)

ENGINE
Engine Type 124.9cc air-cooled single-cylinder four-stroke
Bore And Stroke 52.4mm x 57.9mm
Compression Ratio 9.3:1
Induction PGM-FI with automatic enrichment
Ignition Electronic
Valve Train SOHC; two valves per cylinder
DRIVE TRAIN
Transmission Four-speed
Final Drive Chain
CHASSIS SUSPENSION BRAKES
Front Suspension 31mm inverted fork; 3.9 inches of travel
Rear Suspension Single shock with steel box-section swingarm; 4.1 inches of travel
Front Brake Single 220mm disc with hydraulic dual-piston caliper and ABS
Rear Brake Single 190mm disc with hydraulic single piston caliper
Front Tire 120/70-12
Rear Tire 130/70-12
DIMENSIONS
Rake 25°
Trail 81mm (3.2 inches)
Wheelbase 47.2 inches
Seat Height 30 inches
Fuel Capacity 1.45 gallons
Curb Weight
234 pounds (Includes all standard equipment, required fluids and full tank of
fuel—ready to ride)
Miles Per Gallon
134 MPG – Honda’s fuel economy estimates are based on EPA exhaust emission
measurement test procedures and are intended for comparison purposes only. Your
actual mileage will vary depending on how you ride, how you maintain your vehicle,
weather, road conditions, tire pressure, installation of accessories, cargo, rider and
passenger weight, and other factors.
OTHER
Model ID Grom125A
Emissions Meets current EPA standards. Models sold in California meet current CARB
standards and may differ slightly due to emissions equipment.
Available Colors Cherry Red
FACTORY WARRANTY INFORMATION
One Year
Unlimited-mileage limited warranty; extended coverage available with a Honda
Protection Plan.

2020 Honda Grom ABS – Totalmotorcycle.com Canada Specifications/Technical Details

2020 Honda Grom ABS – Totalmotorcycle.com European Specifications/Technical Details

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
