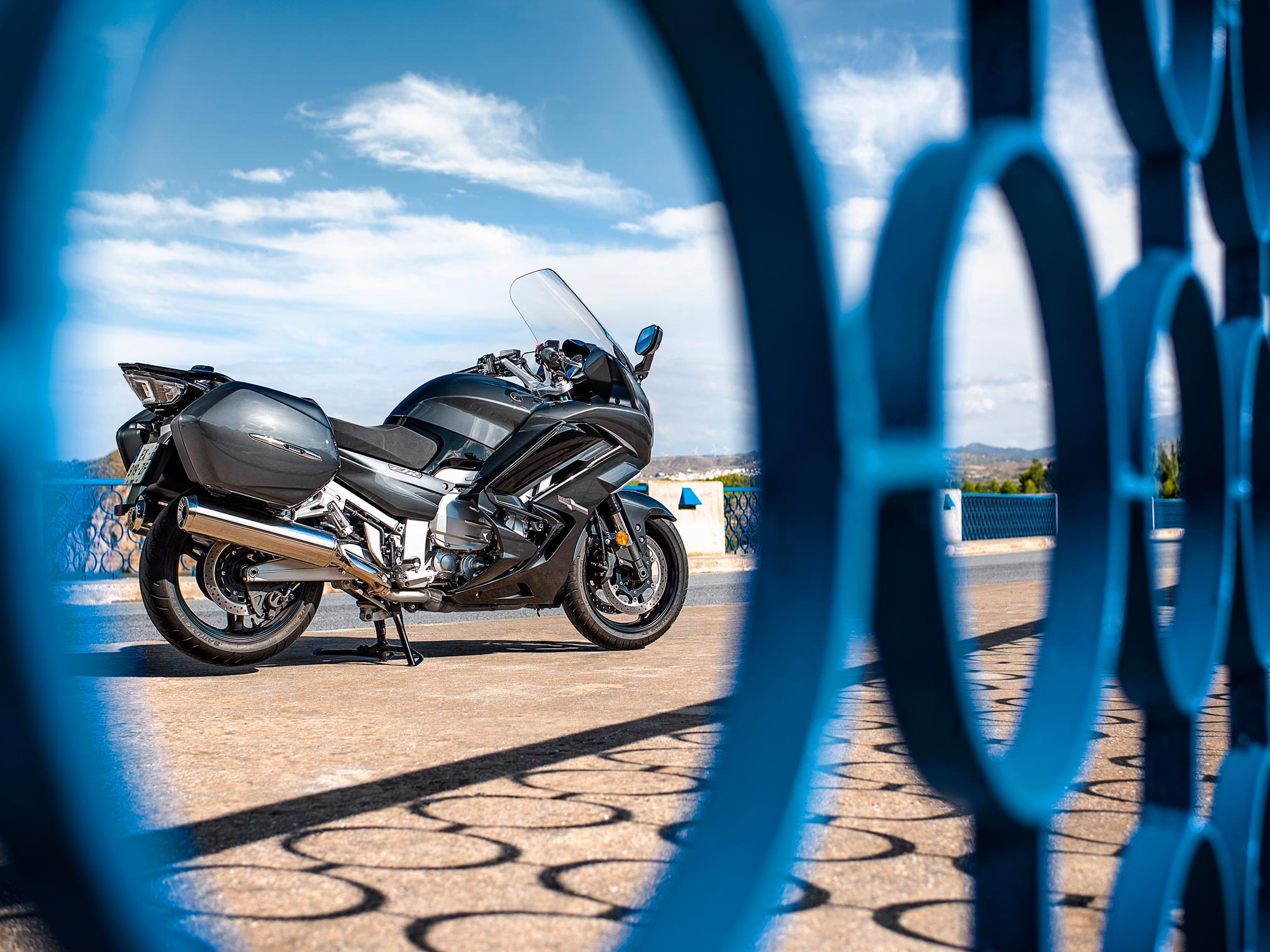

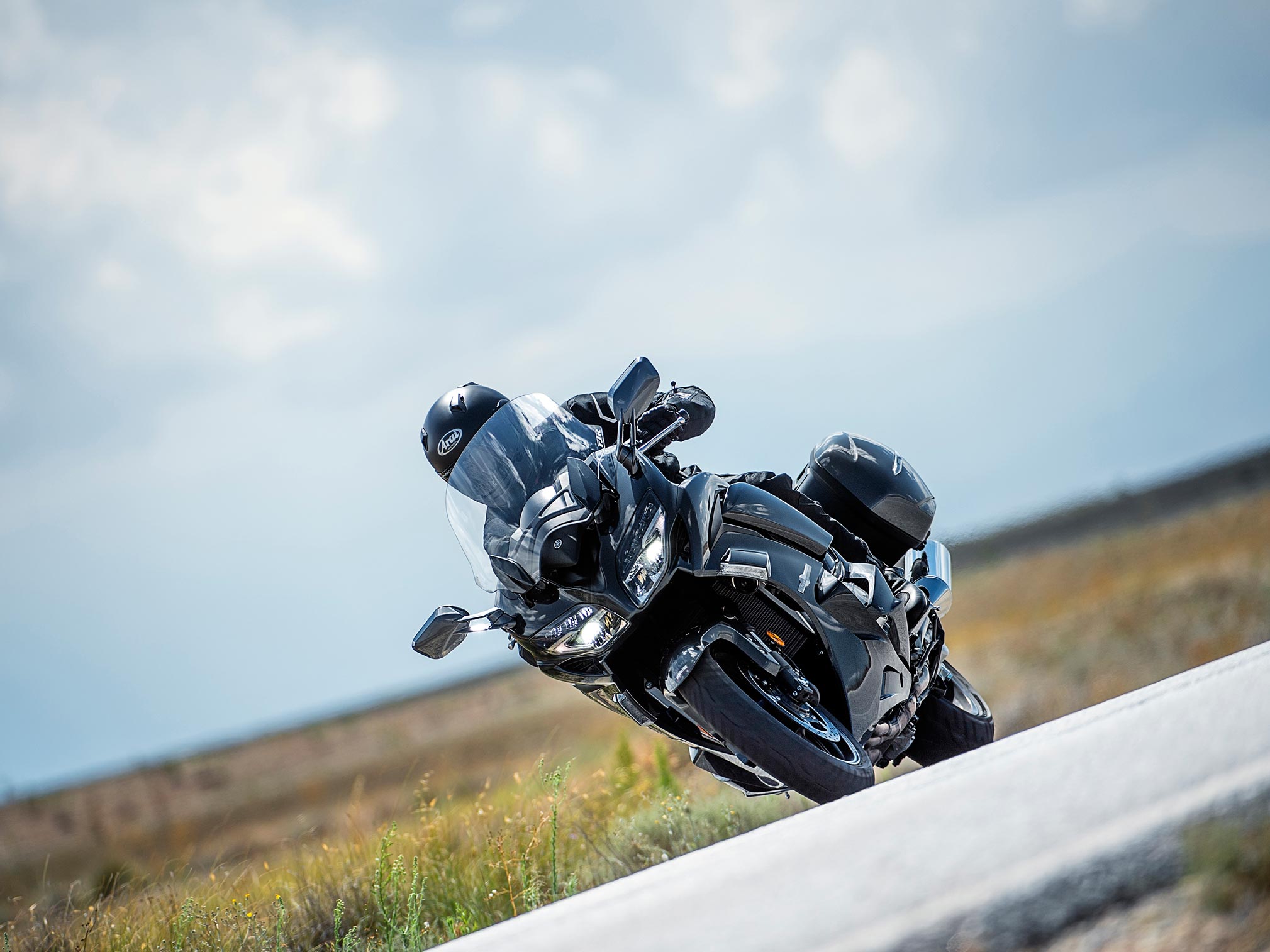

2019 Yamaha FJR1300A:

Everything about this Sport Touring model is designed to cover significant distances in record time. With its 6-speed transmission and A&S clutch, the 1,298 cc 4-cylinder engine delivers forceful acceleration and outstanding high speed cruising performance at the twist of your wrist.

Featuring a 25-litre fuel tank and aerodynamic fairing with electronically adjustable screen – as well as cruise control and adjustable riding position – the latest FJR1300A gets you there like nothing else.

Industry‑leading features like electronic suspension, LED cornering headlights provide the ultimate sport touring experience.

Over the past decade this supremely capable motorcycle has given thousands of owners the opportunity to experience supersport-level performance with outstanding comfort.

2019 Yamaha FJR1300A Totalmotorcycle.com Key Features

• Putting the “Sport” in Supersport Touring
  The FJR1300A features a compact and lightweight, 1298cc, DOHC, 16 valve, liquid-cooled inline four-cylinder engine that delivers superb power and torque for unequaled muscular acceleration across the RPM range.
• Six-Speed Transmission
  The FJR1300A features a compact six-speed transmission, with ratios providing evenly spaced gearing for sporty riding with a tall 6th gear for relaxed highway riding. Additionally, the transmission gears are designed to offer smooth, quiet running ideal for long distance riding.
• Advanced YCC-T Engine Control and Rider Aids
  Yamaha’s exclusive Chip Controlled Throttle (YCC-T) is a ride-by-wire system that provides crisp, seamless throttle response. YCC-T also allows for other advanced systems that are ideal for Supersport Touring such as traction control, cruise control and D-Mode adjustable engine mapping.
• LED Lighting System
  Using an all-LED headlight system and LED tail light design, the FJR1300A features stylish, supersport-inspired bodywork with integrated airflow management that keeps the rider comfortable when weather conditions vary.
• Adjustability for Rider and Passenger Comfort
  A range of features make the FJR1300A the ideal travel companion, including adjustable ergonomics, a push-button adjustable windscreen, a plush seat designed for rider and passenger, integrated hard luggage and a large 6.6 gallon fuel tank.

2019 FJR1300A and FJR1300ES

With the proven ability to cover long distances, the FJR1300A and FJR1300ES models are designed for experienced riders who appreciate performance and comfort, as well as refined engineering. Featuring adjustable ergonomics and wind protection, electronic rider aids, six-speed transmission, all-LED lighting and more.

2019 Yamaha FJR1300A Totalmotorcycle.com Features and Benefits

Engine

• Six-Speed Transmission
  The FJR1300A features a compact six-speed transmission, with ratios providing evenly spaced gearing for sporty riding with a tall 6th gear for relaxed highway riding. Additionally, the transmission gears are helically cut, for smooth, quiet running, with separated gear dogs for excellent transmission performance.
• Assist-and-Slipper Clutch
  The FJR1300A features an assist-and-slipper clutch unit that provides additional clutch plate clamping force under engine torque, as well as reduced force under back-torque from the rear wheel. This allows for the use of lighter clutch springs – reducing clutch lever effort by approximately 20% – as well as smoother, more refined downshifting.
• Effortless, Big-Bore Thrust
  The FJR1300A features a compact 1298cc, DOHC, 16-valve, liquid-cooled inline four-cylinder engine that delivers superb power and torque, for an unequaled spread of muscle over a wide rpm range. The engine is always ready to respond with strong passing power, even with a passenger and full load of luggage aboard.
• Advanced Engine Design
  The slant-block motor design uses stacked, tri-axis gearbox shafts to minimize engine size while optimizing chassis geometry for balanced weight distribution and great handling. Inside, lightweight forged pistons with carburized connecting rods provide superb strength and reduced reciprocating mass for outstanding durability and performance.
• Traction Control
  The FJR1300A’s Traction Control System detects tire slip and adjusts ignition timing, fuel injection volume, and throttle valve opening to help prevent uncontrolled wheel spin. The system is designed to let the operator ride on roads that have limited traction with greater confidence.
• Cruise Control
  Cruise control makes touring a breeze, adjusting a set speed via a single push to the switch or, for larger adjustments, by continuously pushing the switch. A resume function returns the cruise control to the most recent setting, while activating the brakes, clutch or throttle return releases the cruise control.
• Advanced Ride-by-Wire Fuel Injection
  The FJR1300A makes use of Yamaha’s Chip Controlled Throttle (YCCT), a ride-by-wire system that provides crisp, seamless throttle response in a variety of altitude and weather conditions—ideally matched to the refined and sporty nature of the FJR1300A.
• Adjustable D-Mode Throttle
  Thanks to the flexibility provided by YCC-T, the FJR1300A gives riders a choice of two throttle response modes to best suit preferences and riding conditions. T-Mode provides a smooth throttle response, ideal for touring, while the S-Mode maximizes performance response for a sportier, more aggressive character.
• Compact and Efficient Shaft Drive
  The FJR1300A features a clean, quiet running and extremely durable shaft drive to the rear wheel. Built to handle the big mileage numbers touring riders rack up, the shaft drive system require minimal maintenance and lets the rider focus on the journey.
• High Efficiency Dual Exhaust
  The four-into-one-into-two stainless-steel exhaust optimizes engine performance across the powerband, with a clean-running catalyst for reduced emissions.

Chassis/Suspension

• LED Lighting
  The bold face of the FJR1300A features stylish all-LED lighting, including a quad-element LED headlight assembly. The LED system produces bright, sharp light and uses less power. The headlights also feature tool-less adjustment of headlight angle to account for vehicle loads. Finally, the LED tail lamp assembly combines visibility, style and quality.
• Adjustable Everything
  A good touring machine adapts to the rider, and the FJR1300A is ready and willing. The plush, thick saddle offers plenty of comfort and is adjustable over 0.8 inches without tools. The handlebars can be set to one of three positions to fine-tune rider ergonomics. And the windscreen is electronically adjustable over a range of 5.1 inches.
• Advanced Suspension
  The FJR1300A’s advanced fork and shock are tuned for an ideal balance of chassis control and plush comfort. The 48mm fork is fully adjustable to account for rider preferences and road conditions, while the shock features both preload and rebound damping adjustments.
• Powerful, Secure Braking
  Advanced brakes front and rear provide exceptional braking power and control, and are linked via Yamaha’s Unified Braking System, for balanced braking power. ABS further boosts rider confidence by preventing wheel lock-ups in reduced-traction conditions.
• High-Strength Aluminum Frame
  Similar to Yamaha’s supersport machines, the FJR1300A features a beefy aluminum frame to provide an ideal balance of chassis stiffness and feedback, with a long swingarm to provide enhanced traction and improve rear suspension action.
• Large Fuel Tank
  The ergonomically-shaped, large-capacity, 6.6-gallon fuel tank offers excellent comfort, generous range and is constructed from steel, allowing for the use of magnetic tank bags.
• Thorough Instrumentation
  The three-part instrument panel provides riders with all the information they need while enjoying the road, including trip computer functions, riding modes and more. Riders can easily customize the dot-matrix multi-function display to show the information they want with a flick of the bar-mounted switchgear, too.

Additional Features

• Integrated Luggage
  Subframe-fitted, quick-release luggage mounts allow easy use of the standard fitted hard side cases, which are conveniently matched to the ignition key. Each case is designed to match the lines of the FJR1300A, provide plenty of storage space, and thanks to the compact mounting system, overall vehicle width is minimized for in-town maneuverability.
• Standard Heated Grips
  The FJR1300A includes heated grips straight from factory, adjustable through the multi-function instrumentation, with four settings (three settings plus off) of available heat for cooler conditions and foul weather.
• Fairing-Mounted Storage
  A glove box is built into the upper fairing and includes a 12V outlet ideal for charging phones, GPS units, electric vests and other compact electrical devices.

2019 Yamaha FJR1300A – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $16399 USD
Canada MSRP Price: $ NA CDN
Europe/UK MSRP Price: £ See dealer for pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See dealer for pricing in AU

Engine Type 1298cc liquid-cooled DOHC inline 4-cylinder; 16

valves

Bore x Stroke 79.0mm x 66.2mm

Compression Ratio 10.8:1

Fuel Delivery Fuel injection with YCC-T

Ignition TCI: Transistor Controlled Ignition

Transmission 6-speed; multiplate assist-and-slipper wet clutch

Final Drive Shaft

Suspension / Front 48mm fork, fully adjustable; 5.3-in travel

Suspension / Rear Single shock, adjustable spring preload and

rebound damping; 4.9-in travel

Brakes / Front Dual 320mm discs; Unified Brake System and

ABS

Brakes / Rear 282mm disc; Unified Brake System and ABS

Tires / Front 120/70ZR17

Tires / Rear 180/55ZR17

L x W x H 87.8 in x 29.5 in x 52.2 – 57.3 in

Seat Height 31.7 or 32.5 in

Wheelbase 60.8 in

Rake (Castor Angle) 26.0°

Trail 4.3 in

Maximum Ground

Clearance

5.1 in

Fuel Capacity 6.6 gal

Fuel Economy** 36 mpg

Wet Weight*** 635 lbs (CA model 637 lbs)

Warranty 1 Year (Limited Factory Warranty)

Color Liquid Graphite

*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.

2019 Yamaha FJR1300A – Totalmotorcycle.com Canada Specifications/Technical Details

NA

2019 Yamaha FJR1300A – Totalmotorcycle.com European Specifications/Technical Details

• Engine

Engine type

4-stroke, liquid-cooled, forward-inclined parallel 4-cylinder, DOHC, 4-valves

Displacement

1,298cc

Bore x stroke

79.0 mm x 66.2 mm

Compression ratio

10.8 : 1

Maximum power

107.5kW (146.2PS) @ 8,000 rpm

Maximum torque

138.0Nm (14.1kg-m) @ 7,000 rpm

Lubrication system

Wet sump

Clutch type

Wet, multiple-disc coil spring

Ignition system

TCI

Starter system

Electric

Transmission system

Constant Mesh, 6-speed

Final transmission

Shaft

Fuel consumption

6.2l/100km

CO2 emission

140g/km

• Chassis

Frame

Aluminium, Diamond Shaped

Front travel

135 mm

Caster angle

26º

Trail

109mm

Front suspension system

Telescopic forks, Ø48 mm

Rear suspension system

Swingarm, (Link type suspension)

Rear travel

125 mm

Front brake

Hydraulic dual disc, Ø320 mm

Rear brake

Hydraulic single disc, Ø282 mm

Front tyre

120/70 ZR17M/C (58W)

Rear tyre

180/55 ZR17M/C (73W)

• Dimensions

Overall length

2,230 mm

Overall width

750 mm

Overall height

1,325/1,455 mm

Seat height

805/825 mm

Wheel base

1,545 mm

Minimum ground clearance

130 mm

Wet weight (including full oil and fuel tank)

289 kg

Fuel tank capacity

25litres

Oil tank capacity

4.9litres

2019 Yamaha FJR1300A – Totalmotorcycle.com Australian Specifications/Technical Details

TBA

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
