THE LIGHTEST AND SMALLEST KLX140.

2019 Kawasaki KLX140:

Off-road riders and mini-moto enthusiasts don’t have to settle for simple one-size machines with limited performance and cramped ergonomics. Kawasaki’s KLX140 has opened the door for a wider variety of riders in the small displacement off-road arena.

THE KLX®140 OFF-ROAD MOTORCYCLE IS FUN FOR BOTH KIDS AND ADULTS ALIKE. IT FEATURES A PUSH BUTTON ELECTRIC START, SMOOTH POWER AND A CHASSIS THAT CAN TAKE ON TRAILS WITH CONFIDENCE.

The Kawasaki KLX® family of off-road motorcycles are widely popular for their low maintenance, easy-to-ride character, and incredible capabilities while on trails. The five models consist of two engine configurations and are built to suit a variety of riders.

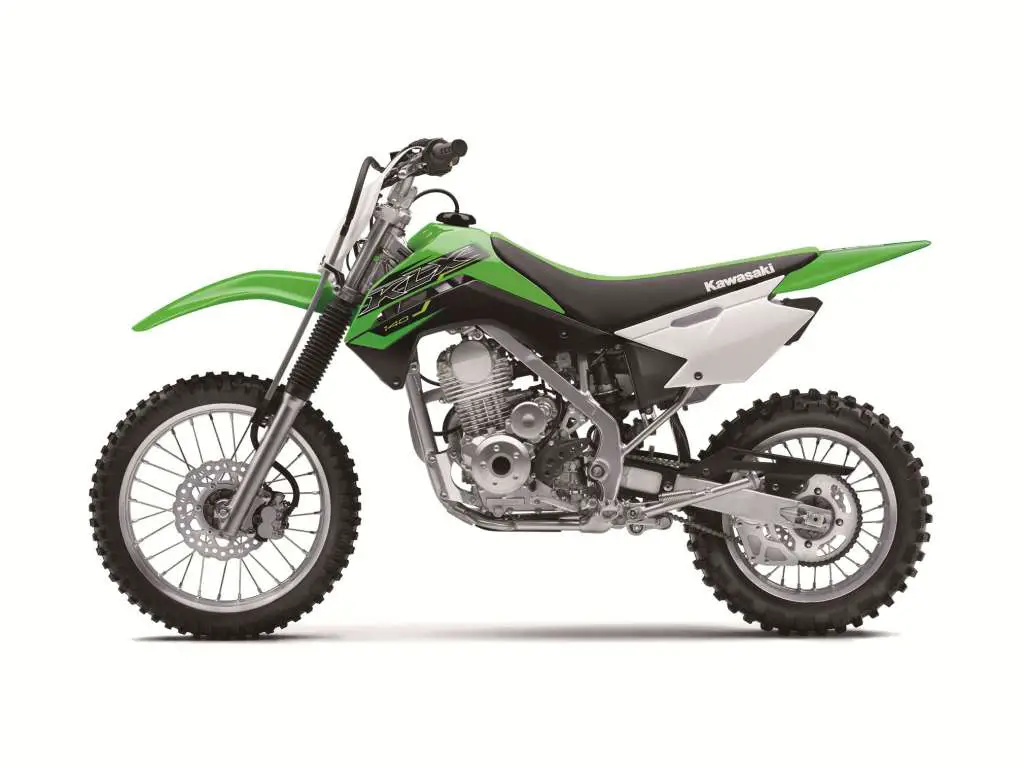

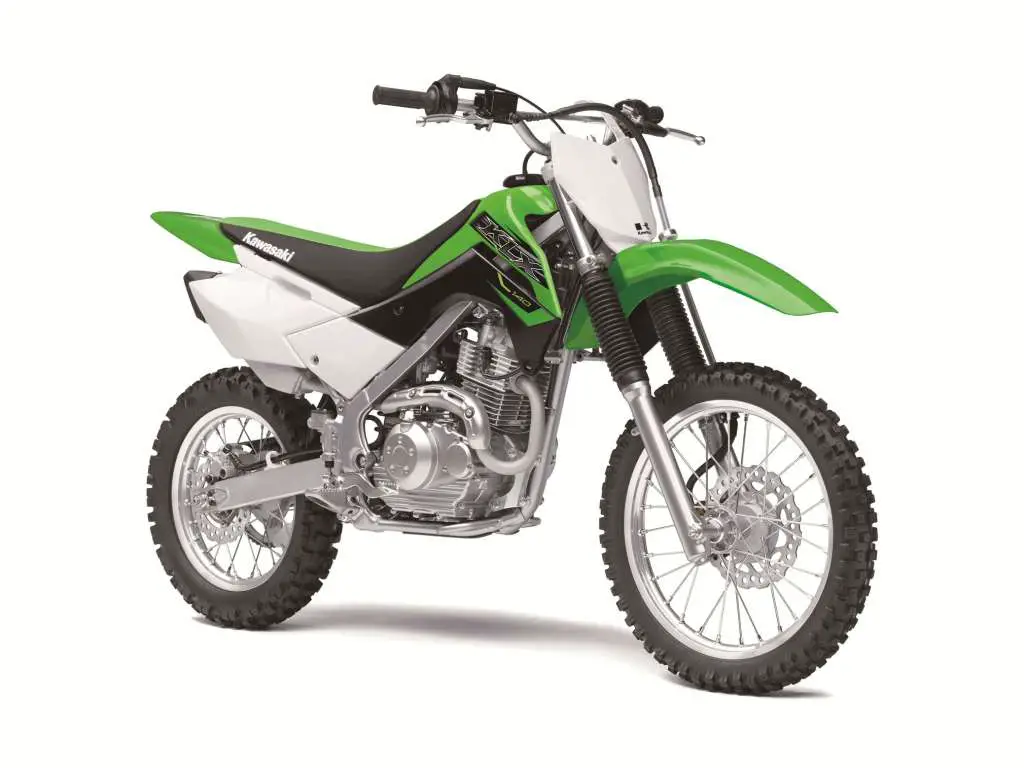

The KLX®140 motorcycle is available in three model variations, and is designed to provide a natural terrain experience with memories to last a lifetime. The powerful 144cc, 4-stroke, air-cooled, single-cylinder engine features an electric starter and keyless ignition. Its broad and smooth high-revving 144cc engine utilizes a manual clutch and 5-speed transmission to offer an efficient and user-friendly feel. The KLX140 uses a 17” front and 14” rear wheel, while the mid-sized KLX140L motorcycle is equipped with a 19” front and 16” rear wheels to accommodate taller riders, providing extra ground clearance on the KLX140L. The KLX140G comes equipped with full-size off-road wheels and tires, using a 21” front and 18” rear.

There’s no better motorcycle than the KLX®110 for a new rider who is looking to experience dirt for the first time. A high-tensile steel frame, 30mm telescopic fork, and single rear shock provide easy handling and maximum longevity. It also incorporates an automatic centrifugal clutch system that allows easy take off and shifting through the gears, helping the rider maintain focus on the terrain and to make the most of the 112cc single-cylinder, 4-stroke engine. The bigger KLX®110L motorcycle has a taller seat height (28.7” compared to 26.8” for the KLX110), longer suspension travel and an extra 1.9” of ground clearance.

2019 Kawasaki KLX140 Totalmotorcycle.com Key Features

•Push button electric start
•High-revving 144cc air-cooled, SOHC, 4-stroke engine
•5-speed transmission with manual clutch
•Low 30.7-inch seat height
•7.1 inches of front and rear suspension travel to soak up bumps
•Front and rear disc brakes provide strong progressive stopping power
•7.1 inches of front and rear suspension travel to soak up bumps
•Front and rear disc brakes provide strong progressive stopping power

LIGHTWEIGHT DIRT-FUELED FUN​

STRONG AND DURABLE 144cc AIR-COOLED ENGINE

ELECTRIC START IS EASY AND DEPENDABLE

FIVE-SPEED GEARBOX WITH MANUAL CLUTCH

DURABLE, LOW-MAINTENANCE PERFORMANCE

2019 Kawasaki KLX140 Totalmotorcycle.com Features and Benefits

Lower seat height enables a reassuring reach to the ground

Open ergonomics offer a roomy riding position

Full-size wheels featuring lightweight aluminum rims offer comfort and performance on the trail ​
​
​Generous ground clearance to confidently navigate trails

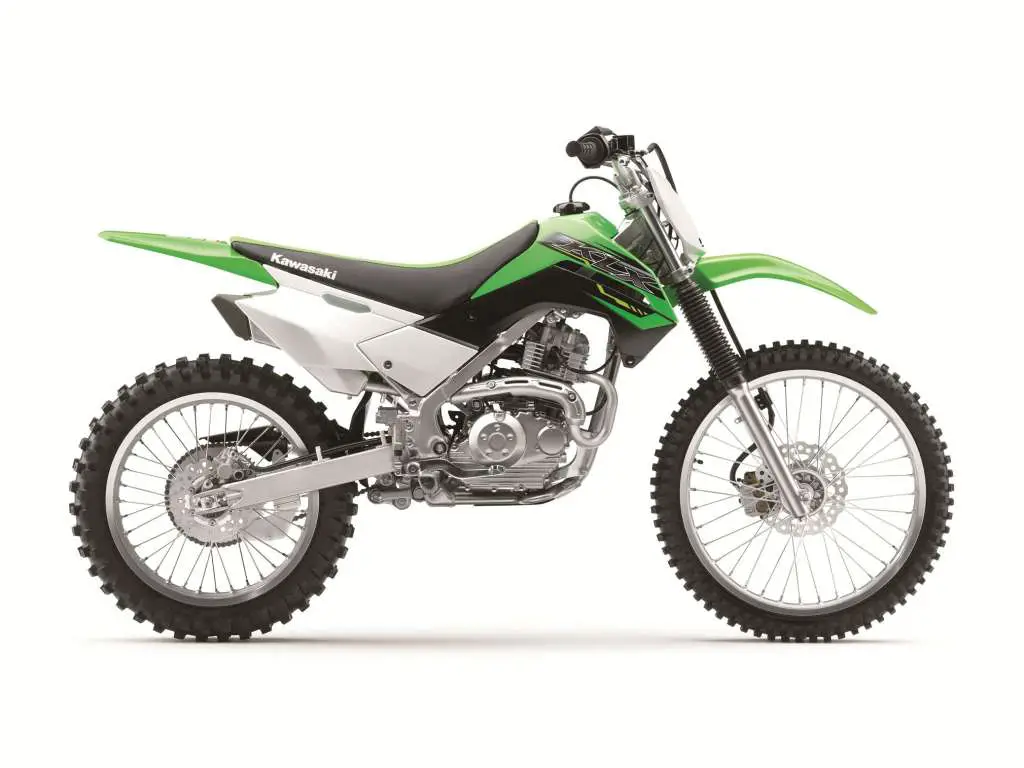

The lightweight chassis with full-size wheels can take on full-size rides. Go the distance on the trail with the smooth, capable engine, comfortable ride and lightweight performance of the KLX®140G motorcycle.

​Full-sized wheels increase rider comfort enabling better navigation over rocky terrain

​Ample ground clearance for navigating technical terrains

​Front and rear disc brakes for confidence-inspiring control

​Adjustable suspension to accommodate varying rider size and skill

The proven 144cc air-cooled four-stroke engine provides strong torque ideal for learning riders. Its low-maintenance requirement and rock solid durability makes it as easy to own as it is to ride.

2019 Kawasaki KLX140 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3099 USD
Canada MSRP Price: $3699 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

POWER
Engine 4-stroke, 1-cylinder, SOHC, air-cooled
Displacement 144cc
Bore x Stroke 58.0 x 54.4mm
Compression Ratio 9.5:1
Fuel System Keihin PB20
Ignition Digital DC-CDI
Transmission Five-speed with wet multi-disc manual clutch
Final Drive Chain
PERFORMANCE
Front Suspension / Wheel Travel 33mm telescopic fork/7.1 in
Rear Suspension / Wheel Travel Uni-Trak® linkage system and single shock with 5-way preload adjustability/7.1 in
Front Tire 70/100-17
Rear Tire 90/100-14
Front Brakes Single 220mm petal disc with a dual-piston caliper
Rear Brakes Single 186mm petal disc with single-piston caliper
DETAILS
Frame Type High-tensile steel, box-section perimeter
Rake/Trail 27°/3.3 in
Overall Length 71.7 in
Overall Width 31.1 in
Overall Height 41.3 in
Ground Clearance 9.3 in
Seat Height 30.7 in
Curb Weight 205.0 lb**
Fuel Capacity 1.5 gal
Wheelbase 49.6 in
Color Choices Lime Green
Warranty 6 Months
Kawasaki Protection Plus™ (optional) 12, 24, or 36 months
**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

2019 Kawasaki KLX140 – Totalmotorcycle.com Canada Specifications/Technical Details

Engine

Displacement 144cc
Type 4-stroke, Single
Bore and stroke 58.0 x 54.4 mm
Cooling Air
Compression ratio 9.5:1
Valve system SOHC, 2 valves, screw type adjusters
Fuel system Keihin PB20 carburetor
Ignition Digital DC-CDI
Lubrication Forced lubrication (wet sump)
Starting Electric

Brakes

Front: type Single 220 mm petal disc
Front: calipers Dual-piston caliper
Rear: type Single 186 mm petal disc
Rear: calipers Single-piston caliper

Dimensions

Overall length 1,820 mm (71.7 in.)
Overall width 790 mm (31.1 in.)
Overall height 1,050 mm (41.3 in.)
Wheelbase 1,260 mm (49.6 in.)
Ground clearance 235 mm (9.3 in.)
Seat height 780 mm (30.7 in.)
Curb mass** 93 kg (205 lbs.)
Fuel capacity 5.8 litres (1.3 gal.)

Drivetrain

Transmission 5-speed
Final drive Chain
Primary reduction ratio 2.880 (72/25)
Gear ratio: 1st 2.667 (40/15)
Gear ratio: 2nd 1.895 (36/19)
Gear ratio: 3rd 1.474 (28/19)
Gear ratio: 4th 1.182 (26/22)
Gear ratio: 5th 1.000 (24/24)
Final reduction ratio 3.571 (50/14)
Clutch Wet multi-disc, manual, cable operation

Frame

Type Tubular double cradle, box section perimeter, high-tensile steel
Wheel travel: front 180 mm (7.1 in.)
Tire: front 70/100-17
Wheel travel: rear 180 mm (7.1 in.)
Tire: rear 90/100-14
Caster (rake) 27°
Trail 85 mm (3.3 in.)

Suspension

Suspension, front 33 mm telescopic fork
Suspension, rear Uni-Trak linkage system and single shock with 5-way preload adjustability

Details

Warranty 6 months warranty

* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice. The amount indicated as “Your price” may include an optional instant Mega Cash credit that is deducted from the manufacturer’s suggested retail price before taxes. This promotion is time limited and certain conditions will apply. See your dealer for complete details. Offer not available on financed purchases and cannot be combined with any other special offers. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)

‡ Power / Torque figures measured at the crankshaft.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.

2019 Kawasaki KLX140 – Totalmotorcycle.com European Specifications/Technical Details

TBA

2019 Kawasaki KLX140 – Totalmotorcycle.com Australian Specifications/Technical Details

TBA

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
