BIG BROTHER TO THE KLX110L.

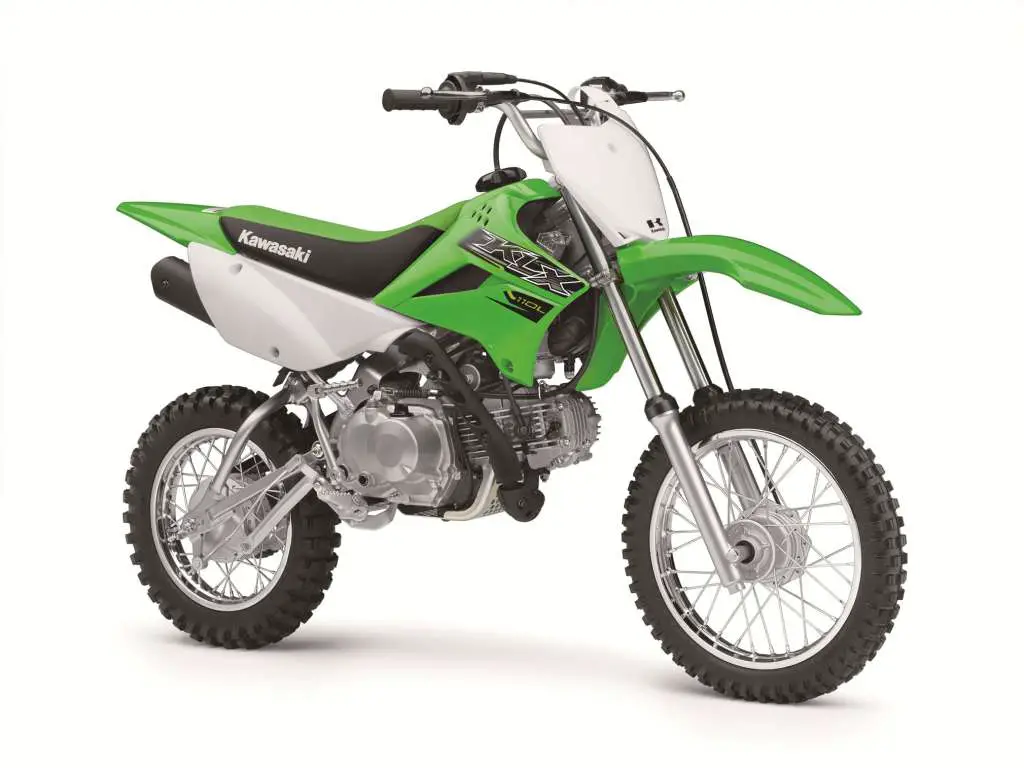

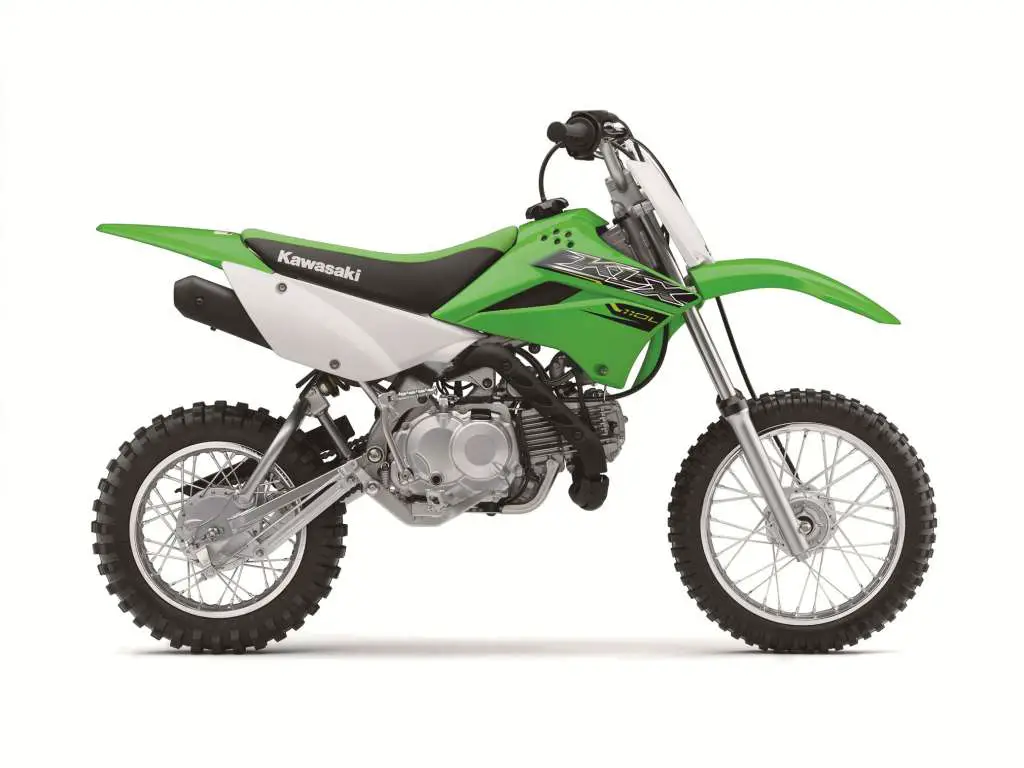

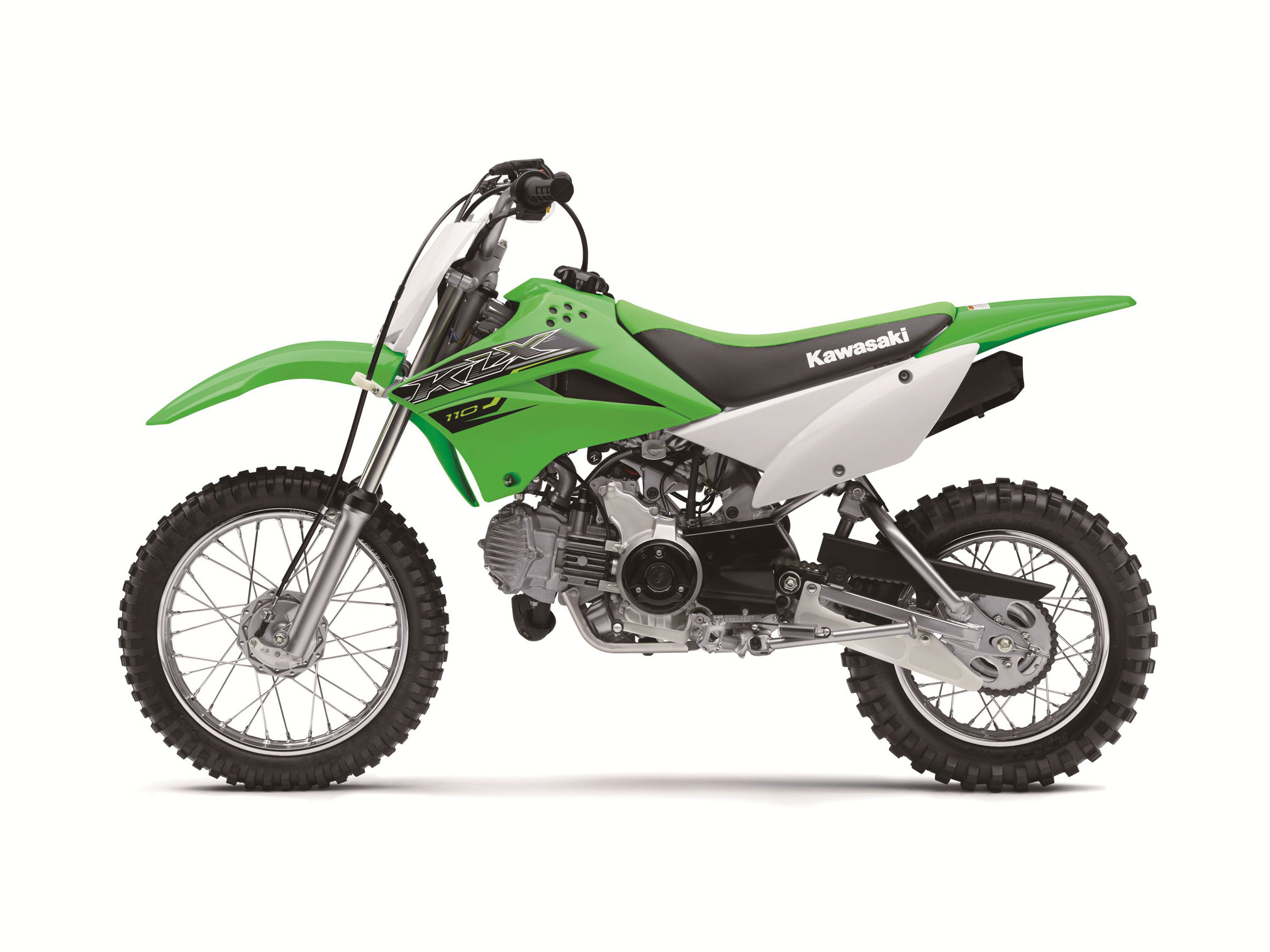

2019 Kawasaki KLX110:

THE KLX®110 MOTORCYCLE IS A VERSATILE OFF-ROAD BIKE WITH A LOW SEAT HEIGHT, PLUSH SUSPENSION AND AN AUTOMATIC CLUTCH FOR A FUN, CONFIDENCE-INSPIRING RIDE.

The biggest challenge in enjoying the KLX110 or KLX110L’s amazing off-road capabilities is figuring out who’s going to ride it first – because its compact dimensions, simple-to-use features, and choice of 2 models were designed for a wide range of beginning riders aged 13 and up.

The Kawasaki KLX® family of off-road motorcycles are widely popular for their low maintenance, easy-to-ride character, and incredible capabilities while on trails. The five models consist of two engine configurations and are built to suit a variety of riders.

There’s no better motorcycle than the KLX®110 for a new rider who is looking to experience dirt for the first time. A high-tensile steel frame, 30mm telescopic fork, and single rear shock provide easy handling and maximum longevity. It also incorporates an automatic centrifugal clutch system that allows easy take off and shifting through the gears, helping the rider maintain focus on the terrain and to make the most of the 112cc single-cylinder, 4-stroke engine.

2019 Kawasaki KLX110 Totalmotorcycle.com Key Features

The bigger KLX®110L motorcycle has a taller seat height (28.7” compared to 26.8” for the KLX110), longer suspension travel and an extra 1.9” of ground clearance.

2019 Kawasaki KLX110 Totalmotorcycle.com Features and Benefits

•112cc air-cooled, 4-stroke engine provides smooth power and rock solid reliability
•4-speed transmission with automatic clutch for stall-free shifting
•Low 26.8-inch seat height
•Sporty styling featuring Lime Green bodywork for race-inspired good looks

2019 Kawasaki KLX110 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $2299 USD
Canada MSRP Price: $2699 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

POWER
Engine 4-stroke, 1-cylinder, SOHC, air-cooled
Displacement 112cc
Bore x Stroke 53.0 x 50.6mm
Compression Ratio 9.5:1
Fuel System Keihin PB18
Ignition DC-CDI
Transmission 4-speed, return shift, centrifugal clutch
Final Drive Chain
PERFORMANCE
Front Suspension / Wheel Travel 30mm hydraulic telescopic fork/4.3 in
Rear Suspension / Wheel Travel Swingarm with single hydraulic shock/4.3 in
Front Tire 2.50×14
Rear Tire 3.00×12
Front Brakes Mechanical Drum
Rear Brakes Mechanical Drum
DETAILS
Frame Type Backbone frame, high-tensile steel
Rake/Trail 24.8°/2.0 in
Overall Length 61.4 in
Overall Width 25.6 in
Overall Height 37.6 in
Ground Clearance 8.5 in
Seat Height 26.8 in
Curb Weight 167.5 lb**
Fuel Capacity 1.0 gal
Wheelbase 42.3 in
Color Choices Lime Green
Warranty 6 Months
Kawasaki Protection Plus™ (optional) 12, 24, or 36 months
**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

2019 Kawasaki KLX110 – Totalmotorcycle.com Canada Specifications/Technical Details

Engine

Displacement 112cc
Type 4-stroke, Single
Bore and stroke 53.0 x 50.6 mm
Cooling Air
Compression ratio 9.5:1
Valve system SOHC, 2 valves
Fuel system Keihin PB18 carburetor
Ignition Digital DC-CDI
Lubrication Forced lubrication (wet sump)
Starting Electric & Primary Kick

Brakes

Front: type Drum (90 mm)
Rear: type Drum (110 mm)

Dimensions

Overall length 1,560 mm (61.4 in.)
Overall width 650 mm (25.6 in.)
Overall height 955 mm (37.6 in.)
Wheelbase 1,075 mm (42.3 in.)
Ground clearance 215 mm (8.5 in.)
Seat height 680 mm (26.8 in.)
Curb mass** 76 kg (167.6 lbs.)
Fuel capacity 3.8 litres (0.8 gal.)

Drivetrain

Transmission 4-speed, constant mesh, return shift
Final drive Chain
Primary reduction ratio 3.409 (75/22)
Gear ratio: 1st 3.000 (36/12)
Gear ratio: 2nd 1.938 (31/16)
Gear ratio: 3rd 1.350 (27/20)
Gear ratio: 4th 1.087 (25/23)
Final reduction ratio 2.923 (38/13)
Clutch Centrifugal, wet multi-disc

Frame

Type Hgh-tensile steel backbone
Wheel travel: front 110 mm (4.3 in.)
Tire: front 2.50-14 4PR
Wheel travel: rear 110 mm (4.3 in.)
Tire: rear 3.00-12 4PR
Caster (rake) 24.8°
Trail 50 mm (2.0 in.)
Steering angle (left/right) 45° / 45°

Performance

Maximum Power‡ 5.4 kW {7.3 PS} @ 7,500 rpm
Maximum Torque‡ 8.0 N·m {0.82 kgƒ·m} @ 4,000 rpm

Suspension

Suspension, front 30 mm telescopic fork
Suspension, rear Single shock

Details

Warranty 6 months warranty

* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice. The amount indicated as “Your price” may include an optional instant Mega Cash credit that is deducted from the manufacturer’s suggested retail price before taxes. This promotion is time limited and certain conditions will apply. See your dealer for complete details. Offer not available on financed purchases and cannot be combined with any other special offers. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)

‡ Power / Torque figures measured at the crankshaft.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.

2019 Kawasaki KLX110 – Totalmotorcycle.com European Specifications/Technical Details

TBA

2019 Kawasaki KLX110 – Totalmotorcycle.com Australian Specifications/Technical Details

TBA
