A RIDE THAT COULD MAKE A CONTINENT FEEL TOO SMALL .

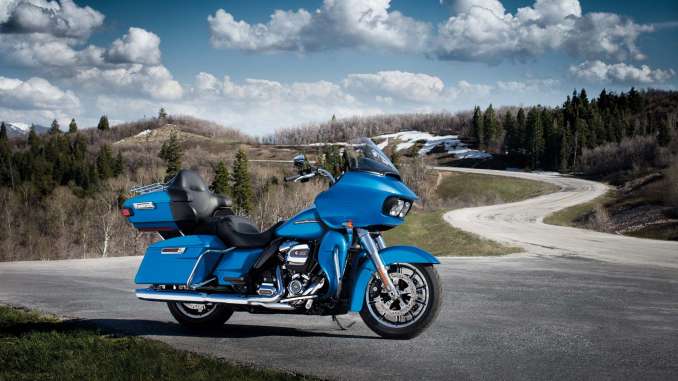

2018 Harley-Davidson Road Glide Ultra:

The frame-mounted shark-nose fairing, 13.5-inch windscreen and dual Daymaker™ Reflector LED headlamps give the Road Glide® Ultra model its distinctive appearance. Twin-Cooled™ Milwaukee-Eight® 107 engine power is matched by responsive front and rear suspension, powerful Reflex™ linked Brembo® brakes with ABS. A top-of-the-line 6.5-inch Touchscreen Infotainment System with integrated GPS, a BOOM!™ Box 6.5GT Audio system and a premium Tour‑Pak® luggage carrier with a luggage rack for extra travel essentials all come as standard.

2018 Harley-Davidson Road Glide Ultra Totalmotorcycle.com Key Features

The ultimate mile-eater for the rider who knows nothing’s out of bounds.

Harley-Davidson Touring Story – Long haul comfort. No restraints.

Harley-Davidson® Touring models feature long haul comfort combined with power that will unleash your soul. Spanning decades of heritage and nostalgia, Touring bikes began their lineage in 1936 when the Motor Company introduced a new engine design nicknamed the Knucklehead. From that heritage grew the powerful Milwaukee Eight® engine with more power, comfort, and handling to go the distance, making piling up the miles
rewarding and comfortable for both rider and passenger.

2018 Harley-Davidson Road Glide Ultra Totalmotorcycle.com Features and Benefits

IT’S ALL THERE SO YOU CAN GO BIGGER

Frame-Mounted Shark Nose Fairing

A distinctive, menacing, mile-hungry design that cuts through the wind like no other fairing in the world.

Custom Windscreen

A thirteen and a half inch custom style windscreen that sits between you and the world’s flying insect population.

Dual Daymaker™ Reflector LED Headlamps

Darkness-defying headlight that ensures you’ll have no trouble seeing everything out there that needs to be seen.

Milwaukee-Eight® V-Twin Engine

A powerful, cool-running engine with crisp throttle response and a pure, soul-satisfying rumble.

Responsive Suspension

High-performing front and rear suspension with easily adjustable rear shocks put you in control of a plush ride.

Reflex™ Linked Brembo® Brakes with Standard ABS

The front and rear brakes are electronically linked to provide exactly the right amount of brake to each tire no matter the road condition. No matter how good you are, this will make you a better rider.

Premium BOOM!™ Box 6.5 Infotainment System

A stylish 6.5-inch full-color touch screen display with voice activation for hands-free mobile phone, media, and navigation. Delivers powerful, pure sound and dynamic full-range audio.

Premium Tour-Pak® Luggage Carrier

A sleek yet spacious Tour-Pak luggage carrier with luggage rack that can easily house both rider and passenger helmets along with extra travel essentials.

2018 Harley-Davidson Road Glide Ultra – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD

PRICING⁶

• Vivid Black $26,399
• Color $26,999
• Two-Tone $27,499

Engine

• Engine ¹ Twin-Cooled™ Milwaukee-Eight^® 107
• Bore 3.937 in.
• Stroke 4.375 in.
• Displacement 107 cu in
• Compression Ratio 10.0:1
• Fuel System ³ Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields

Dimensions

• Length 102.2 in.
• Seat Height, Laden ⁷ 27.2 in.
• Seat Height, Unladen 28.9 in.
• Ground Clearance 5.1 in.
• Rake (steering head) (deg) 26
• Trail 6.7 in.
• Wheelbase 64 in.
• Tires, Front Specification BW 130/80B17 65H
• Tires, Rear Specification BW 180/65B16 81H
• Fuel Capacity 6 gal.
• Oil Capacity (w/filter) 5 qt.
• Weight, As Shipped 899 lb.
• Weight, In Running Order 937 lb.
• Luggage Capacity -Volume 4.7 cu ft

Performance

• Engine Torque Testing Method J1349
• Engine Torque ² 114 ft-lb
• Engine Torque (rpm) 3,250
• Lean Angle, Right (deg.) 31.9
• Lean Angle, Left (deg.) 31.8
• Fuel Economy: Estimated City/Hwy ⁵ 43 mpg

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 9.593
• Gear Ratios (overall) 2nd 6.65
• Gear Ratios (overall) 3rd 4.938
• Gear Ratios (overall) 4th 4
• Gear Ratios (overall) 5th 3.407
• Gear Ratios (overall) 6th 2.875

Chassis

• Wheels, Front Type ⁹ Impeller Cast Aluminum
• Wheels, Rear Type Impeller Cast Aluminum
• Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

• Lights (as per country regulation), Indicator Lamps ⁸ High beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS.
• Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

INFOTAINMENT

• Infotainment system Boom!™ Box 6.5GT
• Type Color
• Watts Per Channel 25
• Speakers 4
• Speaker Size 5.25 inch standard
• Headset Specifications (if equipped) 16-64 ohms
• AM Standard
• Weather Band (WB) Standard
• SD Card, Flash Drive and MP3 – via USB Connection Supported
• SiriusXM Presets 20 – P&A Upgrade for Boom! Box 6.5GT (USA & Canada only)
• Lauguages “English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• Hands-free Mobile Phone – via Bluetooth standard
• Voice Recognition Languages: Phone functions only “English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• Voice Recognition Languages: Tuner/Media/Navigation “English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• Rider/Passenger Intercom Standard
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• Text-to-Speech (TTS) Languages “English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported

• 1. Recommended 91 octane or higher fuel (R+M)/2.
• 2. Values shown are nominal. Performance may vary by country and region.
• 3. Standard and optional fuel systems may vary by country.
• 4. See motorcycle owner’s manual for complete details.
• 5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
• 6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
• 7. Measurement reflects 180 lb. (81.7 kg) operator weight.
• 8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
• 9. Standard and optional wheels may vary by country and region.

2018 Harley-Davidson Road Glide Ultra – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See Below for Pricing in CDN

PRICING

• Vivid Black $ 31,399
• Color $ 32,099
• Two-Tone $ 32,649

Dimensions

• Length 2,595 mm
• Seat Height, Unladen 735 mm
• Ground Clearance 130 mm
• Rake (steering head) (deg) 26
• Trail 170 mm
• Wheelbase 1,625 mm
• Tires, Front Specification BW 130/80B17 65H
• Tires, Rear Specification BW 180/65B16 81H
• Fuel Capacity 22.7 l
• Oil Capacity (w/filter) 4.7 l
• Weight, As Shipped 408 kg
• Weight, In Running Order 425 kg
• Luggage Capacity -Volume 0.132 m³

Engine

• Engine ¹ Twin-Cooled™ Milwaukee-Eight™ 107
• Bore 100 mm
• Stroke 111.1 mm
• Displacement 1,746 cc
• Compression Ratio 10.0:1
• Fuel System ³ Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 9.593
• Gear Ratios (overall) 2nd 6.65
• Gear Ratios (overall) 3rd 4.938
• Gear Ratios (overall) 4th 4
• Gear Ratios (overall) 5th 3.407
• Gear Ratios (overall) 6th 2.875

Chassis

• Wheels, Front Type Impeller Cast Aluminum
• Wheels, Rear Type ⁸ Impeller Cast Aluminum
• Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Performance

• Engine Torque Testing Method J1349
• Engine Torque ² 154 Nm
• Engine Torque (rpm) 3,250
• Lean Angle, Right (deg.) 31.9
• Lean Angle, Left (deg.) 31.8
• Fuel Economy: Estimated City/Hwy ⁵ 5.5 l/100 km

Electric

• Lights (as per country regulation), Indicator Lamps ⁷ High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, battery, security system, low fuel warning, cruise control, ABS, Gear/RPM display, miles to empty display
• Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

Infotainment

• Infotainment system Boom!™ Box 6.5GT
• Type Colour
• Watts Per Channel 25
• Speakers 4
• Speaker Size 5.25 inch
• Headset Specifications (if equipped) 16-64 ohms
• AM Standard
• FM Standard
• SD Card, Flash Drive and MP3 – via USB Connection Supported
• Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese”
• Hands-free Mobile Phone – via Bluetooth Standard
• Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese”
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese”
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported

• 1. Recommended 91 octane or higher fuel (R+M)/2.
• 2. Values shown are nominal. Performance may vary by country and region.
• 3. Standard and optional fuel systems may vary by country.
• 4. See motorcycle owner’s manual for complete details.
• 5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
• 6. Measurement reflects 180 lb. (81.7 kg) operator weight.
• 7. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
• 8. Standard and optional wheels may vary by country and region.

2018 Harley-Davidson Road Glide Ultra – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Below for Pricing in  GBP (On The Road inc 20% Vat)

PRICING⁵

• Vivid Black £23,995
• Color £24,345
• Two-Tone £24,745

Engine

• Engine ² Twin-Cooled™ Milwaukee-Eight^® 107
• Bore 100 mm
• Stroke 111.1 mm
• Displacement 1,745 cc
• Compression Ratio 10.0:1
• Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields

Dimensions

• Length 2,595 mm
• Seat Height, Unladen 735 mm
• Ground Clearance 130 mm
• Rake (steering head) (deg) 26
• Trail 170 mm
• Wheelbase 1,625 mm
• Tyres, Front Specification BW 130/80B17 65H
• Tyres, Rear Specification BW 180/65B16 81H
• Fuel Capacity 22.7 l
• Oil Capacity (w/filter) 4.7 l
• Weight, As Shipped 408 kg
• Weight, In Running Order 425 kg
• Luggage Capacity -Volume 0.132 m³

Performance

• Engine Torque Testing Method EC 134/2014
• Engine Torque ³ 153 Nm
• Engine Torque (rpm) 3,250
• Lean Angle, Right (deg.) 31.9
• Lean Angle, Left (deg.) 31.8
• Fuel Economy Testing Method EC 134/2014
• Fuel Economy 6.1 l/100 km
• CO2 Emissions Testing Method EC 134/2014
• CO2 Emissions 140 g/km

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 9.593
• Gear Ratios (overall) 2nd 6.65
• Gear Ratios (overall) 3rd 4.938
• Gear Ratios (overall) 4th 4
• Gear Ratios (overall) 5th 3.407
• Gear Ratios (overall) 6th 2.875

Chassis

• Wheels, Front Type ⁷ Impeller Cast Aluminium
• Wheels, Rear Type Impeller Cast Aluminium
• Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

• Lights (as per country regulation), Indicator Lamps ⁶ High beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS.
• Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

Infotainment

• Infotainment system Boom!™ Box 6.5GT
• Type Colour
• Watts Per Channel 25
• Speakers 4
• Speaker Size 5.25 inch standard
• Headset Specifications (if equipped) 16-64 ohms
• FM Standard
• MW Standard
• LW Standard
• SD Card, Flash Drive and MP3 – via USB Connection Supported
• Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• Hands-free Mobile Phone – via Bluetooth Standard
• Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• Rider/Passenger Intercom Standard
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported

• 1. Availability of colours may vary from dealer to dealer and is subject to change without further notice.
• 2. Recommended 95 octane or higher fuel (R+M)/2.
• 3. Values shown are nominal. Performance may vary by country and region.
• 4. See motorcycle owner’s manual for complete details.
• 5. Prices shown are suggested retail prices only. Please contact your nearest dealer for further details.
• 6. Security system includes immobiliser and siren.
• 7. Standard and optional wheels may vary by country and region.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
