2017 Victory Highball Review

2017 Victory Highball on www.Totalmotorcycle.com

STRIPPED-DOWN SPEED DEMON…

Raise your fists and leave the civilized world behind on High-Ball®. There’s no radio or radiator, no saddlebags or sissybar, nothing to take the attention away from the big-bore V-Twin sitting in the belly of this beast. Reach up and grab some attitude with the ape-hanger handlebars and let the 16-inch spoke-alloy wheels roll.

Cranked up performance. Stripped down style.

2017 Victory Highball www.Totalmotorcycle.com
Key Features

Mini-Apes and sinister styling atop a 106 cubic-inch V-Twin deliver 110
foot-pounds of tire-smoking torque.

– High-Riding Ape-Hanger Handlebars
– Slammed 25-Inch Seat Height
– Fat Tires On 16-Inch Spoke Wheels

New for 2017, choose from a new Suede Black color with black-wall tires ($13,499)
or a new Suede Nuclear Sunset Orange ($13,749) color with white-wall tires.

2017 Victory Highball www.Totalmotorcycle.com
Features and Benefits

106 Cubic-Inch Freedom® V-Twin

The 106 cubic-inch engine delivers 110 foot-pounds of tire-smoking torque
that will get your heart pumping every time you grab a fist full of it.

12″ Mitered Ape Hanger Handlebars

Put your fists in the air and take it around the block knowing everyone is
looking at you.

Fat Tires on 16″ Wire Wheels

Spoked alloy wheels deliver loads of old-school style.

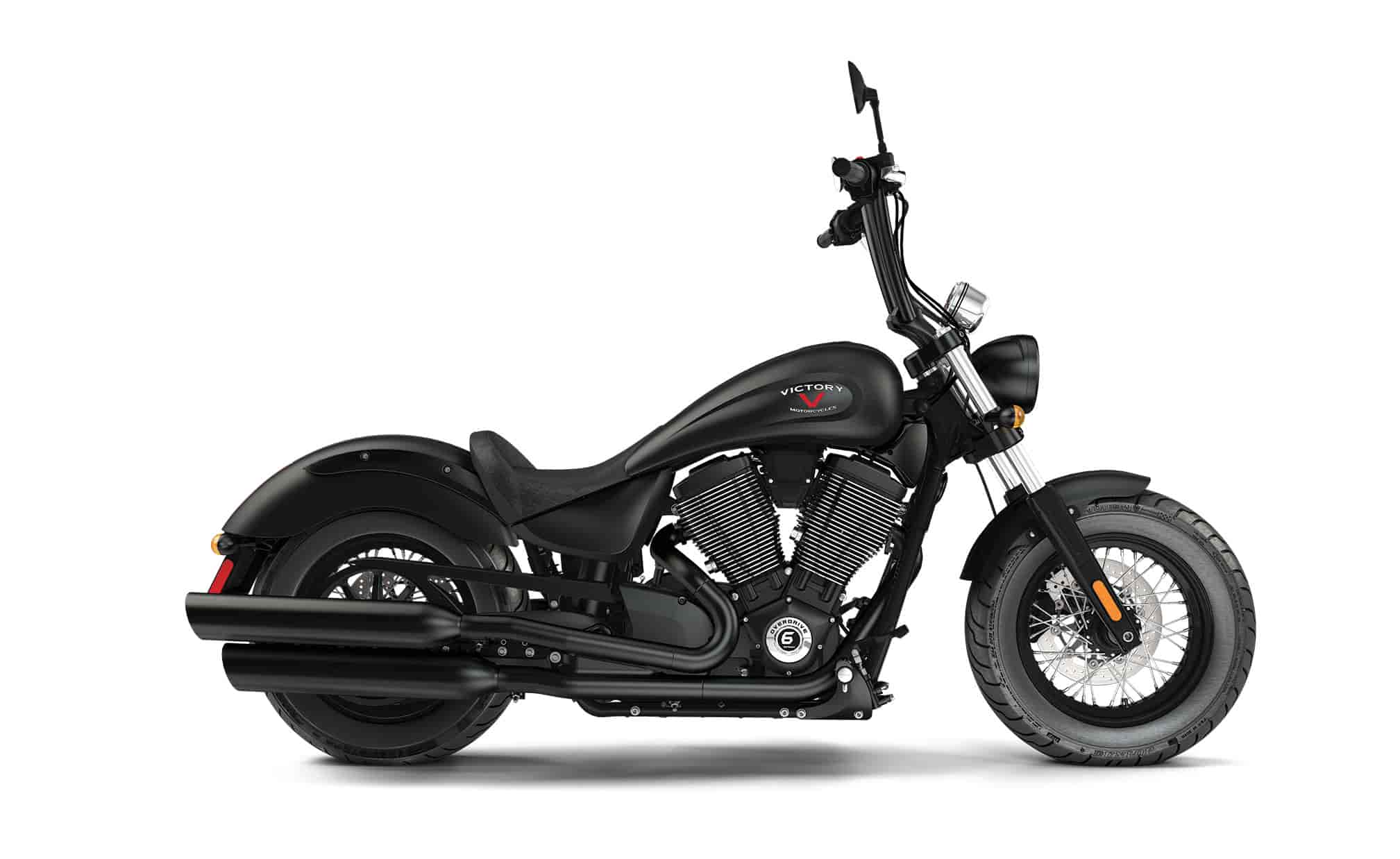

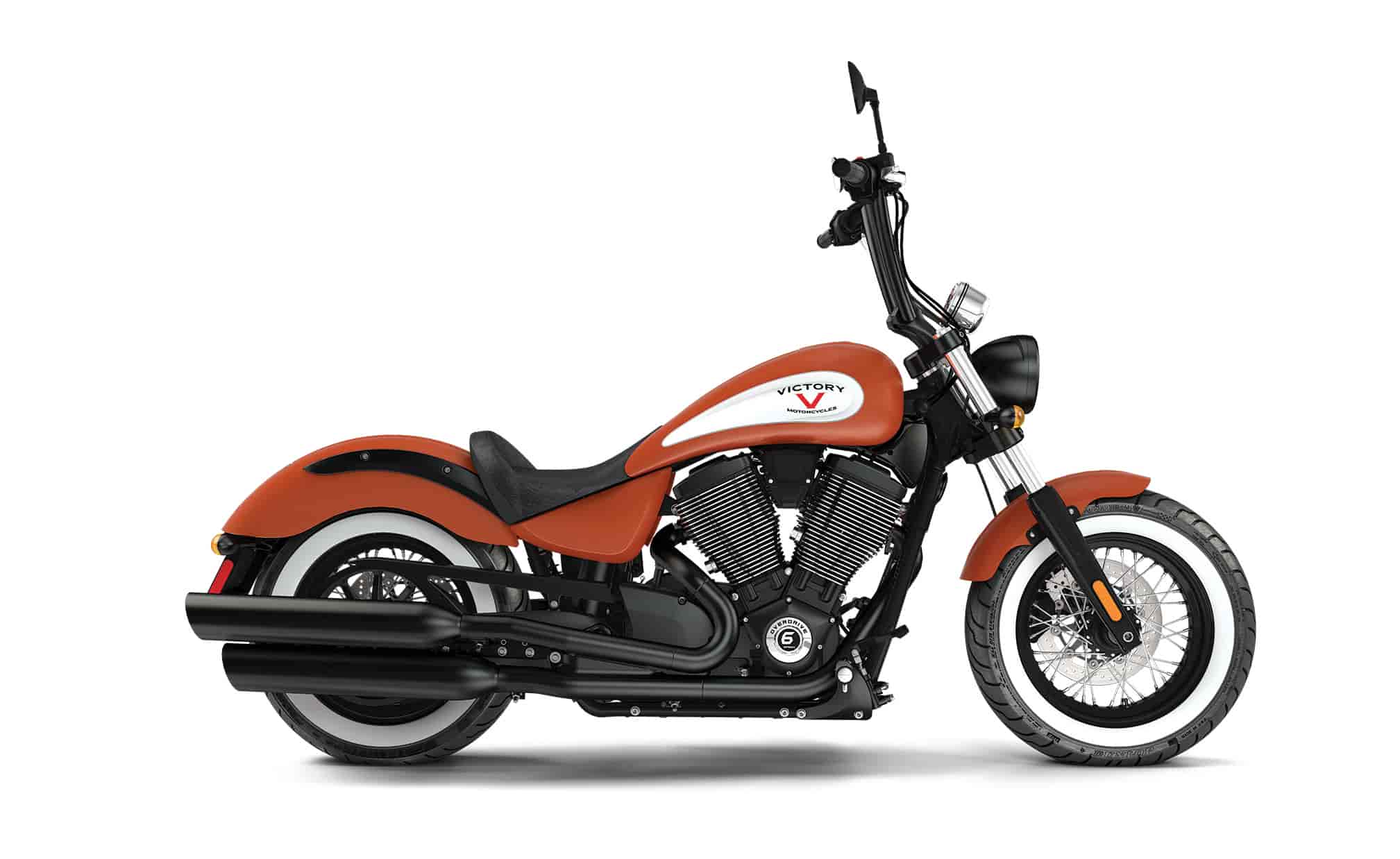

Badass Black or Nuclear Sunset Orange

Are you a stealth street racer, or more into show-and-shine? Two bold paint
options — Black Suede or Matte Nuclear Sunset Orange, the latter with
contrasting whitewall tires — suit either mood.

2017 Victory Highball – www.Totalmotorcycle.com
USA Specifications/Technical Details
US MSRP Price: New for 2017, choose from a new Suede Black color with black-wall
tires ($13,499) or a new Suede Nuclear Sunset Orange ($13,749) color with
white-wall tires.

Specifications

ABS/Cruise Control Not Equipped
Curb Weight 676 lbs / 307 kg
Displacement 106 ci / 1731 cc
Oil Capacity 5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Battery YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Charging System 38 Amps Max Output
Compression Ratio 9.4:1
Cooling Air & Oil
Drive/Driven Clutch Wet Multi-Plate/Diaphragm Spring
Exhaust Dual-Staggered Slash-Cut with Common Volume
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Transmission/Final Drive Carbon Fiber Reinforced Belt
Transmission/Primary Drive Gear Drive with Torque Compensator
Transmission Type 6 Speed Overdrive/Constant Mesh
Valve Train 4 Valves per Cylinder, Hydraulic Lifters & Cam Chain Adjusters

Bore x Stroke (mm) 101 x 108 mm
Engine Type Freedom 106/ 6 V-Twin

Suspension

Front Suspension Telescopic Fork/ 5.1″ (130mm)
Rear Suspension Single Monotube Gas/Preload Adjustable/3.0″ (75mm)

Brakes

Brake System Type Not Linked
Front Brakes Single 300 x 5mm/ Floating Rotor/ 4 Piston Caliper
Rear Brakes Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper

Tires / Wheels

Front Tires Dunlop D421 – 130/90B16 67H
Front Wheel 16 x 3.5 in
Rear Tires Dunlop D421 – 140/90B16 77H
Rear Wheel 16 x 3.5 in

DIMENSIONS

Fuel Capacity (Litres) 4.5 gal / 17.0 ltr
GVWR 1151 lbs / 523 kg
Ground Clearance 4.7 in / 120 mm
Rake/Trail 32° / 6.7 in / 170 mm
Seat Height 25.0 in / 635 mm
Wheelbase 64.8 in / 1647 mm
Overall Length (in./mm.) 93.4 in / 2372 mm

Features

Color Swatch Suede Black
Colors (Base) Suede Black, Suede Nuclear Sunset Orange

2017 Victory Highball – www.Totalmotorcycle.com
Canadian Specifications/Technical Details
Canada MSRP Price: $15,899 CDN

ABS Not Equipped
Dry Weight 676 lbs / 307 kg
Displacement 106 ci / 1731 cc
Oil Capacity 5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Valve Train 4 Valves per Cylinder, Hydraulic Lifters & Cam Chain Adjusters

Transmission Type 6 Speed Overdrive/Constant Mesh
Transmission/Primary Drive Gear Drive with Torque Compensator
Transmission/Final Drive Carbon Fiber Reinforced Belt
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Exhaust Dual-Staggered Slash-Cut with Common Volume
Drive/Driven Clutch Wet Multi-Plate/Diaphragm Spring
Cooling Air & Oil
Compression Ratio 9.4:1
Charging System 38 Amps Max Output
Battery YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Bore x Stroke (mm) 101 x 108 mm
Engine Type Freedom 106/ 6 V-Twin

Suspension

Rear Suspension Single Monotube Gas/Preload Adjustable/3.0″ (75mm)
Front Suspension Telescopic Fork/ 5.1″ (130mm)

Brakes

Rear Brakes Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper
Front Brakes Single 300 x 5mm/ Floating Rotor/ 4 Piston Caliper
Brake System Type Not Linked

Tires / Wheels

Rear Wheel 16 x 3.5 in
Rear Tires Dunlop D421 – 140/90B16 77H
Front Wheel 16 x 3.5 in
Front Tires Dunlop D421 – 130/90B16 67H

DIMENSIONS

Wheelbase 64.8 in / 1647 mm
Seat Height 25.0 in / 635 mm
Rake/Trail 32° / 6.7 in / 170 mm
Ground Clearance 4.7 in / 120 mm
GCWR 1151 lbs / 523 kg
Fuel Capacity (Litres) 4.5 gal / 17.0 ltr
Overall Length (in./mm.) 93.4 in / 2372 mm

Features

Colors (Base) Suede Black, Suede Nuclear Sunset Orange
Color / Graphics Suede Black

2017 Victory Highball – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £TBA GBP (On The Road inc 20% Vat)

TBA

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
