2017 KTM 250 XC-F Review

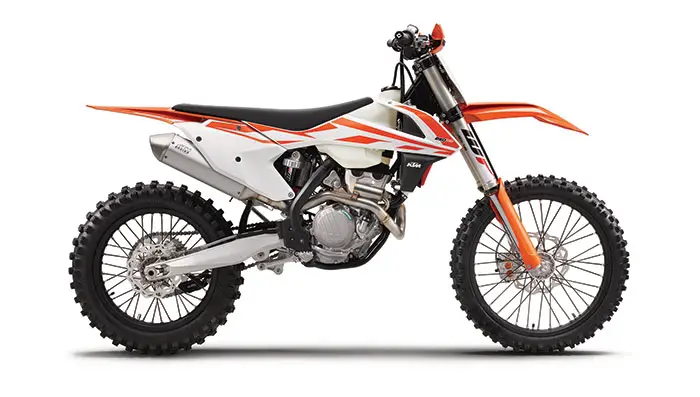

2017 KTM 250 XC-F

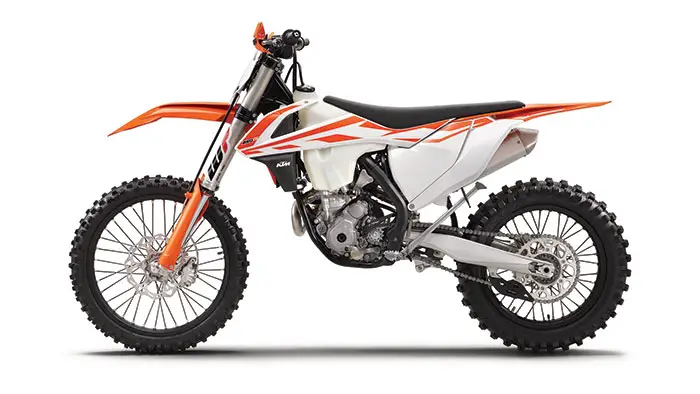

2017 KTM 250 XC-F

2017 KTM 250 XC-F Review

2017 KTM 250 XC-F on www.Totalmotorcycle.com

Small Bore Domination…

Already known for its strong performance, the new generation 250 XC-F presents itself with a newly developed, stronger engine built into an all-new chassis. The performance combination of a powerful and much torqueier engine in a lightweight and agile chassis is sure to make the 250 XC-F the star of the show for the future.

2017 KTM 250 XC-F www.Totalmotorcycle.com Key Features

A NEW GENERATION OF KTM ENDURO MACHINES IS HERE!

KTM once again underlines its commitment to its foundations in offroad, as its world-dominating, class-leading Enduro machines have been completely revised with a staggering 90 per cent of the model year 2017 line-up’s components being new. Notable weight reductions of up to five kilograms have been realized throughout the model range, with improved mass centralization resulting in increased performance and better handling.

For MY2017 the line-up has been changed to include the 125 XC-W and 150 XC-W (replacing the 125 and 200 EXC), which are specifically designed for closed course racing, as well as the more traditional, fully homologated powerhouses with the 250 EXC and 300 EXC in the 2-stroke range. In the 4-stroke range KTM continues with its completely updated versions of the 250 EXC-F, 350 EXC-F models, as well as modifying the name of the higher capacity models to fall in line with the typical 4-stroke name to 450 EXC-F and 500 EXC-F.

Not only does each machine receive a new chassis with new suspension including the WP XPlor 48 upside-down split fork by WP, the R&D team in Mattighofen, Austria combined with its network of test riders, factory racing teams and input from KTM North America R&D, has worked tirelessly to deliver new engines at the same time with improved performance, reduced weight and a more compact size to assist with better machine handling.

With refinements from the frame and bodywork, down to the smaller details in the dashboard of these READY TO RACE machines, KTM has utilized the latest technology to consider every improvement possible for the amateur rider right up-to the professional world championship racer.

Following a tried and tested tradition, the specially finished SIX DAYS models stand side by side with the legendary, new generation EXC bikes. Available as 2- and 4-stroke bikes and equipped with several performance-enhancing and useful technical parts, the new “Six Days Spain” bikes, designed with sophisticated special graphics, top the latest KTM EXC model range.

Joachim Sauer (KTM Offroad Product Manager): “As the saying goes, after the race is before the race. According to our understanding in state-of-the-art development, the brand new line-up of our offroad competition Enduros are proof of KTM`s ongoing commitment to our core discipline. We believe this Enduro sportmotorcycle range will push the excitement and satisfaction of any rider to a new level.”

The new KTM MY2017 Enduro range was unveiled yesterday evening at its launch in Les Comes, Spain and the new machines will begin to arrive in European dealers in June.

2017 KTM 250 XC-F www.Totalmotorcycle.com Features and Benefits

COMPACT AND LIGHT POWER PLANT

Engine
The new 250 XC-F engine is based on the similar overall design of its predecessor, with some major refinements to make this power plant more compact and lighter, with the production of improved torque and power across the entire rpm range. Perhaps one of the most impressive benefits of the new design is a weight reduction of 2 lbs, while still including the incredibly beneficial electric starter. The reworked engine guarantees an improved power curve over the entire rev range up to 14,000 rpm, which makes the new 250 XC-F a winner for both amateur and professional riders.

Cylinder head
The centerpiece of the compact DOHC (Double Overhead Camshaft) engine is the new cutting-edge cylinder head. It features improved combustion chamber geometry, two 150 g lighter overhead camshafts with new timing, plus a friction-optimized super-fine surface, new finger followers with a 30 % harder DLC coating and a reworked timing drive (friction reduced and shorter DID timing chain, new sprockets and chain guides). New valve springs and retainers for the four lightweight titanium valves (intake 32.5 mm, exhaust 26.5 mm) and high-flow ports create a maximized flow rate for an optimal power band and maximum performance, all the way up to a redline of 14,000 rpm.

Cylinder & piston
In the reworked and shorter cylinder that has a bore of 78 mm, is a weight-reduced, forged bridged box-type piston made by CP. It features a unique piston shape adapted to the new combustion chamber and stands out with its extra-rigid structure, combined with a low weight. The compression ratio is at 14.4:1. Thanks to the low oscillating masses, the engine offers extremely lively characteristics.

Crankshaft
The new 250 XC-F’s crankshaft features a stiffer design and employs a 6 mm shorter connecting rod, contributing to the compact and light engine with a snappy power delivery. A plain big end bearing features two force-fitted bearing shells run directly on the crank pin. This design is a major prerequisite for the extremely high engine speed levels and the unrivalled maximum power of the 250 cm³ engine. Not only that, it enhances the engine’s durability, allowing long crankshaft service intervals.

Counter balancer shaft
In order to balance the mass-forces, the new 250 XC-F engine uses a multifunctional counter balance shaft that also drives the water pump and timing chain. It features new sprockets fitted to the new timing chain.

Electric starter
The new 250 XC-F is fitted with an electric starter as standard, which a clear advantage in the heat of battle. A new starter motor made by Mitsuba (modified for easy disassembly) and a weight-reduced starter drive guarantees more efficient and reliable starting.

Engine cases and cover
The completely new design of the die-cast engine cases allowed for a much more centralized shaft configuration. The engine is now shorter by 20 mm, contributing to a much more centralized mass. Newly designed engine covers made of magnesium feature an advanced surface structure reducing the wear caused by the rider’s boots.

Clutch
The highly compact CSS clutch (Coil Spring Steel) features a weight reduced, wear-free steel basket, and now seven instead of eight clutch plates, which are extremely heat resistant due to their steel carrier discs. In addition, a reworked inner hub and a pressure plate guarantees a better oil supply along with even better cooling of the clutch. A smaller master cylinder diameter of the Brembo hydraulic clutch system provides lighter pull and precise modulation.

Transmission
The new engine is fitted with an all-new and weight reduced, six-speed semi-close ratio gearbox. One of the new and special features on the bike is an advanced “NO-DIRT” gear lever design, which prevents dirt from blocking the joint of the lever and guarantees a safe activation of the transmission.

Engine management system
The completely reworked Keihin Engine Management System with electronic fuel injection features an all-new 44 mm throttle body, which provides instantaneous response and maximum performance thanks to a revolutionary injector position. The new ECU (Engine Control Unit) includes a launch control for more efficient starts with the provision of different maps according to the gear sensor selection. In addition, the rider can activate an optional map for a different power delivery via the map select switch on the handlebar.

MASSIVE WEIGHT REDUCTION

Airbox
The new airbox design offers maximum protection of the air filter against soiling, while ensuring maximum airflow in conjunction with lighter intake snorkel that is made of a new material to reduce the deformation due to air intake pulse for improved performance. The new Twin Air filter is easier and safer to mount and can be changed without tools in seconds – a standard and original KTM feature.

Battery and wiring harness
As in the past, all new XC-F engines are fitted with the proven electric starter – a unique KTM feature and a major benefit at all levels of motocross racing. For MY 2017 the XC-F range fits a super compact and lightweight lithium-ion starter battery, providing safe starting of the engine while reducing the weight significantly.

Brakes
High-tech Brembo brakes have always been standard equipment on KTM off-road bikes, and now are combined with newly designed and weight-reduced Wave discs made by GALFER featuring improved heat resistance. Weight reduction is 63g on the front disc, and 32 g for the rear. This is the ultimate solution in braking technology.

Seat
Ergonomically perfect, the new seat has a higher foam volume, which offers great comfort and durability, while weighing the same as the previous model.

NEWLY DESIGNED CHASSIS

Frame
The new frame design provides approximately 20 % higher torsional rigidity and 30 % less longitudinal stiffness, with newly designed engine stays for less vibration. This increased flexibility results in better absorption of the energy created from the front and rear wheel loads supporting the suspension for more comfort and less rider fatigue. A 0.4° steeper steering angle and a 10 mm shorter wheel base contribute to better handling and last but not least it´s around lighter than the previous model.

Footpeg
A new sophisticated “No-Dirt” footpeg solution prevents dirt from blocking the pegs in order to keep them in the correct position, even when dragging in deep ruts. In addition, the new footpegs are larger, lighter and more stable, providing better grip .

Swingarm
As on the predecessor models, the new XC-F generation features a reworked cast aluminum swingarm. The updated design offers reduced weight and an optimized flex behavior supporting the frame and suspension created with a single-component casting process. The weight reduction is 250 grams.

Bodywork
For the new generation of XC models the KTM factory riders were involved in shaping the bodywork together with the specialists from KTM R&D and Kiska Design. The goal was to achieve complete harmony between rider and bike down to the finest details. The results are all-new plastics that provide perfect ergonomics and contact points for the rider, maximum freedom of movement, a lower seat height of between 10 to 20 mm (rear end) and better comfort, especially in the rear part of the seat.

Fuel tank
All XC-F models have new lightweight polyethylene tanks fitted with an integrated fuel pump system and capacity of 2.25 gallons. Inside threads on the filler cap make for an easy and reliable closure.

Graphics
New modern in-mold graphics highlight the Ready to Race character of the cutting-edge 2017 XC-F range of bikes.

Cooling system
The proven integrated KTM cooling system routes the coolant from the cylinder head through the frame triangle, directly to newly developed aluminum radiators made by WP, which have a new filler cap system and are made of a stiffer alloy. Due to flow-optimized internal circulation and CFD-calculated air ventilation, the cooling efficiency has been improved by approximately 10 %. Sophisticated radiator guards provide efficient protection in case of crashes.

Handlebar
The new generation XC-F models are equipped with a new tapered handlebar made of high-strength aluminum by NEKEN, which is fixed in a new rubber damped handlebar clamp allowing the handlebar to be mounted in two different positions. All 4-Stroke models feature a new throttle assembly with model-specific throttle cams for different opening characteristics and new ODI grips featuring lock-on fixing clamp on the left-hand side.

STATE-OF-THE-ART SUSPENSION

Monoshock
The new generation of monoshock made by WP Suspension has been developed for the new XC models in conjunction with the new frame and swingarm architecture, including the reworked linkage system and the new WP forks. The new body features a revised reservoir for a larger gas chamber to reduce performance fade. The linkage system has also been reworked with a revised geometry and longer pull rods.

Forks
The KTM XC models feature the advanced WP aer 48 fork for 2017. The AER 48 fork has been specifically designed and adapted for off-road riding conditions in the USA.

Triple clamp
Top quality, CNC-machined triple clamps have been something of a KTM trademark for years. Ensuring precise handling, they provide proper clamping force for correct flex characteristics, thus improving the action of the forks. For 2017 the upper triple clamp features a newly developed rubber damping system for the handlebar clamp in order to reduce the vibration levels felt through the handlebar. The clamps retain their forward and back adjustability for rider preference.

Weight reduction
The main target for the KTM engineers when developing the new XC-F generation was a massive weight reduction in conjunction with improved handling. The resulting loss of 5 lbs is outstanding, making the new KTM models the lightest bikes on the track, even with electric starting.

UNRIVALLED HANDLING

Wheels
The 250 XC-F is fitted with lightweight, CNC-machined hubs, high-end Giant rims and black spokes with lightweight aluminum nipples providing maximum stability at minimum weight. The latest Dunlop Geomax AT81 tires guarantee perfect traction and outstanding performance.

Brakes
High-tech Brembo brakes have always been standard equipment on KTM off-road bikes, and now are combined with newly designed and weight-reduced Wave discs made by GALFER featuring improved heat resistance. Weight reduction is 63g on the front disc, and 32 g for the rear. This is the ultimate solution in braking technology. .

2017 KTM 250 XC-F – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See Dealer for Pricing in USD

Engine

Design

1-cylinder, 4-stroke engine

Displacement

249.9 cm³

Bore

78 mm

Stroke

52.3 mm

Starter

Kick and electric starter

Transmission

6-speed

Primary drive

24:73

Secondary gear ratio

13:50

Clutch

Wet, CSS multi-disc clutch, Brembo hydraulics

EMS

Keihin EMS

Chassis

Frame design

Chrome-molybdenum steel central-tube frame

Front suspension

WP-USD, AER 48, Ø 48 mm

Rear suspension

WP shock absorber with linkage

Suspension travel (front)

310 mm

Suspension travel (rear)

300 mm

Front brake

Disc brake

Rear brake

Disc brake

Front brake disc diameter

260 mm

Rear brake disc diameter

220 mm

Chain

5/8 x 1/4″

Steering head angle

63.9 °

Wheelbase

1485 ± 10 mm

Ground clearance

370 mm

Seat height

960 mm

Tank capacity (approx.)

8.5 l

Weight READY TO RACE (without fuel)

99.2 kg

The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost.
All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that mistakes, printing, setting and typing errors may occur; such information is subject to change without notice.

2017 KTM 250 XC-F – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See Dealer for Pricing in CDN

Engine

Design

1-cylinder, 4-stroke engine

Displacement

249.9 cm³

Bore

78 mm

Stroke

52.3 mm

Starter

Kick and electric starter

Transmission

6-speed

Primary drive

24:73

Secondary gear ratio

13:50

Clutch

Wet, CSS multi-disc clutch, Brembo hydraulics

EMS

Keihin EMS

Chassis

Frame design

Chrome-molybdenum steel central-tube frame

Front suspension

WP-USD, AER 48, Ø 48 mm

Rear suspension

WP shock absorber with linkage

Suspension travel (front)

310 mm

Suspension travel (rear)

300 mm

Front brake

Disc brake

Rear brake

Disc brake

Front brake disc diameter

260 mm

Rear brake disc diameter

220 mm

Chain

5/8 x 1/4″

Steering head angle

63.9 °

Wheelbase

1485 ± 10 mm

Ground clearance

370 mm

Seat height

960 mm

Tank capacity (approx.)

8.5 l

Weight READY TO RACE (without fuel)

99.2 kg

The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost.
All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that mistakes, printing, setting and typing errors may occur; such information is subject to change without notice.

2017 KTM 250 XC-F – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)

Engine

Design

1-cylinder, 4-stroke engine

Displacement

249.9 cm³

Bore

78 mm

Stroke

52.3 mm

Starter

Kick and electric starter

Transmission

6-speed

Primary drive

24:73

Secondary gear ratio

13:50

Clutch

Wet, CSS multi-disc clutch, Brembo hydraulics

EMS

Keihin EMS

Chassis

Frame design

Chrome-molybdenum steel central-tube frame

Front suspension

WP-USD, AER 48, Ø 48 mm

Rear suspension

WP shock absorber with linkage

Suspension travel (front)

310 mm

Suspension travel (rear)

300 mm

Front brake

Disc brake

Rear brake

Disc brake

Front brake disc diameter

260 mm

Rear brake disc diameter

220 mm

Chain

5/8 x 1/4″

Steering head angle

63.9 °

Wheelbase

1485 ± 10 mm

Ground clearance

370 mm

Seat height

960 mm

Tank capacity (approx.)

8.5 l

Weight READY TO RACE (without fuel)

99.2 kg

The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost.
All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that mistakes, printing, setting and typing errors may occur; such information is subject to change without notice.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
