2017 Ducati Monster 821 Review

2017 Ducati Monster 821 on www.Totalmotorcycle.com

The essential Monster…

The Monster 821 is the mid-size version of the current generation Monster 1200.

More than two decades on from the Monster’s first unveiling, the Monster 821 maintains the stylish character made famous by the original concept, the essential model sports, the same chassis and muscular styling as the Monster 1200 and is designed with premium components fully integrated with Ducati’s latest technologies.

Powered by the Ducati’s highly successful 821 Testastretta 11° engine, the highly accessible Monster combines 112 hp and 65.9ft-lb of torque with an impressively lightweight *179.5kg (395.7lb) overall package. This stylish mix of minimalism and performance paves the way back to the original essence of the Monster concept, where less-is-more and made-in-Italy combine to create a motorcycle lifestyle.

High-spec brakes, excellent suspension and stylish componentry merge with Ducati’s best-yet ergonomics to offer the Italian manufacturer’s most attractive mid-range Monster ever. Super comfortable and with an innovative adjustable seat height, the model also combines 8-level traction control, 3-level ABS and 3-level Ride-by-Wire into Ducati’s user-friendly, press-button Riding Modes.

The Monster 821 uses next generation technologies to create an enhanced rider/motorcycle relationship, delivering a high-adrenaline experience while constantly reassuring with the feeling of complete control and ergonomic integration.
Available at Ducati Dealerships the Monster 821 is dressed in Ducati red with red frame and black wheels or in the brand new Dust Grey with red frame and red wheels. Both red and white liveries are equipped with colour-matched single-seat covers. The model is also made available to restricted license holders with the specially regulated power versions of 25kw for Switzerland and 35kw for other participating countries. The Monster 821 Stripe, instead, sports the exclusive red colour scheme with double white side-stripe on mudguard, tank and passenger seat cover, plus the red frame and black wheels. (*Dry weight)

Unmistakably Monster

112 HP* Testastretta 11° engine, razor sharp handling, state of the art safety equipment, Riding Modes and unmistakable Ducati sound. Sport performance, Italian design and unique personality: Monster 821, essentially Monster.
*The power values indicated above are measured using a chassis dynamometer. Homologated power data, as quoted in the Bike Registration Document, are measured using an engine dynamometer according to the homologation regulation. The two power values may differ because of the different measurement equipments.

Introducing the Monster

The Monster’s worldwide success and well-earned image as the unchallenged icon of naked motorcycles is the result of investing over 20 years of Ducati engineering, design and styling experience. It is an investment in time, constantly rewarded by being the motorcycle of choice for motorcycle connoisseurs and celebrities, from actors and musicians to Formula 1 drivers and top athletes. Over 300,000 Monsters have now been sold, creating a growing world of Monsteristi with a creative passion for personalisation. The Monster has always been a statement on two wheels, an expression that created a cult following and, above all, a premium lifestyle motorcycle easily accessible to everyone.

The Monster represents the next generation middleweight of this famous family, combining genuine Monster tradition with Ducati’s latest technical solutions to engineer a modern and mature masterpiece. From the super-smooth refinement of the latest 821 Testastretta 11° engine and its Panigale-style direct attachment to the frame to best-ever ergonomics, this iconic motorcycle now mixes authentic sport character with lifestyle sophistication.

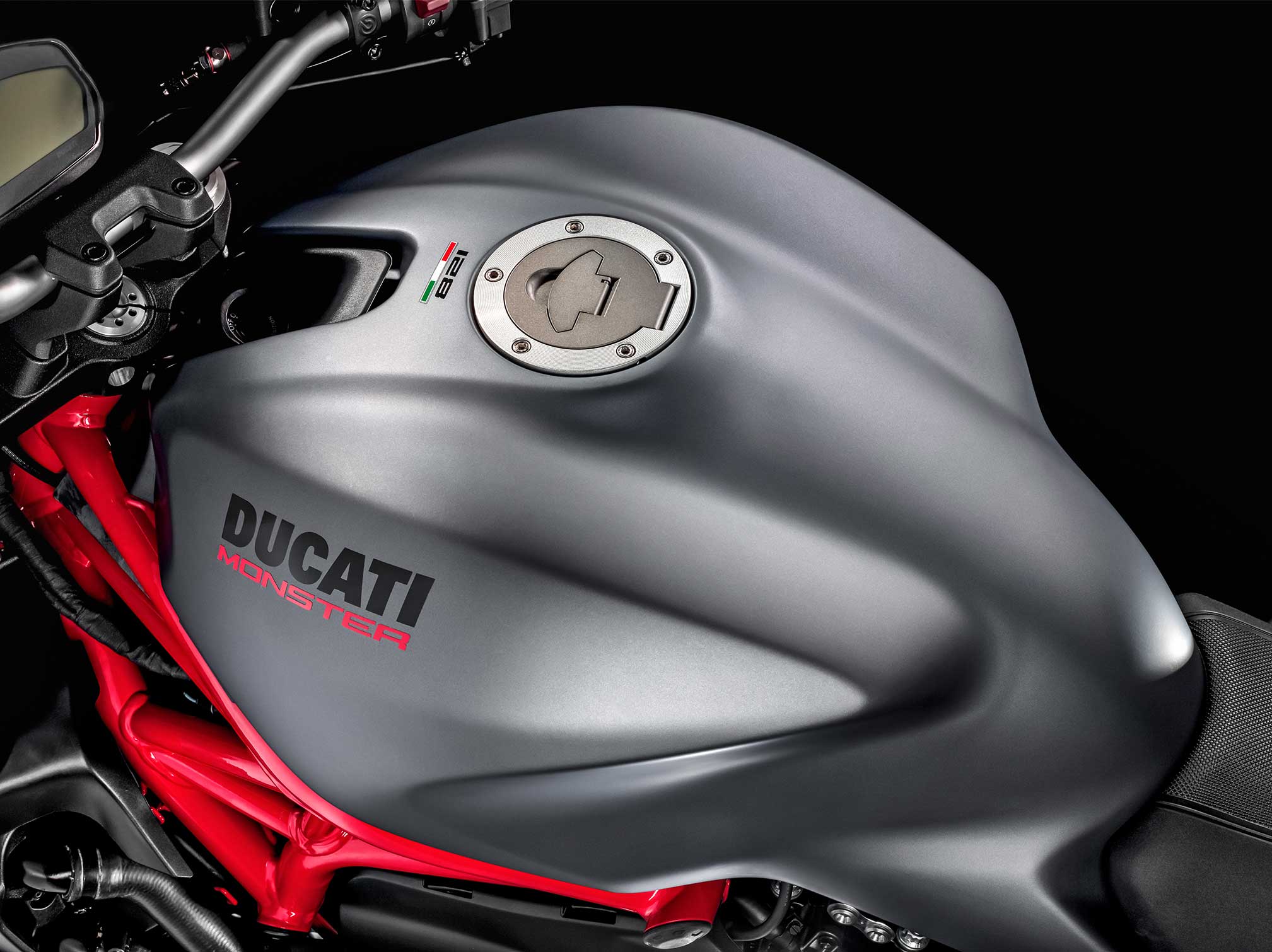

Mirroring the Monster 1200, the Monster’s larger metal fuel tank presents an even more muscular image, emphasised by a narrow waistline and an incredibly compact headlamp that creates the overall silhouette of a powerful bull ready to charge. The clean and minimal handlebar area continues the naked icon’s essential character with distinctive quality to component finish.

2017 Ducati Monster 821 www.Totalmotorcycle.com Key Features

DUCATI MONSTER FAMILY
Presented in 1992 at the Cologne fair, the Monster was an immediate hit, a machine that skilfully combined a few simple technical elements to create not just a bike but, first and foremost, a true design phenomenon. Over the years the Monster has gone on to become a motorcycling icon and now, twenty years later, Ducati offers a full Monster ‘family’ that has something for every motorcyclist.

A core feature of the Monster family is the high-capacity steel fuel tank that enhances its powerful character. Emphasized by its thin flanks and the compact front headlight, the outline of the Monster resembles that of a charging bull. A clean, minimalist handlebar zone underscores the bike’s essential style, while close attention to detail is evident in the high-quality finish.

Whereas the Monster 797 features the air-cooled Desmodue twin, the rest of the Monster family offers a particularly broad range of power units. The twin-cylinder 821 Testastretta 11° delivers 112 hp @ 9250 rpm and a maximum torque of 89.4 Nm (65.9 lb-ft) @ 7750 rpm. The Testastretta 11° DS on the Monster 1200, instead, comes in two different versions: 150 hp @ 9250 rpm and 126.2 Nm (93.1 lb-ft) @ 7750 rpm on the 1200 and 1200 S version and 160 hp @ 9250 rpm and 131.4 Nm (97 lb-ft) @ 7750 rpm on the R version.

When it comes to the Monster chassis, Ducati uses the most advanced design techniques it has ever developed. On the 821 and 1200, the iconic Trellis frame remains a central design feature, with the attachment points positioned directly on the cylinder heads, a technique already implemented on the Panigale Superbike. The Monster frame is extremely compact. Large-diameter steel tubing ensures a combination of optimal torsional strength and minimal weight. The Monster 797 features a traditional tubular Ducati Trellis frame. Essential, rigid and light, it leaves the Ducati L-twin engine in full view and is, together with the steel tank, a Monster hallmark.

Monster 821

Colour scheme
1. Ducati Red with red frame and black wheel rims

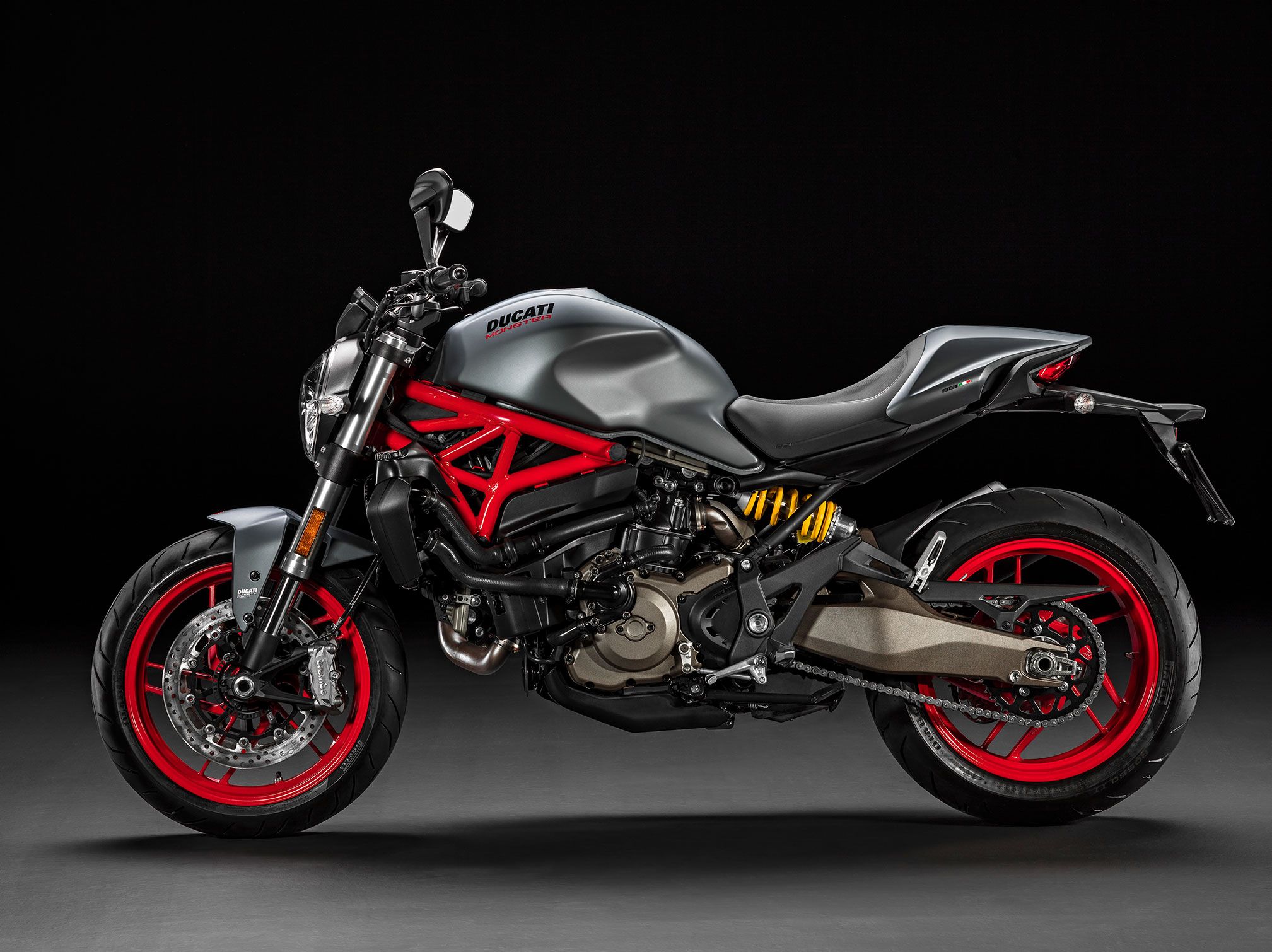

2. Dust Grey with red frame and red wheels

Specifications
o 821 cm3 Testastretta 11¢X engine
o Euro 4 emissions
o Maximum power 112 hp
o Trellis frame attached to cylinder heads
o Double-sided swingarm
o LCD instrumentation
o Riding Modes
o Ducati Safety Pack (3-level ABS, 8-level DTC)
o 43 mm Kayaba forks
o Adjustable Sachs shock
o Height-adjustable seat
o Passenger seat cover

2017 Ducati Monster 821 www.Totalmotorcycle.com Features and Benefits

Testastretta 11°
The second generation 821cc Testastretta 11° engine, now becomes a fully-stressed chassis member with Panigale-style attachment points for the Trellis frame. The Desmodromic motor uses a number of important and highly effective features to deliver an impressive 112 hp @ 9,250rpm and a ride-enhancing torque of 65.9lb-ft (9.1kgm) @ 7,750rpm.

In addition to the crankshaft rotating on shell main bearings lubricated with a new-style oil pump, a number of well-proven technical advancements in Ducati’s twin-cylinder technology have also been combined to create an exciting, customisable and user-friendly character for the mid-range Monster.

Breathing through circular Ride-by-Wire throttle bodies, the 821 Testastretta 11° uses the latest fuel injector positioning to target spray directly onto the rear of the hot intake valve instead of the relatively cold surface of the intake port wall. The enhanced vaporisation achieved as the fuel hits the valve, fully atomises the incoming charge, eliminating the chance of compromised combustion efficiency experienced if droplets of fuel enter in liquid form. The engine, which is cooled with a stylishly curved radiator equipped with two high-efficiency electric fans, also uses Ducati’s secondary air system, maintaining performance-optimised fuel mapping for smoother cycle-to-cycle engine operation, without compromising emissions.

The Testastretta 11° engine concept effectively increased user-friendliness by reducing the amount of valve over-lap from around 41° – typical in performance engines that operate constantly at high RPM – to just 11°, which enhanced mid-range and overall smoothness.

The Monster 821 engine features an oil bath, cable-operated APTC clutch with ‘slipper’ function and super-light feel at the lever. Its design uses a progressive self-servo mechanism that presses the plates together when under drive from the engine, enabling the reduction of the clutch spring rates. This results in a much lighter clutch lever at the handlebar, ideal in stop-start traffic or long journeys. When the drive force is reversed (over-run), the same mechanism reduces the pressure on the clutch plates, enabling them to provide a race-like ‘slipper’ action, which reduces the destabilizing effect of the rear-end under aggressive down-shifting and provides a much smoother feeling when closing the throttle or down-shifting under normal riding conditions.

The impressive 50-52mm (1.96-2.04in) section exhaust headers lead the 2-1-2 system through power-enhancing equal lengths that help enable the Monster’s efficient power delivery. The engine management system dedicates a lambda probe to each header to provide precise fueling, while the stylish vertically-merged silencers carry the catalytic converter to provide Euro 4 conformity and electronically controlled mid-section valve to optimise exhaust pressures throughout the rev-range.

30,000km between major services
The Monster’s Testastretta 11° engine underlines another milestone in Ducati’s constant investment in quality by enabling the distance between major service intervals (valve clearance check) to be set at an owner-friendly 30,000 kilometres (18,000 miles).

Monster chassis
While maintaining the vitally important aspects of the original Monster concept, the chassis uses Ducati’s advanced design techniques. The model’s signature Trellis frame still features predominantly in the overall styling, while its attachment points move directly to the engine’s cylinder heads, a method pioneered on the innovative Panigale Superbike. This compact frame design combined with its large diameter steel tubing has effectively doubled its torsional stiffness compared to previous models, while reducing weight.

Considerable attention has been applied to the ergonomics of the model with a stability-enhancing 30 mm longer wheelbase ideal for two-up riding comfort, and handlebars a ride-transforming 40mm higher and 40mm closer to the rider. The seat design with high-grip surface boasts a comfortable 80 mm of foam at its deepest point and is equipped with Ducati’s adjustable seat height system. Using a simple block-and-pin system, the seat is able to be transformed from its standard 810mm seat height to a confidence-inspiring 785mm and even further to 765mm or 745mm with the accessory low seat – Ducati’s lowest ever. A third accessory seat also offers an 830mm seat height option for those who require, therefore providing an extensive range of 745-830mm. This easy adjustment without changing the overall aesthetic profile of the Monster introduces true ergonomic flexibility to this impressive sports-lifestyle motorcycle.

Perfectly formed grab-rails provide a confidence-enhancing grip for the passenger without compromising the lines of the Monster’s beautifully styled tailpiece. A sleek and sporty single seat cover comes as standard equipment, giving the rear-end a clean and sharp look. While enhancing the presence of the Monster with a muscular silhouette, the 17.5l (4.6 US gal) steel fuel tank is carefully shaped to fit the rider perfectly.

Presenting a clean and minimalist cockpit area, the steel handlebars, finished in matte chrome, are mounted with Ducati’s well-proven compact switchgear with adjustable brake lever and axial master cylinders with integrated reservoirs and cable-operated clutch. Foot controls are mounted on dark grey, diecast aluminium hangers, contrasting elegantly against the bronze-coloured single-sided swingarm, colour-matched with the Testastretta 11° engine’s outer-cases.

Suspension
The Monster uses 43mm Kayaba forks up front with a single Sachs unit on the rear, adjustable in spring preload and rebound damping, attached directly to the rear cylinder and operating through a diecast aluminium, double-sided swingarm. Shorter than the Monster 1200, the swingarm provides enhanced agility with precise handling for optimum riding pleasure. On the Stripe version the suspension consists of 43 mm Kayaba forks up front and a Sachs unit at the rear, adjustable in spring preload and rebound damping, which employs a progressive pull-rod linkage attached to the vertical cylinder on one side and the double-sided cast aluminium swingarm on the other.

Wheels and tyres
The Monster rolls on Panigale-style 10-spoke light alloy wheels with rim sizes of 3.50 x 17 for the front and 5.50 x 17 on the rear, mounted with Pirelli Diablo Rosso II tyres in 120/70 for the front and an agile 180/60 for the rear, constructed in bi-Compound to combine long lasting mileage with excellent full-lean grip. The high quality tyres use Pirelli’s Enhanced Patch Technology (EPT) to optimise contact patch for improved grip and Functional Groove Design (FGD) to enhance their wet weather characteristics.

Ducati Safety Pack (DSP)
The Monster uses Ducati’s Riding Mode technology to incorporate three-level ABS and eight-level DTC into the Ducati Safety Pack (DSP) concept, further underlining the company’s increased focus on performance safety.

Bosch Brembo Braking system with 3-level ABS
Included as an integral part of the Ducati Safety Pack (DSP), the Monster is equipped with the Bosch ABS 9MP controlled Brembo braking system, with integrated pressure sensor, as standard equipment. This impressive combination of state-of-the-art security and proven performance provides shorter stopping distances with enhanced stability appropriate to the motorcycle’s environment by being fully integrated with the Monster’s Riding Modes. While level-1 of the system enables a sport-oriented ABS intervention with no rear lift-up prevention, level-2 delivers the same intervention with medium rear lift-up prevention activated.

Level-3 provides maximum braking stability and rear lift-up prevention.
The Monster uses twin radially-mounted Brembo, four piston, Monobloc M4-32 callipers gripping 320mm discs, with an axial front brake pumps with integrated reservoirs and a single 245mm disc on the rear gripped by a single Brembo calliper. Typical of all Ducatis, these components ensure high performance braking and set the standard in this segment.

An option to disable the ABS in each individual Riding Mode is available via the instrumentation, and the system allows the setting to be saved and memorised at the next ignition-on.

Lighting
The Monster’s super compact headlamp assembly uses conventional halogen main light illumination with LED position lights on either side and full LED lighting for the beautifully shaped rear and brake light illumination. The directional indicators sport also provide a hazard light function, activated by holding the left-turn signal button on for four seconds.

Ducati Traction Control (DTC)
The Ducati Traction Control is an intelligent system which acts as a filter between the rider’s right hand and the rear tyre. Within milliseconds, DTC is able to detect and then control rear wheel-spin, considerably increasing the bike’s active safety and performance, an important component of the Ducati Safety Pack (DSP). The Monster uses the very latest DTC software, optimised with seamless intervention to ignition timing only.

The system offers eight ‘levels of sensitivity’, each programmed with a level of rear wheel-spin tolerance in line with progressive levels of riding skills classified from one to eight. Level one is programmed to offer the least amount of interaction while level eight uses the most amount of interaction.

DTC levels are factory pre-set in each of the three Riding Modes, but can be individually customised and saved to suit the rider by accessing the set-up menu within each mode. A ‘Default’ option is available to easily return all settings to factory pre-sets.

Ducati Riding Modes
Ducati’s industry-changing Riding Modes effectively offer optimised settings appropriate to rider and environment by selecting from a choice of three pre-set modes: “Sport”, “Touring” and “Urban”. Each Riding Mode is pre-programmed to instantly change engine character, ABS and DTC intervention – even while riding. The modes are made possible by combining a number of class-leading technologies.

An electronic Ride-by-Wire (RbW) system uses Ducati’s innovative e-Grip throttle to administer different mappings to regulate power delivery, while the Ducati Traction Control system (DTC) uses eight levels of system interaction to enhance control by reducing rear wheel-spin and the ABS processor provides pre-programmed three levels of anti-lock braking.

Sport
The “Sport” Riding Mode provides 112 hp delivered with a “High” RbW throttle response, reduced DTC system intervention and level-one ABS of sport-oriented intervention with no rear lift-up prevention.

Touring
The Touring Riding Mode provides 112 hp delivered with a “Medium” RbW throttle response, increased DTC system intervention and level-two ABS with medium rear lift-up prevention activated.

Urban
The Urban Riding Mode provides 75 hp, delivered with a “Low” RbW throttle response, further increased DTC system intervention and level-three ABS with maximum braking stability and rear lift-up prevention.

Ride-by-Wire (RbW)
The full Ride-by-Wire (RbW) system is an electronic interface between the twistgrip and the engine which decides the ideal power response depending on the Riding Mode selected and according to the rider’s throttle input. The twistgrip no longer uses a throttle cable to control the throttle body butterflies, but instead Ducati’s “e-Grip” delivers a signal to a control unit, which in turn operates the butterfly opening. The RbW system enables the use of three different mappings to regulate the power delivery. The three maps offer 112 hp with a “High” sports-type delivery, 112 hp with a “Medium” progressive delivery suitable for touring and 75 hp with a “Low” reduced delivery for urban use.

Monster Instrumentation
The Monster has a compact instrumentation panel with a well arranged and data-rich black on white LCD display. The unit displays RPM from 0-12,000 in an easy-to-read bargraph positioned in a semi-circular shape across the top of the unit with speed indicated prominently in the centre of the screen.

The three riding modes of Sport, Touring and Urban are positioned left of the vehicle speed value and are easily scrollable using the indicator cancel button on the left-hand switchgear. When each Riding Mode is selected its corresponding DTC and ABS levels are displayed to the right of the vehicle speed value in additional to a service icon which appears when scheduled maintenance is due.

Further left of the three Riding Modes, the screen also displays a tag to confirm that Stopwatch mode is activated and ready for use.
Engine coolant temperature is displayed at the lower centre section of the screen with rectangular windows of additional data positioned either side, scroll-controlled using two buttons positioned above and below the indicator cancel button on the left-hand switchgear. The upper button scrolls the left window to present total mileage, trip A, trip B, trip reserve fuel, trip time, time and lap time, while the lower button scrolls the right window for air temperature, fuel consumption, average fuel consumption and average speed.

Illuminated icons on the top left of the instrumentation, from left to right, show warnings for left turn signal, engine electronics, ABS-off and neutral, while from top right of the instrumentation, from right to left, are turn signal right, fuel reserve, main beam and oil pressure. In the middle of these two banks of warning lights, and designed to advise via the rider’s peripheral vision, are a strip of red lights incrementally counting-up to engine over-rev, until finally illuminating also the main red over-rev warning light in the top centre of the display. Below the main top, centre over-rev bar is a second bar that illuminates orange to denote DTC interaction.
When the Monster is stationary, the instrumentation is accessible as a user-friendly control panel to personalise and save ABS, DTC, and RbW settings within each Riding Mode. Additionally, the stopwatch function, actuated manually by using the flasher button on the left-hand switchgear can list the last 30 recorded lap times, each time also displaying the associated lap number, maximum speed and maximum rpm. The brightness level of the display can also be adjusted from the same control panel area.

2017 Ducati Monster 821 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $11695 USD

Engine
Type
Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement
821cc
Bore x Stroke
88 x 67.5mm
Compression ratio
12.8:1
Power
82.4 kW (112 hp) @ 9,250 rpm
Torque
89.4 Nm (65.8 lb-ft) @ 7,750 rpm

The power values indicated above are measured using a chassis dynamometer. Homologated power data, as quoted in the Bike Registration Document, are measured using an engine dynamometer according to the homologation regulation. The two power values may differ because of the different measurement equipments.
Fuel injection
Electronic fuel injection system, 53mm throttle bodies with full Ride by Wire
Exhaust
Stainless steel muffler and aluminium and cap; lightweight 2-1 system with catalytic converter with 2 lambda probes

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Front sprocket 15; Rear sprocket 46
Clutch
APTC slipper and self-servo wet multiplate clutch with control cable

Chassis

Frame
Tubular steel Trellis frame attached to the cylinders head
Front suspension
Upside down 43mm forks
Front wheel
10-spoke in light alloy 3.50″ x 17″
Front Tyre
120/70 ZR 17 Pirelli Diablo Rosso II
Rear suspension
Progressive linkage with adjustable monoshock. Aluminium double-sided swingarm
Rear wheel
10-spoke in light alloy 5.50″ x 17″
Rear tyre
180/60 ZR17 Pirelli Diablo Rosso II
Front wheel travel
130mm (5.1in)
Rear wheel travel
140mm (5.5 in)
Front brake
2 x 320mm semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, radial pump with ABS as standard
Rear brake
245mm disc, 2-piston floating calliper with ABS as standard equipment
Instrumentation
LCD display

Dimensions and weight

Dry weight
179.5kg (395.7lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
205.5kg (453lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
Adjustable 785 – 810 mm (30.9 – 31.9)
Wheelbase
1480mm (58.3in)
Rake
24,3°
Trail
93.2mm (3.7in)
Fuel tank capacity
17.5l – (4.6 US gal)
Number of seats
Dual seat

Equipments

Standard Equipment
Riding modes,Power modes, DSP Ducati Safety Pack (ABS + DTC), RbW, seat cover passanger handles, ready for anti-theft system and DDA

Warranty
24 months unlimited mileage
Maintenance service intervals
9,000m/12 Months
Valve clearance check
30.000km (18,000m)

Emissions and Consumption

Standard
Euro 4
Consumption
CO2=119 g/km – 5,2 l/100 km

2017 Ducati Monster 821 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $12695 CDN

Engine
Type
Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement
821cc
Bore x Stroke
88 x 67.5mm
Compression ratio
12.8:1
Power
82.4 kW (112 hp) @ 9,250 rpm
Torque
89.4 Nm (65.8 lb-ft) @ 7,750 rpm

The power values indicated above are measured using a chassis dynamometer. Homologated power data, as quoted in the Bike Registration Document, are measured using an engine dynamometer according to the homologation regulation. The two power values may differ because of the different measurement equipments.
Fuel injection
Electronic fuel injection system, 53mm throttle bodies with full Ride by Wire
Exhaust
Stainless steel muffler and aluminium and cap; lightweight 2-1 system with catalytic converter with 2 lambda probes

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Front sprocket 15; Rear sprocket 46
Clutch
APTC slipper and self-servo wet multiplate clutch with control cable

Chassis

Frame
Tubular steel Trellis frame attached to the cylinders head
Front suspension
Upside down 43mm forks
Front wheel
10-spoke in light alloy 3.50″ x 17″
Front Tyre
120/70 ZR 17 Pirelli Diablo Rosso II
Rear suspension
Progressive linkage with adjustable monoshock. Aluminium double-sided swingarm
Rear wheel
10-spoke in light alloy 5.50″ x 17″
Rear tyre
180/60 ZR17 Pirelli Diablo Rosso II
Front wheel travel
130mm (5.1in)
Rear wheel travel
140mm (5.5 in)
Front brake
2 x 320mm semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, radial pump with ABS as standard
Rear brake
245mm disc, 2-piston floating calliper with ABS as standard equipment
Instrumentation
LCD display

Dimensions and weight

Dry weight
179.5kg (395.7lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
205.5kg (453lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
Adjustable 785 – 810 mm (30.9 – 31.9)
Wheelbase
1480mm (58.3in)
Rake
24,3°
Trail
93.2mm (3.7in)
Fuel tank capacity
17.5l – (4.6 US gal)
Number of seats
Dual seat

Equipments

Standard Equipment
Riding modes,Power modes, DSP Ducati Safety Pack (ABS + DTC), RbW, seat cover passanger handles, ready for anti-theft system and DDA

Warranty
24 months unlimited mileage
Maintenance service intervals
9,000m/12 Months
Valve clearance check
30.000km (18,000m)

Emissions and Consumption

Standard
Euro 4
Consumption
CO2=119 g/km – 5,2 l/100 km

2017 Ducati Monster 821 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £9150 GBP (On The Road inc 20% Vat)

Engine
Type
Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement
821cc
Bore x Stroke
88 x 67.5mm
Compression ratio
12.8:1
Power
82.4 kW (112 hp) @ 9,250 rpm
Torque
89.4 Nm (65.8 lb-ft) @ 7,750 rpm

The power values indicated above are measured using a chassis dynamometer. Homologated power data, as quoted in the Bike Registration Document, are measured using an engine dynamometer according to the homologation regulation. The two power values may differ because of the different measurement equipments.
Fuel injection
Electronic fuel injection system, 53mm throttle bodies with full Ride by Wire
Exhaust
Stainless steel muffler and aluminium and cap; lightweight 2-1 system with catalytic converter with 2 lambda probes

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Front sprocket 15; Rear sprocket 46
Clutch
APTC slipper and self-servo wet multiplate clutch with control cable

Chassis

Frame
Tubular steel Trellis frame attached to the cylinders head
Front suspension
Upside down 43mm forks
Front wheel
10-spoke in light alloy 3.50″ x 17″
Front Tyre
120/70 ZR 17 Pirelli Diablo Rosso II
Rear suspension
Progressive linkage with adjustable monoshock. Aluminum double-sided swingarm
Rear wheel
10-spoke in light alloy 5.50″ x 17″
Rear tyre
180/60 ZR17 Pirelli Diablo Rosso II
Front wheel travel
130mm (5.1in)
Rear wheel travel
140mm (5.5 in)
Front brake
2 x 320mm semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, axial pump with ABS as standard
Rear brake
245mm disc, 2-piston floating calliper with ABS as standard equipment
Instrumentation
LCD display

Dimensions and weight

Dry weight
179.5kg (395.7lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
205.5kg (453lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
Adjustable 785 – 810 mm (30.9 – 31.9)
Wheelbase
1480mm (58.3in)
Rake
24,3°
Trail
93.2mm (3.7in)
Fuel tank capacity
17.5l – (4.6 US gal)
Number of seats
Dual seat

Equipments

Standard Equipment
Riding modes,Power modes, DSP Ducati Safety Pack (ABS + DTC), RbW, seat cover passanger handles, ready for anti-theft system and DDA

Warranty
24 months unlimited mileage
Maintenance service intervals
9,000m/12 Months
Valve clearance check
30.000km (18,000m)

Emissions and Consumption

Standard
Euro 4
Consumption
CO2=119 g/km – 5,2 l/100 km

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
