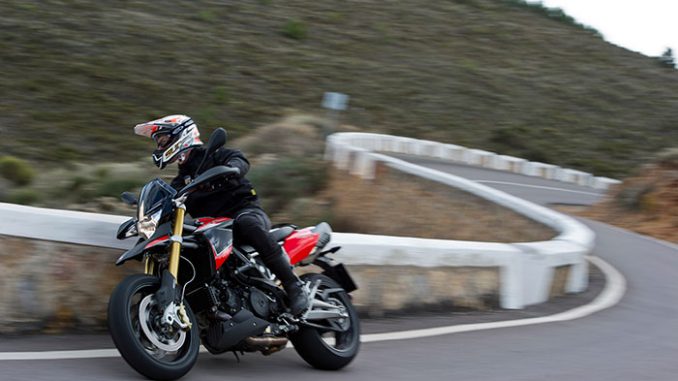

2015 Aprilia Dorsoduro 750 ABS
2015 Aprilia Dorsoduro 750 ABS
2015 Aprilia Dorsoduro 750 ABS
2015 Aprilia Dorsoduro 750 ABS
2015 Aprilia Dorsoduro 750 ABS Review
2015 Aprilia Dorsoduro 750 ABS on www.Totalmotorcycle.com
To stand out. Always…
Developed in close collaboration with Aprilia Racing, Dorsoduro 750 ABS was designed by taking the best features of sports bikes and supermotards, producing a perfect combination of performance, technology and fun. Power, lightness and agility, but also directionality, responsiveness and steering precision are therefore its main characteristics. Aprilia Dorsoduro ABS has components, technical features and finish of the highest quality which contribute to the uniqueness of the project. For the entire Dorsoduro 750 range, as the Shiver 750 range and the automatic Mana 850 from Aprilia, 35 kW powered-down versions are also available, in compliance with the criteria of the new A2 license.
The Aprilia Dorsoduro 750 is equipped with the best braking technology currently available. The front brakes feature 4-piston radial calipers, state-of-the-art for the motard market. The light weight, 320 mm wave discs ensure shorter than ever stopping distances. The bikes aggressive stopping power is emphasized by the mean look of the braking system, in keeping with the Dorsoduros overall styling.
The rear brakes incorporate another wave disc, 240 mm in diameter this time, plus a single piston caliper. Both the front and rear brakes are fitted with aeronautical type metal braided brake lines to eliminate the sponginess associated with conventional rubber hoses and to deliver maximum braking precision.
A sophisticated two channel Continental ABS system provides maximum active safety on the Dorsoduro 750. The ABS controller is specially calibrated to make full use of the Dorsoduros impressive braking power and tire grip on dry surfaces. Riders can therefore still enjoy this amazing fun bike to the full.
IMPROVED CHASSIS, AESTHETICS AND ELECTRONICS: APRILIA DORSODURO 1200 IS EVEN MORE AGILE, VERY POWERFUL, ELITIST, TO SATISFY THE SHREWDEST RIDERS.
Aprilia Dorsoduro 1200 is the benchmark in the maxi motard class. A record two cylinder, with 130 hp, placed in an incredibly agile and lightweight chassis. With its sleek forms, broad handlebars, impeccable attention to detail and premium componentry, this motorcycle represents the zenith of the twin-cylinder maximotard class. Dorsoduro 1200 is an explosive cocktail of horsepower, agility and riding precision.
The heart of the Dorsoduro 1200 is the Aprilia 90° V2 1200cc two cylinder engine which flaunts the most advanced technical solutions on the market. The mechanical sophistication and top notch chassis, true feathers in the cap of the entire Aprilia production line, also represent the winning hand of the Dorsoduro 1200, which also offers an extremely refined sport design and agility and fluidity never before seen on a two cylinder of this size.
The Dorsoduro 1200 boasts class-beating technical solutions: radial Brembo callipers, hydraulic clutch, Ride by Wire with 3 different engine maps and the Matrix instrument panel with on board computer are all elements setting the Dorsoduro apart as a unique and exclusive project. The Dorsoduro is available with ABS and Aprilia Traction Control (ATC), to combine total fun with total safety.
The evolution of the Dorsoduro 1200 was particularly aimed at enhancing the agility of the bike in direction changes, all to the advantage of riding pleasure, to emphasise the unique performance concept of the Dorsoduro 1200: the most powerful and exhilarating maxi-motard available in the world today.
In order to achieve this result, a decisive change was made, adopting new three split spoke wheel rims, 2.3 kg lighter than the 5 spoke predecessors. In fact, the weight of the wheel rims is a fundamentally important element of the vehicle dynamics in virtue of the gyroscopic effect. The change allowed reduction of the polar moments of inertia by 15.4% on the front wheel and an astonishing 22.2% on the rear to facilitate direction changes and handling in curves and to make the ride easier and less tiring, as well as improving the acceleration phase coming out of turns.
This change meant a complete revamping of the bike’s structure: the shock absorber and suspension yield were adapted to the new weight distribution with a setting that now favours agility in the mixture, reducing the overall height of the bike’s centre of gravity.
The “total” electronic management (engine + vehicle) is by now a well known sign of Aprilia’s supremacy and advancements in this area are never-ending. On the new Dorsoduro 1200 version some important changes in the ATC system (Aprilia Traction Control) were introduced: now the torque return in post wheelie phase is modulated based on the ATC level selected by the rider. This new feature allows greater delineation of the character to the ATC maps (from the higher performance one to the more conservative one).
There are also aesthetic innovations with two new colour schemes, intended to emphasise the sport and aggressive nature of the DORSODURO 1200. The front mudguard is also new with an insert inspired by the racing world, as well as the new license plate bracket which was completely redesigned in the spirit of weight reduction.
The weight of the bike dropped about 3 Kg, approaching values very similar to that of its little sister, the Dorsoduro 750.
2015 Aprilia Dorsoduro 750 ABS www.Totalmotorcycle.com Key Features
The main characteristics of the Aprilia Dorsoduro 1200 in detail:
” 90° V2 engine with four valves per cylinder, double overhead camshaft, liquid cooling and twin spark ignition;
” Triple map Ride by Wire technology (with Sport, Touring and Rain maps)
” Electronic fuel injection;
” Mixed gear/chain valve timing system;
” Exhaust system with three-way catalytic converter and oxygen sensor;
” Ultralight modular frame made from tubular steel trellis/aluminium castings offering outstanding torsional stiffness;
” Aluminium saddle mount;
” Aluminium swingarm with lateral shock absorber;
” Fully adjustable 43 mm upside-down front fork and piggy-back design rear monoshock;
” Brembo racing brake system with radial callipers.
” New lightweight three split spoke wheel rims.
ENGINE
Numerous improvements have been made to the Aprilia 750 cc, 90 V twin engine, which now features mapping specially developed to bring out the Dorsoduros aggressive character.
Improvements have been made to various areas of the749.9 cc engine with its bore and stroke of 92 x 56.4 mm.As a result the electronic and mechanical content of thisV twin engine sets new standards not only for engines of this size but for many far larger units too.The electronic engine management on the Dorsoduro 750s engine leads the field in technology and performance. The Dorsoduro features a second generation electronic throttle with Tri-Map selectable triple mapping.
Three performance modes, Sport, Touring and Rain, can be selected from a switch on the handlebars (with the throttle closed for safety reasons). The Dorsoduro changes its character radically, depending on what mode you select. Sport modegives you aggressive instant power; Touringmode gives you a smoother action, better suited to relaxed long distance riding; and Rain mode gives you ultimate safety slippery surfaces. The Tri-Map electronic throttle also means smoother, more consistent power thanks to more accurate and precise throttle control based on parameters including engine speed, gear selection, air flow, throttle position and temperature.
Whatever mapping you select, the engine is always ready to deliver the best possible performance in terms of acceleration and rev range, giving you an amazingly satisfying and entertaining ride.
The exhaust is made entirely from stainless steel. The collector pipes meet in a single silencer under the seat before splitting again into two tail pipes. The large volume of the exhaust system also aids engine breathing and boosts efficiency.
Thanks to its advanced electronic and mechanical technology, the Aprilia V twin engine develops 92 HP at 8,750 rpm and a maximum torque of82 Nm at 4,500rpm. These figures enable the Dorsoduro to compete directly with motorcycles powered by far bigger engines.
The Aprilia Dorsoduro 750 is also available, right from its introduction, in a restricted25 kW version. The use of a ride-by-wire electronic throttle has allowed Aprilia to avoid cutting power right across the range, as happens with less advanced restricted versions. Instead, the power curve of the restricted Dorsoduro is identical to that of its full-power sister right up to the point where the permitted power limit is reached. The 25 kW Dorsoduro 750 therefore delivers far superior acceleration to the equivalent models of the competition, to the benefit of riding satisfaction and pleasure.
FRAME: PERFECT BALANCE
Aprilia motorcycles have always been acclaimed for the excellent chassis designs. The Dorsoduro 750is no exception, thanks to a chassis that makes it the best balanced and most effective bike of its type. The new Dorsoduro is easy and intuitive to ride despite its blistering performance. It is designed to be ridden at the limit under all conditions, to perform extreme power slides, and to blast out of bends under full power. The secret lies in an ultra-responsive chassis, whose ergonomics suit riders of all statures and allow you to take it to the limit and enjoy the thrills of a motorcycle built for pure entertainment.
The frame incorporates all of Aprilias vast racing experience, and makes full use of the latest mixed steel and aluminum designs derived from the world of Super motard World Championship racing. The top half of the frame is a tubular steel trellis. This is secured to generous aluminum side members by special high strength bolts. The resulting structure is extremely rigid and light weight, and provides the best possible means of harnessing the exuberant power of the Aprilia V90 engine while still communicating a strong impression of lightness, high technology and Italian style.
Continuous co-operation between engine and frame designers has led to the perfection of high-tech, performance-oriented solutions and to total integration between engine and frame. The intelligent design solutions applied to Aprilias V twin engine have made it shorter than ever, permitting the development of a rational and efficient frame and a superbly agile and incredibly responsive motorcycle.
The lateral position and acute angle of the rear monoshock has freed up the space needed to ensure optimum exhaust geometry without any increase in the bikes overall length, and without subjecting the monoshock to thermal stress. The aluminum swingarm is robust enough to withstand the asymmetric stresses generated by the lateral positioning of the rear suspension. The swingarm has been specially developed to satisfy the needs of a supermotard like the Dorsoduro 750, and combines excellent torsional rigidity with the elasticity needed for precision under acceleration and intuitive control under changing conditions.
SUSPENSION: ABSOLUTE EFFECTIVENESS
The optimal definition of suspension has always been the pride of Aprilia designers and the Aprilia test team. The 43 mm upside-down front fork with shell-cast feet has spring preload and hydraulic brake adjustable in extension. The lateral shock absorber with is directly hinged to the swingarm in a cantilever configuration and has adjustable spring preload and hydraulic return; the front and rear wheel travel is 160 mm, which is also in line with the superbike philosophy that requires effective and controlled but long stroke suspension. Both steering yokes are forged, the upper also anodised, as a demonstration of the excellent level of finish of the Dorsoduro.
BRAKES: RACING TECHNOLOGY
The 4-piston radial caliper front brake system represents the current state of the art for a bike of this segment. The 320 mm floating wave discs are lightweight, ensure shorter stopping distances and underline the aggressiveness of braking thanks an incisive cool look, in line with the overall style of the Dorsoduro 750 ABS. Also the 240 mm rear disc is “wave” and braked by a single piston caliper. Both the front and rear systems use braided metal aeronautical type hoses to ensure maximum performance, even under stress. A sophisticated two channel Continental ABS system increases the safety level of the bike. Its specific calibration lets you to take full advantage of the sporting character of the Dorsoduro 750.
DESIGN: STYLE AT THE SERVICE OF FUN
Aprilia Dorsoduro 750 ABS is a project that focuses on the rider, a slim and agile bike, in which each element is designed to achieve the maximum riding pleasure. Superstructures are kept to a minimum, the design of the central area highlights the compactness of the bike, while the tail, compact and curvy, includes the dual exhaust, to the benefit of correct weight distribution. The hand guards, derived from the Aprilia SXV Superbike, are sleek in style and effective in protecting the levers against accidental contact
2015 Aprilia Dorsoduro 750 ABS www.Totalmotorcycle.com Features and Benefits
DESIGN
Dorsoduro 1200 is a radical, outrageously agile and sporty bike. It makes no concessions whatsoever for ornamentation or for anything not directly functional in achieving total performance and riding pleasure. This is why all body parts are cut down to the bare minimum. Every detail is minimalised and focused on pure function, such as the all-new hand guards and the motard-style race number panel, which also offers wind protection at higher speeds. These elements complement the pure design of the Dorsoduro 1200 perfectly, with an outstanding attention to detail evident in features such as the two-tone paintwork of the frame, the tail fairing colour-coded with the rest of the body elements and the new dual exhaust with black heat shields. Even the 15 litre fuel tank is perfectly integrated into the sleek forms of the Dorsoduro 1200.
THE 1200 cc V90 ENGINE: THE STATE OF THE ART IN TWIN CYLINDER TECHNOLOGY
The Aprilia V90 engine is a modern, technologically advanced unit with a highly oversquare cylinder geometry for a markedly sporty temperament and smooth power delivery.
The evolution of Dorsoduro led to the powerful and reliable 1200 cc two cylinder at a quality and performance level which is at the absolute top of its class.
The development of the Ride By Wire system allowed an improvement to the already legendary clean and enjoyable power.
Every internal element of the Dorsoduro 1200 has been designed to optimise power delivery and make full use of the incredible 130 HP unleashed by the engine at 8700 rpm.
” 90° V-twin architecture;
” Triple map Ride by Wire technology (with Sport, Touring and Rain maps);
” Highly oversquare bore/stroke ratio;
” Offset cylinders for maximum lateral compactness;
” Four valves per cylinder;
” Double overhead camshafts driven by a mixed chain/gear valve timing system;
” Twin spark ignition for smooth but full-bore power delivery;
” Electronic fuel injection with dual throttle bodies;
” Stick-coils integrated in spark plug boots;
” Three-way catalytic converter with oxygen sensor;
” Hydraulically operated clutch.
The latest generation injection system uses micro-nebuliser injectors. In conjunction with optimised fluid dynamics, this solution ensures ideal combustion, for an engine that is not only powerful but also extremely clean. Twin spark ignition also contributes to cleaner emissions, as well as ensuring totally smooth power delivery.
Aprilia was the first manufacturer to believe in the potential of Ride by Wire, a highly sophisticated technology that helps the rider extract every ounce of performance from the motorcycle. The electronic throttle management system used in the Aprilia Dorsoduro 1200 represents the current state of the art. Even more precise and sophisticated maps ensure optimised engine management, keeping the engine in the perfect conditions to deliver maximum acceleration at all times for a riding experience unlike anything you’ve ever seen before. This solution also ensures smoother, fuller power delivery at low and medium engine speeds, for optimised engine efficiency even in low load, partial throttle conditions.
With its triple maps (Rain, Touring and Sport), the bike has three distinct personalities that the rider can choose from at any time to instantly adapt to any possible condition and preference. Simply close the throttle and press a button to choose the desired setting.
SPORT: extreme, for when you want to put yourself to the test with immediate and direct explosive power.
TOURING: smooth, for making full use of the shattering power of the 1200 cc engine in all conditions.
RAIN: balanced, with power reigned in to 100 HP for maximum fun even in poor grip or wet conditions.
With its state-of-art technology, the Aprilia V90 unleashes class-beating levels of power. No other maxi motard comes close to the performance of the Dorsoduro 1200: with 130 HP at 8,700 rpm and a maximum torque of 115 Nm at 7,200 rpm, this engine sets new records for the motard genre. To further emphasise the performance of the engine, a new “2-into-1-into-2” exhaust system has been designed specifically for the bike. Made entirely from stainless steel, the generous internal volume of the system ensures a spine-tingling and distinctive sound.
THE FRAME: FEATHER-LIGHT BUT ULTRA-STIFF
And true to tradition, Dorsoduro 1200 is once again the most effective, best balanced bike in its class. While tailored for total riding fun, as with all Aprilia bikes, the chassis layout of the Dorsoduro also earns respect for its formidable dynamic balance. With the Dorsoduro, extreme agility doesn’t mean a nervous temperament, and its highly effective chassis layout ensures total precision and a sensation of being directly connected to the front wheel. And this is something that can only be said of very few motards out there.
It is an absolutely unique concept of motard which, in addition to fun and responsiveness in curves, adds the rigour and riding precision needed to tame the performance of an engine capable of unleashing record power and torque. This is made possible by Aprilia’s long tradition and experience with the chassis and with in house development of electronic control systems.
The mixed frame design, constructed with a sturdy tubular steel trellis mated to lateral aluminium plates, is highly acclaimed by both enthusiasts and experts alike, while the aluminium saddle mount contributes to lightening the bike. The product of Aprilia’s experience in the world Supermoto championship, the frame offers perfect balance in terms of stiffness to deliver supreme handling, even with the explosive power of the 1200 cc V90.
The new lightweight alloy wheel rims with three split spokes strive to emphasise the dynamic characteristics of the Dorsoduro 1200, a true motard that makes handling its unmistakable trademark. Thanks to the weight reduction compared to the previously used components (- 2.3 Kg), focused especially on the external sprocket of the wheel, the gyroscopic negative effect on dynamic performance is drastically contained. Dorsoduro 1200 attacks curves and drops into a leaning position, carrying out the rider’s commands even more swiftly, in keeping with a true class performance leader.
SUSPENSION: PERFORMANCE UNDER CONTROL
The 43 mm Sachs upside-down fork with shell-cast calliper brackets features adjustable spring preload and hydraulic compression and rebound damping. In addition to permitting total adjustability, this extremely sophisticated component offers class-beating progressiveness and a full 160 mm of wheel travel, in perfect keeping with the supermoto riding style.
The side-mounted Sachs gas shock absorber with separate canister is pivoted directly onto the swingarm in a cantilever configuration and features adjustable spring preload and hydraulic compression and rebound damping. A component allowing experienced riders to explore the full potential of the bike’s performance, even on the track. The rear wheel travel is 155 mm.
BRAKES: RACING TECHNOLOGY – ALSO AVAILABLE WITH ABS
The Aprilia Dorsoduro 1200 adopts the state of the art in brake technology: The front system adopts Brembo 4-piston radial callipers that grip a 320 mm floating disc. The 240 mm rear disc brake is also gripped by a single-piston Brembo calliper.
Both the front and rear brake systems employ aeronautical grade metal braided hoses, which eliminate the undesirable pressure fluctuations of conventional hoses for maximum braking precision and truly class-beating stopping performance.
Dorsoduro 1200 is available with a two-channel ABS system, which can be deactivated by the user directly from the instrument panel. This ABS system is specifically calibrated to let the rider fully exploit the power of the brakes and the grip of the tyres in the dry, so as not to detract from the immense fun of this bike.
The Dorsoduro 1200 is also the only maxi-motard available on the market today with traction control: Aprilia Traction Control (ATC) is an exclusive traction control system working in conjunction with the sophisticated ABS system, which allows the rider to make full use of the performance of the exuberant 1200 cc engine, to tackle even the most challenging terrain and most difficult conditions in safety.
In fact, when engaged, this device provides 3 levels of control which personalise each performance parameter of the bike based on the rider’s needs:
Level 1: for an extreme riding experience and maximum fun and adrenaline, when curbing the incredible power of the engine is the last thing on your mind.
Level 2: for total control in all terrain conditions and maximum thrill factor.
Level 3: ideal for tackling challenging conditions, such as slippery roads where grip is poor.
COMPONENTRY: TOP OF THE CLASS
Motards are by definition essential or even spartan. This, however, does not mean having to do without class-beating premium content. Aprilia stands apart from its rivals by offering superlative standard equipment at the top of its class: These are the main elements:
” Matrix instrument panel: the mixed type (digital/analogue), it receives all the information from the CAN line and becomes an integral and crucial part of the self-diagnosis system as it is fitted with memory. Particularly compact, with a modern design and considerably reduced weight. All functions are accessible from a control on the handlebar. The LED illumination can be adjusted to three levels: white in the analogue area and red in the digital area.
” Anodised aluminium tapered handlebar: It brings quite clearly to mind those of the competitive superbikes. An incredibly light component, designed to guarantee top dynamic control of the bike.
” The hydraulically operated clutch ensures consistently precise engagement and exemplary smoothness. It is self-adjusting and, as a result, maintenance-free.
2015 Aprilia Dorsoduro 750 ABS – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $10299 USD
ENGINE
Engine type Aprilia V90 four-stroke longitudinal 90° V-twin engine, withliquid cooling, double overhead camshafts driven by mixed gear/chain timing system, four valves per cylinder and Ride by Wire throttle control.
Capacity 749.9 cc
Max power (at crankshaft) 92 HP (67,3 kW) at 8,750 rpm
Max torque (at crankshaft) 60.4 lb-ft (82 Nm) at 4,500 rpm
Fuel system Integrated engine management system. Latest generation 3 maps (Sport, Touring, Rain) Ride-by-Wire throttle management.
Exhaust 2 into 1 exhaust system in 100% stainless steel with three-way catalytic converter and lambda probe
TRANSMISSION
Gearbox 6 speeds
Lubrication Wet sump
Clutch Multiplate wet clutch, hydraulically operated
CHASSIS / SUSPENSION / BRAKES
Chassis Modular tubular steel frame fastened to aluminium side plates by high strength bolts. Removable rear subframe
Front suspension Ø43 mm upside-down fork, with adjustable hydraulic rebound damping and spring preload. Wheel travel 160 mm.
Rear suspension Aluminium alloy swingarm. Hydraulic shock absorber, with adjustable rebound and preload. Wheel travel 155 mm.
Front brake Dual Ø320 mm stainless steel floating wave discs. Four piston radial callipers. Metal braided brake lines.
Rear brake Ø240 mm stainless steel wave disc. Single piston calliper. Metal braided brake lines.
ABS Two-channel Continental ABS system
Wheels Aluminium alloy
Front tire Radial tubeless; 120/70 ZR 17
Rear tire Radial tubeless; 180/55 ZR 17
DIMENSIONS
Max. Length 8732 in. (2,216 mm)
Max. Width 35.6 in. (905 mm)handlebar)
Max. Height 46.6 in. (1,185 mm) at instrument panel
Seat height 34.2 in. (870 mm)
Dry weight 409 lbs (186 kg)
Fuel tank capacity 3.17 gal. (12 lt)
WARRANTY / ROADSIDE ASSISTANCE / APPROVAL
Warranty All 2014 and newer Aprilia Motorcycles include a 2-year unlimited-mileage warranty. *Limits are outlined in the warranty booklet. See dealer for details
Roadside Assistance 1 Free Year of Road Side Assistance provided by Road America
Approval EPA and CARB.
2015 Aprilia Dorsoduro 750 ABS – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $10895 CDN
ENGINE
Engine type Aprilia V90 four-stroke longitudinal 90° V-twin engine, withliquid cooling, double overhead camshafts driven by mixed gear/chain timing system, four valves per cylinder and Ride by Wire throttle control.
Capacity 749.9 cc
Max power (at crankshaft) 92 HP (67,3 kW) at 8,750 rpm
Max torque (at crankshaft) 60.4 lb-ft (82 Nm) at 4,500 rpm
Fuel system Integrated engine management system. Latest generation 3 maps (Sport, Touring, Rain) Ride-by-Wire throttle management.
Exhaust 2 into 1 exhaust system in 100% stainless steel with three-way catalytic converter and lambda probe
TRANSMISSION
Gearbox 6 speeds
Lubrication Wet sump
Clutch Multiplate wet clutch, hydraulically operated
CHASSIS / SUSPENSION / BRAKES
Chassis Modular tubular steel frame fastened to aluminium side plates by high strength bolts. Removable rear subframe
Front suspension Ø43 mm upside-down fork, with adjustable hydraulic rebound damping and spring preload. Wheel travel 160 mm.
Rear suspension Aluminium alloy swingarm. Hydraulic shock absorber, with adjustable rebound and preload. Wheel travel 155 mm.
Front brake Dual Ø320 mm stainless steel floating wave discs. Four piston radial callipers. Metal braided brake lines.
Rear brake Ø240 mm stainless steel wave disc. Single piston calliper. Metal braided brake lines.
ABS Two-channel Continental ABS system
Wheels Aluminium alloy
Front tire Radial tubeless; 120/70 ZR 17
Rear tire Radial tubeless; 180/55 ZR 17
DIMENSIONS
Max. Length 8732 in. (2,216 mm)
Max. Width 35.6 in. (905 mm)handlebar)
Max. Height 46.6 in. (1,185 mm) at instrument panel
Seat height 34.2 in. (870 mm)
Dry weight 409 lbs (186 kg)
Fuel tank capacity 3.17 gal. (12 lt)
WARRANTY / ROADSIDE ASSISTANCE / APPROVAL
Warranty All new Aprilia Motorcycles include a 1-year unlimited-mileage warranty. *Limits are outlined in the warranty booklet. See dealer for details.”
Roadside Assistance 1 Free Year of Road Side Assistance provided by Road Canada
Approval Transport Canada and Environment Canada
2015 Aprilia Dorsoduro 750 ABS – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £7934 GBP (On The Road inc 20% Vat)
Engine type Aprilia V90 four-stroke longitudinal 90° V-twin engine, liquid cooled, double overhead camshaft with mixed gear/chain timing system, four valves per cylinder
Fuel Unleaded petrol
Bore and stroke 106 x 67.8
Total engine capacity 1197 cc
Compression ratio 12.0 ± 0.5 : 1
Maximum power at crankshaft 130 HP (96 kW) at 8,700 rpm
Maximum torque at crankshaft 11.7 kgm (115 Nm) at 7,200 rpm
Fuel system Integrated engine management system. Injection with triple map Ride by Wire throttle management: Sport (S), Touring (T), Rain (R)
Ignition Digital electronic ignition integrated with injection system
Starter Electric
Exhaust system 100% stainless steel 2-in-2 exhaust system with dual catalytic converters and oxygen sensor
Alternator 450 W/6000 rpm
Lubrication Wet sump
Transmission 6 speeds, drive ratio: 14/36, 17/32, 20/30, 22/28, 23/26, 24/25
Clutch Multiplate wet clutch, hydraulically operated
Primary drive Straight cut gears, drive ratio: 40/69
Secondary drive Chain. Drive ratio: 16/40
Frame Modular tubular steel frame fastened to aluminium side plates by high strength bolts. Removable aluminium rear subframe
Front suspension 43 mm Sachs upside-down front fork with fully adjustable compression and rebound damping and spring preload. Wheel travel 160 mm.
Rear suspension Aluminium alloy swingarm
Piggy-back design Sachs hydraulic shock absorber with fully adjustable compression and rebound damping and spring preload. Wheel travel 155 mm.
Brakes Front: Dual 320 mm stainless steel floating discs. Brembo four-piston radial callipers. Metal braided brake pipe.
Rear: 240 mm stainless steel disc. Single piston Brembo calliper. Metal braided brake hose. Two channel Continental ABS with Aprilia Traction Control (ATC)
Wheel rims Lightweight aluminium alloy with three split spokes
Front: 3.50 X 17″ Rear: 6.00 x 17″
Tyres Radial tubeless tyres; Front: 120/70 ZR 17; rear: 180/55 ZR 17
Dimensions Max. length 2248 mm
Max. width 925 mm (at outer edges of hand guards)
Max. height 1205 mm (at instrument panel brow)
Saddle height 870 mm
Wheelbase 1528 mm
Trail 118 mm
Steering angle 27.3°
Tank 15 litres (including 3.5 litre reserve)
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
