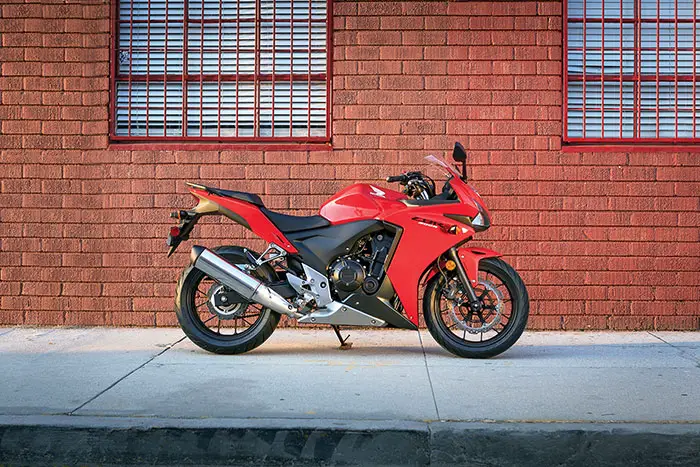

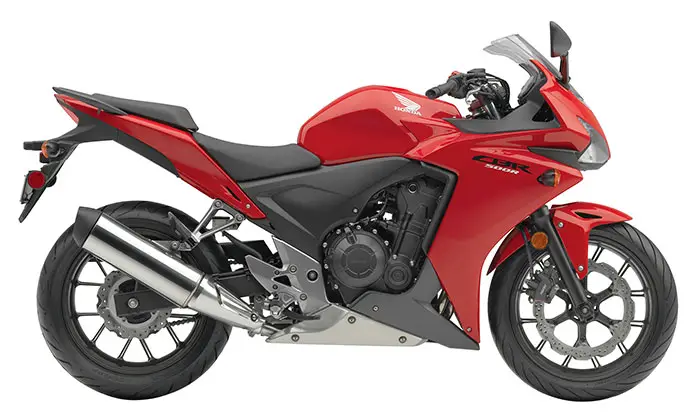

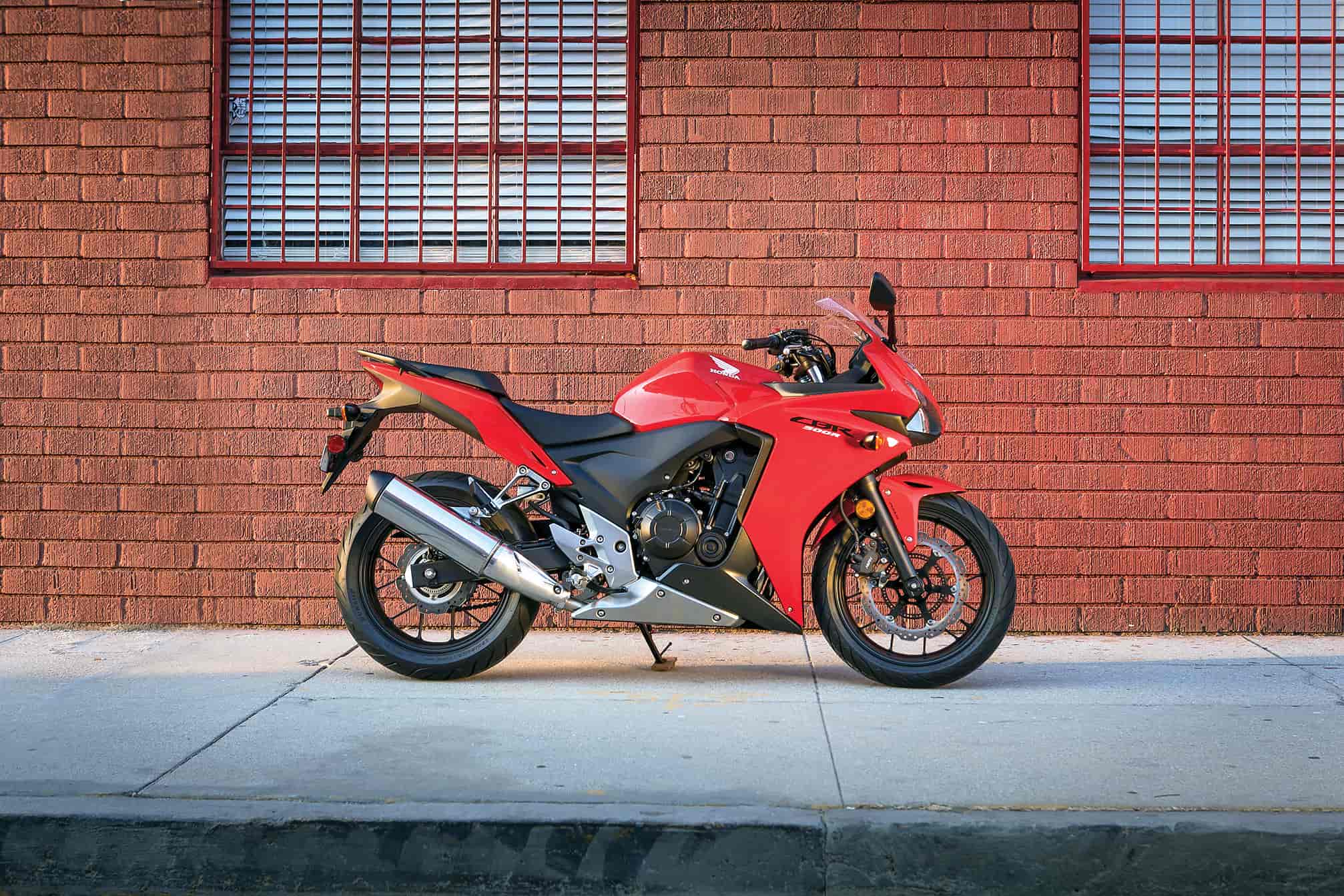

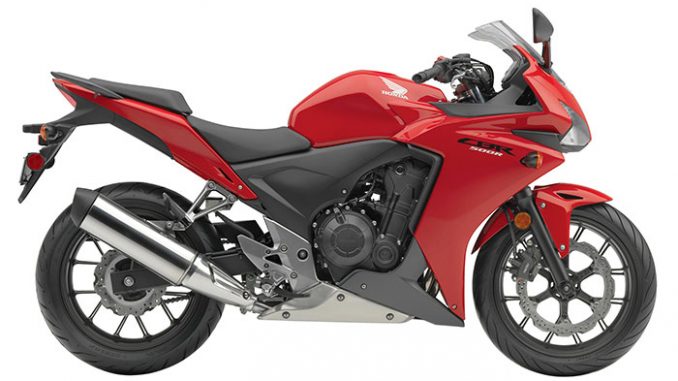

2014 Honda CBR500RA ABS

2014 Honda CBR500RA ABS

2014 Honda CBR500RA ABS Review

2014 Honda CBR500RA ABS on Totalmotorcycle.com

All the fun and excitement of the CBR500R but with the added security of ABS brakes…

The 2014 Honda CBR500R boldly redefines the middleweight class and infuses a whole new level of excitement for sport riders in search of superior value along with great fun. The CBR500R delivers plenty of performance to all sport riders, including riders moving up from the sporting, entry-level Honda CBR250R, as well as more experienced riders who will appreciate the CBR500R’s light and nimble handling. Credit its thoroughly modern, torquey 471cc parallel-twin DOHC engine that’s wrapped in a great-handling chassis featuring a full fairing spawned from Honda’s much-acclaimed CBR600RR and CBR1000RR. This aerodynamic bodywork also provides significant advantages in air management for added rider comfort, along with a low drag coefficient and effective engine cooling. A sophisticated chassis with Pro-Link® single-shock rear suspension, stout 41mm fork, sporting 17-inch wheels and a 320mm wave-style front disc brake and 240mm rear disc help round out a package that looks as good as it rolls.

The CBR500R features a full bodywork cowl and a 31-inch seat height. It’s an excellent choice for riders ready to move up a displacement class, or for any rider who’s looking for a light, sporting, do-it-all street machine.

Leading the Way Through Innovation.

The CBR500R features a brand-new engine and chassis. Like the machines that made Honda famous throughout the U.S., its two-cylinder parallel-twin layout provides a wide powerband and plenty of torque, while a counterbalance keeps things running smooth. Special touches like the CBR500R sport seating position, lower handlebars and minimal bodywork make it a great choice for someone who likes the lithe, athletic touches of a sportbike but wants something more versatile than a race replica.

Sport bikes are meant to excite, but the thrill doesn’t have to come from huge horsepower or radical geometry, it can just as easily be achieved with light weight, a responsive chassis and a willing engine. The CBR500RA is the perfect example of this philosophy. Light and compact with a short wheelbase and sport spec 17” wheels, the CBR is an absolute joy to run through your favourite twisty back road. The enthusiastic 470 cc parallel twin engine plays its part too, hustling you along with authority, providing excellent roll-on power exiting turns. And if your preferred squiggly line on the map is some distance away, you’ll appreciate the relaxed seating position, the protection from the aerodynamic full-fairing and the miserly fuel economy. Luckily, these same attributes make the CBR500RA an excellent choice for a commuter, so spend the weekend scratching with your buddies, then weekdays nimbly negotiating the urban gridlock. And no matter how you choose to enjoy your CBR500RA, it’s good to know you have the security of Honda’s advanced ABS system if conditions deteriorate.

CBR500R – Let’s dance



2014 Honda CBR500RA ABS Totalmotorcycle.com Key Features

Parallel Twin-Cylinder Engine

An all-new design, the CBR500R is built with a high-performance, liquid-cooled 471cc DOHC parallel-twin engine that offers plenty of accessible power. Honda twins have always been some of the best motorcycle engines anywhere—reliable, efficient, and fun to ride.

Sporting Heritage

The CBR500R offers a riding position that’s a touch more sporting, but not too aggressive, whether you’re commuting or carving the canyons.

Practicality was never so much fun.

Its combination of lightweight and rider-friendly engine makes the CBR500R a great choice for commuting, weekend rides, or just getting out and having fun. Plus, its lower seat height makes it easier to get your feet on the ground when you stop.

– Sportbike riding position keeps the rider balanced in a comfortable, dynamic seating stance.

– All-new 471cc liquid-cooled parallel-twin DOHC engine is thoroughly modern in design and produces a broad power spread for enjoyable and economical riding.

– The four-valve cylinder head design incorporates a roller rocker arm for a more compact layout along with reduced friction.

– A shim-type valve adjustment system allows incorporation of a lighter rocker arm setup that, in turn, allows for a lower valve-spring load to further reduce power losses through engine friction.

– Programmed Fuel Injection (PGM-FI) continuously monitors several variables to ensure the correct fuel mixture is delivered for the existing riding and atmospheric conditions for crisp throttle response throughout a wide variety of riding conditions.

– Engine counterbalancer and 180-degree crankpin reduce engine vibration for superior rider comfort.

– Preloaded, scissors-type gears for the primary drive and engine counterbalancer gears help reduce engine noise.

– Diamond-shaped 35mm steel tube frame is lightweight and rigid for responsive sport handling.

– Big 41mm front fork with 4.3 inches of travel returns a plush yet controlled ride.

– Sophisticated Pro-Link single-shock rear suspension offers nine-stage spring preload adjustability and 4.7 inches of controlled travel.

– Lightweight cast aluminum wheels, 120/70-17 in front and 160/60-17 rear, return sporting feel and handling traits.

– Front 320mm wave-style disc brake and 240mm rear provide strong stopping power.

– ABS version available for enhanced braking characteristics in less than ideal conditions.

– Instrument display features speedometer, tachometer, odometer/A&B tripmeters, fuel gauge, clock, real-time and average fuel consumption.

– 30.9-inch seat height helps build rider confidence.

– Standard model available in Black, Pearl White/Blue/Red or Red. ABS model available in Red only.

– Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

Honda Genuine Accessories†
Sport Screen, Color-Matched Passenger Seat Cowl, Carbon Fiber-Look Front Fender, Carbon Fiber-Look Lower Headlight Cover, Carbon Fiber-Look Rear Tire Hugger, Carbon Fiber-Look Tank Pad





2014 Honda CBR500RA ABS Totalmotorcycle.com Features and Benefits

•471cc liquid-cooled parallel-twin

•Supersport styling

•Anti-lock brake system

•Programmed Fuel Injection (PGM-FI)

DOHC Parallel-Twin-Cylinder Engine

Honda twins are famous for their versatility, and the new CBR500R engine is one of our best ever. Using the same piston bore size as our CBR600RR sportbike, the parallel-twin engine offers accessible performance across all RPM ranges.

Programmed Fuel Injection (PGM-FI)

Programmed Fuel Injection (PGM-FI) continuously monitors several variables to ensure the correct fuel mixture is delivered for the existing riding and atmospheric conditions for a crisp throttle response throughout a wide variety of riding.

Steel-Tube Frame

A motorcycle’s frame is the basis for its handling. A new take on a classic construction, the CBR500R’s diamond-shaped 35mm steel-tube mainframe ties to the engine with four mounts, offering a rock-solid foundation for a superior ride and handling.

Stepped Two-Piece Seat

The new CBR500R offers a step seat with a low height. Perfect for around-town riding or winding roads, it also offers plenty of room for a passenger, and is specially designed to fit a wide range of riders.

Supersport Styling

This aerodynamic bodywork also provides significant advantages in air management for added rider comfort, along with a low drag coefficient and effective cooling.

Digital Instrumentation

A full LCD screen features a digital speedometer and tachometer and more, including a clock, odometer, trip meter, real-time and average fuel consumption meters, and illuminated engine diagnostic indicators.

Halogen Headlights

Twin 55-watt H7 halogen headlights and multi-facet reflectors on the CBR500R give the front end a unique look and also project plenty of light on the road for visibility.

Disc Brakes

Front 320mm wave-style disc brake and 240mm rear provide strong stopping power.

Anti-Lock Brakes

Available ABS on the CBR500R helps you make smoother, more controlled stops under less-than-ideal conditions.

Pro-Link Rear Suspension

A sophisticated chassis with Honda Pro-Link® rear suspension, with 9-stage preload and 4.1 inches travel, gives you a comfortable ride over small bumps, while capably absorbing bigger bumps to increase riding comfort and handling.

12-Spoke Cast Wheels

Strong and stylish, the CBR500R’s aluminum cast wheels are easy to keep clean, look great, and are another feature that just makes sense.

Stainless Steel Exhaust

Beautifully polished stainless steel exhaust is integrated with the rear footpeg set for clean, functional design. The length and diameter of the exhaust pipe contributes to useable power at all RPM ranges.

Rear Passenger Grips

Sturdy rear passenger grips offer a firm handhold for your passenger or tie-down points for smaller items.





---



2014 Honda CBR500RA ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $6,499 USD

Model: CBR500RA

Engine Type: 471cc liquid-cooled parallel-twin

Bore and Stroke: 67.0mm x 66.8mm

Compression ratio: 10.7:1

Valve Train: DOHC; four valves per cylinder

Induction: PGM-FI with 34mm throttle bodies

Ignition: Computer-controlled digital transistorized with electronic advance

Transmission: Six-speed

Final Drive: O-ring-sealed chain

Suspension
Front: 41mm fork; 4.3 inches travel
Rear: Pro-Link single shock with nine-position spring preload adjustability; 4.7 inches travel

Brakes
Front: Twin-piston caliper with single 320mm wave disc
Rear: Single-piston caliper 240mm wave disc
Optional Honda ABS

Tires
Front: 120/70ZR-17M/C
Rear: 160/60ZR-17M/C

Wheelbase: 55.5 inches

Rake (Caster Angle): 25° 5′

Trail: 103mm (4.05 inches)

Seat Height: 30.9 inches

Fuel Capacity: 4.1 gallons including 0.7-gallon reserve

Estimated Fuel Economy**: 71 MPG

Colors:

CBR500RA: Red

Curb Weight*: 429 pounds (CBR500RA)

*Includes all standard equipment, required fluids and full tank of fuel-ready to ride.

**Miles per gallon values are calculated estimates of fuel consumed during laboratory exhaust emissions tests specified by the EPA, not during on-road riding. Use for comparison purposes only. Your actual mileage will vary depending on how you ride and maintain your vehicle, weather, road conditions, tire pressure, cargo and accessories, rider and passenger weight, and other factors.

Meets current EPA standards.

Models sold in California meet current CARB standardsand may differ slightly due to emissions equipment.





---



2014 Honda CBR500RA ABS – Totalmotorcycle.com Canada Specifications/Technical Details
Canadian MSRP Price: $6,799 CDN

Engine Type
Liquid-cooled parallel-twin

Displacement
471 cc

Bore & Stroke
67 mm x 66.8 mm

Compression Ratio
10.7:1

Valve Train
Chain-driven DOHC, 4 valves per cylinder

Fuel Delivery
PGM-FI electronic fuel injection

Transmission
Six-speed

Final Drive
O-ring-sealed chain

Front Suspension
41 mm telescopic fork; 108 mm (4.2 in.) travel

Rear Suspension
Pro-Link single shock with spring preload adjustment; 119 mm (4.7 in.) travel

Tires
120/70ZR – 17 front; 160/60ZR – 17 rear

Brakes
Front 320 mm wave disc with double-piston caliper; rear 240 mm wave disc with single-piston caliper; ABS

Seat Height
785 mm (30.9 in.)

Wheelbase
1,409 mm (55.5 in.)

Curb Weight
196 kg (432 lb) including required fluids and full tank of gas – ready to ride

Fuel Capacity
15.5 litres

Colour
Tri-colour, Black, Red

Warranty
12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus





---



2014 Honda CBR500RA ABS – Totalmotorcycle.com UK/European Specifications/Technical Details
European MSRP Price: £NA GBP

See 2014 Honda CBR500R



Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
