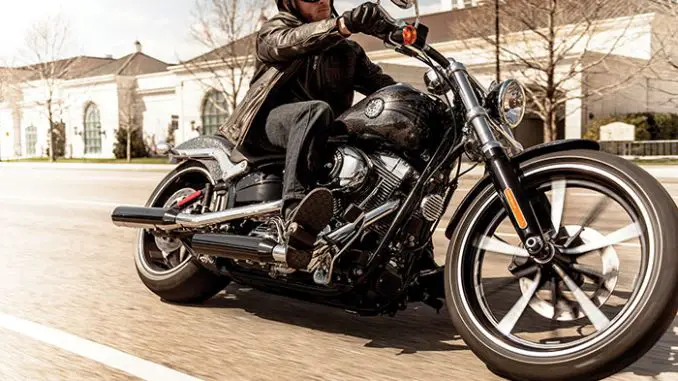

2014 Harley-Davidson FXSB Breakout

2014 Harley-Davidson FXSB Breakout

2014 Harley-Davidson FXSB Breakout

2014 Harley-Davidson FXSB Breakout

2014 Harley-Davidson FXSB Breakout

2014 Harley-Davidson FXSB Breakout

2014 Harley-Davidson FXSB Breakout Review

2014 Harley-Davidson FXSB Breakout

Big wheels, big paint and classic drag-bike attitude meet premium modern refinement in this attention-grabbing performance cruiser…

The Harley-Davidson® Breakout® motorcycle is a long and low-slung Softail® model with distinctive finishes and specific components. The Breakout® model features a wide rear tire visually balanced with thick forks and chopped fenders, while a shaved tank console and a drag handlebar keep the profile low. A Twin Cam 103BTM powertrain and other components are trimmed in gleaming chrome and gloss black paint.

The Softail® chassis mimics the clean lines of a vintage hardtail frame, but utilizes rear suspension control provided by coil-over shock absorbers mounted horizontally and out of sight within the frame rails. The rigid-mounted, counter-balanced powertrain creates a solid connection between the rider and the power that moves the motorcycle, enhancing the emotional experience of riding.





2014 Harley-Davidson FXSB Breakout Total Motorcycle Key Features

NEW Standard Anti-lock Braking System (ABS)
NEW Paint color options
– Amber Whiskey
– Morocco Gold Pearl
– Hard Candy Chrome Flake
• Twin Cam 103B™ powertrain finished in Black powder-coat with chrome covers
• Gloss Black single-rib cast aluminum oil tank
• Staggered, straight cut chrome mufflers with Gloss Black muffler shields
• Gloss Black Gasser Cast Aluminum wheels with machined highlights
• Chopped front and rear fenders
• Polished forged aluminum rear fender supports
• Wide front end with Gloss Black fork lowers and headlamp bucket
• 1.25-inch Gloss Black drag-style handlebar on pull-back riser
• Four-inch riser-mounted speedometer
• Chrome-plated low-profile console
• Black two-piece, two-up seat with removable pillion
• Side-mounted license plate and combination stop/turn/tail light
• Glass-filled fuel tank medallions
• Rigid-mounted, air-cooled, 1690 cc Twin Cam 103B™ counter-balanced engine with Electronic Sequential Port Fuel Injection
(ESPFI), Automatic Compression Release (ACR), rated at 95.2 ft. lbs. peak torque at 3000 rpm
• 6-speed Cruise Drive® transmission
• Optional Smart Security System with proximity-based, hands free security fob





2014 Harley-Davidson FXSB Breakout Total Motorcycle Features and Benefits

Side-mounted License Plate

We keep the look of the Breakout® model’s signature rear clean and minimal with this side-mounted bracket, so nothing gets in the way of the showing off that big rear tire and tight fender.

Breakout to the New

Don’t just break the mold—forge your own with the latest chapter in Harley-Davidson’s legacy of freedom. A premium custom cruiser inspired by the classic Gasser drag bikes of the ’50s and ’60s, the Softail® Breakout® model rolls with modern power, top-of-the-line treatments and lots of low-down menace. Big wheels, big paint, big chrome, all wrapped in a refined style—the Breakout® model is a true attention-grabber with a ride that’s been painstakingly engineered for fun whether you’re winding mountain roads or cruising the strip. It may be low-profile, but the Breakout® motorcycle always makes a big, bold statement.

Low Muscular Profile

With its big, bold stance, the Breakout® motorcycle makes a powerful impact even standing still. Its pure, clean lines, low-slung profile, stretched stance, big wheels and chopped fenders all shout premium custom, solid power and “look at me” attitude, even as its performance makes it your choice who gets to stare and for how long before you disappear.

Premium Craftsmanship

From wheel to wheel, we designed the Breakout® model with a hard eye for excellence: we forged it from top quality materials and crafted it with a dedication to perfection—from paint scheme and chromed-out styling to its slammed design, balanced ride and engine performance, we sweated every single fit, finish and tolerance of this perfect beast, because when you rule the road, there’s no place for second best.

Premium Finish and 3-D Tank Medallion

The Breakout® model’s power definitely includes its visual impact. That bold Ruby Red Sunglow and Vivid Black treatment is an aggressive mix of gleam and darkness, while that exclusive gear-shaped glass-inlaid, cloisonné-and-chrome style tank medallion has a molten, liquid look that catches eyes and declares your ride as the next chapter in the Softail® family heritage.

Powerful Front End

The Breakout® model comes on strong with thick, wide forks, chopped fender and that wide-standing big 21-inch, 3 1/2-in wide Gasser wheel raked out there, classic dragster-style. This solid, muscular road stance is matched by neutral and balanced handling, so your ride is as smooth and clean as your looks are mean.

Fat Rear Tire profile

Big is the name of the game for the new Breakout® model, and they don’t come bigger than this massive 18-inch, 240mm rear tire. It’s the widest tire we’ve ever put on a product motorcycle and, wrapped around that Gasser rim, it’s the perfect embodiment of the classic drag-bike heritage pumping through this ride.

Gasser wheels

Exclusively designed for the Breakout® motorcycle, these rims call back to the Gasser dragsters of the ’50s and ’60s while defining the next generation of custom style. Big and bold with their alternating spokes, these wheels shout strength and durability, while their alternating glossy Vivid Black and machined finishes on every other spoke deliver eye-catching visual impact.

Chopped Fenders

Low, tight and cut down to the legal limit, the Breakout® model’s fenders add to its stretched and slammed custom style. We chopped them to the legal limit to show off those huge muscular tires and Gasser rims. Plus, the fender supports are one-piece forged aluminum, polished and chromed for the ultimate in strength, weight-reduction and looks.

Slammed Console

It’s not just slammed, it’s the tightest console we’ve ever smacked onto a tank. And with its integrated decorative vent and electrical lines, its sleek profile adds a distinctive touch of ultra clean custom style to the Breakout® motorcycle’s aggressive stance.

Riser-mounted Speedo

All this power and style doesn’t come at the expense of comfort and convenience. Feast your eyes on this 4-inch digital speedometer, mounted on risers to be close to your field of vision. It offers speed readout, an analog tachometer on top, along with fuel gauge and gear-shift indicator. Plus, with its adjustable-color backlight, LED and needle, you can configure it to any color combo you want.

Six-Speed Cruise Drive® Transmission

You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.

Twin Cam 103™ Engine Power

Live your ride to the power of Twin Cam 103™. The air cooled Twin Cam 103™ Harley Davidson® engine delivers more stump pulling torque, while its Electronic Sequential Port Fuel Injection jetting gives crisp, lively throttle reaction. It’s a performance punch you’ll appreciate when passing, climbing hills, or just catching eyes as you cruise by—all under that signature Motor Company rumble. And it comes at lower cruising rpm, so you ride more smoothly, with less engine vibration and better highway fuel economy.

Twin Cam 103™ Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 103™; engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution®, Twin Cam 88®; and Twin Cam 96™ engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century’s worth of commitment to life on two wheels.

Twin Cam 103™ Engine Innovation

Fire up the Twin Cam 103™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn’t feel better.

Black and Chrome Engine Styling

Feast your eyes on the Twin Cam 103™ engine and there’s no mistaking its roots. From the classic edge of the cooling fins to the clean lines of cases and covers, this is authentic Harley-Davidson style through and through with an attention to detail you won’t find from any other motorcycle company. And true to the rest of the Softail® Breakout® model’s style, its engine treatment is also a masterpiece of machine art—the Vivid Black and Chrome finishes create a stark, sharply defined pattern of gleaming light and dark: glossy black muffler covers and oil tank cover, gleaming chrome pipes and rocker covers.

H-D® Smart Security System

The factory-installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to details and security that make Harley-Davidson® motorcycles unique.

Anti-Lock Brakes

You may be cruising with swagger, but you know safety counts. This sophisticated, factory-installed ABS gives ‘stopping power’ a double meaning. Its components are tastefully hidden within the wheel hub, so you’ll still turn heads with clean, streamlined design. But more importantly, you get certainty in the saddle knowing your bike’s going to behave when you need it.

3-in-1 Stop/Turn/Tail Lights

These chromed 3-in-1 lamps complement the Breakout® model’s overall stylish, powerful profile while their state-of-the-art technology packs tail lights, turn and stop signal technology into each sleek, minimalist bullet.

Balanced Suspension & Handling

The Breakout® model may be a big bold bike with a powerful stretched stance, but it’s definitely not just for show. We carefully balanced and damped its suspension to give it a neutral feel—even with those big, wide tires—and engineered it for lightness, for an excellent power-to-weight ratio. The bottom line? A smooth, fun ride whether roaring from stoplight to stoplight or winding along country roads.

Low Seat and Pillion

This two-piece saddle doesn’t just look good, it feels great. Whether you’re riding with a passenger or not, you’ll roll and stop with confidence as the low bucket holds you slung close to your ride with the road in easy reach of your boots. And when you’re riding solo, that detachable rear-pillion also gives lower-back support for even more comfort, mile after mile.

Drag-Style Handlebar

Designed exclusively for the Breakout® model, these low and wide handle bars put you in an aggressive reach-forward riding position. And we routed their wiring internally, keeping a minimalist look that goes with the overall clean custom styling.





---



2014 Harley-Davidson FXSB Breakout – Total Motorcycle USA Specifications/Technical Details
US MSRP Price: Vivid Black $18,499; Color Option $18,899; Hard Candy Color Option $19,699 USD

DIMENSIONS

Length – 96.3 in.

Seat Height, Laden 7 – 24.7 in.

Seat Height, Unladen 7 – 26 in.

Ground Clearance – 4.7 in.

Rake (steering head) (deg) – 35

Trail – 5.7 in.

Wheelbase – 67.3 in.

Tires, Front Specification – 130/60B21 63H

Tires, Rear Specification – 240/40R18 79V

Fuel Capacity – 5 gal.

Oil Capacity (w/filter) – 3.5 qt.

Weight, As Shipped – 672 lb.

Weight, In Running Order – 710 lb.

Luggage Capacity -Volume – N/A

ENGINE

Engine 1 – Air-cooled, Twin Cam 103B™

Bore – 3.87 in.

Stroke – 4.374 in.

Displacement – 103.1 cu in

Compression Ratio – 9.6:1

Fuel System 3 – Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN

Primary Drive – Chain, 34/46 ratio

Gear Ratios (overall) 1st – 9.311

Gear Ratios (overall) 2nd – 6.454

Gear Ratios (overall) 3rd – 4.793

Gear Ratios (overall) 4th – 3.882

Gear Ratios (overall) 5th – 3.307

Gear Ratios (overall) 6th – 2.79

CHASSIS

Exhaust – Staggered, straight cut chrome mufflers with Gloss Black muffler shields

Wheels, Optional Style Type 9 – N/A

Wheels, Front Type 9 – Black, 10-Spoke Cast Aluminum

Wheels, Rear Type – Black, 10-Spoke Cast Aluminum

Brakes, Caliper Type – 4-piston fixed front; 2-piston floating rear

Parking Brake – N/A

PERFORMANCE

Engine Torque Testing Method – J1349

Engine Torque 2 – 95.2 ft-lb

Engine Torque (rpm) – 3,000

Lean Angle, Right (deg.) – 23.4

Lean Angle, Left (deg.) – 23.4

Fuel Economy: Combined City/Hwy 5 – 42 mpg



PRICING 6

Vivid Black$18,499

Color Option$18,899

Two-Tone OptionN/A

Custom Color OptionN/A

Hard Candy Color Option$19,699

Security Option$395

Wheel OptionN/A

ABS OptionSTD

Cruise Control OptionN/A

Freight$390

Security Package (Security and ABS)N/A



ELECTRIC

Lights (as per country regulation), Indicator Lamps 8High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings

Gauges – N/A

1Recommended 91 octane or higher fuel (R+M)/2.

2Values shown are nominal. Performance may vary by country and region.

3Standard and optional fuel systems may vary by country.

4See motorcycle owner’s manual for complete details.

5Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

6Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.

7Measurement reflects 180 lb. (81.7 kg) operator weight.

8North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

9Standard and optional wheels may vary by country and region.





---



2014 Harley-Davidson FXSB Breakout – Total Motorcycle Canadian Specifications/Technical Details
Canada MSRP Price: Vivid Black $ 21,129; Color Option $ 21,579; Hard Candy Custom $ 22,489 CDN.

DIMENSIONS

Length – 2,445 mm

Seat Height, Laden 6 – 627 mm

Seat Height, Unladen 6 – 660 mm

Ground Clearance – 120 mm

Rake (steering head) (deg) – 37

Trail – 146 mm

Wheelbase – 1,710 mm

Tires, Front Specification – 130/60B21 63H

Tires, Rear Specification – 240/40R18 79V

Fuel Capacity – 18.9 l

Oil Capacity (w/filter) – 3.3 l

Weight, As Shipped – 308 kg

Weight, In Running Order – 322 kg

Luggage Capacity -Volume – N/A

ENGINE

Engine 1 – Air-cooled, Twin Cam 103B™

Bore – 98.4 mm

Stroke – 111.1 mm

Displacement – 1,690 cc

Compression Ratio – 9.6:1

Fuel System 3 – Electronic Sequential Port Fuel Injection (ESPFI)



PRICING

Vivid Black – $ 21,129

Color Option – $ 21,579

Hard Candy Custom – $ 22,489

Security Option – $ 450

ABS Option – Standard



DRIVETRAIN

Primary Drive – Chain, 34/46 ratio

Gear Ratios (overall) 1st – 9.311

Gear Ratios (overall) 2nd – 6.454

Gear Ratios (overall) 3rd – 4.793

Gear Ratios (overall) 4th – 3.882

Gear Ratios (overall) 5th – 3.307

Gear Ratios (overall) 6th – 2.79

CHASSIS

Exhaust – Staggered, straight cut chrome mufflers with Gloss Black muffler shields

Wheels, Optional Style Type 8 – N/A

Wheels, Front Type 8 – Black, 10-Spoke Cast Aluminum

Wheels, Rear Type – Black, 10-Spoke Cast Aluminum

Brakes, Caliper Type – 4-piston fixed front; 2-piston floating rear

Parking Brake – N/A

PERFORMANCE

Engine Torque Testing Method – J1349

Engine Torque 2 – 129 Nm

Engine Torque (rpm) – 3,000

Lean Angle, Right (deg.) – 23.4

Lean Angle, Left (deg.) – 23.4

Fuel Economy: Combined City/Hwy 5 – 5.6 l/100 km

ELECTRIC

Lights (as per country regulation), Indicator Lamps 7High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system, 6-speed, low fuel warnings, ABS

Gauges – N/A

1Recommended 91 octane or higher fuel (R+M)/2.

2Values shown are nominal. Performance may vary by country and region.

3Standard and optional fuel systems may vary by country.

4See motorcycle owner’s manual for complete details.

5Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

6Measurement reflects 180 lb. (81.7 kg) operator weight.

7North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

8Standard and optional wheels may vary by country and region.



Specifications, features and prices to change by manufacturer without notice. Information from Total Motorcycle.com; All information correct as of posted date.
