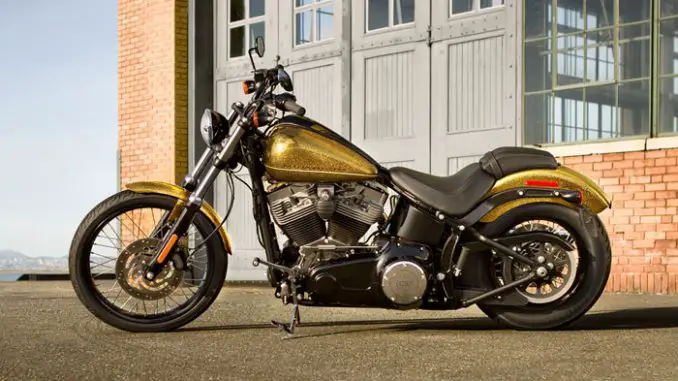

2013 Harley-Davidson FXS Blackline

2013 Harley-Davidson FXS Blackline

2013 Harley-Davidson FXS Blackline

2013 Harley-Davidson FXS Blackline Review

2013 Harley-Davidson FXS Blackline

Long. Low. No BS. This Dark Custom leader is a minimalist throwback icon for today’s freedom seekers…

The Blackline is a Harley-Davidson Softail pared to the bone with visual elements of the original bobber movement combined with a raw style embraced by today’s young bike builders. The rear fender is bobbed high-and-tight over a slim, 144 mm tire that emphasizes an authentic hardtail profile. The rider hugs the frame on the lowest two-up seat offered by Harley-Davidson, while reaching high for the new Split Drag handlebar. The rigid powertrain allows tight packaging of the engine and frame to create a solid connection between the rider and the power that moves the Blackline.





2013 Harley-Davidson FXS Blackline Key Features

NEW Paint color options

• Rigid-mounted, counter-balanced Twin Cam 103B™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
• Powertrain styling with gloss black powdercoat finish on the rocker box covers, crankcase, outer primary cover, and transmission side cover. The cylinders are silver powdercoat with machined highlights. The derby cover and timing covers are chromed.
• Round air cleaner cover in brilliant chrome
• Black Denim powdercoat frame and swingarm.
• Aluminum Profile Laced wheels with black anodized rims
• Wide FX front end with black powdercoat triple clamps and black painted fork lowers.
• Split Drag™ internally-wired handlebar mounts directly to the top triple clamp
• Asymmetric five-gallon Softail® fuel tank is clean on the left side, with low-profile fuel fill on the right. Die cast “Blackline” trim panel flowing down the center of the tank covers the fuel pump hardware.
• Analog speedometer on a triple-clamp mount that also holds indicator lights. LCD screen on the speedometer includes low-fuel warning and “miles to empty” display function.
• Bobbed rear fender with combination stop/turn/tail lights in black housings, and a new composite license plate holder and light module that mounts on the lower edge of the fender.
• Raw forged rear fender supports are finished in Black Denim powdercoat
• One-piece, two-up seat and passenger pillion. Laden rider seat height is 24 inches, the lowest two-up seat offered by Harley-Davidson.
• 5.75-inch diameter headlamp in gloss black shell
• Polished forward foot controls.
• Over/under chrome shotgun exhaust



2013 Harley-Davidson FXS Blackline Features and Benefits

The Blackline™ is a Harley-Davidson® Softail® pared to the bone. Visual elements of the original bobber movement are combined with the raw, hand-hewn style embraced by today’s young builders. Up front you’ll find the unique Split Drag™ handlebar and triple clamp-mounted speedo. Out back is a skinny, 144 mm rear tire and chopped fender. And in between rides a sleek fuel tank with low-profile fuel cap and trim panel, a retro round air-cleaner and a lowerthan- low 24-inch seat height. And, it all rides on top of a powerful Twin Cam 103B® engine. The Blackline model gets all the details right without adding anything unnecessary, reflecting the true spirit of the long, black road.

The Softail rear suspension mimics the clean lines of a vintage hardtail frame but offers the comfort of a modern suspension that is hidden under the chassis. The rigid powertrain allows tight packaging of the engine and frame and creates a solid connection between the rider and the power that moves the motorcycle.
• 6-speed Cruise Drive® transmission
• Horseshoe oil tank
• Optional Harley-Davidson® Smart Security System with hands-free security fob

Minimalist Long Custom Styling

The Blackline® motorcycle’s clean look, simplified profile, and defiant attitude embrace the pure essence of riding. The minimal tank graphics, split drag bars and narrow back end allow the Twin Cam 103 V-Twin engine and fuel tank to steal the show. The Blackline® model is a modern metal machine built for freedom seekers who just want to get on and go.

Hard Candy Custom Color (Optional)

New for 2013, Hard Candy Custom™ paint is a large metal flake finish that’s more than just paint job, it’s a shining declaration of independence—bright, bold and unique. The Softail® Blackline® is available in Hard Candy Coloma Gold Flake. Recalling the iconic rebel styling of ‘70s custom bikes, Hard Candy Custom™ paint marks another milestone in The Motor Company’s legacy of innovation. We start with several passes of 200 micron flake over a silver base, then clear coat it, hand-lay and mask the pattern and apply the Candy color to allow the flake to shine through. Then more clear coat and hand striping to a deep smooth finish. It’s a painstaking process that delivers a premium custom look straight from the factory, so you can start flying your colors with no waiting, no stripping or extra effort.

Split Drag™ Handlebar with Slammed Speedo

The split drag style handlebar with slammed speedo bolted right to the triple clamp adds to the minimalist, low profile appearance of the Blackline® motorcycle. Inspired by the way hot rodders and custom pioneers used to slam their rides, the drag style handlebar is an old school garage feature that demands a forward, aggressive riding position.

Stripped Down Back End

In the back, the Blackline® motorcycle is clean and simple, keeping in line with the bike’s overall modern minimalist attitude. The 144mm rear tire looks sinister tucked under a chopped, black fender and wrapped around a gloss black smoothie rim. Integrated stop-turn-tail lights add to the bare-bones look while giving you a touch of modern style and technology.

Black Smoothie Rims

Raw, gritty and no-nonsense— the Blackline® motorcycle features black laced wheels with a large 21-inch wheel up front for a quintessential long custom look. In back, the gloss black smoothie rim is wrapped with a 144mm rear tire, creating a narrow profile for a contemporary style.

Hidden Rear Shocks

If you want a comfortable ride but love that rigid-suspension look, you’ve found the right bike. We’ve kept all the modern comforts where they belong—below the surface of a rad, vintage-looking bike. You get the classic lines of a vintage “hardtail” frame with the horizontal rear shocks hidden in the guts. It’s a signature Harley-Davidson rigid look that you won’t find with most other bikes.

Premium Paint

Up to two times thicker than the competition, custom quality paint comes standard on all Harley-Davidson® motorcycles. Clearcoat layering up to five mils deep. Bigger metal flakes. Unique effects. Skimping simply is not in our vocabulary.

Hand Finished Fuel Tank

All Harley-Davidson® fuel tanks are finished by hand—that’s what makes them stand out. Their seamless design and unmatched style are unique among all motorcycles on the road. The tanks are one of the first and last things people notice when they lay their eyes on a Harley-Davidson® motorcycle—so we make it worth their time.

Twin Cam 103™ Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 103™; engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution®, Twin Cam 88®; and Twin Cam 96™ engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century’s worth of commitment to life on two wheels.

Twin Cam 103™ Engine Innovation

Fire up the Twin Cam 103™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn’t feel better.

Pure Harley-Davidson Styling

Feast your eyes on the Twin Cam 103™ engine and there’s no mistaking its roots. This is authentic Harley-Davidson style through and through with an attention to detail you won’t find from any other motorcycle company. Grey powder coated heads and black powder-coated cylinders are highlighted by machined cooling fin tips and black rocker covers and an old school round air cleaner cover for a tough vintage Harley-Davidson attitude. It’s a jewel machined out of metal. Pure. Dripping with power. From the classic edge of the cooling fins to the clean lines of cases and covers—the Twin Cam 103™ engine makes an ironclad statement about holding on to what’s right and staying true to what satisfies.

Six-Speed Cruise Drive®

You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.

Twin Cam 103™ Engine Power

Live your ride to the power of the Twin Cam 103™. The air cooled Twin Cam 103™ Harley Davidson® engine delivers more stump pulling torque, while its Electronic Sequential Port Fuel Injection jetting gives crisp, lively throttle reaction. It’s a performance punch that you’ll appreciate when passing, climbing hills, or rolling with luggage packed or a passenger in back—all under that signature Motor Company rumble. And it comes at lower cruising rpm, so you ride more smoothly, with less engine vibration and better highway fuel economy.

Anti-Lock Brakes (Optional)

When it comes to the Blackline® motorcycle with optional ABS, ‘stopping power’ has a double meaning. We’ve kept most of its ABS components tastefully hidden, so you’ll still turn heads with clean, streamlined design. More importantly, though, you get certainty in the saddle knowing your bike’s going to behave when you need it.

H-D® Smart Security System (Optional)

The factory installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to details and security that make Harley-Davidson® motorcycles unique.

Artfully Hidden Technology

Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It’s just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.

Intuitive Controls

Hand controls on a Harley-Davidson® motorcycle are incredibly intuitive. The turn signals are self-canceling and, based on the speed and angle of the motorcycle, they know how long to stay on. Engaging the controls quickly becomes second nature so you can focus less on turning off your signal and more on basking in the freedom of the ride.

Dunlop® Tires

Whether you’re crossing state lines or staying within city limits, you want sure contact with the road. The front end holds a premium touring tire with a three-ply polyester casing and two fiberglass belts. The back cruiser tire has an advanced tread pattern. Made from a specifically formulated compound, it delivers outstanding grip in wet or dry weather. And since they’re from Dunlop®, you know you’re wrapping your premium rollers in quality rubber.

Tuned to Be Ridden

Harley-Davidson® motorcycles are different from any other bike out on the road. There’s a balance to them. The steering, the maneuverability—it’s all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let’s face it, we didn’t get to where we are by being like everyone else.

Forward-Mounted Controls

With the custom forward-mounted controls on the Blackline® motorcycle, you can kick back a little and stretch your legs for the ultimate cruise through town or across the state line. It’s time to take in the open road the way you were meant to—on a two-wheeled machine that keeps it as real as you do.

Low Two-Up Seat

Slung low at 24 inches from the road, the two-up custom seat slams you deep in the saddle of a machine that’s easy to maneuver and keeps your feet close to the ground. And it’s done without sacrificing the aggressive profile riding position you want in a long custom bike.

Aggressive Riding Position

Right out of the gate, the Blackline® motorcycle puts you in position to look and feel confident in the saddle. With split drag bars, forward foot controls and a low-slung seat, you sit in an aggressive riding position that makes navigating the streets a cinch. Plus, you’re sure to steal the glance of envious onlookers everywhere you roll.

Engine Idle Temperature Management Strategy

Our motorcycles are built to be ridden. A lot. So that means that rider comfort is top of mind. Always. With the Engine Idle Temperature Management Strategy (EITMS) feature, the motorcycle automatically cuts fuel and fire from the rear cylinder when idling, which helps reduce engine heat felt by rider and passenger. This feature can easily be turned on by your dealer.

Seat Engineering and Design

The seat is home for Harley-Davidson® motorcycle riders. They want a seat that has unique style without sacrificing comfort. Because of that, Harley-Davidson invests a lot of time in researching, designing and testing seats so that every bike has just the right saddle.



---



2013 Harley-Davidson FXS Blackline – USA Specifications/Technical Details
US MSRP Price: Custom Color Option $15,599 USD

DIMENSIONS
Length 93 in. (2362 mm)
Overall Width 34 in. (864 mm)
Overall Height 47.3 in. (1201 mm)

Seat Height:
o Laden2 24 in. (610 mm)
o Unladen 26.1 in. (663 mm)
Ground Clearance 5.25 in. (133 mm)
Rake (steering head) 30°
Fork Angle 33.5°
Trail 4.8 in. (123 mm)
Wheelbase 66.5 in. (1689 mm)

Tires (Dunlop® Harley-Davidson® Series, blackwall):
o Front – D402F MH90-21 54H
o Rear – D402 MU85B16 77H
Fuel Capacity 5 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.5 qts. (3.3 L)
Transmission Capacity 1 qt. (1 L)
Primary Chain Case Capacity 1 qt. (.95 L)

Weight:
o As Shipped 648 lbs. (294 kg)
o In Running Order 675 lbs. (306 kg)
o Gross Vehicle Weight Rating 1124 lbs. (510 kg)
o Gross Axle Weight Rating:
o Front 414 lbs. (188 kg)
o Rear 710 lbs. (322 kg)

ENGINE
Engine Air-cooled, Twin Cam 103BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.1 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-speed Cruise Drive®
Gear Ratios (overall): U.S.
o 1st 9.311
o 2nd 6.454
o 3rd 4.793
o 4th 3.882
o 5th 3.307
o 6th 2.79

CHASSIS
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.3 mm telescopic
Rear Shocks Hidden, horizontal-mounted, coil-over

Wheels4: Black Anodized, Aluminum Profile Laced
o Front 21 in. x 2.15 in. (533 mm x 55 mm)
o Rear 16 in. x 3 in. (406 mm x 76 mm)

Brakes:
o Caliper Type 4-piston front and 2-piston rear
o Rotor Type (diameter x width): Patented, uniform expansion rotors
o Front 11.5 in. x .2 in. (292 mm x 5.1 mm)
o Rear 11.5 in. x .23 in. (292mm x 5.8 mm)
o Anti-lock Braking System Optional

Suspension Travel:
o Front Wheel 5.6 in. (143 mm)
o Rear Wheel 3.6 in. (91 mm)

PERFORMANCE
Engine Torque5 (per J1349):
o North America 97.5 ft. lbs. @ 3000 RPM (132 Nm @ 3000 RPM)
Lean Angle (per J1168):
o Right 24.4°
o Left 25.9°
Fuel Economy6
(EPA urban/highway test) 42 mpg (5.6 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Turn Signal Lights 28W self-canceling
o Rear Tail/Stop/Turn Signal Lights 8W/28W self-canceling
o Indicator Lamps: High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system7 (optional), 6-speed, low fuel warnings

WARRANTY
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every
5000 miles (8000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (V-Rod® models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
9 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.





---



2013 Harley-Davidson FXS Blackline – Canadian Specifications/Technical Details
Canada MSRP Price: Vivid Black $17,719; Color Option $18,169; Two-Tone Option $18,309; Custom Color Option $19,079 CDN

DIMENSIONS
Length2,410 mm
Seat Height, Unladen 655 mm
Ground Clearance135 mm
Rake (steering head) (deg)30
Trail123 mm
Wheelbase1,670 mm
Tires, Front SpecificationMH90-21 54H
Tires, Rear SpecificationMU85B16 77H
Fuel Capacity18.9 l
Oil Capacity (w/filter)3.3 l
Weight, As Shipped294 kg
Weight, In Running Order306 kg
Luggage Capacity -VolumeN/A
Luggage Capacity -WeightN/A

ENGINE
Engine Air-cooled, Twin Cam 103B™
Bore98.4 mm
Stroke111.1 mm
Displacement1,690 cc
Compression Ratio9.6:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary DriveChain, 34/46 ratio
Gear Ratios (overall) 1st9.311
Gear Ratios (overall) 2nd6.454
Gear Ratios (overall) 3rd4.793
Gear Ratios (overall) 4th3.882
Gear Ratios (overall) 5th3.307
Gear Ratios (overall) 6th2.79

CHASSIS
ExhaustNarrow and low-slung profile
Wheels, Optional Style Type N/A
Wheels, Front Type Black Anodized, Profile Laced Aluminum
Wheels, Rear Type Black Anodized, Profile Laced Aluminum
Brakes, Caliper Type4-piston front and rear
Parking BrakeN/A

PRICING
Vivid Black $17,719
Color Option $18,169
Two-Tone Option $18,309
Custom Color Option $19,079
Security Package (Security and ABS)$ 1,360

PERFORMANCE
Engine Torque Testing MethodJ1349
Engine Torque 134 Nm
Engine Torque (rpm)3,000
Lean Angle, Right (deg.)24.4
Lean Angle, Left (deg.)25.9
Fuel Economy: Combined City/Hwy 5.6 l/100 km

ELECTRIC
Lights (as per country regulation), Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
GaugesNEW Triple clamp-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, engine diagnostics readout, low fuel warning light and mileage countdown feature, low oil pressure indicator, 6-speed indicator, ABS indicator (optional), LED indicator lights

1Recommended 91 octane or higher fuel (R+M)/2.
2Values shown are nominal. Performance may vary by country and region.
3Standard and optional fuel systems may vary by country.
4See motorcycle owner’s manual for complete details.
5Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6Measurement reflects 180 lb. (81.7 kg) operator weight.
7North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8Standard and optional wheels may vary by country and region.



---

2013 Harley-Davidson FXS Blackline – UK/Europe Specifications/Technical Details
UK/European MSRP Price: See your local dealer for pricing information GBP

DIMENSIONS
Length2,410 mm
Seat Height, Unladen 655 mm
Ground Clearance135 mm
Rake (steering head) (deg)30
Trail123 mm
Wheelbase1,670 mm
Tires, Front SpecificationMH90-21 54H
Tires, Rear SpecificationMU85B16 77H
Fuel Capacity18.9 l
Oil Capacity (w/filter)3.3 l
Weight, As Shipped294 kg
Weight, In Running Order306 kg

ENGINE
Engine Air-cooled, Twin Cam 103B™
Bore98.4 mm
Stroke111.1 mm
Displacement1,690 cc
Compression Ratio9.6:1
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary DriveChain, 34/46 ratio
Gear Ratios (overall) 1st9.311
Gear Ratios (overall) 2nd6.454
Gear Ratios (overall) 3rd4.793
Gear Ratios (overall) 4th3.882
Gear Ratios (overall) 5th3.307
Gear Ratios (overall) 6th2.79

CHASSIS
ExhaustNarrow and low-slung profile
Wheels, Optional Style Type N/A
Wheels, Front Type Black Anodized, Profile Laced Aluminum
Wheels, Rear Type Black Anodized, Profile Laced Aluminum
Brakes, Caliper Type4-piston front and rear

PERFORMANCE
Engine Torque Testing MethodEEC/95/1
Engine Torque 132 Nm
Engine Torque (rpm)3,250
Lean Angle, Right (deg.)24.4
Lean Angle, Left (deg.)25.9
Fuel Economy: Combined City/Hwy5.6 l/100 km

PRICING
See your local dealer for pricing information.

ELECTRIC
Lights (as per country regulation), Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
GaugesNEW Triple clamp-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, engine diagnostics readout, low fuel warning light and mileage countdown feature, low oil pressure indicator, 6-speed indicator, ABS indicator (optional), LED indicator lights
1Availability of colours may vary from dealer to dealer and is subject to change without further notice.
2Recommended 95 octane or higher fuel (R+M)/2.
3Values shown are nominal. Performance may vary by country and region.
4See motorcycle owner’s manual for complete details.
5Measurement reflects 81.7 kg operator weight.
6Security system includes immobiliser and siren.
7Standard and optional wheels may vary by country and region.





---

2013 Harley-Davidson FXS Blackline – Australia Specifications/Technical Details
Australian MSRP Price: $TBA AUD

More information to follow shortly





Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.







---

2013 Harley-Davidson FXS Blackline – Press Release

NEW MODELS AND NEW OPTIONS FROM HARLEY-DAVIDSON FOR 2013
110th Anniversary Editions, Hard Candy Custom Styling, and a Restyled Street Bob

MILWAUKEE (August 20, 2011) – Harley-Davidson rolls into its 110th model year with a line of authentic American motorcycles that includes 110th Anniversary Editions of select Harley-Davidson® motorcycle models and a restyled Dyna® Street Bob® model. Harley-Davidson Custom Vehicle Operations (CVO) offers two new models, the CVO Breakout , a high-performance Softail® model with exciting new finish options, and the CVO Road King®, fitted with an innovative vented windshield and high-output audio system.

Also new for 2013, Harley-Davidson launches Hard Candy Custom , a styling movement rooted in themes first seen in the chopper era of the late 1960s that embraces dazzling metal flake paint, brilliant chrome, and styling details in accessories, gear and apparel. Hard Candy Custom elements include “big flake” paint finishes, three of which will be selectively offered as a solid-color option on five Harley-Davidson production motorcycles for 2013.

H-D1 Factory Customization expands with the Street Bob joining the 1200 Custom as Harley-Davidson models in the web-based program that allows customers to select factory-installed options in more than 2,000 combinations, build a bike on the screen, and then order it through an authorized Harley-Davidson dealer.

More than a century of experience, knowledge and riding passion lies behind each 2013 Harley-Davidson.

Highlights of the 2012 Harley-Davidson line include:

Ten Harley-Davidson models are offered as 110th Anniversary Editions, each serialized and featuring exclusive paint and commemorative solid bronze fuel tank badges. Production will vary by model and will be strictly limited to ensure exclusivity. These models come with all available factory-installed options as standard equipment. (See separate release for more details on the 110th Anniversary Editions.)

The Harley-Davidson® Street Bob® gets a tougher profile for 2013 with new blacked-out triple clamps and powertrain, and a chopped rear fender with side-mounted license plate and stop/turn/tail lights. This rowdy Dyna bobber features a solo seat and mini-ape handlebar mounted on new risers that make it easier to customize the Street Bob. New paint options include Hard Candy Custom metalflake and a scalloped two-tone option. (See separate release for more details on the 2013 Street Bob.)

The Street Bob serves as a great starting point for customization, and now along with the 1200 Custom it can be personalized through H-D1 Factory Customization with options selected by the customer using the online Bike Builder on Harley-Davidson.com, and installed as the motorcycle is assembled by the Harley-Davidson Motor Company. By choosing from different wheels, paint and engine finishes, the customer can dramatically alter the look of the motorcycle. Different combinations of foot-control location, seat choices and handlebar can be selected to adjust the fit of the motorcycle to rider stature.

Hard Candy Custom embraces a trend that’s reemerged from garages around the globe. Now the sparkle of Hard Candy Big Red Flake, Hard Candy Lucky Green Flake and Hard Candy Coloma Gold Flake can be ordered as Original Equipment paint and serve as the foundation for personal customization. At least one Hard Candy Custom color will be offered on these Harley-Davidson motorcycle models: Seventy-Two , Street Bob®, Blackline®, Softail® Deluxe, and Forty-Eight . New and recently introduced Genuine Motor Accessory and Harley-Davidson® MotorClothes® items extend the Hard Candy Custom theme. (See separate release for more details on Hard Candy Custom.)

The 2013 CVO series of limited-production premium custom motorcycles features the new CVO Breakout®, a bold Softail® model that takes production motorcycle finishes to a new level with two paint schemes that feature hand-polished steel sections on the fuel tank and fenders. The CVO Road King® offers the first factory-installed Road King® audio system, and the new detachable Vented Wind Splitter windshield. The super-premium touring CVO Ultra Classic® Electra Glide® and shark-nose CVO Road Glide® Custom bagger return with new features for 2013. (See separate release for more details on the 2013 CVO line.)

The versatile Harley-Davidson® Sportster® line includes five models, plus the Sportster® 1200 Custom Anniversary Edition. New colors and graphics are offered on all Sportster® models.

The traditional “hard tail” lines of the Harley-Davidson Softail® platform are offered on six models, including the Softail® Slim , a back-to-basics 1950’s-style bobber introduce mid-year 2012. The 2013 Fat Boy® now features Mirror Chrome Aluminum Bullet Hole Disc wheels as standard equipment. The Softail® line also includes Heritage Softail® Classic Anniversary Edition and the Fat Boy® Lo Anniversary Edition.

Eight Harley-Davidson® Touring models, from the slammed-and-trimmed Street Glide® to the fully equipped Electra Glide® Ultra Limited, are ready to tackle the long road with fresh color and graphics options. The Road King® Anniversary Edition and Electra Glide® Ultra Limited Anniversary Edition are available in limited quantities for 2013.
The smooth-handling 2013 Dyna® line includes the re-styled Street Bob and four more models, plus the Super Glide® Custom Anniversary Edition.

The aggressive Harley-Davidson® V-Rod® power-cruiser line features the Night Rod® Special and V-Rod Muscle®, each available in new colors for 2013.

Riders looking for a Trike option with Harley-Davidson quality can turn to the Tri Glide® Ultra Classic®, also available Tri Glide® Ultra Classic® Anniversary Edition to celebrate a milestone.
