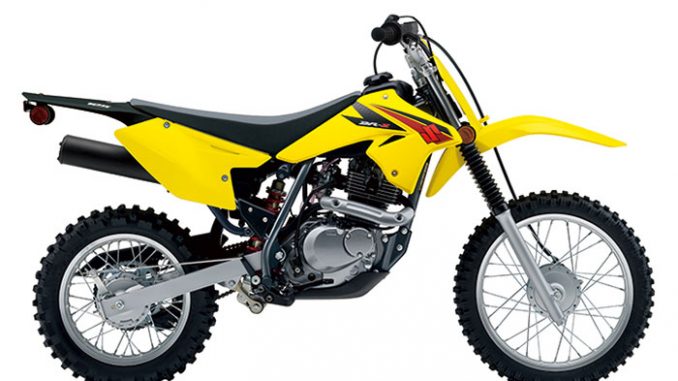

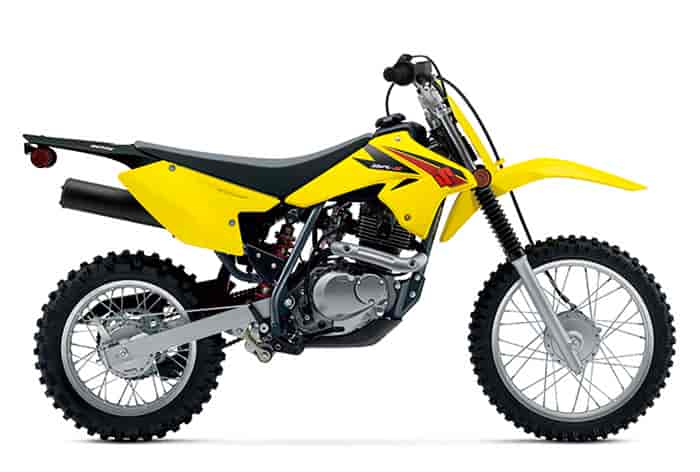

2016 Suzuki DR-Z125 Review
2016 Suzuki DR-Z125 on www.Totalmotorcycle.com
You start seeing whoops, jumps, and washboards everywhere you look…
Inspired by Suzuki’s championship-winning RM-Z motocross bikes, the DR-Z125 has sharp-looking fenders, number plates, and frame covers. It’s lightweight and strong powerband allows the DR-Z to rise to any challenge. When you’ve got a DR-Z, the whole world looks a little different.
Blending race inspired looks along with an exciting entry-level off road package creates the Suzuki DR-Z125. Built around a time proven chassis and engine package. Inheriting sleek designs from its RM-Z brothers, the DR-Z125 yields motocross styling that looks good at the local track or a favorite trail.
2016 Suzuki DR-Z125 www.Totalmotorcycle.com Key Features
Aggressively styled bodywork, number plates and graphics built to look exactly like the race winning RM-Z competition models.
2016 Suzuki DR-Z125 www.Totalmotorcycle.com Features and Benefits
ENGINE FEATURES
Compact 124cc 4-stroke, SOHC, single-cylinder, air-cooled engine designed for ease-of operation and low maintenance.
Digital-type CDI ignition system with timing set to enhance the engine’s low-rpm power characteristics.
MIKUNI VM20SS carburetor contributes to excellent throttle response.
Suzuki Composite Electrochemical Material (SCEM) – plated cylinder for durability, lightweight and superior heat transfer.
TRANSMISSION FEATURES
Five-speed transmission with link-type gearshift system for precise operation and positive feel.
CHASSIS FEATURES
Lightweight, high rigidity steel pipe frame and rear swingarm are designed specifically to create a compact, fully-sized off road machine.
The seat and bodywork design provides a seamless surface for easy maneuverability.
Strong braking performance provided by lightweight front and rear drum brakes.
Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action for enhancing enjoyable, comfortable ride.
The rear shock absorber spring preload is fully adjustable for a wide range of riding conditions.
A lightweight plastic skid plate helps protect the bottom of the engine.
ADDITIONAL FEATURES
30.5 inch seat height.
Lightweight aluminum rims for reduced weight provide agile handling and improved suspension performance.
2016 Suzuki DR-Z125 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD
NA
2016 Suzuki DR-Z125 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $3099 CDN
Engine
Type 4-stroke, air-cooled, SOHC
Displacement 124cc
Bore x Stroke 96.0mm x 62.1mm (2.24in x 1.92in)
Compression Ratio 9.5 : 1
Transmission 5-speed constant mesh
Chassis
Overall Length 1835 mm (72.2 in)
Overall Width 770 mm (30.3 in)
Overall Height 1085 mm (42.7 in)
Wheelbase 1245 mm (49.0 in)
Ground Clearance 260 mm (10.2 in)
Seat Height 775 mm (30.5 in)
Curb Mass 88 kg (194 lbs)
Suspension Front Telescopic, coil Spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Drum brake
Brakes Rear Drum brake
Tires Front 70/100-17 40M, tube type
Tires Rear 90/100-14 49M, tube type
Ignition Type Electronic ignition (CDI)
Fuel Tank 6.2L (1.6 US gal)
Warranty
Standard Warranty 12 Month unlimited mileage limited warranty
2016 Suzuki DR-Z125 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
