2025 Harley-Davidson Nightster Special: HINTS AT SPORTSTER HISTORY.
Introducing the 2025 Harley-Davidson Nightster Special…
Own the night. The Nightster Special marries iconic Sportster design with modern, high-revving, liquid-cooled engine performance and rider-focused tech that keeps you connected on the road.
This middle-weight contender combines a classic Harley-Davidson silhouette with the sophisticated performance of the Revolution Max 975T powertrain and a host of style, convenience and technology upgrades. Standard features include a passenger pillion and foot pegs to enable two-up adventure, a handlebar elevated on a 5-inch riser to put the rider in a commanding position on the motorcycle, a 4-inch round color TFT display supporting infotainment generated by the rider’s Bluetooth-equipped mobile device, and cruise control. Color Options include Billard Gray, Black Denim, new Blue Burst and Whiskey Fire. Black powertrain finish replaces gray for a dramatic visual change.

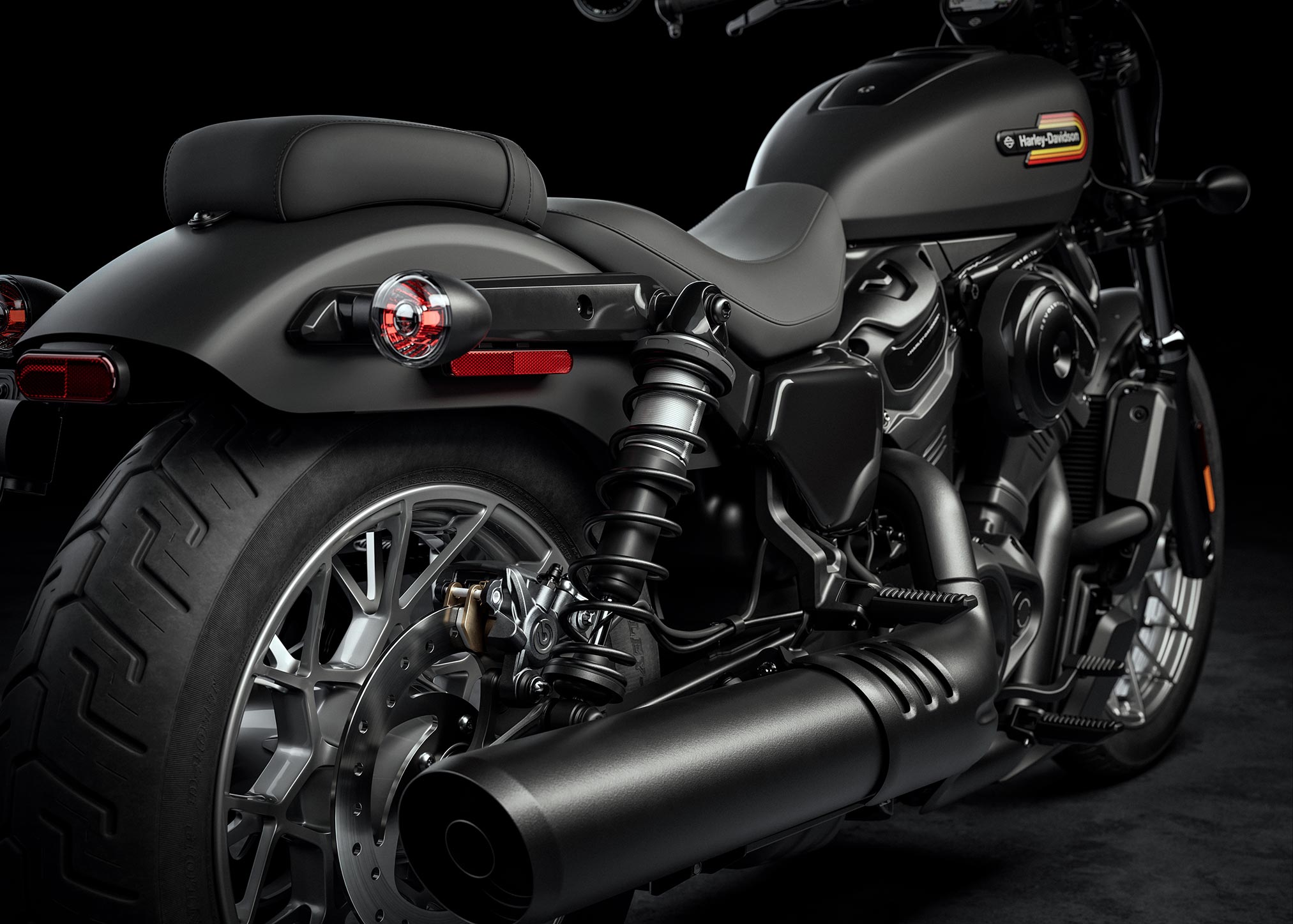

Blacked-out finishes set apart the Nightster Special with a menacing attitude straight from the factory. Vintage styling hints at decades of Sportster history, while a load-bearing engine and updated chassis design provide radically new performance and ease of handling.
2025 Harley-Davidson Nightster Special Totalmotorcycle.com Key Features
HARLEY-DAVIDSON INTRODUCES NEW STREET GLIDE ULTRA, PAN AMERICA 1250 ST AND SIX REFRESHED CRUISER MODELS FOR 2025 MOTORCYCLE LINE-UP
MILWAUKEE (January 23, 2025) – Harley-Davidson today revealed all-new and refreshed motorcycles for its 2025 model line-up. New to this diverse line of bikes are the Street Glide Ultra, a fully equipped long-haul touring model, and the pavement-ready Pan America 1250 ST adventure sport motorcycle. The 2025 Harley-Davidson Cruiser motorcycle collection includes six models with significantly revised performance and technology features. The powerful Sportster S model is updated with revised suspension for enhanced comfort. The collection of limited-production Custom Vehicle Operation (CVO) motorcycles includes four models and completes the most-desirable portfolio of motorcycles ever offered by Harley-Davidson.
These new Harley-Davidson models complete the collection of 2025 Harley-Davidson Grand American Touring, Cruiser, Sport, Adventure Touring and Trike motorcycles.
NEW 2025 Cruiser Models
The reinvigorated 2025 Cruiser collection includes six very distinctive motorcycles, each infused with new technology, elevated performance and refreshed styling. Each Cruiser model features a new Milwaukee-Eight 117 powertrain and technology advancements and utilizes the Harley-Davidson Softail chassis with hidden mono shock rear suspension. The 2025 Cruiser line includes the following models, each representing a specific stylistic personality, from nostalgic to high performance to boldly custom: Low Rider S, Low Rider ST, Breakout, Heritage Classic, Fat Boy and Street Bob.
NEW 2025 Street Glide Ultra Model
The highway is calling. The new Street Glide Ultra model elevates the long-distance touring experience. This new model combines the comfort, technology, performance and design elements introduced on the 2024 Street Glide with new features intended to support two-up, long-haul travel for riders seeking freedom and adventure. This is the most capable regular-production Grand American Touring motorcycle offered by Harley-Davidson.
NEW 2025 Pan America 1250 ST Model
The new Pan America 1250 ST model is a dynamic adventure sport motorcycle that can be a practical daily ride, an exciting back-road apex chaser, and a capable weekend touring mount. Designed to appeal to riders ready to exchange a sport bike or streetfighter for an agile bike with more comfort and longer distance capability, the Pan America 1250 ST model offers a commanding and comfortable upright rider position, the flexible power delivery of the liquid-cooled Revolution Max 1250 engine, a 17” front wheel, and premium suspension and braking components.
NEW Sportster S Model
Underpinned by newly revised suspension, the Harley-Davidson Sportster S model is designed to deliver an extraordinary riding experience rooted in the thrill of unleashing on-demand torque for an exhilarating blast of thrust and adrenaline. Its light weight, technology features and bold design appeal to experienced riders, new riders and those ready to step away from the crowd on a motorcycle that discards traditional styling tropes. Newly revised front and rear suspension offers a 60 percent increase in rear wheel travel without impacting seat height to improve rider comfort on some pavement conditions. Both front and rear suspension are fully adjustable for compression/rebound damping and preload.
NEW 2025 Harley-Davidson Custom Vehicle Operation Models
For its 26th annual installment, Harley-Davidson CVO models offer discerning riders four super-premium, limited production motorcycle models. Each makes a bold statement of power and prestige and represents the pinnacle of Harley-Davidson style and design with new finish and design details for 2025.
CVO Street Glide and CVO Road Glide models elevate design, technology and performance to meet the expectations of the most demanding and discerning bagger rider.
CVO Road Glide ST model, inspired by the Screamin’ Eagle Factory Team Road Glide bikes competing for the MotoAmerica Mission Foods King of the Baggers championship, combines an exclusive Milwaukee-Eight 121 H.O. engine with a host of high-performance components with attention to custom detail to create a bagger that’s quick, fast and sophisticated.
CVO Pan America model, the program’s adventure touring (ADV) motorcycle, is outfitted with a host of rugged Harley-Davidson Genuine Motor accessories designed to enhance the journey. The CVO Pan America model is capable of seeking adventure where any paved and unpaved route leads its rider.
2025 Harley-Davidson Nightster Special Totalmotorcycle.com Features and Benefits
Blacked-Out Revolution Max 975T Engine
High-revving, liquid-cooled V-twin power, completely blacked-out for a subtly aggressive look with contrasting matte and gloss finishes.
Vintage Styling
Flat line from the bottom of the gas tank through to the rear fender struts, with iconic peanut-shaped cover featuring a throwback ’70s tank graphic.
Lightweight + Agile
With a load-bearing engine and under-seat gas tank, this bike sheds weight and centers mass for agile handling and easy kickstand lift. At 483 lbs. it is one of our lightest and most agile motorcycles.
Two-Up Riding
Bring someone along for the ride with the standard passenger pillion pad and footpegs, or easily remove them for a stripped-down solo look.
Fairing + LED Lights
The West Coast-inspired headlight mini-fairing reduces fatigue by directing wind away from the rider’s body, while LED lighting lets you see and be seen on the road.
PERFORMANCE
Quick-revving power available wherever you want it, a low center of gravity for nimble handling and easy maneuverability, and tech to help maximize your ride, not interrupt it.
Two-Into-One Exhaust
Sweeping exhaust line with high-flowing performance, blacked-out style, and a tuned V-twin exhaust note.
Dual Outboard Rear Shocks
Dual outboard rear shocks give the Nightster Special that classic Sportster line, tying it into decades of heritage while providing modern performance and riding comfort.
Highrise Handlebars
Five-inch risers with easy-to-reach handlebars put the rider in a comfortable, confident, upright riding position.
Airbox +Intake
High-performance downdraft intake is made possible by moving the gas tank beneath the seat, while the intake and air cover sit above the Revolution Max 975T engine.
INNOVATION
A brilliant, Bluetooth-enabled four-inch TFT display keeps you connected—whether that means listening to music, quickly changing ride modes, or tuning Rider Safety Enhancements.
Full Color Four-Inch LCD Display
A full-color, four-inch display provides key information at a glance as well as quick and intuitive menu navigation when you are moving through Ride Modes, maps, and more.
Ride Modes
Switch between three standard ride modes—Road, Rain, and Sport—or dial in two custom modes to instantly transform your ride. Road is your everyday setting, Sport ramps up power and response, and Rain smooths things out for slick roads.
2025 Harley-Davidson Nightster Special – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $12,499 to $13,249 USD
Canada MSRP Price: $14,999 to $15,999 CDN
Europe/UK MSRP Price: £14,499 to 15,845 GBP (On The Road inc 20% Vat)
Australia MSRP Price: $21,495 to $21,855 CDN
| Dimensions | RH975S Nightster Special | Notes |
| Length | 89.2 in. (2,265 mm) | |
| Overall Width | 33.9 in. (860 mm) | |
| Overall Height | 46.7 in. (1,185 mm) | |
| Seat Height, Laden | 27.1 in. (688 mm) | 2 |
| Seat Height, Laden (Low seat position) | ||
| Seat Height, Laden (High seat position | ||
| Seat Height, Laden (Low seat position with optional ARH suspension) | ||
| Seat Height, Laden (High seat position with optional ARH suspension) | ||
| Seat Height, Unladen | 28.1 in. (715 mm) | |
| Seat Height, Unladen (Low seat position) | ||
| Seat Height, Unladen (High seat position) | ||
| Seat Height, Unladen (Low seat position with optional ARH suspension) | ||
| Seat Height, Unladen (High seat position with optional ARH suspension) | ||
| Static Ground Clearance | 4.7 in. (120 mm) | |
| Dynamic Ground Clearance (with optional suspension) | ||
| Rake (steering head) | 30 | |
| Fork Angle | 28 | |
| Trail | 5.4 in. (137 mm) | |
| Wheelbase | 60.8 in. (1,545 mm) | |
| Tires, Type | Dunlop Harley-Davidson Series Bias Blackwall | |
| Tires, Front Model | D401F | |
| Tires, Front Specification | 100/90-19 57H | |
| Tires, Rear Model | D401T | |
| Tires, Rear Specification | 150/80B16 77H | |
| Fuel Capacity | 3.1 gal. (11.7 l) | |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 0.8 gal. (3 l) | |
| Oil Capacity (w/filter) | 4.75 qt. (4.5 l) | |
| Transmission Capacity | N/A | |
| Primary Chain Case Capacity | N/A | |
| Coolant Capacity | 2.22 qt. (2.1 l) | |
| Weight, As Shipped | 476 lb. (216 kg) | |
| Weight, In Running Order | 496 lb. (225 kg) | |
| Gross Vehicle Weight Rating | 922 lb. (418 kg) | |
| Gross Axle Weight Rating, Front | 353 lb. (160 kg) | |
| Gross Axle Weight Rating, Rear | 595 lb. (270 kg) | |
| Luggage Capacity -Volume | N/A |
| Engine | RH975S Nightster Special | Notes |
| Engine | Revolution Max 975T | |
| Valves | Chain-driven, DOHC, hydraulic self-adjusting lifters, intake VVT; four valves per cylinder | |
| Bore | 3.82 in. (97 mm) | |
| Stroke | 2.6 in. (66 mm) | |
| Displacement | 59.5 cu in (975 cc) | |
| Compression Ratio | 12:01 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | 3 |
| Air Cleaner | Downdraft intake, tuned velocity stacks, washable filter media | |
| Exhaust | 2-into-1; catalyst in header | |
| Lubrication System | Semi-Dry Sump |
| Drivetrain | RH975S Nightster Special | Notes |
| Primary Drive | Gear, 49/89 ratio | |
| Final Drive | Belt, 34/80 ratio | |
| Clutch | Mechanical, 8 plate wet, assist & slip, 1090N | |
| Transmission | 6-speed | |
| Gear Ratios (overall) 1st | 12.21 | |
| Gear Ratios (overall) 2nd | 9.022 | |
| Gear Ratios (overall) 3rd | 6.994 | |
| Gear Ratios (overall) 4th | 5.641 | |
| Gear Ratios (overall) 5th | 4.731 | |
| Gear Ratios (overall) 6th | 4.131 |
| Chassis | RH975S Nightster Special | Notes |
| Frame | Stressed-member, high strength low alloy steel trellis frame; stamped, cast, and forged junctions; MIG welded; aluminum forged mid-structure | |
| Swingarm | Mild steel, rectangular tube section, stamped x-member; MIG welded | |
| Front Fork | 41mm SHOWA Dual Bending Valve conventional forks. Aluminum fork triple clamps. | |
| Front Fork, Optional | ||
| Rear Shocks | Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment. | |
| Rear Shocks, Optional | ||
| Wheels, Optional Style Type | N/A | 4 |
| Wheels, Front Type | Aluminum cast, silver | 4 |
| Wheels, Front Diameter | 19 in. (483 mm) | |
| Wheels, Front Width | 2.5 in. (64 mm) | |
| Wheels, Rear Type | Aluminum cast, silver | 4 |
| Wheels, Rear Diameter | 16 in. (406 mm) | |
| Wheels, Rear Width | 4.25 in. (108 mm) | |
| Brakes, Caliper Type | Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper | |
| Brakes, Rotor Type | Front: single rotor, floating, hub – mounted; Rear: solid uniform expansion rotor | |
| Brakes, Front Diameter | 12.6 in. (320 mm) | |
| Brakes, Front Thickness | 0.23 in. (5.8 mm) | |
| Brakes, Front is dual | No | |
| Brakes, Rear Diameter | 10.2 in. (260 mm) | |
| Brakes, Rear Thickness | 0.2 in. (5 mm) | |
| Brakes, Anti-Lock Braking System (ABS) | Standard | |
| Suspension Travel, Front | 4.5 in. (114 mm) | |
| Suspension Travel, Rear | 3 in. (76.2 mm) |
| Performance | RH975S Nightster Special | Notes |
| Engine Torque Testing Method | J1349 | |
| Engine Torque | 72 ft-lb (97 Nm) | 5 |
| Engine Torque (rpm) | 5,750 | |
| Power | 91 HP / 68 kW @ 7500 rpm | |
| Lean Angle Testing Method | J1168 | |
| Lean Angle, Right (deg.) | 32 | |
| Lean Angle, Left (deg.) | 32 |
| Electric | RH975S Nightster Special | Notes |
| Battery | Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 12Ah, 225 CCA at 0°F | |
| Charging | Three-phase, 45 Amp system (300 Watts @13 Volts, 1200 rpm, 585 Watts max power @ 13 Volts, 2250 rpm) | |
| Starting | 0.9 kW electric with direct drive starter motor engagement | |
| Lights (as per country regulation), Headlamp | All LED headlamp, low and high beam with signature position lighting | |
| Lights (as per country regulation), Tail/Stop | All LED rear lighting | |
| Lights (as per country regulation), Front Signal Lights | LED Bullet Turn Signals | |
| Lights, Rear Turn Signals | LED Bullet Turn Signals | |
| Gauges | 4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY) | |
| Auxiliary Lamps | N/A | |
| Electric Power Outlet | USB C-Type , Output 5V at 2.4 Amp | |
| GPS System | N/A | |
| Reverse Gear | N/A | |
| Fuel Economy & CO₂ Emissions | RH975S Nightster Special | |
| Fuel Economy Testing Method | Estimated City/Hwy | |
| Fuel Economy | 52 mpg (4.5 l/100 km) |
| Infotainment | RH975S Nightster Special | Notes |
| Infotainment system | N/A | |
| Screen Size | 4 in (102 mm) | |
| Type | Color TFT | |
| Watts Per Channel | N/A | |
| Speakers | N/A | |
| Speaker Size | N/A | |
| Headset Specifications (if equipped) | Bluetooth | |
| AM | N/A | |
| FM | N/A | |
| MW | N/A | |
| LW | N/A | |
| Weather Band (WB) | N/A | |
| SD Card, Flash Drive and MP3 – via USB Connection | N/A | |
| Hands-free Mobile Phone – via Bluetooth | Standard | |
| Voice Recognition Languages: Phone functions only | Phone dependent | |
| Rider/Passenger Intercom | Headset function only | |
| Vehicle Information Screen (Air temperature, oil pressure and EITMS) | TPMS, Engine temp, Battery Voltage, Ambient Air Temp | |
| Text-to-Speech (TTS) Languages | Phone dependent | |
| USB | Charging and Instrument update, USB-C, 5V, 3A | |
| Phone Connectivity | ||
| Bluetooth | Phone/Media Supported | |
| Navigation – via Bluetooth |
| Rider Safety Enhancements | RH975S Nightster Special | Notes |
| Anti-lock Brake System (ABS) | Included | |
| Electronic Linked Braking (ELB) | N/A | |
| Traction Control System (TCS) | Included | |
| Drag-torque Slip Control System (DSCS) | Included | |
| Vehicle Hold Control (VHC) | N/A | |
| Tire Pressure Monitoring System (TPMS) | Included | |
| Wheel Lift Mitigation | N/A |
| Cornering Rider Safety Enhancements | RH975S Nightster Special | Notes |
| Cornering Enhanced Anti-lock Brake System (C-ABS) | N/A | |
| Cornering Enhanced Electronic Linked Braking (C-ELB) | N/A | |
| Cornering Enhanced Traction Control System (C-TCS) | N/A | |
| Cornering Drag-Torque Slip Control System (C-DSCS) | N/A | |
| Enhanced Lift Mitigation | N/A |
| Warranty And Service | RH975S Nightster Special | Notes |
| Warranty | 24 months (unlimited mileage) | 6 |
| Service Interval | First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter | 7 |
| Footnotes | RH975S Nightster Special | |
| 1 | Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty. | |
| 2 | Measurement reflects 180 lb. (81.7 kg) operator weight. | |
| 3 | Recommended 91 octane or higher fuel (R+M)/2. | |
| 4 | Standard and optional wheels may vary by country and region. | |
| 5 | Values shown are nominal. Performance may vary by country and region. | |
| 6 | See motorcycle owner’s manual for complete details. | |
| 7 | Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details. |
2025 Harley-Davidson Nightster Special – Totalmotorcycle.com Canada Specifications/Technical Details
Dimensions
Length
2,265 mm
Width
860 mm
Seat Height, Unladen
715 mm
Ground Clearance
120 mm
Rake
30
Trail
137 mm
Wheelbase
1,545 mm
Tire, Type
Dunlop Harley-Davidson Series Bias Blackwall
Tires, Front Specification
100/90-19 57H
Tires, Rear Specification
150/80B16 77H
Fuel Capacity
11.7 l
Oil Capacity (w/filter)
4.5 l
Weight, In Running Order
219 kg
Engine
Engine+
Revolution Max 975T
Bore
97 mm
Stroke
66 mm
Displacement
975 cc
Compression Ratio
12:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1; catalyst in header
Performance
Engine Torque Testing Method
J1349
Engine Torque+
97 Nm
Engine Torque (rpm)
5750
Horsepower
91 HP / 68 kW @ 7500 rpm
Lean Angle, Right (deg.)
32
Lean Angle, Left (deg.)
32
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy+
4.5 l/100 km
Drive Train
Primary Drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
12.21
Gear Ratios (overall) 2nd
9.022
Gear Ratios (overall) 3rd
6.994
Gear Ratios (overall) 4th
5.641
Gear Ratios (overall) 5th
4.731
Gear Ratios (overall) 6th
4.131
Chassis
Front Fork
41mm SHOWA Dual Bending Valve conventional forks. Aluminum fork triple clamps.
Rear Shocks
Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment.
Wheels, Front Type+
Aluminum cast, silver
Wheels, Rear Type+
Aluminum cast, silver
Brakes, Caliper Type
Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper
Brakes, Rotor Type
Front: single rotor, floating, hub – mounted; Rear: solid uniform expansion rotor
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: All LED rear lighting; Front Signal Lights: LED Bullet Turn Signals
Gauges
4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY)
Infotainment
Screen Size
102 mm
Type
Color TFT
Headset Specifications (if equipped)
Bluetooth
Languages
Arabic Chinese (Simplified/Traditional) Czech Danish Dutch English (default) Finnish French (Canada/France) German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese (Portugal/Brazil) Indonesian Russian Slovak Spanish (Mexico/Spain) Swedish Thai Turkish Vietnamese
Hands-free Mobile Phone – via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
Text-to-Speech (TTS) Languages
Phone dependent
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
Rider Safety Enhancements
Anti-lock Brake System (ABS)
Included: ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
Traction Control System (TCS)
Included: The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
Drag-torque Slip Control System (DSCS)
Included: DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
Tire Pressure Monitoring System (TPMS)
Included: TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.

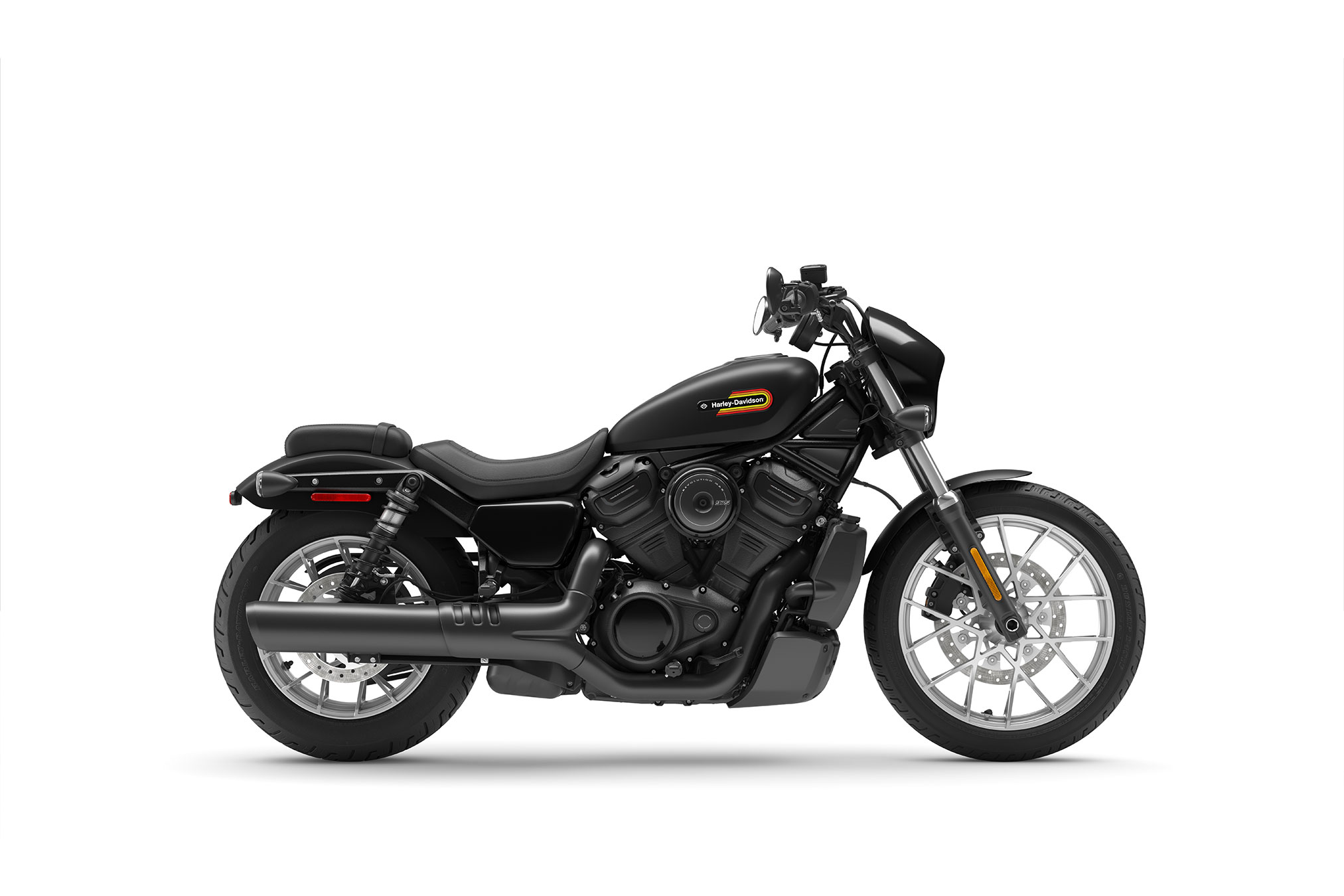

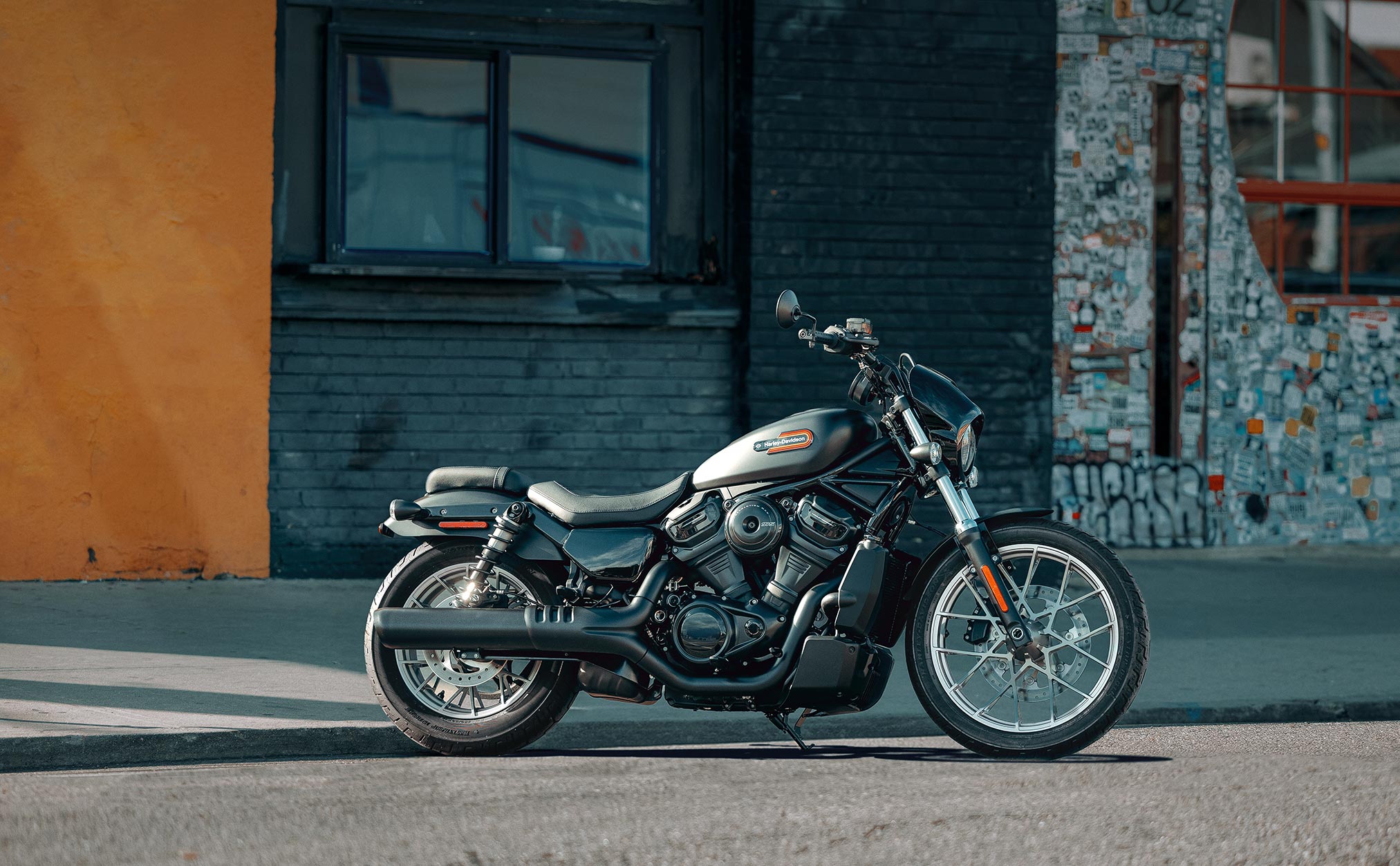

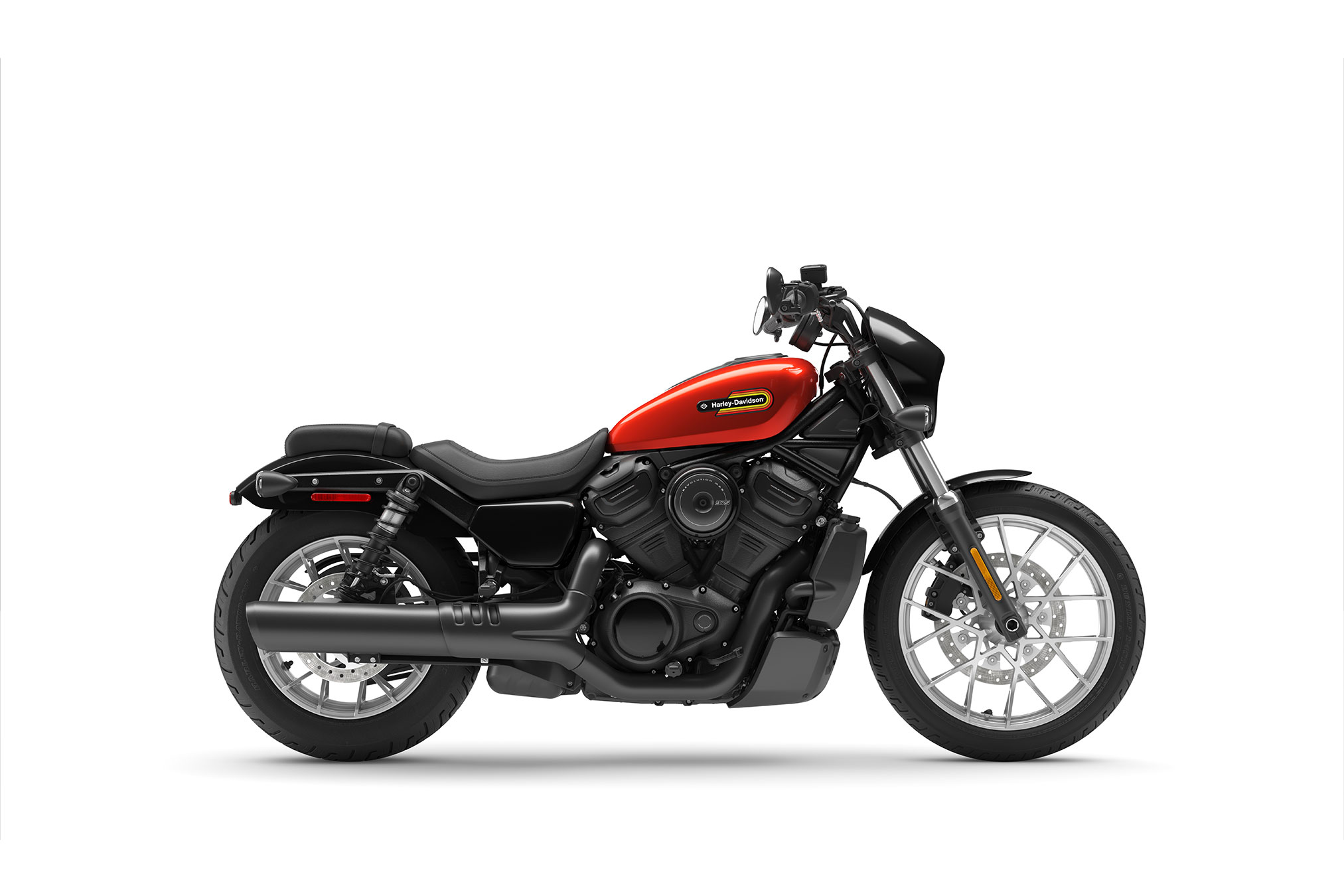

2025 Harley-Davidson Nightster Special – Totalmotorcycle.com Europe Specifications/Technical Details.
Dimensions
Length
2,265 mm
Width
860 mm
Seat Height, Unladen
715 mm
Ground Clearance
120 mm
Rake
30
Trail
137 mm
Wheelbase
1,545 mm
Tire, Type
Dunlop Harley-Davidson Series Bias Blackwall
Tires, Front Specification
100/90-19 57H
Tires, Rear Specification
150/80B16 77H
Fuel Capacity
11.7 l
Oil Capacity (w/filter)
4.5 l
Weight, In Running Order
225 kg
Engine
Engine+
Revolution Max 975T
Bore
97 mm
Stroke
66 mm
Displacement
975 cc
Compression Ratio
12:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1; catalyst in header
Performance
Engine Torque Testing Method
EC 134/2014
Engine Torque+
95 Nm
Engine Torque (rpm)
5750
Horsepower
89 HP / 66 kW @ 7500 rpm
Lean Angle, Right (deg.)
32
Lean Angle, Left (deg.)
32
Fuel Economy Testing Method
EU 134/2014
Fuel Economy+
5.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
130 g/km CO2
Drive Train
Primary Drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
12.21
Gear Ratios (overall) 2nd
9.022
Gear Ratios (overall) 3rd
6.994
Gear Ratios (overall) 4th
5.641
Gear Ratios (overall) 5th
4.731
Gear Ratios (overall) 6th
4.131
Chassis
Front Fork
41mm SHOWA Dual Bending Valve conventional forks. Aluminum fork triple clamps.
Rear Shocks
Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment.
Wheels, Front Type+
Aluminum cast, silver
Wheels, Rear Type+
Aluminum cast, silver
Brakes, Caliper Type
Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper
Brakes, Rotor Type
Front: single rotor, floating, hub – mounted; Rear: solid uniform expansion rotor
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: All LED rear lighting; Front Signal Lights: LED Bullet Turn Signals
Gauges
4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY)
Infotainment
Screen Size
102 mm
Type
Color TFT
Headset Specifications (if equipped)
Bluetooth
Languages
Arabic Chinese (Simplified/Traditional) Czech Danish Dutch English (default) Finnish French (Canada/France) German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese (Portugal/Brazil) Indonesian Russian Slovak Spanish (Mexico/Spain) Swedish Thai Turkish Vietnamese
Hands-free Mobile Phone – via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
Text-to-Speech (TTS) Languages
Phone dependent
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
Rider Safety Enhancements
Anti-lock Brake System (ABS)
Included: ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
Traction Control System (TCS)
Included: The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
Drag-torque Slip Control System (DSCS)
Included: DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
Tire Pressure Monitoring System (TPMS)
Included: TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
