Review – Key Features – Features & Benefits – Specifications

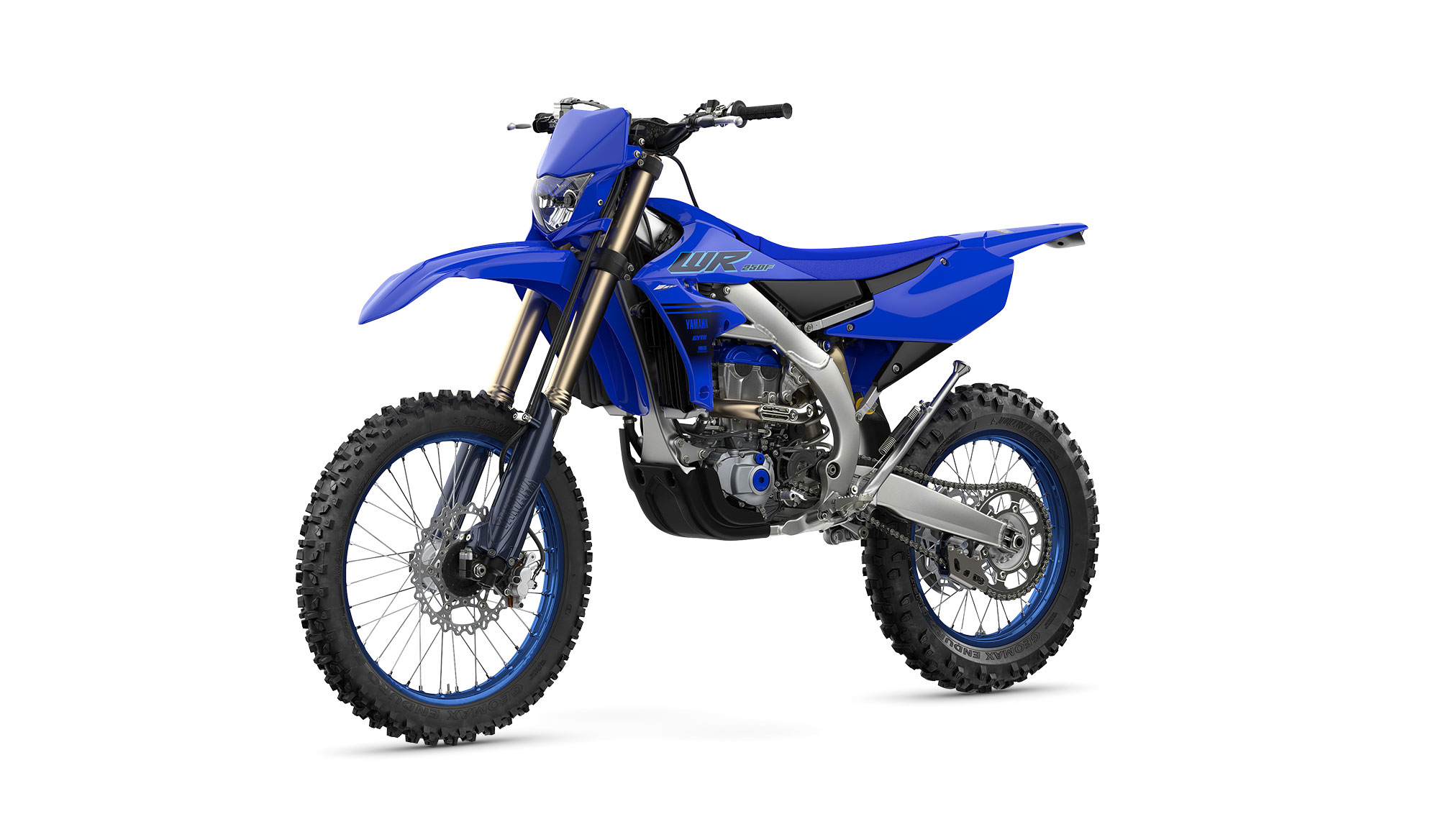

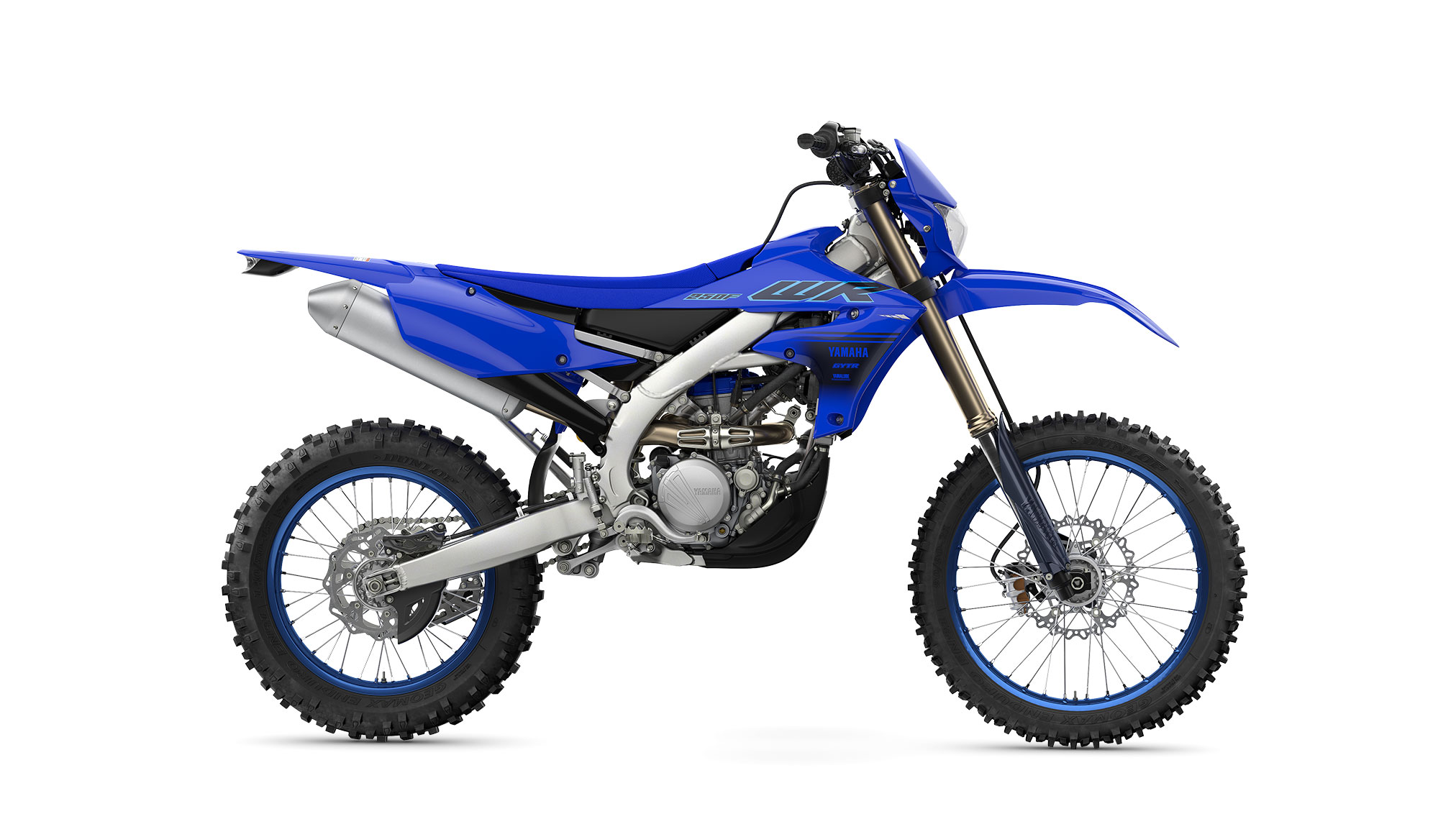

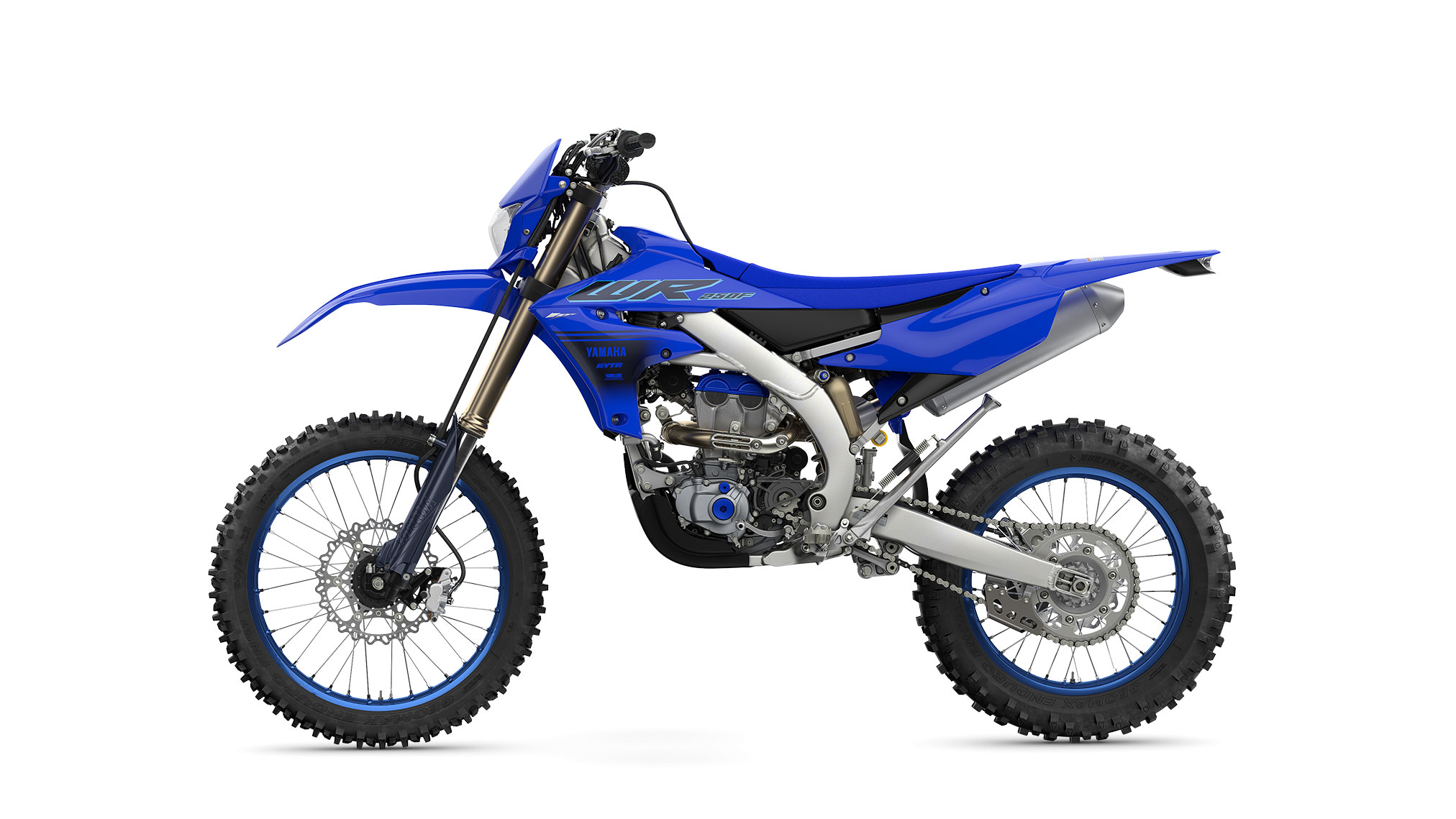

2024 Yamaha WR250F: MOTOCROSS SPEED WITH ALL-TERRAIN PERFORMANCE.
Introducing the new 2024 Yamaha WR250F…
With its reverse-head engine and lightweight aluminium chassis, the WR250F provides an ideal blend of useable power combined with easy agility. Developed using Yamaha’s MX2 race winning technology, the WR250F is equipped with enduro-specific features such as a wide-ratio gearbox, revised intake and exhaust systems, special mapping and a high capacity cooling system.
Producing strong and useable torque that gives every rider the ability to achieve their personal best in different conditions, the WR250F delivers motocross speed with all-terrain performance.
PLAY FAST
Born from the Supercross‑dominating YZ250F, then tuned for enduro riding to offer the fastest way through tight singletrack.
This is the kind of enduro bike that is ready to give you winning performance in a wide range of riding conditions. Developed from Yamaha’s Grand Prix winning motocross bike, the WR250F delivers stunning acceleration and speed – and with its enduro-specific features and class-leading suspension this machine is built to conquer the most technical terrain – from high-speed tracks through to technical woods riding.
The YZ250F-type cylinder head features a wide intake port and high-performance exhaust camshaft that give rapid mid to top-end performance while retaining the WR250F’s strong low rpm torque. And the lightweight aluminium beam frame developed from Yamaha’s motocross bike has been enduro-tuned to give the right balance of rigidity for precise feel and accurate surface feedback over tough terrain.
A light and powerful front braking system gives you ultimate controllability – and enduro features include a multi-function meter and a specially-developed exhaust and muffler design. The light-feeling clutch and 6-speed wide-ratio transmission are ready for the most extreme challenge – and with the Power Tuner smartphone app and a 2-mode engine map switch, the intelligent WR250F can be set up to handle virtually any riding or weather conditions.
2024 Yamaha WR250F Totalmotorcycle.com Key Features
- Powerful YZ250F-type engine
- Yamaha’s innovative reverse-head technology
- Lightweight aluminium frame
- Best-in-class KYB suspension
- Power Tuner App
- Wide ratio 6-speed transmission
- Mass centralized design
- 2-mode engine mapping switch
- Lightweight multi-function display
- Developed using Yamaha’s MX2 race winning technology
2024 Yamaha WR250F Totalmotorcycle.com Features and Benefits
Easy Servicing
The air cleaner cover features tool-free access to the air filter for quick, easy servicing.
Multi-Function Display
The WR250F includes a multi-function display featuring a speedometer, trip information and convenient low fuel and engine warning indicators.
Practical Touches
Quick-adjust clutch, wide 55mm platform footpegs, four-position rubber-mounted handlebar clamps, aluminum handlebars and side stand all come standard for added rider convenience. The WR250F is also fitted with a radiator fan for cool running.
CHASSIS/SUSPENSION
Advanced Bilateral Aluminum Frame
An all-aluminum bilateral beam frame provides strength, lightness and durability for fast trail riding and comes standard with a rugged plastic skid plate.
Class-Leading Suspension
Industry-leading Speed Sensitive System KYB® fully adjustable spring-type forks and a KYB® rear shock are thoroughly tested and tuned specifically for enduro.
High Traction Dunlop® Tires
Dunlop® MX3S tires maximize traction while delivering excellent durability.
High-Spec Braking Components
The high performance braking system provides exceptional stopping power and control through high-spec componentry, including a rigid front caliper with larger diameter pistons, aggressive brake pad compound and a 270mm front rotor. The rear brake gets a lightweight caliper and hanger with a 240mm rear rotor to reduce unsprung weight.
Slim Bodywork & Quality Graphics
The compact bodywork eases the rider’s movement across the machine in tough terrain. Quality graphics are embedded in the body moldings for long-lasting good looks.
ENGINE
Competition-Bred Engine Performance
The revolutionary liquid-cooled four-stroke powerplant is developed for enduro competition. Intake and exhaust ports work with a high compression piston for a wide spread of power without losing top-end performance.
Forward-Thinking Engine Design
Reversing the cylinder head while placing the intake forward and the exhaust to the rear allow for a straight shot, downdraft intake and straight exhaust port for maximized engine performance.
Mass-Centralized Electric Start
The WR250F features a compact, centrally-mounted electric starter system to minimize restart delays and add convenience.
Six-Speed Gearbox
A six-speed transmission is used to ensure the right gear is available for the wide variety of terrain found in fast trail riding and enduro racing. Transmission features durable gears and a heavy-duty, large-diameter clutch.
TOP FEATURES
Enduro Competition Features
With an electric starting system, rugged plastic skid plate, and 18-inch rear wheel, high-quality sealed O-ring chain, larger 2.1 gallon fuel capacity and a multi-function display including low fuel indicator, the WR250F is built for serious enduro.
High Performance Four-Stroke Engine
The compact, powerful WR250F engine includes all the same race-developed technologies of the championship-winning YZ250F, tuned for enduro performance. Revised intake duct, intake port, exhaust camshaft profile, muffler and balancer weight position combine to further improve power and usability across the entire rev range.
High-Spec Braking Components
The high performance braking system provides exceptional stopping power and control through high-spec componentry, including a rigid front caliper with larger diameter pistons and a 270mm front rotor. The rear brake gets a lightweight caliper and hanger with a 240mm rear rotor to reduce unsprung weight.
Precisely Tuned Chassis
The highly developed aluminum bilateral beam frame features precisely tuned flex characteristics for competition-ready performance. The forged section at the swingarm pivot, and improved engine mounting brackets provide a nimble, lightweight feel in tight, technical terrain while still providing stability in fast sections. As always, Yamaha’s class-leading KYB® suspension ensures maximum control and traction.
Sharp, Durable Graphics Scheme
Sharp competition-inspired graphics scheme highlights the YZ’s unmatched racing pedigree. Premium Yamaha graphics are embedded to provide excellent durability and scratch resistance. Dark radiator louvres add to the aggressive look.
Singletrack Slayer
Based on the championship-winning YZ250F that features Yamaha’s revolutionary front-intake, rear-exhaust, liquid-cooled, DOHC 4-stroke power plant with an added sixth gear, wide-ratio transmission and a range of enduro specific upgrades, the WR250F is a super fast singletrack slayer.
2024 Yamaha WR250F – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8,999 USD
Canada MSRP Price: $ TBA CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
ENGINE
| Engine Type | 250cc liquid-cooled DOHC 4-stroke; 4 titanium valves |
| Bore x Stroke | 77.0mm × 53.6mm |
| Compression Ratio | 13.8:1 |
| Fuel Delivery | Mikuni® fuel injection, 44mm |
| Transmission | 6-speed; multiplate wet clutch |
| Final Drive | Chain |
| Fuel Capacity | 2.1 gal |
CHASSIS
| Suspension/Front | KYB® spring-type fork with speed sensitive damping; fully adjustable, 12.2 in travel |
| Suspension/Rear | KYB® single shock; fully adjustable, 12.5 in travel |
| Brakes/Front | Hydraulic disc, 270mm |
| Brakes/Rear | Hydraulic disc, 240mm |
| Tires/Front | 80/100-21 Dunlop® MX3S |
| Tires/Rear | 110/100-18 Dunlop® MX3S |
DIMENSIONS
| LxWxH | 85.6 in x 32.5 in x 50.0 in |
| Seat Height | 37.6 in |
| Wheelbase | 58.3 in |
| Rake (Caster Angle) | 27.2° |
| Trail | 4.6 in |
| Max. Ground Clearance | 12.6 in |
| Fuel Capacity | 2.1 gal |
| Wet Weight*** | 254 lb |
OTHER
| Warranty | 30 Day (Limited Factory Warranty) |
2024 Yamaha WR250F – Totalmotorcycle.com Canada Specifications/Technical Details
TBA
2024 Yamaha WR250F – Totalmotorcycle.com European Specifications/Technical Details
Engine
Engine type 4-stroke, Liquid-cooled, DOHC, 4-valves, Single
cylinder
Displacement 250cc
Bore x stroke 77,0 x 53,6 mm
Compression ratio 13,8 : 1
Lubrication system Wet sump
Clutch type Wet, Multiple Disc
Ignition system TCI
Starter system Electric
Transmission system Constant Mesh, 5-speed
Final transmission Chain
Fuel system Fuel Injection
Chassis
Frame Semi double cradle
Caster angle 27°10′
Trail 116 mm
Front suspension system KYB® fork, fully adjustable inverted twin chamber with
speed sensitive travel
Rear suspension system (Link type suspension), Swingarm
Front travel 310 mm
Rear travel 317 mm
Front brake Hydraulic single disc brake, Ø270 mm
Rear brake Hydraulic single disc brake, Ø245 mm
Front tyre 90/90-21 54R Tube type
Rear tyre 140/80-18 70R Tube type
Dimensions
Overall length 2.175 mm
Overall width 825 mm
Overall height 1.270 mm
Seat height 955 mm
Wheel base 1.480 mm
Minimum ground clearance 320 mm
Wet weight (including full oil and fuel tank) 115 kg
Fuel tank capacity 7,9 L
Oil tank capacity 0,95 L
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
