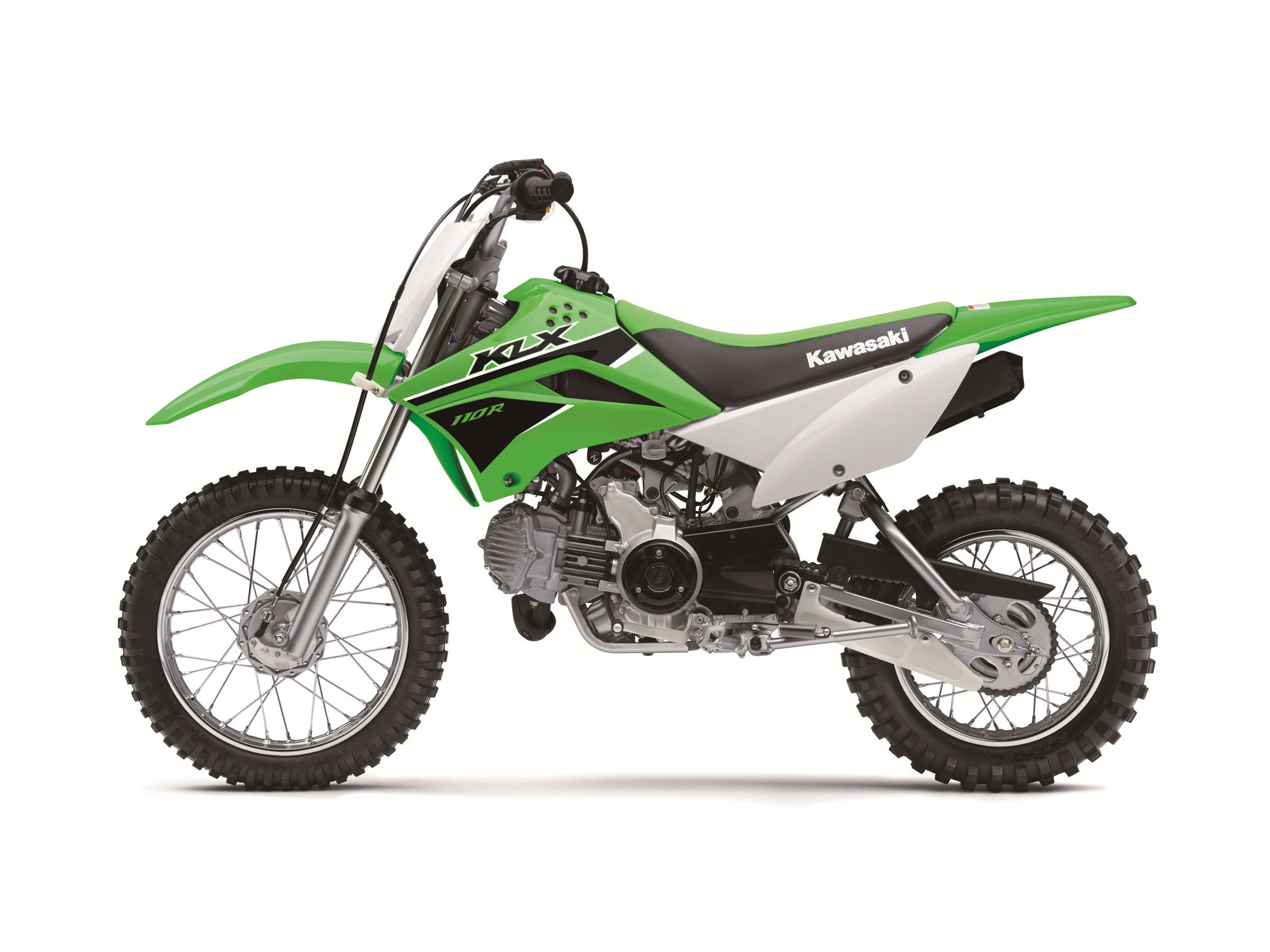

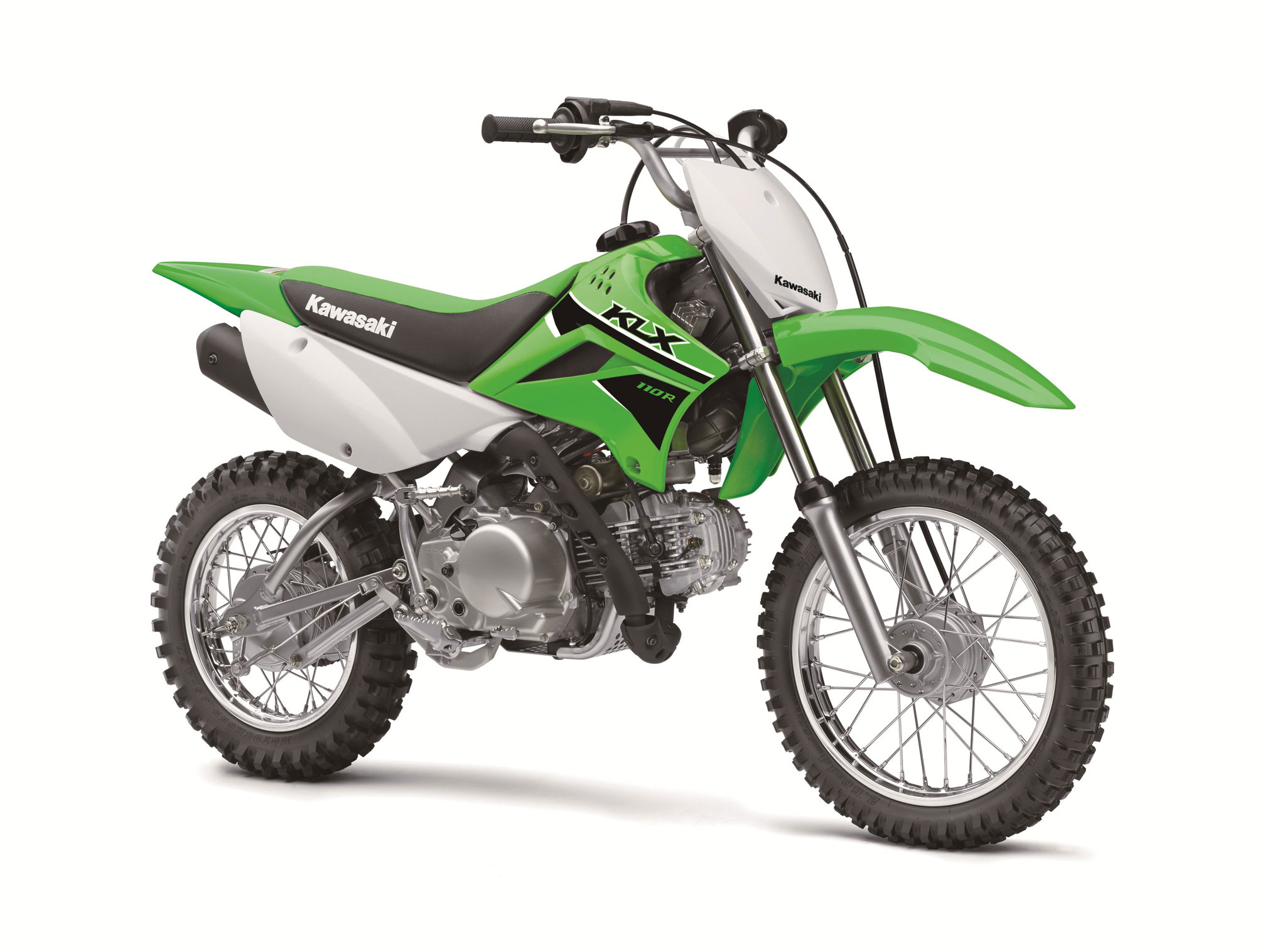

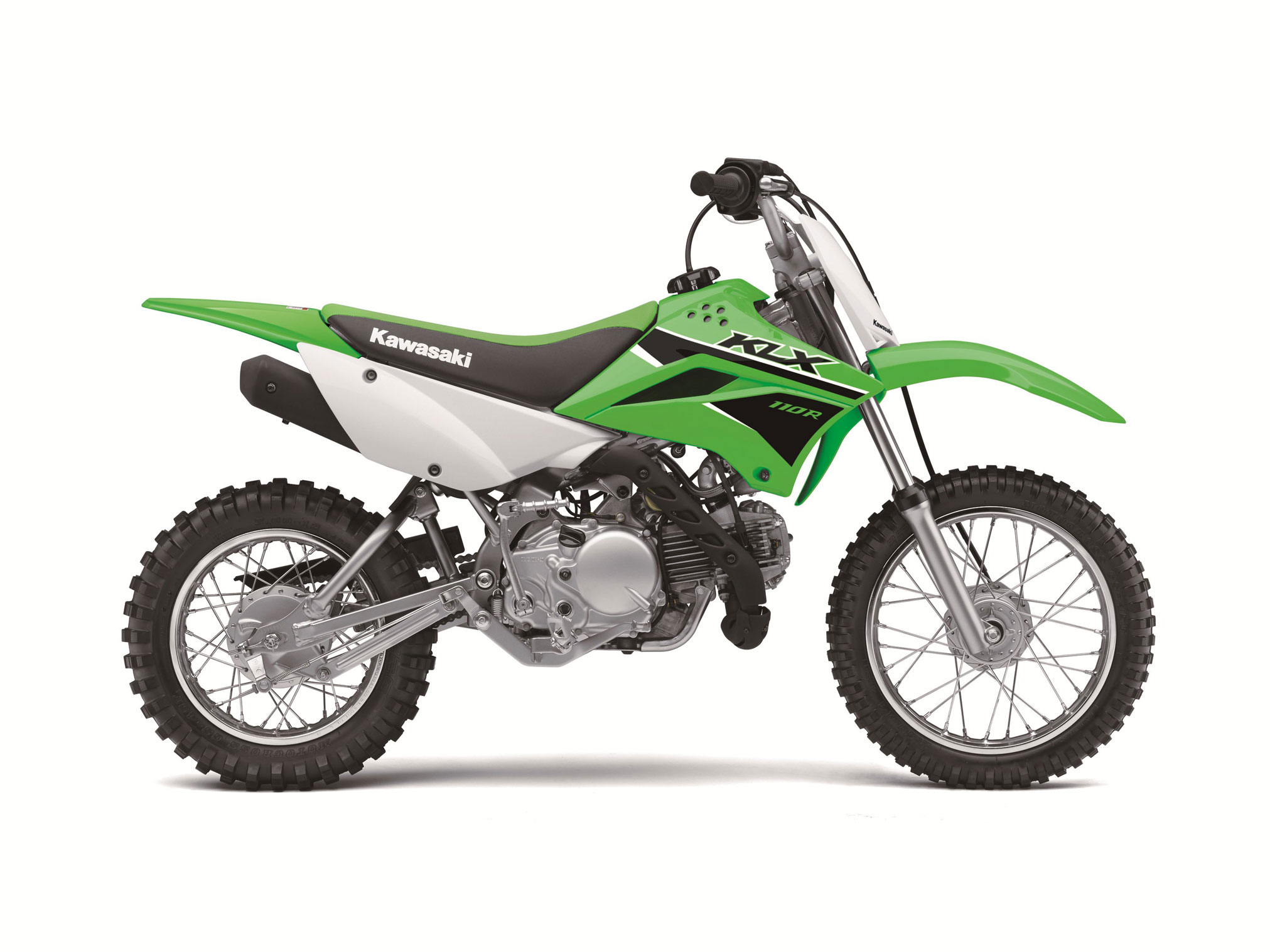

2023 Kawasaki KLX110R: LOWER SEAT HEIGHT.
Introducing the 2023 Kawasaki KLX110R…
Small bike equals big fun in the KLX110. This is where the adventure starts. The KLX110 is a versatile off-road bike with a low seat height, plush suspension and an automatic clutch for a fun, confidence-inspiring ride.
Whether it’s a friendly bike for beginners or the ultimate pitbike for more experienced riders, the KLX110R and the slightly larger KLX110R L off-road motorcycles are up for the task. The playful 112cc engine and compact chassis are versatile enough to handle fun for any young rider.
Kawasaki’s KLX110R/R L offers two ways for riders to get started in off-road riding: the base KLX110R model with a low seat height and automatic clutch, and the KLX110R L with longer suspension travel, nearly two-inch taller seat height and manual clutch.
The KLX®110R is available in two model variations and is a great motorcycle for new riders looking to experience off-road for the first time. A high-tensile steel frame, 30mm telescopic fork, and single rear shock provide easy handling and maximum longevity. It also incorporates an automatic centrifugal clutch system that allows easy take off and shifting through the gears, helping the rider maintain focus on the terrain and to make the most of the 112cc single-cylinder, four-stroke engine. The larger KLX®110R L motorcycle has a taller seat height (28.7” compared to 26.8” for the KLX110R), longer suspension travel, an extra 1.9” of ground clearance and a four-speed transmission with a manual clutch. No matter your size or skill level, there is a KLX model motorcycle to allow you to get out and play with Kawasaki.
ENGINE
FUELED FOR FUN
KLX110R motorcycles are powered by a 112cc air-cooled four-stroke engine. The KLX110R features a 4-speed transmission with automatic clutch while the KLX110R L offers a manual clutch to learn big bike shifting techniques.
PERFECT FIT
TAKE A SEAT
Lightweight KLX110R off-road motorcycles are fun for the whole family to enjoy. The KLX110R features a 26.8-inch seat height and low center of gravity, well-suited for young riders. For taller riders, the KLX110R L boasts a 28.7-inch seat height and higher ground clearance.
ELECTRIC START
START THE FUN WITH A PUSH
KLX110R motorcycles feature easy, reliable starting thanks to an electric start.
OFF-ROAD CAPABILITY
BUILT FOR FUN IN THE DIRT
Whether it’s a friendly bike for beginners or mini moto machine for more experienced riders, the KLX110R and the slightly larger KLX110R L off-road motorcycles are up for the task. Experience off-road riding like never before with the KLX110R line.
2023 Kawasaki KLX110R Totalmotorcycle.com Key Features
- 112cc AIR-COOLED, 4-STROKE ENGINE
- SPORTY RACE-INSPIRED STYLING
- ELECTRIC START
- THROTTLE LIMITER
- 4-SPEED TRANSMISSION WITH AUTOMATIC (KLX110R) OR MANUAL (KLX110R L) CLUTCH
- LOW SEAT HEIGHT
ADDITIONAL VEHICLE FEATURES:
- Low 26.8-inch seat height
Four-speed transmission with automatic clutch
GET OUT AND PLAY
The Kawasaki KLX off-road lineup brings fun to novice and experienced riders alike and is widely popular for its easy-to-ride character, incredible capabilities while on trails and low maintenance needs. For 2023, Kawasaki welcomes the return of its KLX300R, KLX230R, KLX230R S, KLX140R, KLX140R L, KLX140R F, KLX110R, and KLX110R L models that are built to suit a wide variety of riders.
2023 Kawasaki KLX110R Totalmotorcycle.com Features and Benefits
112cc Single Cylinder, SOHC Engine
• Electric start [1] makes starting easy.
• Tuned to produce user-friendly power that can be easily managed by entry-level riders.
U.S. Forest Service-Approved Spark Arrester
• U.S. Forest Service-approved spark arrester allows access to designated public riding areas.
Throttle Limiting Screw
• Located on the throttle housing, allows parents to control throttle opening to help new riders gain experience at reduced speeds.
Capacitor Discharge Ignition (CDI)(KP)
• ECU precisely controls timing, no matter how fast the rpm changes.
• Ignitor only allows engine to be started in neutral for added safety.
• Requires no maintenance.
4-Speed Transmission
• Gear ratios chosen to enhance engine power.
Automatic (KLX110R) or Manual (KLX110R L) Clutch
• Automatic clutch model (KLX110R) allows riders to concentrate on riding, not coordinating a clutch.
• Manual clutch mode (KLX110R L) allows sportier riding and greater control.
High Tensile Steel Frame
• Long shock with model-specific damping and spring rates and low swingarm pivot increase rear wheel travel and provide a firm ride.
30mm Front Forks
• Front fork settings match the firm rear end.
• Minimal overhang below axle to catch in ruts.
• The upper triple clamp is made of aluminum to reduce weight.
• The gas tank, seat, shrouds, side panels and fenders have KX™ styling to maintain a consistent look with other Kawasaki off-road models.
• Manual clutch provides greater rider control over engine power and accommodates sportier riding.
• Longer shock and front forks, specific to the R L model, increase wheel travel and seat height to better fit taller riders.
2023 Kawasaki KLX110R – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $2649 USD
Canada MSRP Price: $3099 CDN
Europe/UK MSRP Price: £ 2349 GBP (On The Road inc 20% Vat)
POWER
Engine 4-stroke single, SOHC, air-cooled
Displacement 112cc
Bore x Stroke 53.0 x 50.6mm
Compression
Ratio
9.5:1
Fuel System 18mm Keihin carburetor and screw type
throttle limiter on grip housing
Ignition DC-CDI
Transmission 4-speed, return shift, automatic centrifugal
and wet, multi-disc clutch
Final Drive Chain
PERFORMANCE
Front
Suspension /
Wheel Travel
30mm hydraulic telescopic fork/4.3 in
Rear
Suspension /
Wheel Travel
Swingarm with single hydraulic shock/4.3 in
Front Tire 2.50×14
Rear Tire 3.00×12
Front Brakes 90mm mechanical drum, cable actuated
Rear Brakes 110mm mechanical drum, rod actuated
DETAILS
Frame Type Backbone frame, high-tensile steel
Rake/Trail 24.8°/2.0 in
Overall Length 61.4 in
Overall Width 25.6 in
Overall Height 37.6 in
Ground
Clearance
8.5 in
Seat Height 26.8 in
Curb Weight 167.5 lb
Fuel Capacity 1.0 gal
Wheelbase 42.3 in
Color Choices Lime Green
Warranty 6 Months
Kawasaki
Protection
Plus™
(optional)
12, 24, or 36 months
2023 Kawasaki KLX110R – Totalmotorcycle.com Canadian Specifications/Technical Details
POWER
Engine 112cc, air-cooled, 4-stroke, SOHC 2-valve single
Bore x Stroke 53.0 x 50.6 mm
Compression Ratio 9.5:1
Fuel System Carburettor: Keihin PB18
Ignition Digital DC-CDI
Starting Electric & kick
Lubrication Forced lubrication, wet sump
Transmission 4-speed, return
Clutch Centrifugal, wet multi-disc
Final Drive Chain
PERFORMANCE
Frame Backbone, steel
Front Suspension / Wheel Travel ø30 mm telescopic fork / 110 mm (4.3 in)
Rear Suspension / Wheel Travel Single shock / 110 mm (4.3 in)
Rake / Trail 24.8° / 50 mm
Steering Angle (L/R) 45° / 45°
Front Tire 2.50-14 4PR
Rear Tire 3.00-12 4PR
Front Brake Drum (ø90 mm)
Rear Brake Drum (ø110 mm)
DETAILS
Dimensions (L x W x H) 1,560 x 650 x 955 mm (61.4 x 25.6 x 37.6 in)
Wheelbase 1,075 mm (42.3 in)
Road Clearance 215 mm (8.5 in)
Seat Height 680 mm (26.8 in)
Curb Mass** 76 kg (168 lb)
Fuel Capacity 3.6 litres
Warranty 6 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months
2023 Kawasaki KLX110R – Totalmotorcycle.com European Specifications/Technical Details
Engine
Engine typeAir-cooled, 4-stroke Single
Displacement112 cm³
Bore x stroke53 x 50.6 mm
Compression ratio9.5:1
Valve systemSOHC, 2 valves
Fuel systemCarburettor: PB18 (Keihin)
IgnitionDigital DC-CDI
Starting SystemElectric & Kick
LubricationForced lubrication, wet sump
Gear Performance & Transmission
Maximum power5.4 kW {7.3 PS} / 7,500 rpm
Maximum torque8.0 N•m {0.82 kgƒ•m} / 4,000 rpm
Transmission4-speed
Final driveChain
Primary Reduction Ratio3.409 (75/22)
Primary Reduction Ratio3.409 (75/22)
Gear Ratios 1st3.000 (36/12)
Gear Ratios 2nd1.938 (31/16)
Gear Ratios 3rd1.350 (27/20)
Gear Ratios 4th1.087 (25/23)
Final reduction ratio2.923 (38/13)
ClutchCentrifugal, wet multi-disc
Suspensions Brakes & Suspension
Brakes, frontDrum (Ø 90 mm)
Brakes, rearDrum (Ø 110 mm)
Suspension, front30 mm telescopic fork
Suspension, rearSingle shock
Suspension, rearSingle shock
Dimensions Frame & Dimensions
Frame typeBackbone, Steel
Trail50 mm
Wheel travel front110 mm
Wheel travel rear110 mm
Tyre, front2.50-14 4PR
Tyre, rear3.00-12 4PR
Steering angle, left / right45° / 45°
L x W x H1,560 x 650 x 955 mm
Wheelbase1,075 mm
Ground clearance215 mm
Fuel capacity3.6 litres
Seat height680 mm
Curb mass76 kg
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
