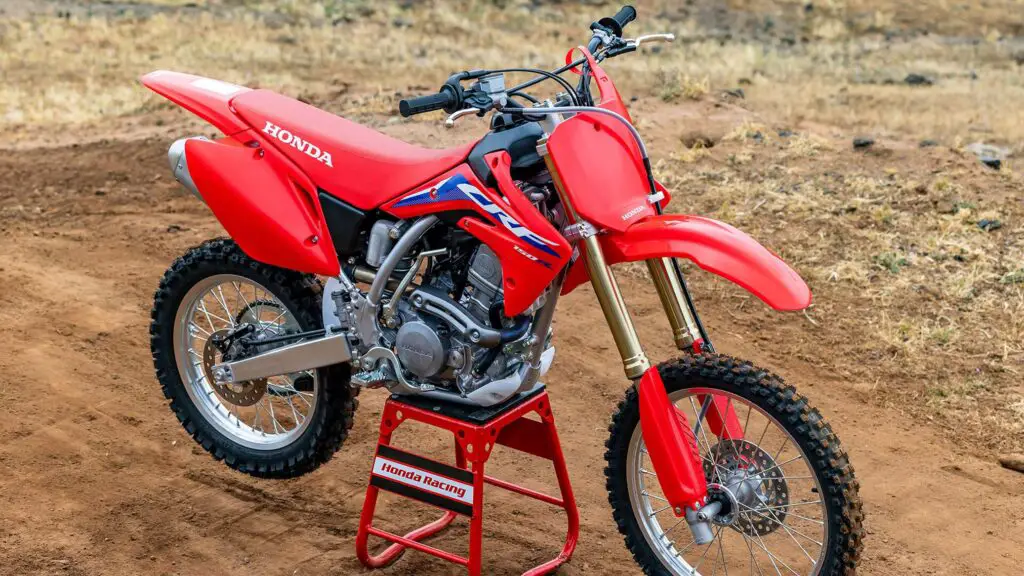

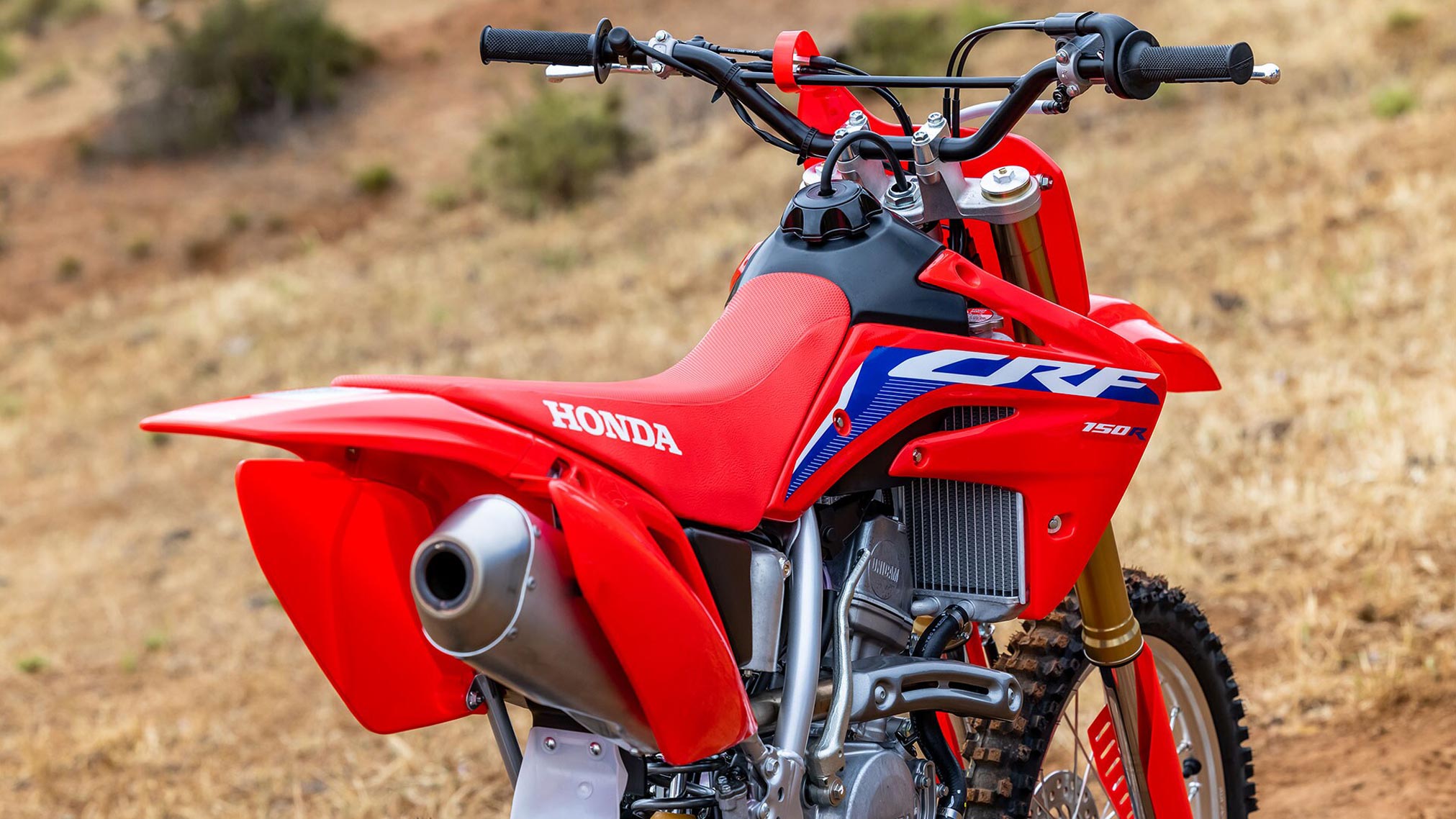

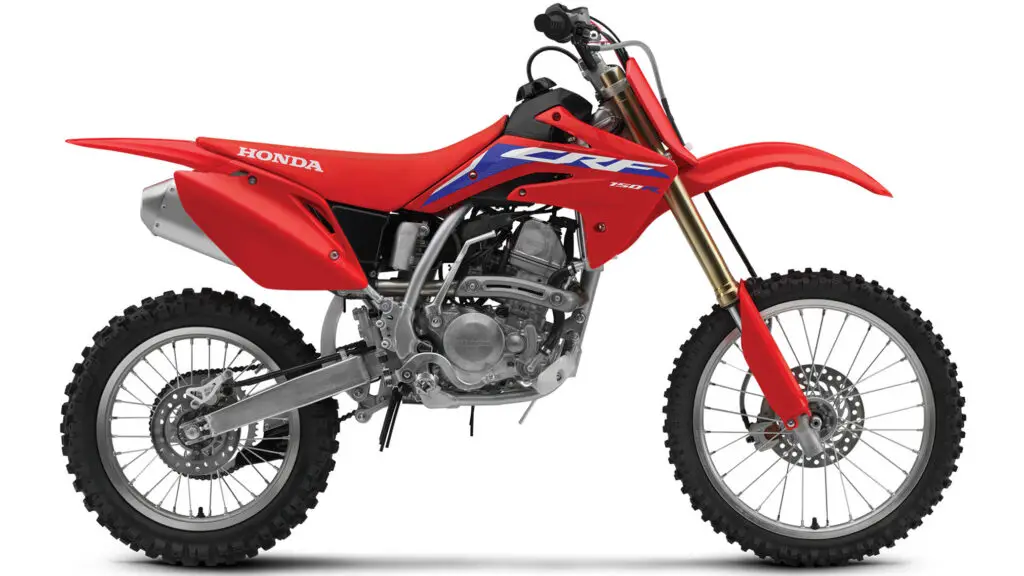

2023 Honda CRF150R Expert: PERFORMANCE A-PLENTY.
Introducing the 2023 Honda CRF150R Expert…
Big wheels, a sturdy chassis, a powerful, liquid-cooled 4-stroke engine – packed full of high performance technology, the CRF150R Expert is the best place for future champions to hone their skills.
2023 Honda CRF150R Expert Totalmotorcycle.com Key Features
Special Features
- Bigger wheels and taller seat height
Base Features
- 149cc liquid-cooled single-cylinder four-stroke Unicam® engine
- Track-designed chassis
- Pro-Link® rear suspension
- Front disc brake
- Strong, lightweight wheels
- “Direct push” accelerator pump
- Designed for smaller 150-class racers
2023 Honda CRF150R Expert Totalmotorcycle.com Features and Benefits
Excellent mass centralization
The 150 cc engine boasts an ultra-high RPM and its unique 4-valve Unicam design gives it very compact dimensions and excellent mass centralization for effortless direction changes on the ground or altitude changes in the air. Rail it or whip it with confidence.
Power when you want it
Short-skirted piston and light flywheel mean the CRF’s willing engine builds revs very quickly—no waiting for the power to “hit”.
Consistent engine operating temperature
Liquid cooling and a Nikasil cylinder liner help to extend engine life. The cooling system’s lightweight aluminum radiator reduces weight to help ensure consistent engine operating temperature no matter how hard you push.
More immediate throttle
Flat-slide, FCR 32 mm carburetor is fitted with an accelerator pump for more immediate throttle response. Go ahead, use the 4-stroke advantage to grab the holeshot.
Less shifting more enjoyment
Broad 4-stroke power characteristics allow the CRF150RB to use a five-speed gearbox for less shifting so you can concentrate on your riding.
Easy start from hot or cold
Although the 4-stroke engine is hard to stall, it’s nice to know that an automatic decompression system makes starting easy, hot or cold.
Maximum power output
Maintenance-free digital CD ignition system includes a throttle angle sensor so it can tailor the ignition curve to provide maximum power output whenever you grab that throttle.
Increased durability & maximum control
Heavy-duty clutch is fitted with tough friction plates for increased durability but retains a light pull at the lever giving you maximum control.
Excellent performance
Lightweight high-tensile steel frame with large-diameter tubing provides excellent turning performance and keeps you tracking straight through the whoops.
Riding comfort & traction
37 mm, inverted, Showa cartridge front fork features adjustable compression and rebound settings. The fork’s low-friction design will be especially appreciated when it’s helping the front wheel to follow small surface irregularities without breaking traction.
Improved turning precision
Wide-section aluminum top and bottom triple-clamps hold the inverted forks rigidly and position the fork tubes far apart giving you improved turning precision and control.
Comfort on any terrain
Pro-Link® rear suspension system features a fully adjustable Showa shock that effectively soaks up whatever the track or trail can throw at it.
Precise control over any terrain
Lightweight wheels and hubs help to reduce un-sprung weight allowing the wheels to effectively follow uneven terrain. The strong and rigid, but lightweight, box-section aluminum swingarm further enhances rear wheel tracking offering precise control whether you’re braking over stutter bumps or root infested trails.
Easy braking in any condition
Lightweight front and rear disc brakes with high-performance pads offer powerful, easy to modulate braking even when you’re riding in some of the worst conditions.
Consistent power
Large-capacity airbox and reusable two-stage foam air filter means power won’t drop off during long, dusty rides.
Stay comfortable & stay put
Slim, well-padded seat is comfortable and allows maximum movement. Non-slip seat cover gives you excellent control.
Personalized comfort
Fully adjustable, high-quality controls include comfortable grips, dogleg levers, side-pull throttle and a folding shift lever. Cleated, folding, self-cleaning footpegs offering excellent grip complete the impressive collection of thoughtful touches.
2023 Honda CRF150R Expert – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $5499 USD
Canada MSRP Price: $6599 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat
| Model | CRF150R | CRF150R Big Wheel |
| ENGINE | ||
| Type | 149.7 cc water-cooled single-cylinder four-stroke | |
| Valve Train | Unicam®, four-valve; 26 mm intake, steel; 22.5 mm exhaust, steel | |
| Bore x Stroke | 66.0 mm x 43.7 mm | |
| Compression Ratio | 11.7:1 | |
| Induction | Keihin 32 mm flat-slide carburetor w/ Throttle Position Sensor (TPS) | |
| Ignition | CD w/ electronic advance | |
| Starter | Kick | |
| Driveline | #420 chain; 15T/50T | #420 chain; 15T/56T |
| Transmission | Close-ratio 5-speed manual | |
| Clutch | Multiplate wet | |
| SUSPENSION | ||
| Front | 37 mm fully adjustable leading-axle inverted conventional Showa cartridge fork; 10.8 in. stroke | |
| Rear | Pro-Link fully adjustable Showa single shock; 10.7 in. travel | Pro-Link fully adjustable Showa single shock; 11.1 in. travel |
| BRAKES | ||
| Front | Single hydraulic caliper w/ 220 mm disc | |
| Rear | Single hydraulic caliper w/ 190 mm disc | |
| TIRES | ||
| Front | 70/100-17 | 70/100-19 |
| Rear | 90/100-14 | 90/100-16 |
| MEASUREMENTS | ||
| Rake (castor angle) | 27.2° | 27.48° |
| Trail | 78 mm (3.1 in.) | 96 mm (3.8 in.) |
| Length | 72.1 in. | 74.8 in. |
| Width | 30.3 in. | |
| Height | 44.6 in. | 46.1 in. |
| Seat Height | 32.8 in. | 34.1 in. |
| Ground Clearance | 11.9 in. | 13.2 in. |
| Wheelbase | 49.6 in. | 50.6 in. |
| Fuel Capacity | 1.1 gal. | |
| Curb Weight* | 185 lbs. | 187 lbs. |
| OTHER | ||
| Color | Red | |
2023 Honda CRF150R Expert – Totalmotorcycle.com Canada Specifications/Technical Details
Engine & Drivetrain
Engine type Liquid-cooled single-cylinder
Displacement 149 cc
Bore & stroke 66 mm x 43.7 mm
Compression ratio 11.7:1
Valve train Unicam, 4 valves
Fuel delivery Keihin 32 mm flat-slide carb with throttle position sensor
Transmission Close-ratio five-speed
Final drive #420 chain; 15T/56T
Chassis & Suspension
Front suspension 37mm fully adjustable leading-axle inverted Showa® cartridge fork; 275 mm (10.8 in) travel
Rear suspension Pro-Link® fully adjustable Showa single shock; 282 mm (11.1 in.) travel
Dimensions & Additional Information
Tires Front: 70/100-19
Rear: 90/100-16
Brakes Front: 220 mm disc
Rear: 190 mm disc
Ground clearance 336 mm (13.2 in.)
Seat height 866 mm (34.1 in.)
Wheelbase 1,285 mm (50.6 in.)
Curb weight 84.8 kg (187 lb.)
Fuel capacity 4.3 litres
Colour Extreme Red
2023 Honda CRF150R Expert – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
