2023 Harley-Davidson Street Bob 114: HEAD-TURNING STYLE.

Introducing the 2023 Harley-Davidson Street Bob 114…

No nonsense, raw bobber attitude packed into the lightest weight Softail, equipped with a Milwaukee-Eight® 114 engine. A perfect performance base for customization. Milwaukee-Eight® 114 engine, the most powerful option for a Softail®. Two-up seating, black steel laced wheels, dark finishes. Available in three unique paint schemes, with the classic “Number One” graphic on the fuel tank.

Stripped-down and laid-back. Two front row seats for your next adventure. Head-turning style. Endless customization options.

A gritty, stripped-down bobber cloaked in black. A perfect performance base for customization.

2023 Harley-Davidson Street Bob 114 Totalmotorcycle.com Key Features

• Upright riding position
• Mid-mount foot controls
• Passenger seat
• Low
• A perfect performance base for customization
• The rider who wants a quick and easy get away ride
• 2-up seating, black steel laced wheels, dark finishes

2023 Harley-Davidson Street Bob 114 Totalmotorcycle.com Features and Benefits

The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

Authentic heritage meets modern technology for power, style, and the unadulterated riding experience – around town or along country roads.

LED FORWARD LIGHTING
Cut through the night with a powerful, adjustable LED front headlamp.

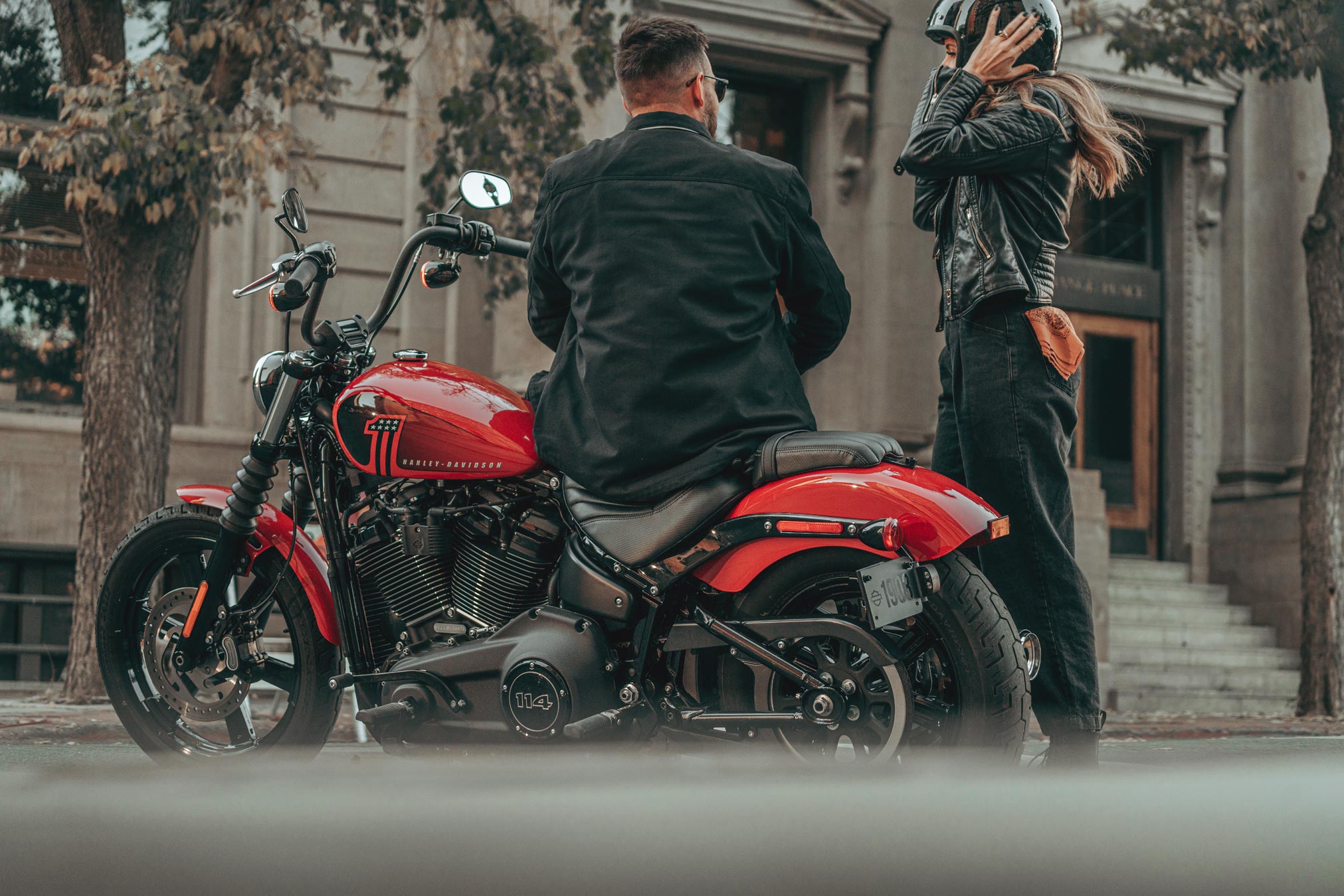

TWO UP, SET UP
Seating for two with passenger pegs and pillion.

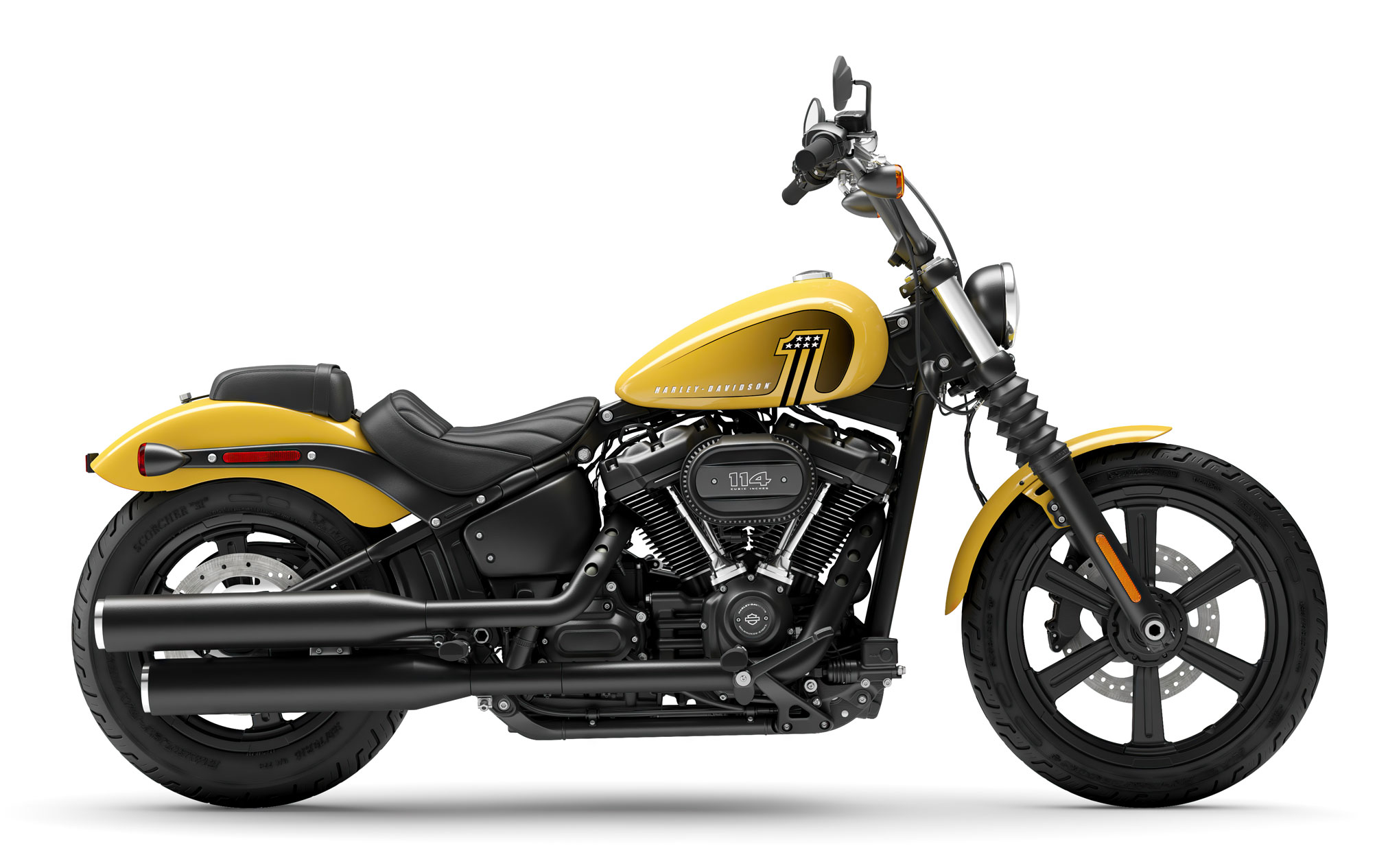

ANNIHILATOR CAST WHEELS

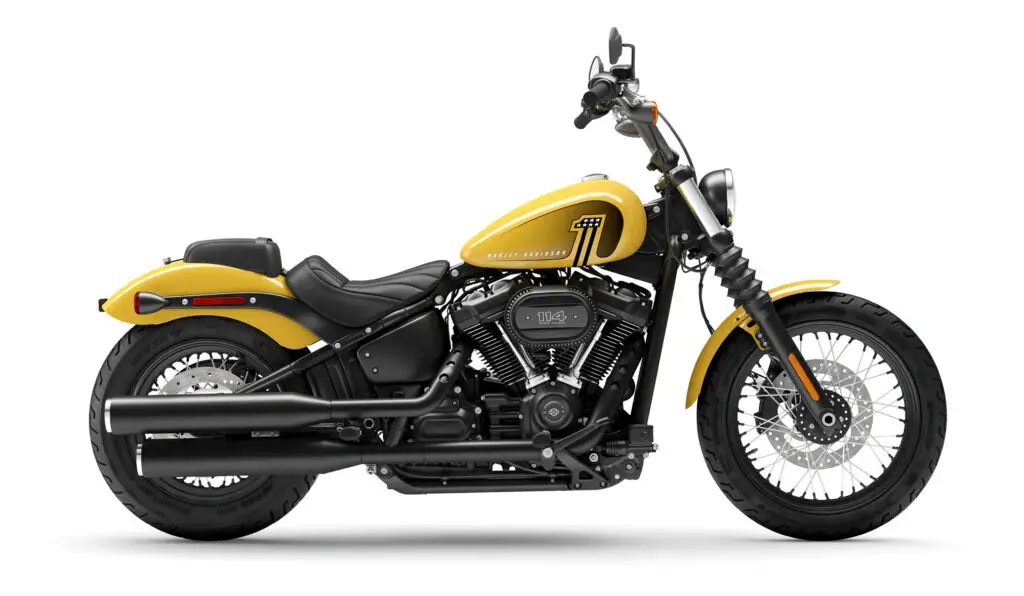

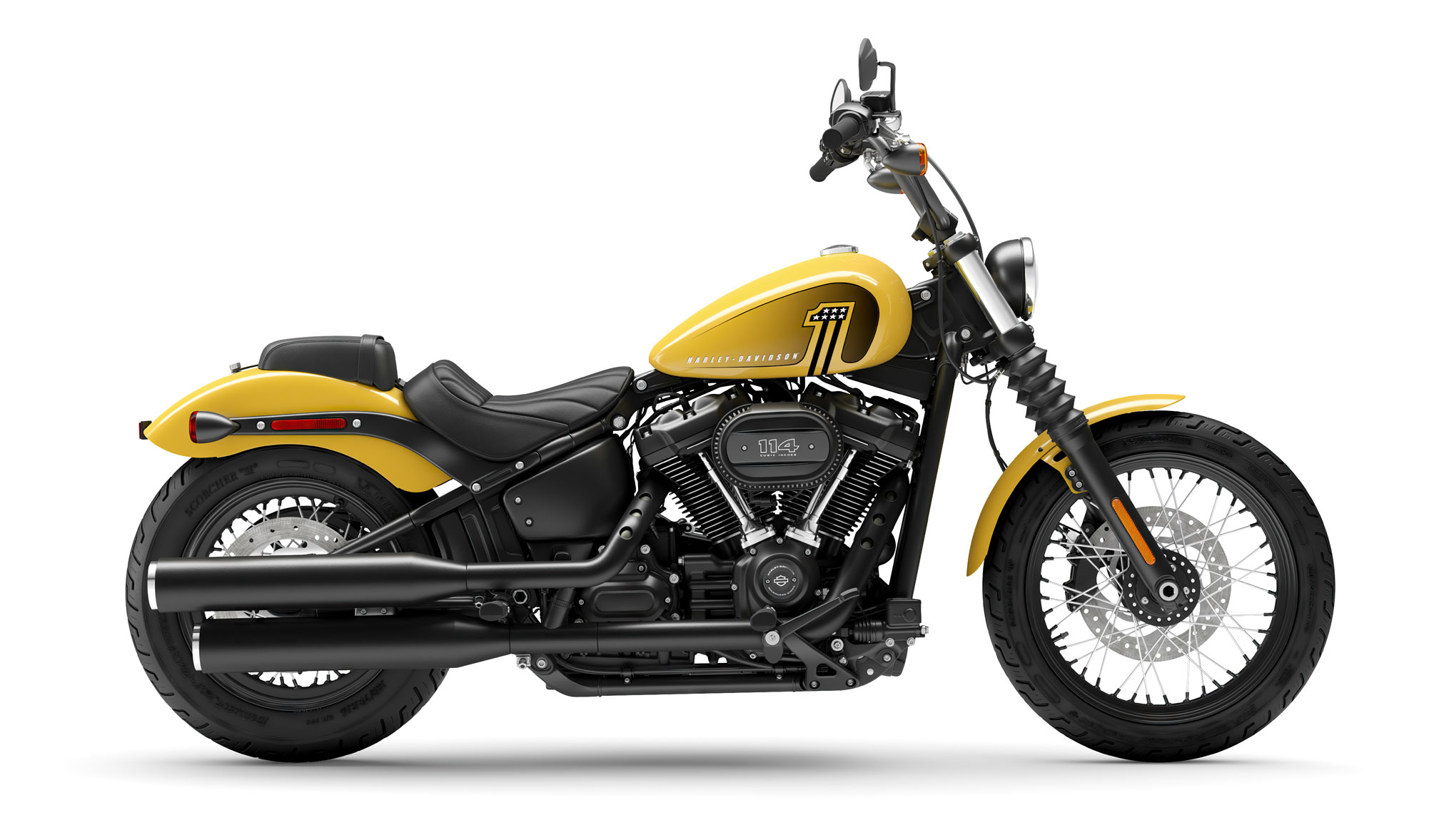

The 6-spoke design commands attention with fierce lines adding to the custom look of this bike. Steel laced wheels are optional.

MILWAUKEE-EIGHT® 114 V-TWIN
Loads of torque for on-demand power you can feel with each twist, along with the familiar H-D sound.

SOFTAIL FRAME
The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

Customization Packages

STREET BOB TOURING PACKAGE
A Street Bob motorcycle equipped for a longer road, with added comfort for rider and passenger. Detachable luggage, sissy bar and windshield for a quick conversion back to cruiser mode.

STREET BOB COASTAL PACKAGE
From the quarter fairing and moto bar to the slotted footpegs and deep solo seat, this package is all about sleek lines and performance-oriented style.

2023 Harley-Davidson Street Bob 114 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $16,599 to $17,124 USD
Canada MSRP Price: $19,999 to $20,649 CDN
Europe/UK MSRP Price: £16,695 to £17,135 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

91.3 in.

SEAT HEIGHT, LADEN ⁷

25.8 in.

GROUND CLEARANCE

4.9 in.

RAKE

30

TRAIL

6.2 in.

WHEELBASE

64.2 in.

TIRES, FRONT SPECIFICATION

100/90B19,57H,BW

TIRES, REAR SPECIFICATION

150/80B16,77H,BW

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

3.5 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

631 lb.

WEIGHT, IN RUNNING ORDER

655 lb.

ENGINE

ENGINE ¹

Milwaukee-Eight 114

BORE

4.016 in.

STROKE

4.5 in.

DISPLACEMENT

114 cu in

COMPRESSION RATIO

10.5:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 offset shotgun; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

119 ft-lb

ENGINE TORQUE (RPM)

3000

LEAN ANGLE, RIGHT (DEG.)

28.5

LEAN ANGLE, LEFT (DEG.)

28.5

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

47 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment

WHEELS, FRONT TYPE ⁹

Black, Annihilator cast aluminum

WHEELS, REAR TYPE ⁹

Black, Annihilator cast aluminum

BRAKES, TYPE

Solid, uniform expansion rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

All LED, Low Beam, High Beam & Signature Position Lamp, Bullet-style, dual-element incandescent stop/tail/turn signals, Incandescent Bullets, Bullet-style, dual-element incandescent stop/tail/turn signals

GAUGES

2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2023 Harley-Davidson Street Bob 114 – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,320 mm

SEAT HEIGHT, UNLADEN

680 mm

GROUND CLEARANCE

125 mm

RAKE

30

TRAIL

157 mm

WHEELBASE

1,630 mm

TIRES, FRONT SPECIFICATION

100/90B19,57H,BW

TIRES, REAR SPECIFICATION

150/80B16,77H,BW

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

13.2 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

286 kg

WEIGHT, IN RUNNING ORDER

297 kg

ENGINE

ENGINE ²

Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 offset shotgun; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

161 Nm

ENGINE TORQUE (RPM)

3000

HORSEPOWER

94 HP / 70 kW @ 4750 rpm

LEAN ANGLE, RIGHT (DEG.)

28.5

LEAN ANGLE, LEFT (DEG.)

28.5

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

5 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment

WHEELS, OPTIONAL STYLE TYPE

Gloss Black, Steel Laced

WHEELS, FRONT TYPE ⁴

Black, Annihilator cast aluminum

WHEELS, REAR TYPE ⁴

Black, Annihilator cast aluminum

BRAKES, TYPE

Solid, uniform expansion rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

All LED, Low Beam, High Beam & Signature Position Lamp, Center-mounted LED tail lamp, Incandescent Bullets, Bullet-style, incandescent turn signals

GAUGES

2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

2023 Harley-Davidson Street Bob 114 – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,320 mm

SEAT HEIGHT, UNLADEN

680 mm

GROUND CLEARANCE

125 mm

RAKE

30

TRAIL

157 mm

WHEELBASE

1,630 mm

TYRES, FRONT SPECIFICATION

100/90B19,57H,BW

TYRES, REAR SPECIFICATION

150/80B16,77H,BW

TYRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

13.2 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

286 kg

WEIGHT, IN RUNNING ORDER

297 kg

ENGINE

ENGINE ²

Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 offset shotgun; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

155 Nm

ENGINE TORQUE (RPM)

3250

HORSEPOWER

94 HP / 70 kW @ 5020 rpm

LEAN ANGLE, RIGHT (DEG.)

28.5

LEAN ANGLE, LEFT (DEG.)

28.5

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

5.5 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

128 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment

WHEELS, FRONT TYPE ⁴

Black, Annihilator cast aluminum

WHEELS, REAR TYPE ⁴

Black, Annihilator cast aluminum

BRAKES, TYPE

Solid, uniform expansion rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

All LED, Low Beam, High Beam & Signature Position Lamp, Bullet-style, dual-element incandescent stop/tail/turn signals, Incandescent Bullets, Bullet-style, dual-element incandescent stop/tail/turn signals

GAUGES

2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

1. All prices shown are suggested retail prices only.

   Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

   Please speak with the dealership team for further details and to obtain a final on the road price.

2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
