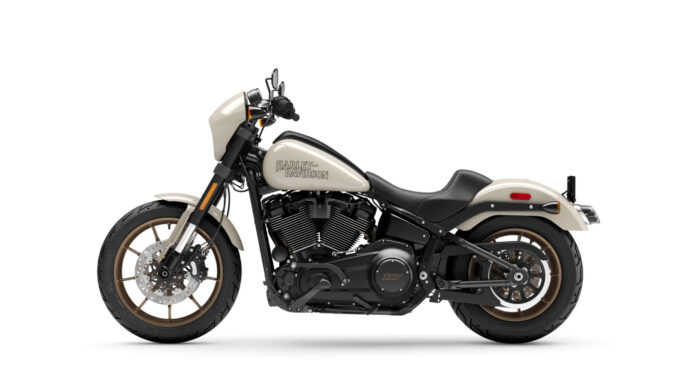

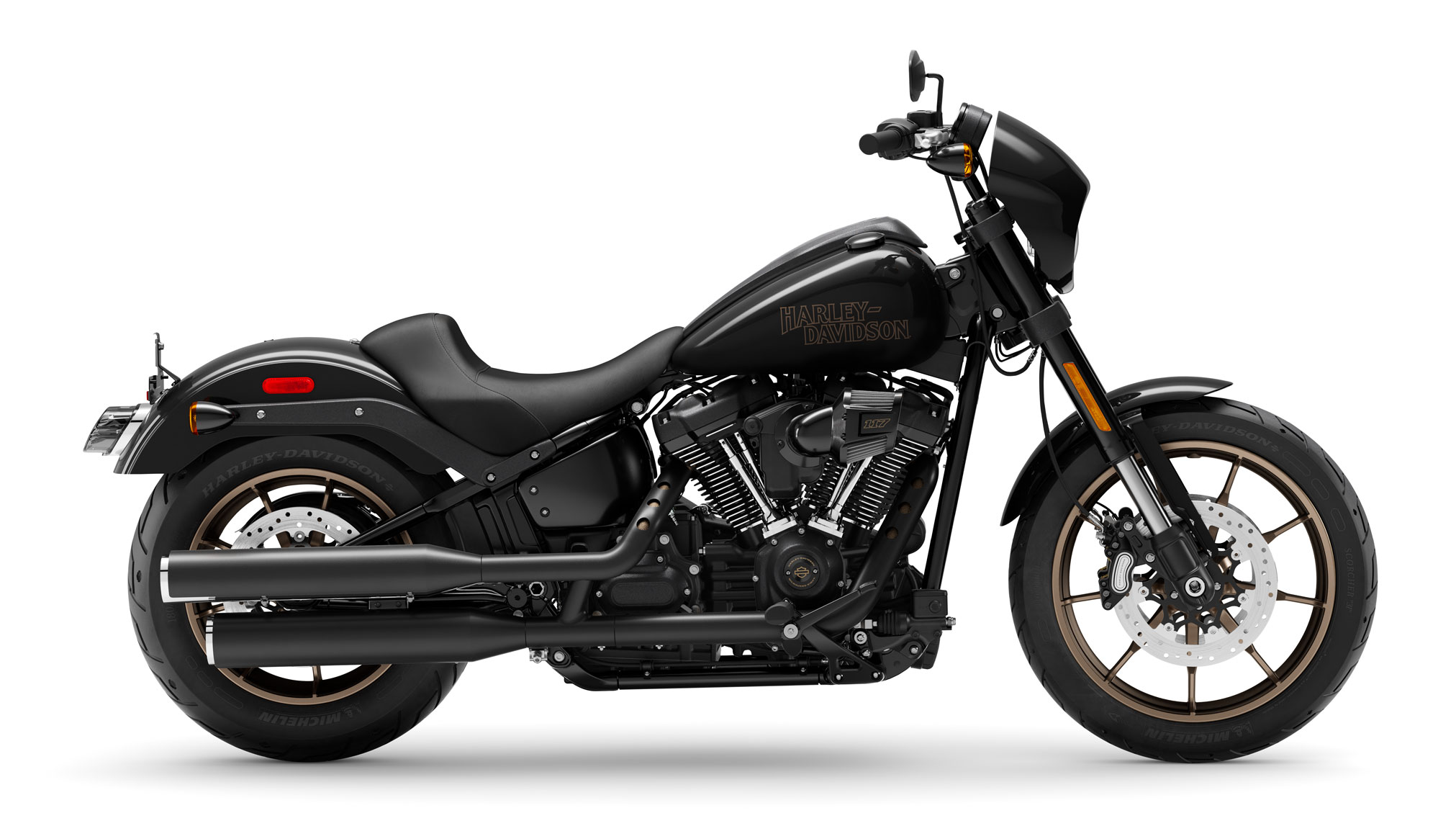

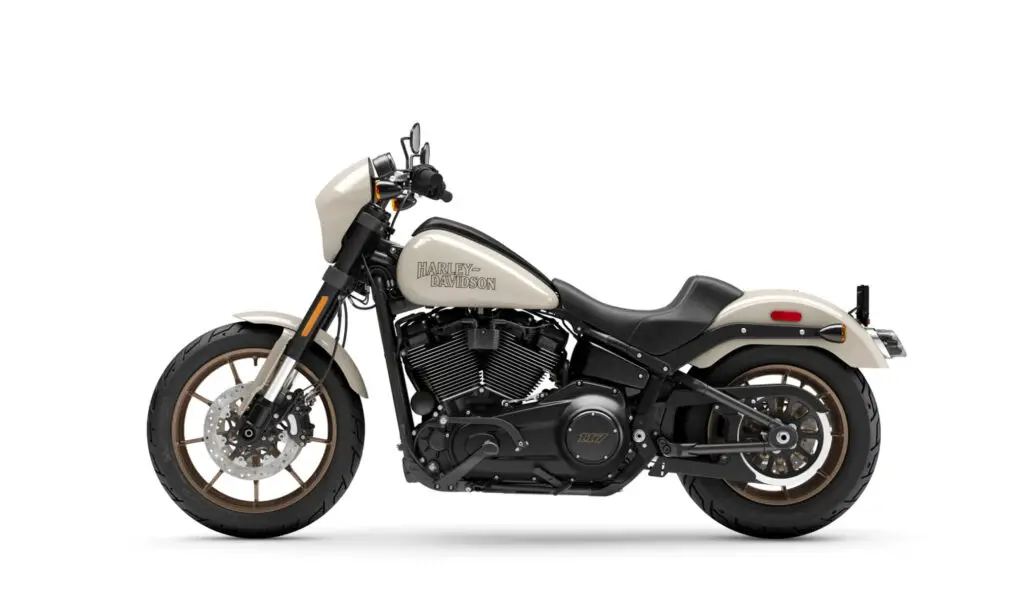

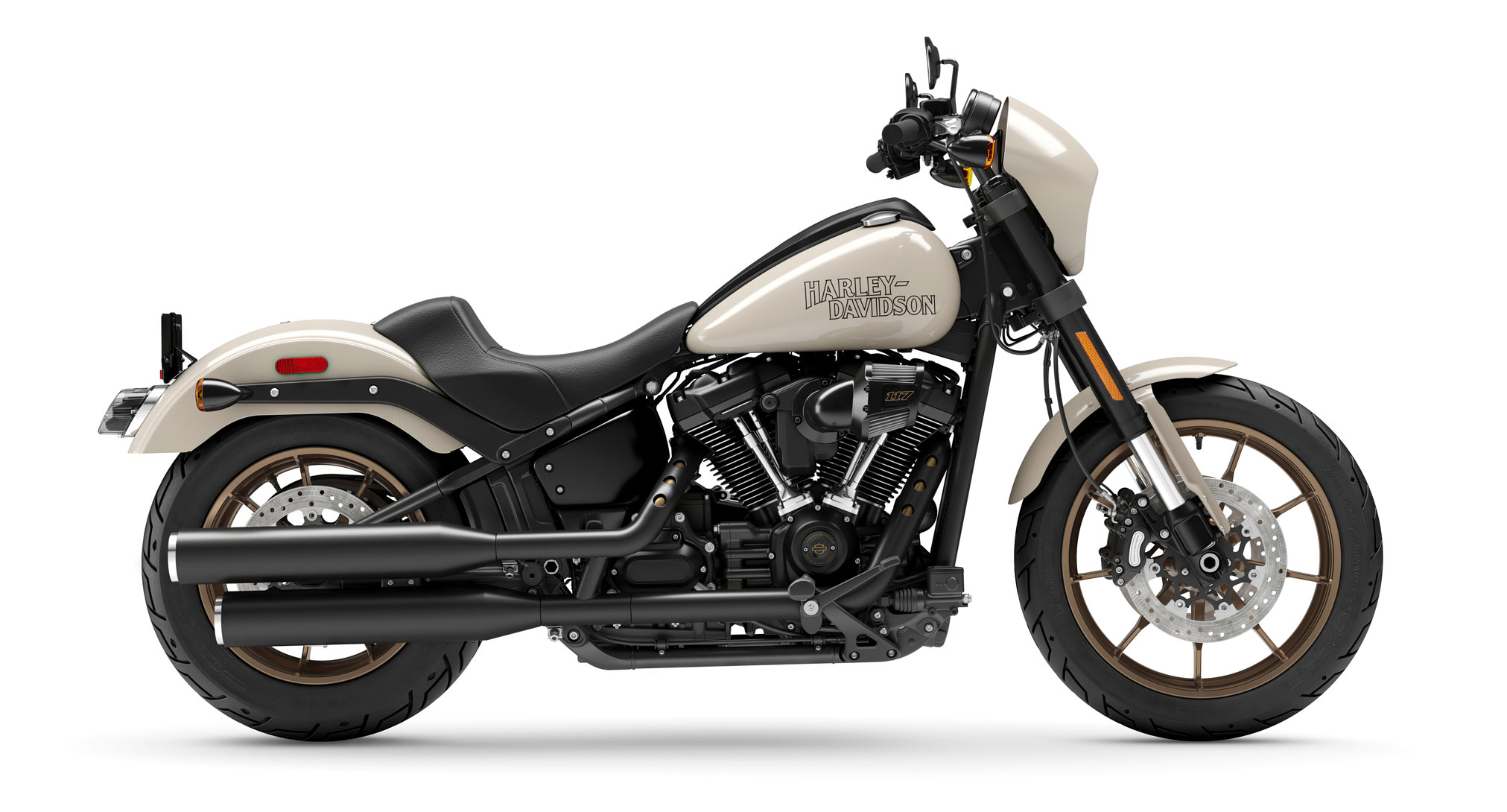

2023 Harley-Davidson Low Rider S: LOOKS THAT THRILL.

Introducing the 2023 Harley-Davidson Low Rider S…

An aggressive performance kingpin designed for the unapologetic power-hungry rider. An everything black overload, paired with a deep solo seat for lone-wolf attitude. Top it off with a high-performance Milwaukee-Eight 117 V-Twin engine with precision oil/air cooling is the new pinnacle of torque and displacement in a factory-installed Harley-Davidson powertrain. New for 2023, electronic cruise control is now a standard feature and traction control is an optional feature.

The black sheep of the blacktop. Looks that thrill. An exhibition of speed.

A blacked-out, factory custom performance cruiser.

2023 Harley-Davidson Low Rider S Totalmotorcycle.com Key Features

• Upright riding position
• Mid-mount foot controls
• Screen
• Rebels seeking a now classic West Coast style
• Aggressive riding with sport bike agility and handling
• Milwaukee-Eight 117 V-Twin engine and moto-style drag bars

2023 Harley-Davidson Low Rider S Totalmotorcycle.com Features and Benefits

The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

Authentic heritage meets modern technology for power, style, and the unadulterated riding experience – around town or along country roads.

REAR SHOCKS
Preload adjustable monoshock.

SPEEDOMETER
Handlebar mounted speedometer makes it easy to view while on the roll. Tucking it behind the fairing helps the bike keep its sleek look.

HANDLEBARS
One-inch moto handlebar mounted on four-inch risers gives the overall look of the bike a Coastal style element that puts the rider in an aggressive posture on the bike.

TANK STYLING
Features an FXLRS badge cover and a throw-back dropped “H” logo–like that seen on early H-D race bikes–adorns each side of the tank.

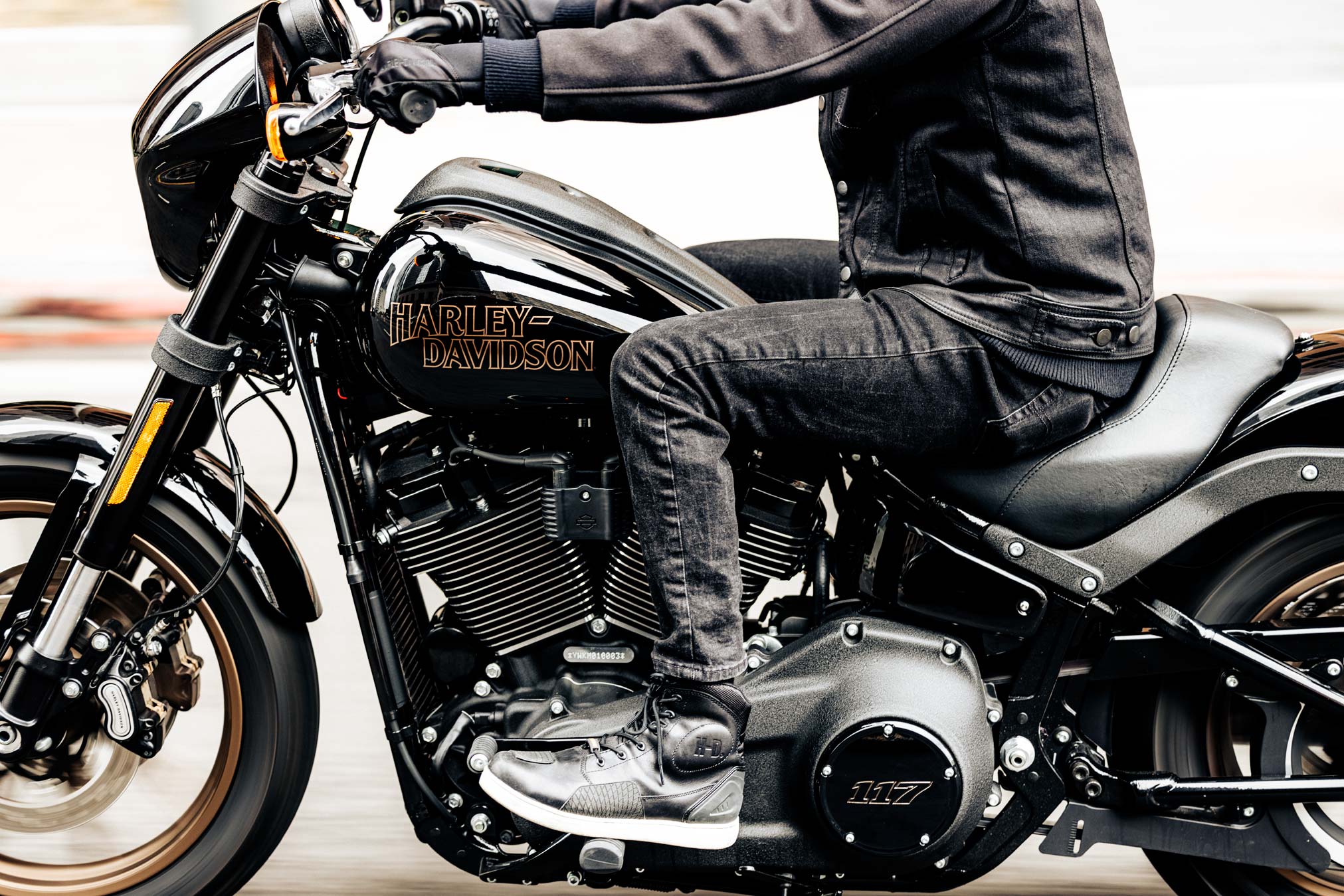

MILWAUKEE-EIGHT 117
High-performance engine with precision oil/air cooling is the new pinnacle of torque and displacement in a factory-installed Harley-Davidson powertrain. And if that’s not enough, boost performance further with Dealer-installed Screamin’ Eagle Performance Parts Stage Upgrades from Harley-Davidson Genuine Motor Parts & Accessories.

ELECTRONIC CRUISE CONTROL
For long-distance runs, there’s nothing better than letting your bike do all the work. Cruise Control puts you just minutes away from true riding bliss.

CUSTOMIZATION PACKAGES
LOW RIDER S COASTAL PACKAGE
From the quarter fairing and moto bar to the slotted footpegs and deep solo seat, this package is all about sleek lines and performance-oriented style for your Low Rider S.

2023 Harley-Davidson Low Rider S – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $18,199 to $18,724 USD
Canada MSRP Price: $24,429 to $24,899 CDN
Europe/UK MSRP Price: £19,395 to £19,835 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

93.1 in.

SEAT HEIGHT, LADEN ⁷

27 in.

GROUND CLEARANCE

5.7 in.

RAKE

28

TRAIL

5.7 in.

WHEELBASE

63.6 in.

TIRES, FRONT SPECIFICATION

110/90B19,62H,BW

TIRES, REAR SPECIFICATION

180/70B16,77H,BW

TIRE, TYPE

Michelin Scorcher “31” front and rear

FUEL CAPACITY

5 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

650 lb.

WEIGHT, IN RUNNING ORDER

679 lb.

ENGINE

ENGINE ¹

Milwaukee-Eight 117

BORE

4.075 in.

STROKE

4.5 in.

DISPLACEMENT

117 cu in

COMPRESSION RATIO

10.2:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 offset shotgun; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

125 ft-lb

ENGINE TORQUE (RPM)

3500

LEAN ANGLE, RIGHT (DEG.)

31.3

LEAN ANGLE, LEFT (DEG.)

31.3

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

47 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment

WHEELS, FRONT TYPE ⁹

Dark bronze, Radiate cast aluminum wheel

WHEELS, REAR TYPE ⁹

Dark bronze, Radiate cast aluminum wheel

BRAKES, TYPE

Front and rear black, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

All LED, low beam, high beam and signature position lamp, LED Zeppelin tail lamp, Incandescent bullet turn signals

GAUGES

4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication

1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2023 Harley-Davidson Low Rider S – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,365 mm

SEAT HEIGHT, UNLADEN

710 mm

GROUND CLEARANCE

145 mm

RAKE

28

TRAIL

145 mm

WHEELBASE

1,615 mm

TIRES, FRONT SPECIFICATION

110/90B19,62H,BW

TIRES, REAR SPECIFICATION

180/70B16,77H,BW

TIRE, TYPE

Michelin Scorcher “31” front and rear

FUEL CAPACITY

18.9 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

295 kg

WEIGHT, IN RUNNING ORDER

308 kg

ENGINE

ENGINE ²

Milwaukee-Eight 117

BORE

103.5 mm

STROKE

114.3 mm

DISPLACEMENT

117 cc

COMPRESSION RATIO

10.2:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 offset shotgun; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

169 Nm

ENGINE TORQUE (RPM)

3500

HORSEPOWER

103 HP / 77 kW @ 4750 rpm

LEAN ANGLE, RIGHT (DEG.)

31.3

LEAN ANGLE, LEFT (DEG.)

31.3

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

5 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment

WHEELS, FRONT TYPE ⁴

Dark bronze, Radiate cast aluminum wheel

WHEELS, REAR TYPE ⁴

Dark bronze, Radiate cast aluminum wheel

BRAKES, TYPE

Front and rear black, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

All LED, low beam, high beam and signature position lamp, LED Zeppelin tail lamp, Incandescent bullet turn signals

GAUGES

4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

2023 Harley-Davidson Low Rider S – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,365 mm

SEAT HEIGHT, UNLADEN

710 mm

GROUND CLEARANCE

145 mm

RAKE

28

TRAIL

145 mm

WHEELBASE

1,615 mm

TYRES, FRONT SPECIFICATION

110/90B19,62H,BW

TYRES, REAR SPECIFICATION

180/70B16,77H,BW

TYRE, TYPE

Michelin Scorcher “31” front and rear

FUEL CAPACITY

18.9 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

295 kg

WEIGHT, IN RUNNING ORDER

308 kg

ENGINE

ENGINE ²

Milwaukee-Eight 117

BORE

103.5 mm

STROKE

114.3 mm

DISPLACEMENT

1,923 cc

COMPRESSION RATIO

10.2:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 offset shotgun; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

168 Nm

ENGINE TORQUE (RPM)

3500

HORSEPOWER

105 HP / 78 kW @ 5020 rpm

LEAN ANGLE, RIGHT (DEG.)

31.3

LEAN ANGLE, LEFT (DEG.)

31.3

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

5.5 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

128 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment

WHEELS, FRONT TYPE ⁴

Dark bronze, Radiate cast aluminum wheel

WHEELS, REAR TYPE ⁴

Dark bronze, Radiate cast aluminum wheel

BRAKES, TYPE

Front and rear black, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

All LED, low beam, high beam and signature position lamp, LED Zeppelin tail lamp, Incandescent bullet turn signals

GAUGES

4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication

1. All prices shown are suggested retail prices only.

   Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

   Please speak with the dealership team for further details and to obtain a final on the road price.

2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
