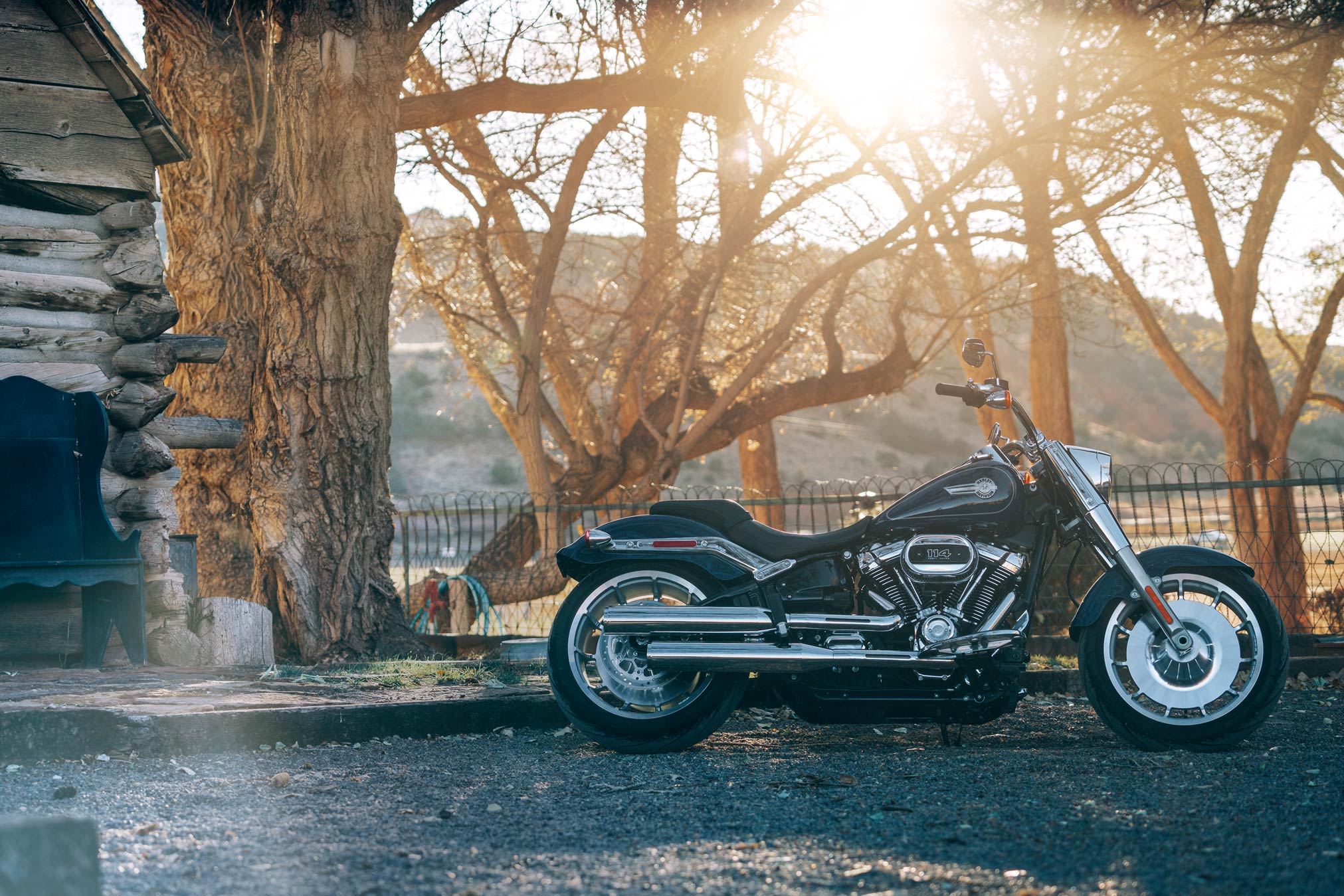

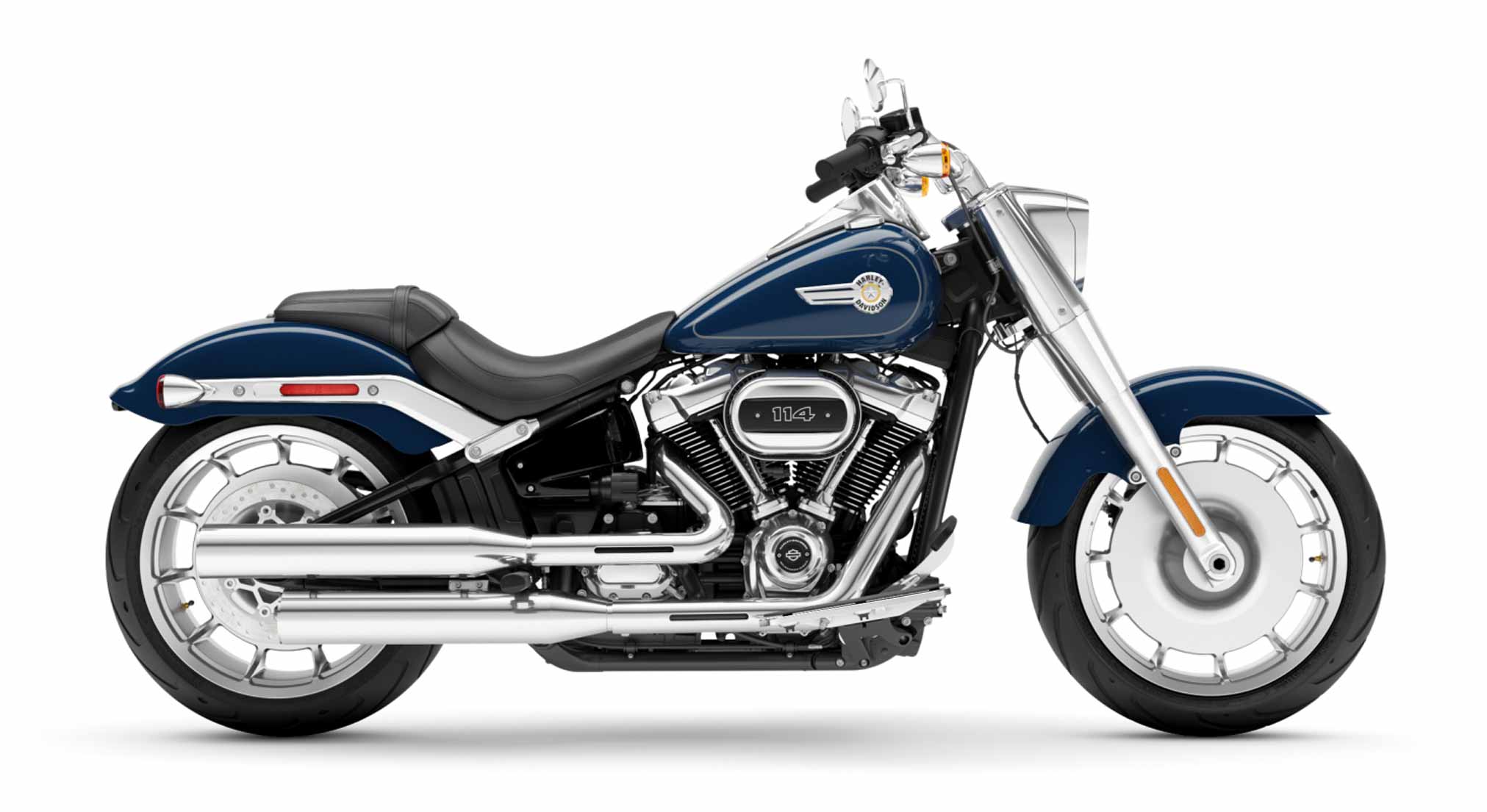

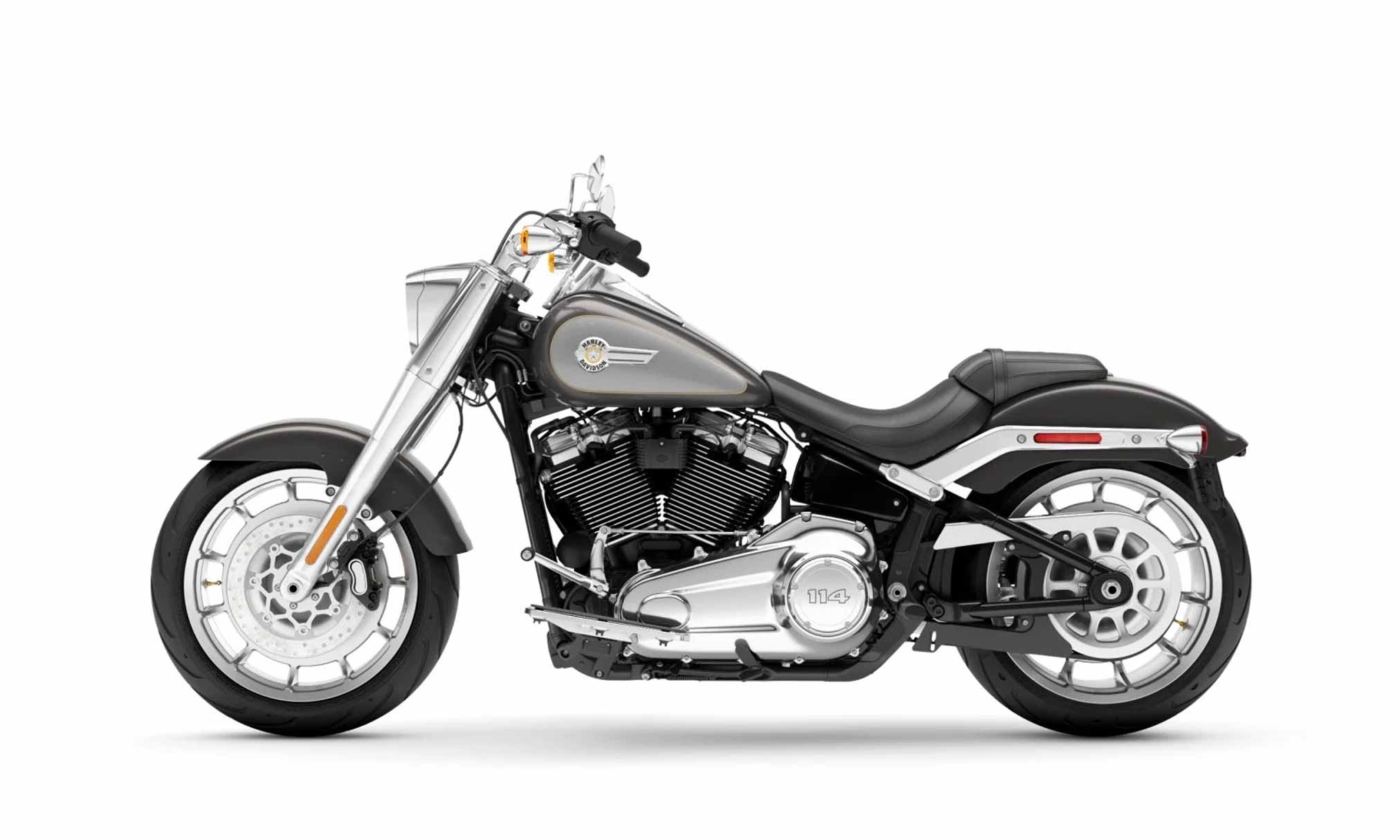

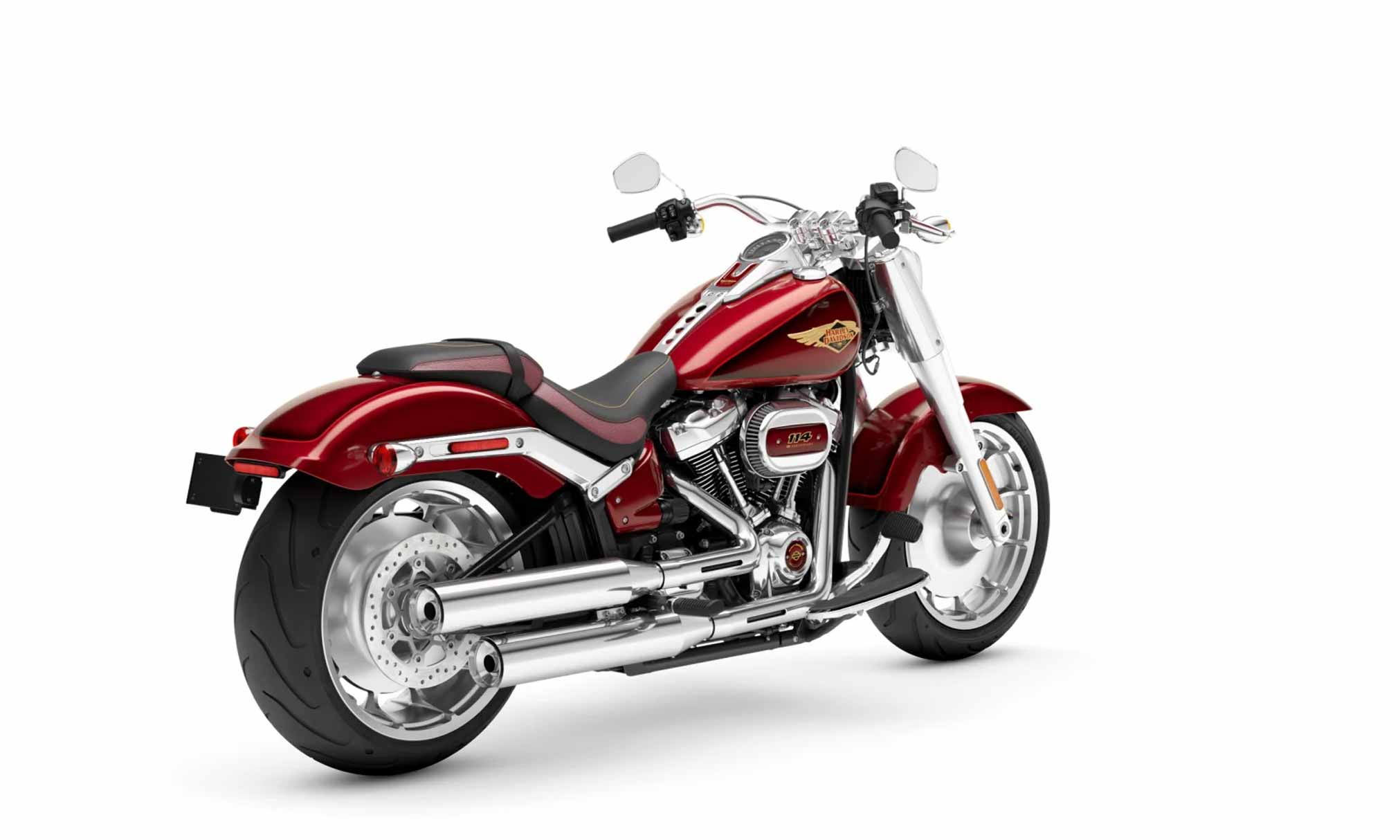

2023 Harley-Davidson Fat Boy 114: MORE IS BETTER.
Introducing the 2023 Harley-Davidson Fat Boy 114…
The original fat custom icon, now with bright chrome finishes. Hot rod riders who like satin chrome and a steamroller stance. Commanding the road with the fattest tires available in the lineup. Milwaukee-Eight 114 V-Twin engine and Lakester disc wheels. You’ll feel the difference the instant you crack the throttle. New for 2023, electronic cruise control is now a standard feature.
More is better. Stand out from the crowd.
Canyon cruiser. Boulevard brawler. The original fat custom icon, now with bright chrome finishes.
2023 Harley-Davidson Fat Boy 114 Totalmotorcycle.com Key Features
- Relaxed riding position
- Floorboards
- Passenger seat
- Low
- Hot rod riders who like bright chrome and a steamroller stance
- Commanding the road with fat tires and a squared-up headlamp
- Milwaukee-Eight 114 V-Twin engine and Lakester disc wheels
2023 Harley-Davidson Fat Boy 114 Totalmotorcycle.com Features and Benefits
The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.
Authentic heritage meets modern technology for power, style, and the unadulterated riding experience – around town or along country roads.
BRIGHT CHROME FINISHES
A healthy serving of sculpted bright chrome gives the Fat Boy motorcycle a look that’ll make a big impact.
STEAMROLLER STANCE
A muscular look thanks to solid-disc Lakester wheels wrapped in the widest front tire we’ve ever offered from the factory at 160mm combined with a rear tire at 240mm.
SIGNATURE LED FORWARD LIGHTING
Darkness-defying lighting that gives you great nighttime visibility.
HIGH PERFORMANCE REAR MONO SHOCK
Easily adjustable mono-shock rear suspension allows for dynamic cornering while preserving the hardtail look.
MILWAUKEE-EIGHT 114
Loads of torque for on-demand power you can feel with each twist, along with the familiar H-D sound.
HIGH PERFORMANCE FRONT SUSPENSION
Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.
2023 Harley-Davidson Fat Boy 114 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $20,199 to $21,699 USD
Canada MSRP Price: $25,499 to $27,599 CDN
Europe/UK MSRP Price: £22,695 to £27,895 GBP (On The Road inc 20% Vat)
DIMENSIONS
LENGTH
93.3 in.
SEAT HEIGHT, LADEN 7
25.9 in.
GROUND CLEARANCE
4.5 in.
RAKE
30
TRAIL
4.1 in.
WHEELBASE
65.6 in.
TIRES, FRONT SPECIFICATION
160/60R18,70V,BW
TIRES, REAR SPECIFICATION
240/40R18,79V,BW
TIRE, TYPE
Michelin Scorcher “11” front and rear
FUEL CAPACITY
5 gal.
OIL CAPACITY (W/FILTER)
5 qt.
WEIGHT, AS SHIPPED
671 lb.
WEIGHT, IN RUNNING ORDER
699 lb.
ENGINE
ENGINE 1
Milwaukee-Eight 114
BORE
4.016 in.
STROKE
4.5 in.
DISPLACEMENT
114 cu in
COMPRESSION RATIO
10.5:1
FUEL SYSTEM 3
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
2-into-2 staggered; catalyst in muffler
PERFORMANCE
ENGINE TORQUE TESTING METHOD
J1349
ENGINE TORQUE 2
119 ft-lb
ENGINE TORQUE (RPM)
3000
LEAN ANGLE, RIGHT (DEG.)
25.6
LEAN ANGLE, LEFT (DEG.)
25.6
FUEL ECONOMY TESTING METHOD
Estimated City/Hwy
FUEL ECONOMY 5
47 mpg
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
9.311
GEAR RATIOS (OVERALL) 2ND
6.454
GEAR RATIOS (OVERALL) 3RD
4.793
GEAR RATIOS (OVERALL) 4TH
3.882
GEAR RATIOS (OVERALL) 5TH
3.307
GEAR RATIOS (OVERALL) 6TH
2.79
CHASSIS
FRONT FORK
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers
REAR SHOCKS
Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
WHEELS, FRONT TYPE 9
Machined, Lakester cast aluminum
WHEELS, REAR TYPE 9
Machined, Lakester cast aluminum
BRAKES, TYPE
Front and rear silver, Split 7-spoke floating rotors
BRAKES, CALIPER TYPE
4-piston fixed front and 2-piston floating rear
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS 8
All LED headlamp, low and high beam with signature position lighting, All LED Tail/Stop lamp with signature tail lighting, LED bullet front turn signals, Incandescent bullet rear turn signals
GAUGES
5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional fuel systems may vary by country.
-
See motorcycle owner’s manual for complete details.
-
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
-
Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
-
Measurement reflects 180 lb. (81.7 kg) operator weight.
-
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
-
Standard and optional wheels may vary by country and region.
2023 Harley-Davidson Fat Boy 114 – Totalmotorcycle.com Canada Specifications/Technical Details
DIMENSIONS
LENGTH
2,370 mm
SEAT HEIGHT, UNLADEN
675 mm
GROUND CLEARANCE
115 mm
RAKE
30
TRAIL
104 mm
WHEELBASE
1,665 mm
TIRES, FRONT SPECIFICATION
160/60R18,70V,BW
TIRES, REAR SPECIFICATION
240/40R18,79V,BW
TIRE, TYPE
Michelin Scorcher “11” front and rear
FUEL CAPACITY
18.9 l
OIL CAPACITY (W/FILTER)
4.7 l
WEIGHT, AS SHIPPED
304 kg
WEIGHT, IN RUNNING ORDER
317 kg
ENGINE
ENGINE 2
Milwaukee-Eight 114
BORE
102 mm
STROKE
114.3 mm
DISPLACEMENT
1,868 cc
COMPRESSION RATIO
10.5:1
FUEL SYSTEM 3
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
2-into-2 staggered; catalyst in muffler
PERFORMANCE
ENGINE TORQUE TESTING METHOD
J1349
ENGINE TORQUE 3
161 Nm
ENGINE TORQUE (RPM)
3000
HORSEPOWER
94 HP / 70 kW @ 4750 rpm
LEAN ANGLE, RIGHT (DEG.)
25.6
LEAN ANGLE, LEFT (DEG.)
25.6
FUEL ECONOMY TESTING METHOD
Estimated City/Hwy
FUEL ECONOMY 7
5 l/100 km
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
9.311
GEAR RATIOS (OVERALL) 2ND
6.454
GEAR RATIOS (OVERALL) 3RD
4.793
GEAR RATIOS (OVERALL) 4TH
3.882
GEAR RATIOS (OVERALL) 5TH
3.307
GEAR RATIOS (OVERALL) 6TH
2.79
CHASSIS
FRONT FORK
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers
REAR SHOCKS
Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
WHEELS, FRONT TYPE 4
Machined, Lakester cast aluminum
WHEELS, REAR TYPE 4
Machined, Lakester cast aluminum
BRAKES, TYPE
Front and rear silver, Split 7-spoke floating rotors
BRAKES, CALIPER TYPE
4-piston fixed front and 2-piston floating rear
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS
All LED headlamp, low and high beam with signature position lighting, All LED Tail/Stop lamp with signature tail lighting, LED Bullet Turn Signals
GAUGES
5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
-
Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional wheels may vary by country and region.
-
Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
-
As measured using the MIC City and MIC Combined (115 km/h) tests.
-
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
2023 Harley-Davidson Fat Boy 114 – Totalmotorcycle.com Europe Specifications/Technical Details
DIMENSIONS
LENGTH
2,370 mm
SEAT HEIGHT, UNLADEN
675 mm
GROUND CLEARANCE
115 mm
RAKE
30
TRAIL
104 mm
WHEELBASE
1,665 mm
TYRES, FRONT SPECIFICATION
160/60R18,70V,BW
TYRES, REAR SPECIFICATION
240/40R18,79V,BW
TYRE, TYPE
Michelin Scorcher “11” front and rear
FUEL CAPACITY
18.9 l
OIL CAPACITY (W/FILTER)
4.7 l
WEIGHT, AS SHIPPED
304 kg
WEIGHT, IN RUNNING ORDER
317 kg
ENGINE
ENGINE 2
Milwaukee-Eight 114
BORE
102 mm
STROKE
114.3 mm
DISPLACEMENT
1,868 cc
COMPRESSION RATIO
10.5:1
FUEL SYSTEM
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
2-into-2 staggered; catalyst in muffler
PERFORMANCE
ENGINE TORQUE TESTING METHOD
EC 134/2014
ENGINE TORQUE 3
155 Nm
ENGINE TORQUE (RPM)
3250
HORSEPOWER
94 HP / 70 kW @ 5020 rpm
LEAN ANGLE, RIGHT (DEG.)
25.6
LEAN ANGLE, LEFT (DEG.)
25.6
FUEL ECONOMY TESTING METHOD
EU 134/2014
FUEL ECONOMY
5.5 l/100 km
CO2 EMISSIONS TESTING METHOD
EU 134/2014
CO2 EMISSIONS
129 g/km CO2
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
9.311
GEAR RATIOS (OVERALL) 2ND
6.454
GEAR RATIOS (OVERALL) 3RD
4.793
GEAR RATIOS (OVERALL) 4TH
3.882
GEAR RATIOS (OVERALL) 5TH
3.307
GEAR RATIOS (OVERALL) 6TH
2.79
CHASSIS
FRONT FORK
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers
REAR SHOCKS
Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
WHEELS, FRONT TYPE 4
Machined, Lakester cast aluminum
WHEELS, REAR TYPE 4
Machined, Lakester cast aluminum
BRAKES, TYPE
Front and rear silver, Split 7-spoke floating rotors
BRAKES, CALIPER TYPE
4-piston fixed front and 2-piston floating rear
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS
All LED headlamp, low and high beam with signature position lighting, All LED Tail/Stop lamp with signature tail lighting, LED Bullet Turn Signals
GAUGES
5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
-
All prices shown are suggested retail prices only.
Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.
Please speak with the dealership team for further details and to obtain a final on the road price.
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional wheels may vary by country and region.
-
Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
