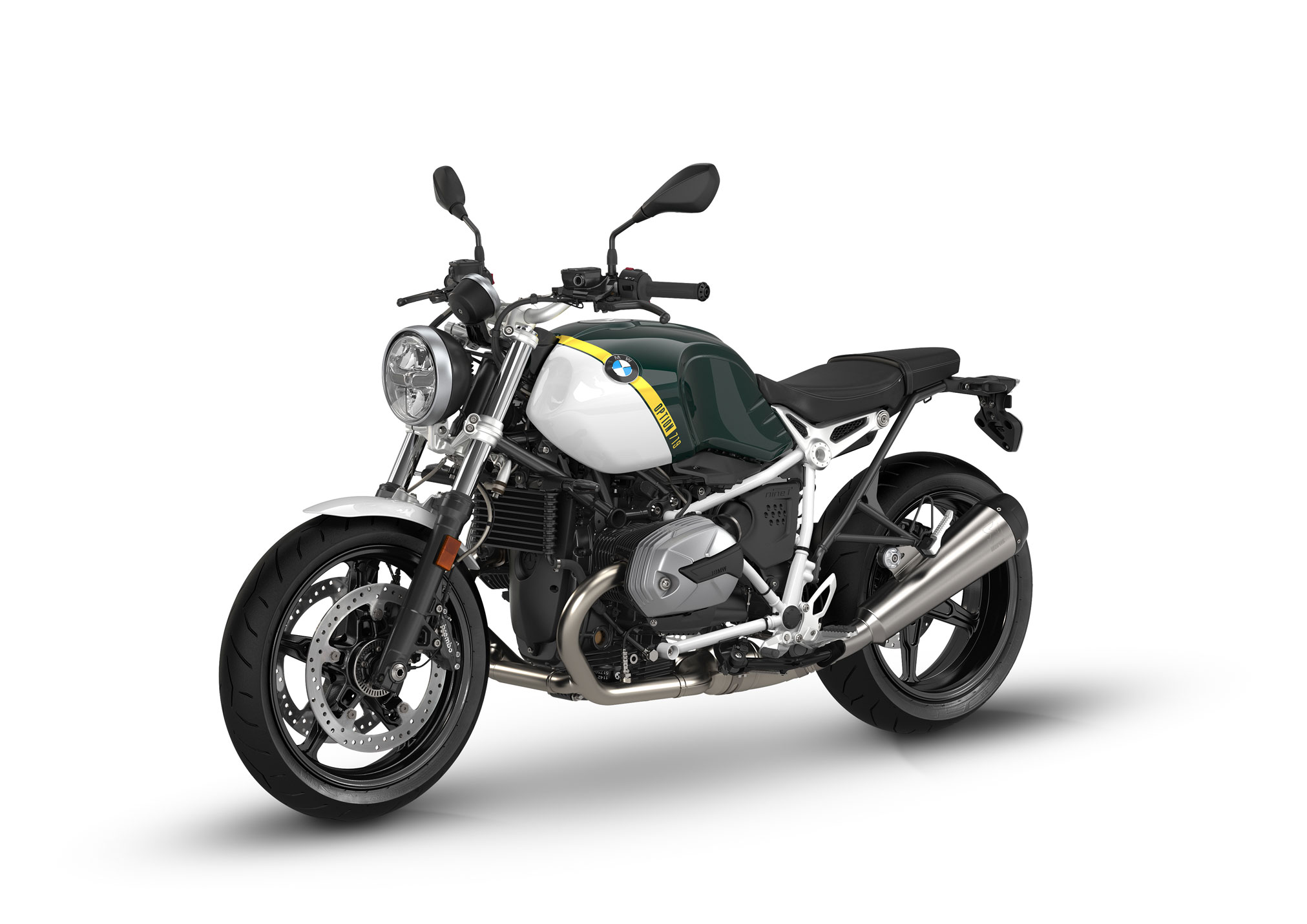

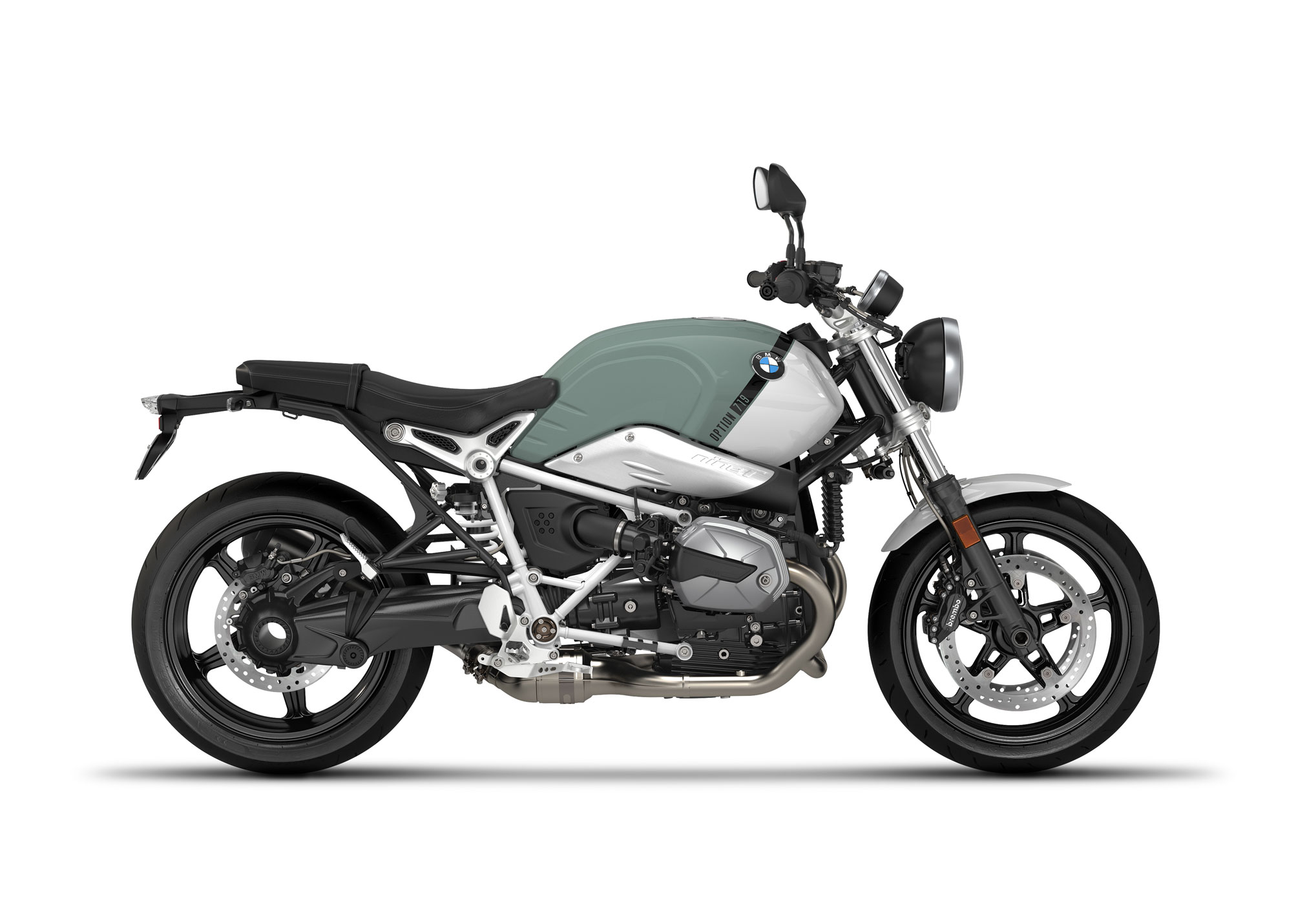

2023 BMW R nineT Pure: PURE AS WIND DRIVEN SNOW.
Introducing the 2023 BMW R nineT Pure…
PURIST, REDUCED, SELF-CONFIDENT
Reduced to the essential. But full of self-confidence. The BMW R nineT Pure. The powerful air/oil-cooled engine gives you goosebumps on the tarmac. Its classic roadster look with the compact fuel tank and slim rear reminds you of the early days of BMW Motorrad. The purist design and the many possibilities for customization invite you to create your very own personal bike. One that no one else rides. Give your ideas free rein and immerse yourself in the world of #Soulfuel with the R nineT Pure.
With the R nineT Pure, you get to live out your dream of motorcycling in classic roadster design. The centerpiece is the iconic air/oil-cooled boxer engine. It also has features such as the “Rain” and “Road” Ride Modes and an adjustable spring strut.
“The perfect bike to create your personal R nineT Pure.” Norbert Rebholz (Project manager R nineT)
2023 BMW R nineT Pure Totalmotorcycle.com Key Features
Standard equipment:
- LED headlights
- Speed indicator with on-board computer
- Automatic Stability Control (ASC)
- Ride Modes: Rain & Road
- Drive train and final drive in Black
- USB charging socket
Optional equipment
- Heated grips
- Paint sets
- Spoked wheels
Optional accessories
- counter with on-board computer
- Handbrushed aluminum parts
- Tail short
- Tail Tracker
- Function integrated turning signals
- Cylinder head covers 2V-Style
2023 BMW R nineT Pure Totalmotorcycle.com Features and Benefits
HIGHLIGHTS FOR EVERY PERSONALITY
Choose your direction
Lend your R nineT Pure an individual design with one of three exciting colors. Which one do you want to start with?
- Adjustable spring strut
- Modern LED turn indicators
- Twin-cylinder boxer engine
- Compact tank

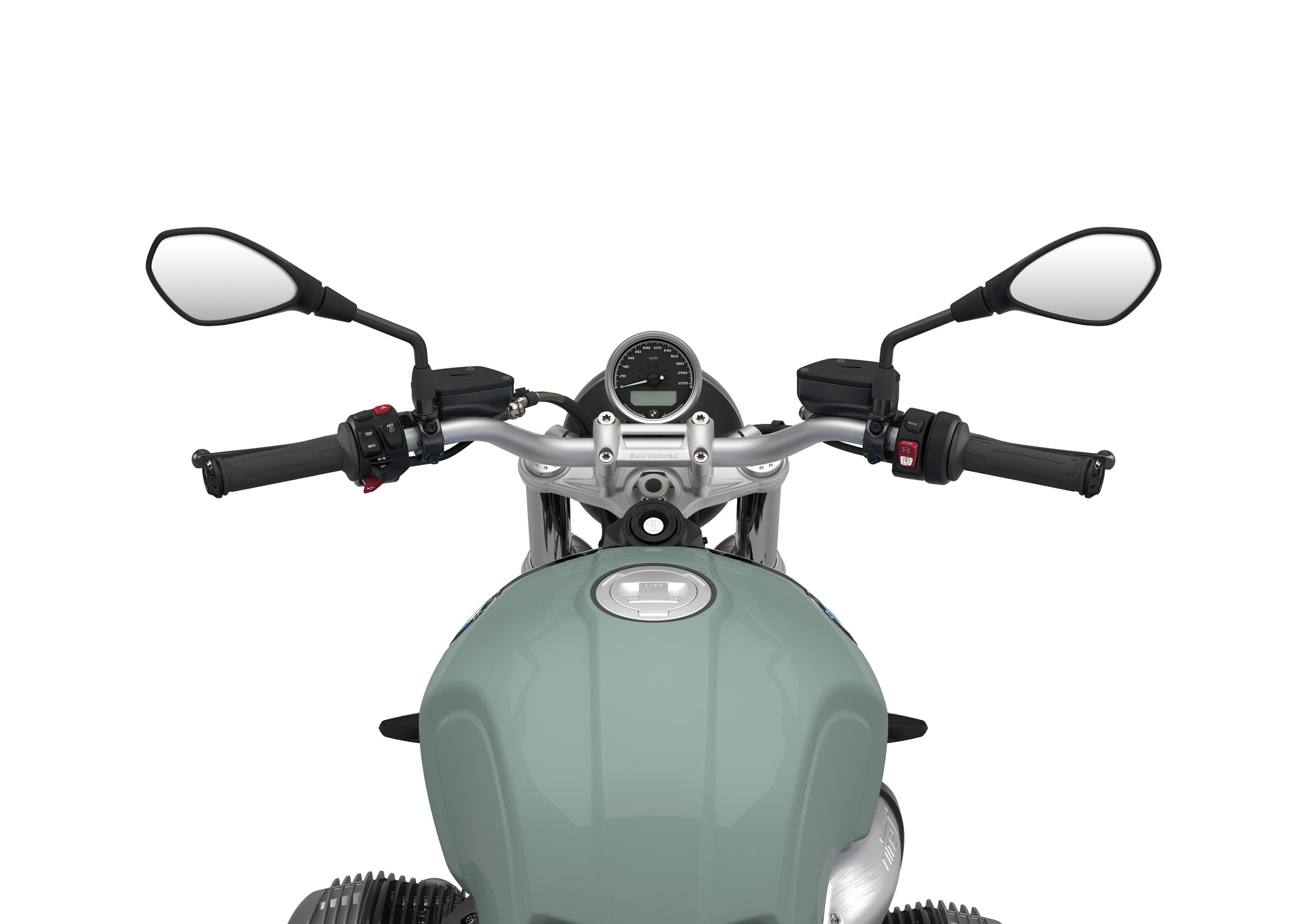

- Classic round speedometer
- Single-pipe exhaust system
- Classically-painted front-wheel cover
- LED headlights are standard equipment
Bring your idea to life
The R nineT Pure is your invitation to the customizing world, where the possibilities are endless. The high-quality Option 719 billet pack Classic II shows your love of detail. And with the Option 719 Wheel Classic, you’ll feel the tingling sensation a little more thanks to the tubeless spoked wheels.
TRIED-AND-TESTED DRIVE WHEEL
Enjoy every single mile
The air/oil-cooled Boxer engine boasts a mighty 1,170 cc displacement. With its 109 hp, it ensures exciting moments on every journey – whether in the city or beyond. Because in the 4,000–6,000 rpm range, it now runs even smoother thanks to its better-rounded power and torque curve.
- 85lbs.-ft. max. torque at 6,000 rpm
- 1,170cc capacity
- 483lbs. unladen weight, road ready, fully fuelled
- 31.7 inch seat height
- Air/oil-cooled twin-cylinder four-stroke boxer engine
FEATURES FOR SAFE, FUN RIDING
Let off some steam
With the available Ride Modes Pro, you get the most out of your machine. This is because in Dynamic mode, the ASC and DTC control systems intervene later – making driving on dry tarmac much more dynamic. And with available adaptive headlights, you can enjoy the next bend even after dark. This is because it improves illumination of the inner section of the curve up to a lean angle of 25 degrees. This way, you can better see where you’re going.
3 year warranty
Ride on & on & on.
Get up to 3-years or 36,000 miles warranty on all new motorcycles.
- Version Basic: Tealblue metallic matt no longer available.
- Option 719: New color Underground uni/Lightwhite uni. Blackstorm metallic/Racing red no longer available.
- Option 719: New color Pollux metallic/Lightwhite uni. Cosmic blue metallic/Lightwhite no longer available.
- Colors
- Teal Blue Metallic Matte removed.
- Option 719 Underground / Light White replaces Blackstorm Metallic / Racing Red.
- Option 719 Pollux Metallic / Light white replaces Cosmic Blue / Light White.
- Mineral Gray remains unchanged.
Equipment
- No equipment changes.
Individual Options – Spoked Wheels, Design Option Silencer, Low Suspension and Heated Grips.
2023 BMW R nineT Pure – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $10,995 USD
Canada MSRP Price: $13,845 CDN
Europe/UK MSRP Price: from £11,750 GBP (total selling price)
Engine
Type
Air/oil-cooled two-cylinder, four-stroke boxer engine with two camshafts and four radially arranged valves per cylinder as well as central counterbalance shaft
Bore x stroke
101 mm x 73 mm
Capacity
1,170 cc
Rated output
109 hp at 7,250 rpm
Max. torque
85.5 lbs. at 6,000 rpm
Compression ratio
12.0 : 1
Mixture control
Electronic port fuel injection
Emission Control
Closed-loop 3-way catalytic converter
Performance / fuel consumption
Maximum speed
over 124 mph
Fuel type
Unleaded super (premium)
Electrical system
Alternator
Three-phase alternator with 720 Watt nominal power
Battery
12 V / 12 Ah
Power transmission
Clutch
Single dry plate clutch, hydraulically operated
Gearbox
Constant mesh 6-speed gearbox with helical gear teeth
Drive
Shaft drive
Chassis / brakes
Frame
Three-section frame consisting of one front and two rear sections, load-bearing engine-gearbox unit, removable pillion frame for single ride use
Front wheel location / suspension
Telescopic forks with 43 mm fixed-tube diameter
Rear wheel location / suspension
Cast aluminum single-sided swing arm with BMW Motorrad paralever, central spring strut, spring preload continuously adjustable by handwheel, rebound damping continuously adjustable
Suspension travel, front / rear
4.7″ / 4.7″
Wheelbase
58.8”
Caster
4.1″
Steering head angle
63.4°
Wheels
Spoke wheels
Rim, front
3.50 x 17″
Rim, rear
5.50 x 17″
Tire, front
120/70 ZR 17
Tire, rear
180/55 ZR 17
Brake, front
Twin-disc brakes, diameter 12.6″, 4-piston calipers
Brake, rear
Single disc brake, diameter 10.4″, double-piston floating caliper
ABS
BMW Motorrad ABS Pro
Dimensions / weights
Seat height
31.7”
Inner leg curve
70.3”
Usable tank volume
4.5 gal.
Reserve
app. 0.9 gal
Length
82.9”
Height (incl. mirrors)
48.8”
Width (incl. hand levers)
34.8”
Unladen weight, road ready, fully fueled
483 lbs.
1)
Permitted total weight
948 lbs.
Payload (with standard equipment)
465 lbs.
1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable tank capacity.
2023 BMW R nineT Pure – Totalmotorcycle.com Canada Specifications/Technical Details
Engine
Rated output
80 kW (109 hp) at 7,250 rpm
Emission control
Closed-loop 3-way catalytic converter
Type
Air/oil-cooled two-cylinder, four-stroke boxer engine with two overhead camshafts, four radially arranged valves and central counterbalance shaft
Bore x stroke
101 mm x 73 mm
Capacity
1,170 cc
Max. torque
85.5 lbs-ft at 6,000 rpm
Compression ratio
12.0 : 1
Mixture control
Electronic intake pipe injection
Exhaust emission standards
EU 5
Performance / fuel consumption
Maximum speed
over 200 km/h
Fuel consumption per 100 km based on WMTC
5.1 l
CO2 emission based on WMTC
119 g/km
Fuel type
Super unleaded (max. 15% ethanol, E15), 95 ROZ/RON, 90 AKI
Electrical system
Alternator
Three-phase alternator with 720 W (nominal power)
Battery
12 V / 12 Ah, maintenance-free
Power transmission
Clutch
Single-disc dry clutch, hydraulically operated
Gearbox
Claw-shifted 6-speed gearbox with helical gears
Drive
Cardan
Chassis / brakes
Frame
Three-part frame concept consisting of front and two-part rear frame, co-supporting engine-transmission unit, pillion frame can be removed for solo operation
Front wheel location / suspension
Telescopic fork, diameter 43 mm
Rear wheel location / suspension
Cast aluminium single-sided swingarm with BMW Motorrad Paralever, central spring strut, spring preload fully adjustable by hook wrench, rebound damping adjustable
Suspension travel, front / rear
125 mm / 120 mm
Wheelbase
1,493 mm
Castor
105 mm
Steering head angle
63.4°
Wheels
Aluminium cast wheels
Rim, front
3.50 x 17″
Rim, rear
5.50 x 17”
Tire, front
120/70 ZR17
Tire, rear
180/55 ZR17
Brake, front
Twin disc brake, diameter 320 mm, 4-piston fixed caliper
Brake, rear
Single disc brake, diameter 265 mm, 2-piston floating caliper
ABS
BMW Motorrad ABS
Dimensions / weights
Seat height at unladen weight
31.7″
Inner leg curve at unladen weight
70.3″
Usable tank volume
17 l
Reserve
approx. 3.5 l
Length
2,105 mm
Height
1,240 mm (above mirror, at DIN unladen weight)
Width
865 mm (above hand lever)
Unladen weight, road ready, fully fuelled
219 kg
1)
Permitted total weight
430 kg
Payload (with standard equipment)
211 kg
1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.
2023 BMW R nineT Pure – Totalmotorcycle.com European Specifications/Technical Details
Engine
Type
Air/oil-cooled two-cylinder, four-stroke boxer engine with two camshafts and four radially arranged valves per cylinder as well as central counterbalance shaft
Bore x stroke
101 mm x 73 mm
Capacity
1,170 cc
Ratet output
80 kW (109 hp) at 7,250 rpm
Max. torque
116 Nm at 6,000 rpm
Compression ratio
12.0 : 1
Mixture control
Electronic intake pipe injection
Emission Control
Closed-loop 3-way catalytic converter, emission standard EU-5
Performance / fuel consumption
Maximum speed
over 200 km/h
Fuel consumption per 100 km based on WMTC
5.1 l
CO2 emission based on WMTC
119 g/km
Fuel type
Unleaded super(premium), octane number 95-98 (RON) (rated output at 98 RON)
Electrical system
Alternator
Three-phase alternator with 720 Watt nominal power
Battery
12 V / 12 Ah, maintenance-free
Power transmission
Clutch
Single dry plate clutch, hydraulically operated
Gearbox
Constant mesh 6-speed gearbox with helical gear teeth
Drive
Shaft drive
Chassis / brakes
Frame
Three-section frame consisting of one front and two rear sections, load-bearing engine-gearbox unit, removeable pillion frame for single ride use
Front wheel location / suspension
Telescopic forks with 43 mm fixed-tube diameter
Rear wheel location / suspension
Cast aluminum single-sided swingarm with BMW Motorrad paralever, central spring strut, spring preload continuously adjustable by handwheel, rebound damping continuously adjustable
Suspension travel, front / rear
120 mm / 120 mm
Wheelbase
1,493 mm
Castor
105 mm
Steering head angle
63.4°
Wheels
Spoke wheels
Rim, front
3.50 x 17″
Rim, rear
5.50 x 17″
Tyre, front
120/70 ZR 17
Tyre, rear
180/55 ZR 17
Brake, front
Twin-disc brakes, diameter 320 mm, 4-piston callipers
Brake, rear
Single disc brake, diameter 265 mm, double-piston floating calliper
ABS
BMW Motorrad ABS Pro
Dimensions / weights
Seat height
805 mm
Inner leg curve
1,785 mm
Usable tank volume
17 l
Reserve
app. 3.5 l
Length
2,105 mm
Height (incl. mirrors)
1,240 mm
Width (incl. hand levers)
865 mm
Unladen weight, road ready, fully fuelled
219 kg
1)
Permitted total weight
430 kg
Payload (with standard equipment)
211 kg
1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable tank capacity.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
