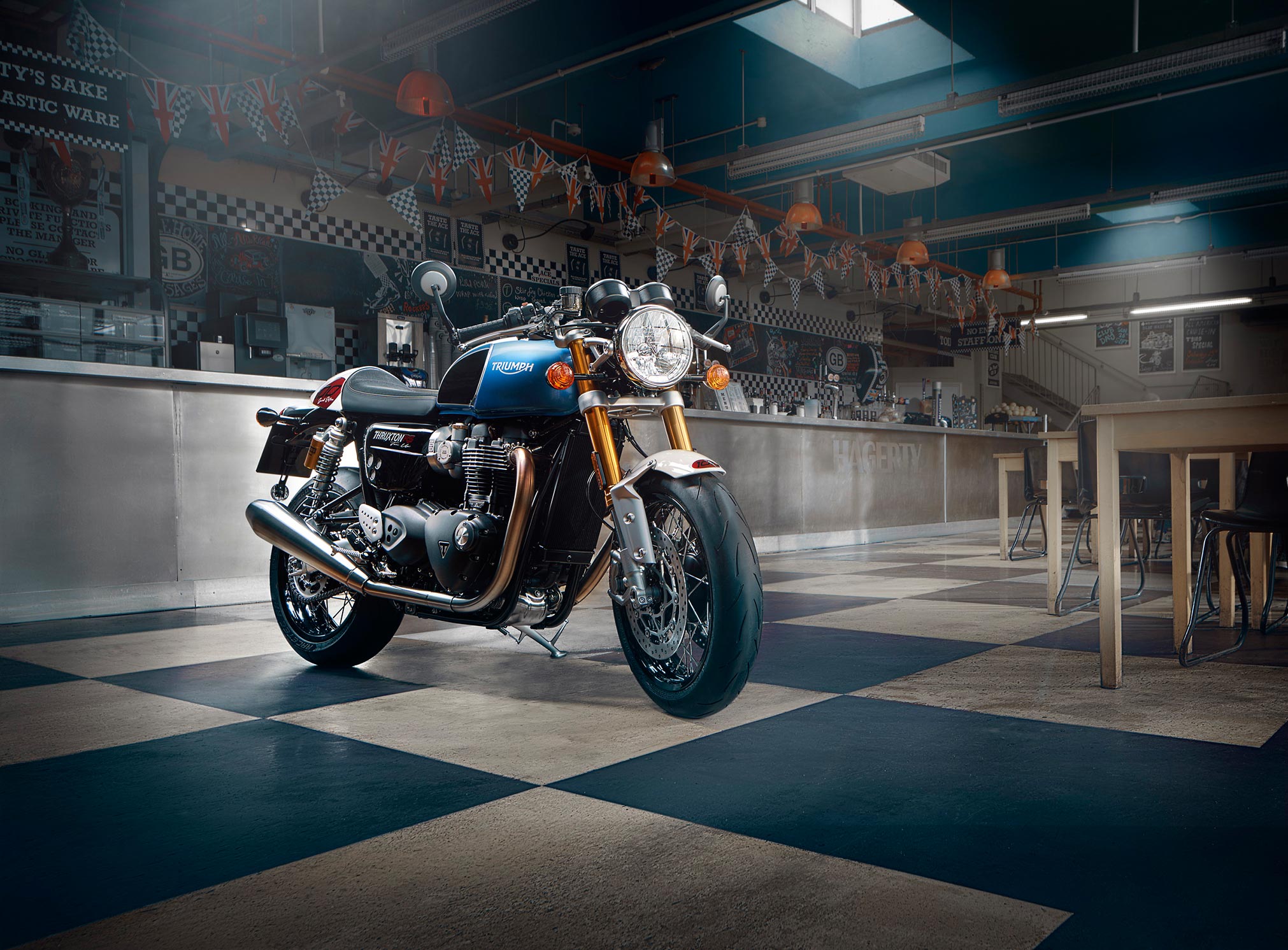

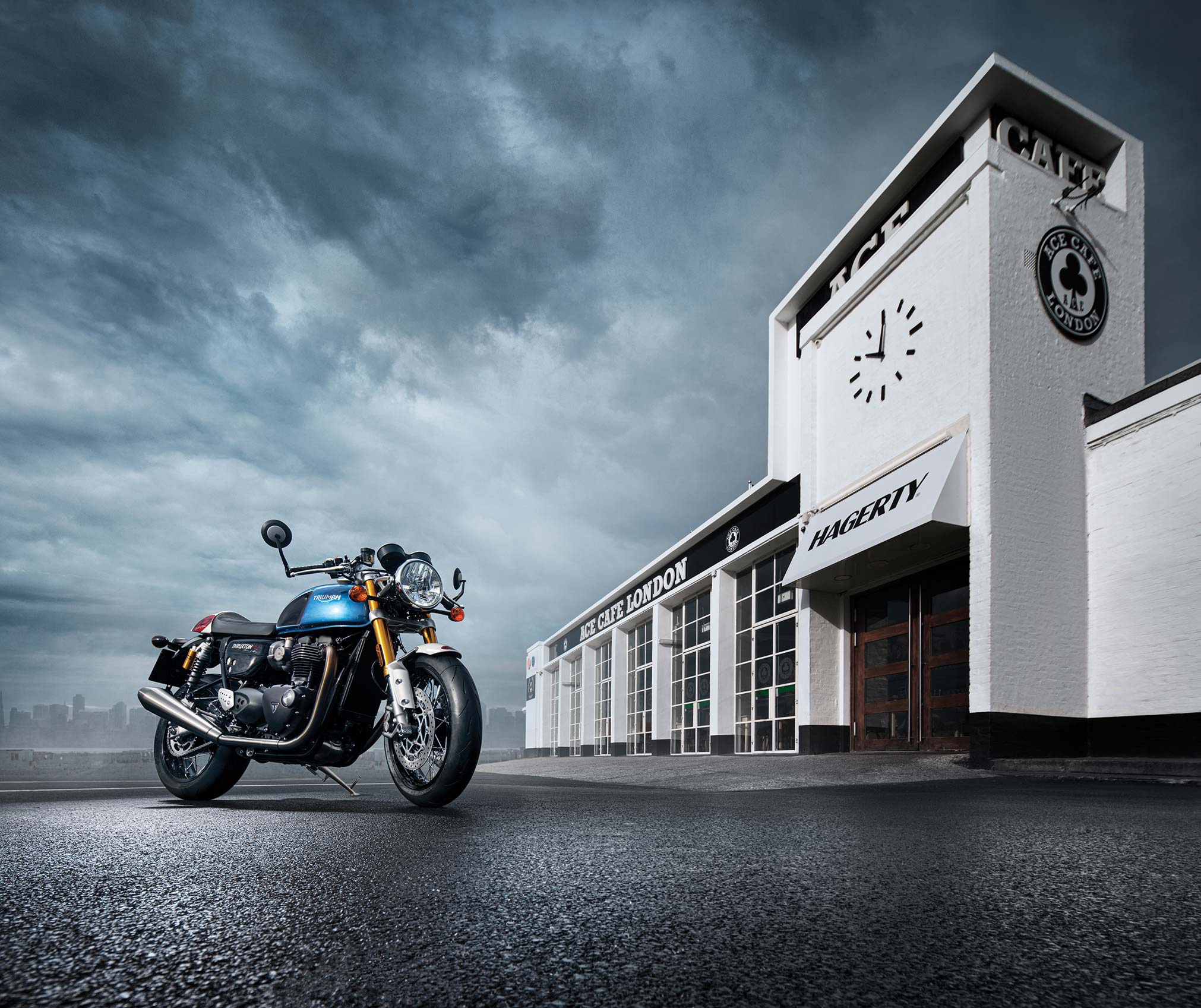

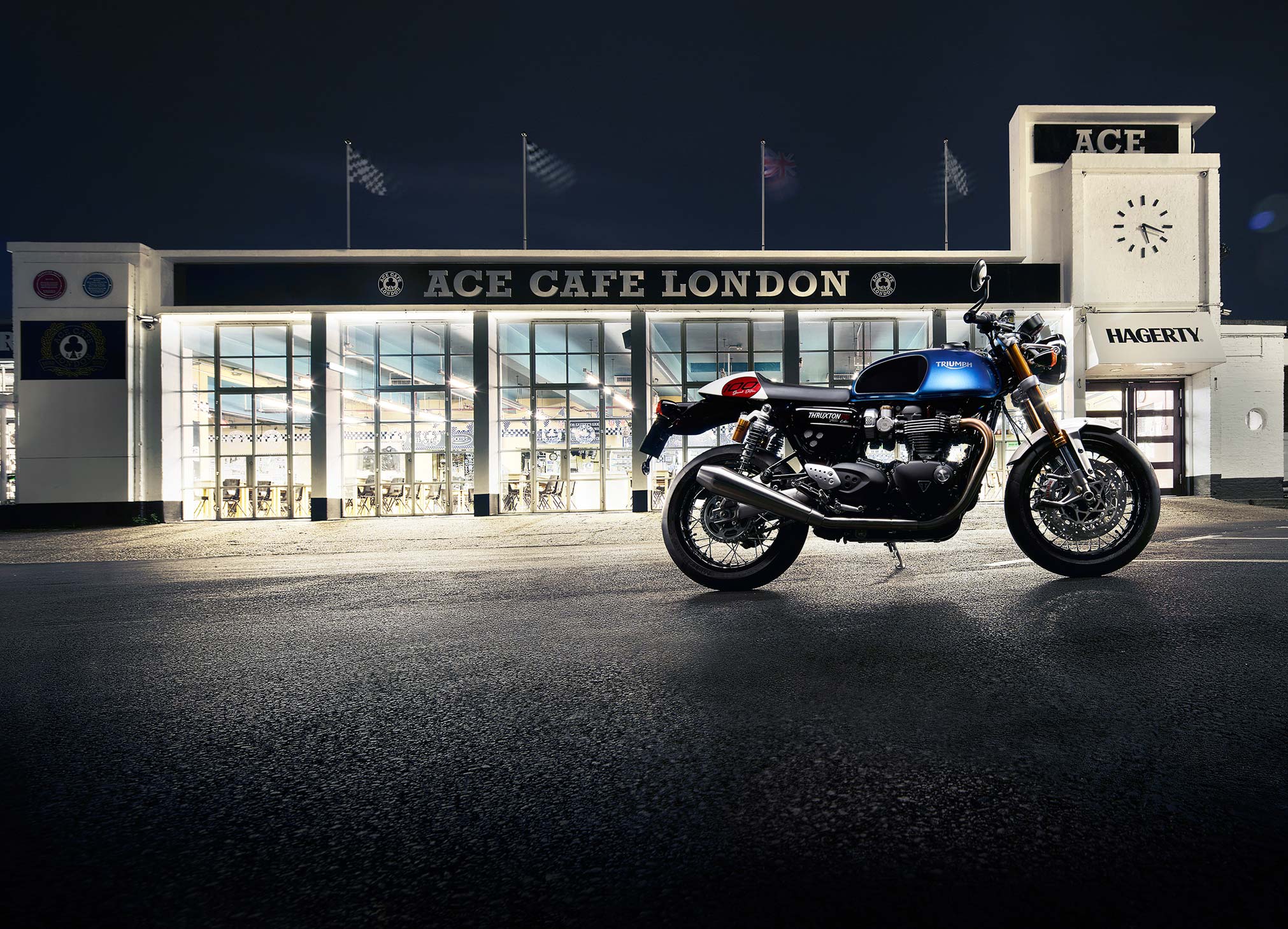

2022 Triumph Thruxton RS Ton Up Edition: INSPIRED BY LEGEND.
Introducing the 2022 Triumph Thruxton RS Ton Up Edition…
A stunning new Thruxton RS edition, inspired by Triumph’s iconic racing heritage, from the original ‘ton-up’ cafe racers to the first production 100mph lap of the Isle of Man TT.
Inspired by the legendary Ton Up boys of the 1950s and 60s – the original café racers, and the first ever production 100mph lap of the Isle of Man TT achieved by Malcolm Uphill in 1969, the new Thruxton RS Ton Up Edition celebrates the passion and iconic style of the record-breaking Thruxton with a unique design scheme that is available for one year only.
2022 Triumph Thruxton RS Ton Up Edition Totalmotorcycle.com Key Features
Unique Ton Up Edition paint scheme and premium custom detailing
- Classically-inspired Aegean Blue fuel tank with Jet Black knee pad graphics, edged with hand-painted silver coach lining

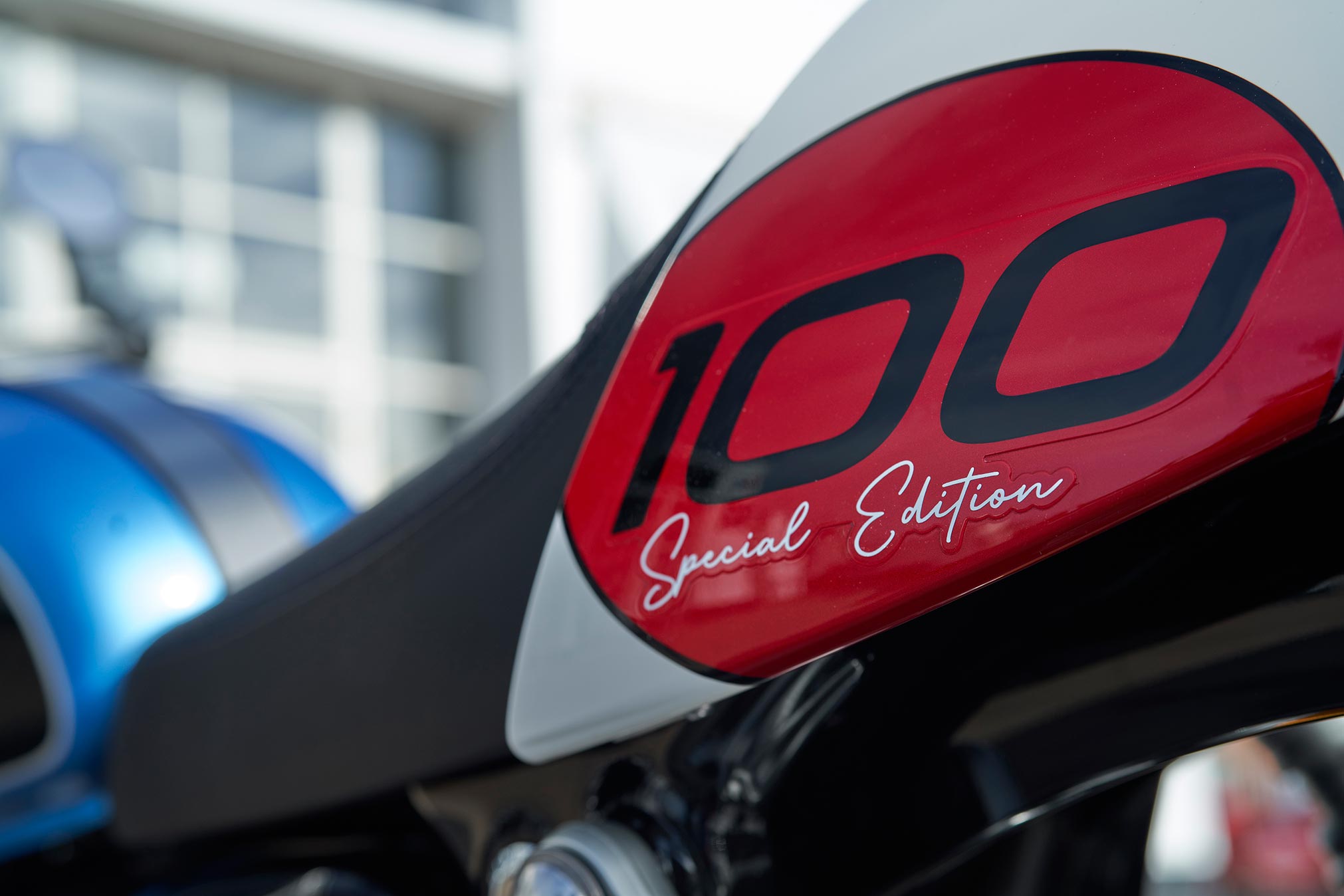

- Fusion White seat cowl with Carnival Red infill, hand-painted black coach lining and new “100 Special Edition” graphic
- Fusion White front mudguard with new Carnival Red “100” graphic
- Jet Black side panels with new Thruxton RS Ton Up logo, headlight bowl and rear mudguard
- New accessory-fit Aegean Blue cockpit fairing to complement the Ton Up Edition scheme
- Premium custom detailing including Matt Aluminum Silver fork protectors and blacked-out wheels, engine covers and RSU springs
High performance Thruxton RS engine
- Responsive and characterful Bonneville 1200cc twin engine
- Peak power of 103 HP at 7,500 rpm and peak torque of 82 FL-LB at 4,250 rpm
- Distinctive twin upswept brushed silencers delivering the hair-raising Thruxton sound
High-specification equipment for dynamic and engaging handling
- Twin 310mm Brembo floating front brake discs with Brembo M50 radial monobloc calipers
- Fully adjustable Öhlins twin shocks with piggyback reservoir
- Fully adjustable Showa 43mm upside down big piston forks
- High-performance Metzeler Racetec RR tires
- Engaged riding ergonomics with a low 31.8 inches seat height
Ride-enhancing technology fitted as standard
- ABS and switchable traction control
- Three riding modes: Road, Rain and Sport
- LED daytime running light incorporated into the headlight (market specific)
- Torque-assist clutch, ride-by-wire throttle, immobilizer and under-seat USB charging socket
2022 Triumph Thruxton RS Ton Up Edition Totalmotorcycle.com Features and Benefits
The original Thruxton played a major part in the birth of motorcycle motorsport, as far back as the late 1950’s when the racing Bonneville first took victory at the legendary Thruxton 500 race series, from which it took its name, courtesy of British racing legend, Mike Hailwood. And from then onwards, the Thruxton was a dominating force – race winner and record breaker – with years of success spanning the 1960s.
By 1969, the Thruxton had won the Isle of Man TT, with Malcolm Uphill cracking the 100mph production lap for the very first time. And on the road, thanks to its twin-powered performance, it had also become the bike of choice, inspiring a generation of teenage racers – a now-iconic subculture centered around British café racer motorcycles and Rock n’ Roll music – the “Ton Up Boys”.
Driven by the common goal of doing “the ton” – riding 100mph – the café racers of the day would modify their motorcycles to maximize speed and handling by stripping them down to the bare minimum.
And now, honoring that passion, racing heritage and iconic style, the new Thruxton RS Ton Up Edition celebrates the legendary period in Britain’s motorcycling scene with a unique new classically inspired scheme, available for one year only.
Unique Ton Up Edition paint scheme and premium custom detailing
Perfectly accentuating the Thruxton’s iconic café racer DNA and timeless silhouette, the new Ton Up Edition design scheme incorporates a stunning and unique Aegean Blue fuel tank with Jet Black knee pad graphics, edged with hand-painted silver coach lining. This is paired with a Fusion White seat cowl and front mudguard, both of which feature unique new Carnival Red “100” graphics. The seat cowl also features additional hand-painted coach lining in black.
The side panels, featuring the new Thruxton RS Ton Up logo, are painted in Jet Black, as are the headlight bowl and rear mudguard. Other premium custom-inspired details include Matt Aluminum Silver fork protectors and blacked-out wheels, engine covers and RSU springs.
The Ton Up Edition also features all the hallmarks of the distinctive Thruxton RS, including unique Monza-style fuel filler cap, twin brushed stainless steel upswept silencers, single bullet seat and black bar-end mirrors.
Riders can also enhance their Thruxton RS Ton Up Edition with the accessory cockpit fairing that now comes in a matching Aegean Blue.
High performance Thruxton RS engine
The Thruxton RS Ton Up Edition is powered by the responsive and characterful Bonneville 1200cc twin engine, delivering 105 PS peak power at 7,500 rpm and 112 Nm peak torque at a low 4,250 rpm. Fully Euro 5 compliant, the Thruxton RS engine is optimized for high-performance, low emissions and enhanced fuel efficiency.
The sporty twin reverse cone megaphone silencers deliver the Thruxton’s hair-raising, rich, and deep sound, that absolutely lives up to its legendary name.
High-specification equipment for dynamic and engaging handling
The Thruxton RS Ton Up Edition features a light and agile chassis, with a sporty riding position and a high specification to match. This includes its race-bred fully adjustable Showa 43mm upside down pig piston forks and fully adjustable Öhlins twin rear shocks with piggyback reservoir, offering a great riding feel, comfort, and exceptional handling.
High-specification brakes ensure the Thruxton RS delivers outstanding stopping power, with twin 310mm Brembo floating front brake discs with Brembo M50 radial monobloc calipers, and a Nissin two-piston floating caliper on the rear.
Metzler Racetec RR tires are fitted as standard, offering enhanced grip for sporty road riding as well as track day fun.
The combination of thrilling 1200cc engine, with high-specification dynamic chassis and premium standard equipment, alongside the focused and sporty riding ergonomics with low 810mm seat height, make the Thruxton RS an agile and engaged ride.
Ride-enhancing technology fitted as standard
The Thruxton RS Ton Up Edition is equipped with ABS and switchable traction control as standard, as well as three riding modes – Road, Rain and Sport. These adjust throttle map and traction control settings to better suit the riding conditions or rider preference. This is enabled via the ride-by-wire technology, which delivers enhanced throttle response and better control.
Additional ride-enhancing technology includes the torque-assist clutch, reducing rider fatigue, as well as the immobilizer and under-seat USB charging socket.
For a better visibility on the road, the bike is equipped with an LED DRL incorporated into the headlight (market specific).
80+ custom accessories
Like all Triumph Modern Classics, the Thruxton RS has been designed with customization at its heart, featuring a range of over 80 genuine Triumph accessories available. This includes the new Aegean Blue cockpit fairing, along with clip-on handlebars, heated grips and luggage, to name just a few.
All genuine Triumph accessories are designed alongside the bike itself and are tested to the same quality and durability standards. That’s why all accessories come with the same two-year unlimited mileage warranty as the bike itself.
2022 Triumph Thruxton RS Ton Up Edition – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $17300 USD
Canada MSRP Price: $18550 CDN
Europe/UK MSRP Price: £ 14,050 (On The Road inc 20% Vat)
ENGINE & TRANSMISSION
THRUXTON RS TON UP Specifications
Feature Details
Type Liquid-cooled, 8-valve, SOHC, 270° crank angle parallel-twin
Capacity 1,200 cc
Bore 97.6
Stroke 80
Compression 12.1:1
Max Power EC 103 HP (77 kW) @ 7,500 rpm
Max Torque EC 83 LB-FT (112 Nm) @ 4,250 rpm
System Multi-point sequential electronic fuel injection
Exhaust Brushed 2-into-2 exhaust system with twin brushed silencers
Final Drive O-ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed
CHASSIS
THRUXTON RS TON UP Specifications
Feature Details
Frame Tubular steel cradles
Swingarm Twin-sided, aluminum – Clear anodized
Front Wheel 32-spoke 3.5 x 17 in, aluminum rims
Rear Wheel 32-spoke 5 x 17 in, aluminum rims
Front Tire 120/70 ZR17
Rear Tire 160/60 ZR17
Front Suspension Showa 43 mm USD big piston forks, fully adjustable 4.7 in (120 mm) travel
Rear Suspension Fully adjustable Öhlins twin shocks with piggyback reservoir, 4.7 in (120 mm) rear wheel travel
Front Brakes Twin 310 mm Brembo floating discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 220 mm disc, Nissin 2-piston floating caliper, ABS
Instrument Display and Functions LCD multi-functional instrument pack with analog speedometer, analog tachometer, gear position indicator, fuel gauge, range to empty indication, service indicator,clock, trip computer, scroll and mode buttons on handlebars, heated grip ready, fuel consumption display, traction control status and riding mode display.
DIMENSIONS & WEIGHTS
THRUXTON RS TON UP Specifications
Feature Details
Width Handlebars 29.3 in (745 mm)
Height Without Mirror 40.5 in (1,030 mm)
Seat Height 31.8 in (810 mm)
Wheelbase 55.7 in (1,415 mm)
Rake 22.8 º
Trail 3.6 in (92 mm)
Dry Weight 434 lb (197 kg)
Tank Capacity 3.8 US gal (14.5 L)
SERVICE
THRUXTON RS TON UP Specifications
Feature Details
Service Interval 10,000 miles (16,000 km) /12 months service interval, whichever comes first
2022 Triumph Thruxton RS Ton Up Edition – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE & TRANSMISSION
THRUXTON RS TON UP Specifications
Feature Details
Type Liquid-cooled, 8-valve, SOHC, 270° crank angle parallel-twin
Capacity 1,200 cc
Bore 97.6
Stroke 80
Compression 12.1:1
Max Power EC 103 HP (77 kW) @ 7,500 rpm
Max Torque EC 83 LB-FT (112 Nm) @ 4,250 rpm
System Multi-point sequential electronic fuel injection
Exhaust Brushed 2-into-2 exhaust system with twin brushed silencers
Final Drive O-ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed
CHASSIS
THRUXTON RS TON UP Specifications
Feature Details
Frame Tubular steel cradles
Swingarm Twin-sided, aluminum – Clear anodized
Front Wheel 32-spoke 3.5 x 17 in, aluminum rims
Rear Wheel 32-spoke 5 x 17 in, aluminum rims
Front Tire 120/70 ZR17
Rear Tire 160/60 ZR17
Front Suspension Showa 43 mm USD big piston forks, fully adjustable 4.7 in (120 mm) travel
Rear Suspension Fully adjustable Öhlins twin shocks with piggyback reservoir, 4.7 in (120 mm) rear wheel travel
Front Brakes Twin 310 mm Brembo floating discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 220 mm disc, Nissin 2-piston floating caliper, ABS
Instrument Display and Functions LCD multi-functional instrument pack with analog speedometer, analog tachometer, gear position indicator, fuel gauge, range to empty indication, service indicator,clock, trip computer, scroll and mode buttons on handlebars, heated grip ready, fuel consumption display, traction control status and riding mode display.
DIMENSIONS & WEIGHTS
THRUXTON RS TON UP Specifications
Feature Details
Width Handlebars 29.3 in (745 mm)
Height Without Mirror 40.5 in (1,030 mm)
Seat Height 31.8 in (810 mm)
Wheelbase 55.7 in (1,415 mm)
Rake 22.8 º
Trail 3.6 in (92 mm)
Dry Weight 434 lb (197 kg)
Tank Capacity 3.8 US gal (14.5 L)
SERVICE
THRUXTON RS TON UP Specifications
Feature Details
Service Interval 10,000 miles/12 months service interval, whichever comes first
2022 Triumph Thruxton RS Ton Up Edition – Totalmotorcycle.com European Specifications/Technical Details
ENGINE & TRANSMISSION
THRUXTON RS TON UP Specifications
Feature Details
Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Capacity 1,200 cc
Bore 97.6 mm
Stroke 80 mm
Compression 12.1:1
Max Power EC 105 PS/103 bhp (77 kW) @ 7,500 rpm
Max Torque EC 112 Nm @ 4,250 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed 2 into 2 exhaust system with twin brushed silencers
Final Drive O-ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed
CHASSIS
THRUXTON RS TON UP Specifications
Feature Details
Frame Tubular steel cradles
Swingarm Twin-sided, aluminium – Clear anodized
Front Wheel 32-spoke 17 x 3.5 in, aluminium rims
Rear Wheel 32-spoke 17 x 5 in, aluminium rims
Front Tyre 120/70 ZR17
Rear Tyre 160/60 ZR17
Front Suspension Showa 43 mm USD big piston forks, fully adjustable 120 mm travel
Rear Suspension Fully adjustable Öhlins twin shocks with Piggyback reservoir, 120 mm rear wheel travel
Front Brakes Twin 310 mm Brembo floating discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 220 mm disc, Nissin 2-piston floating caliper, ABS
Instrument Display and Functions LCD multi-functional instrument pack with analogue speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty indication, service indicator, clock, trip computer, scroll and mode buttons on handlebars, heated grip ready, fuel consumption display, traction control status and riding mode display.
DIMENSIONS & WEIGHTS
THRUXTON RS TON UP Specifications
Feature Details
Width Handlebars 745 mm
Height Without Mirror 1,030 mm
Seat Height 810 mm
Wheelbase 1,415 mm
Rake 22.8 º
Trail 92 mm
Dry Weight 197 kg
Tank Capacity 14.5 L
SERVICE
THRUXTON RS TON UP Specifications
Feature Details
Service Interval 10,000 miles/16,000 Km or 12 Months, whichever comes first.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
