2022 KTM 1290 Super Duke GT Guide

2022 KTM 1290 Super Duke GT

2022 KTM 1290 Super Duke GT 2022 KTM 1290 Super Duke GT 2022 KTM 1290 Super Duke GT 2022 KTM 1290 Super Duke GT 2022 KTM 1290 Super Duke GT

2022 KTM 1290 Super Duke GT: THE COMFORTABLE BALLISTIC MISSLE.

Introducing the 2022 KTM 1290 Super Duke GT…

In a segment that necessitates comfort and the ability to cover ground effortlessly, the KTM 1290 SUPER DUKE GT rewrites the rulebook. Designed to offer riders a unique Grand Touring experience but engineered to be a true Sports bike underneath the touring parts, the KTM 1290 SUPER DUKE GT covers ground unlike any Sports Tourer on the market.

Thanks to its EURO 5 rated, 175 HP, 141 Nm KTM 1290 SUPER DUKE R-derived, 1,301 cc V-twin engine, this is the class leader when it comes to punching a hole in the atmosphere or hauling in the horizon. But it’s not only forward momentum where the long-distance BEAST is true to its namesake.

The WP APEX semi-active suspension on the KTM 1290 SUPER DUKE GT works with a specific logic. The design approach to preload adjustability of the rear shock has been geared for the long-distance tourer and is very intuitive. The logic allows riders to set the suspension up according to four different real-life riding situations, namely: RIDER, RIDER & PILLION, RIDER & LUGGAGE, or RIDER, PILLION & LUGGAGE. On top of that, the anti-dive function is fitted as standard.

A new 7 inch-TFT display allows for quick and easy ride adjustment on the fly, thanks to a newly designed layout striking the perfect balance between information and style. The set-up is completed by the new robust switchgear that not only feels premium but also allows for intuitive interaction between the rider and the dash itself.

The wheels on the 2022 KTM 1290 SUPER DUKE GT have been lifted from the latest KTM 1290 SUPER DUKE R. These boast a weight saving of 1 kg of unsprung mass over the old set of rims; this not only improves the overall handling but also sports a more aggressive wheel design.

These all-new lightweight wheels are wrapped in new rubber, namely Continental ContiSportAttack 4. The ContiSportAttack 4 boasts a sportier and a more stable riding experience, delivering on the demand for a sportier tire to match the KTM 1290 SUPER DUKE GT’s versatile abilities.

The KTM 1290 SUPER DUKE GT will also debut an all-new navigation system called Turn-by-turn PLUS which will further enhance the touring experience. TBT+ will be available via KTM Connect. This allows navigation instructions to be projected directly on the new 7-inch TFT display, helping riders navigate more effectively. Turn-by-turn PLUS will be launched on the 2022 KTM 1290 SUPER DUKE GT, with roll-outs to other models in the near future.

Powered by SYGIC®, TBT+ can also operate offline, allowing riders to plan their journey and adventure from remote locations, with the NAVIGATION feature using industry-standard mapping to guide riders to their destination of choice. There’s also an advanced search feature, and a diverse range of POIs including gas stations, restaurants, rest stops, while the system lets you select one of your pre-saved destinations directly from the TFT dash. All the above features can be accessed directly from the new 7-inch TFT dash, while the rider no longer needs to remove their phone from the jacket pocket, making it more convenient and efficient for those quick on-the-fly changes.

The new system also allows for waypoints to be skipped without prompting a turnaround. The system will merely recalculate and find the next available route to get you back on track. Also, the last 10 destinations searched are automatically saved and available directly on the dashboard.

Think of the KTM 1290 SUPER DUKE GT as a comfortable ballistic missile. Powered by a 175 horsepower V-twin cranking out 141 Nm of torque, it devours provincial and border lines with minimal effort. Needless to say then, when it comes to covering ground comfortably at speed, the KTM 1290 SUPER DUKE GT is a bit of a weapon.



2022 KTM 1290 Super Duke GT Totalmotorcycle.com Key Features
  • Updated, EURO 5 LC8 V-twin
  • 23 liter tank
  • Lightweight wheels saving nearly 1 kg of unsprung mass
  • All-new 7” TFT dashboard
  • Turn-by-turn PLUS Navigation (TBT+)
  • New handlebar switches
  • Continental ContiSportAttack 4
  • Optional PERFORMANCE MODE
  • Optional TECH PACK
  • Exclusive KTM SUPER DUKE GT specific CTG

A full range of specially created KTM PowerParts has been developed to personalize and further intensify your ride. A dedicated range of KTM PowerWear ensures riders are kitted out to tackle whatever their journey might throw at them.







2022 KTM 1290 Super Duke GT Totalmotorcycle.com Features and Benefits

Engine & Exhaust

Engine

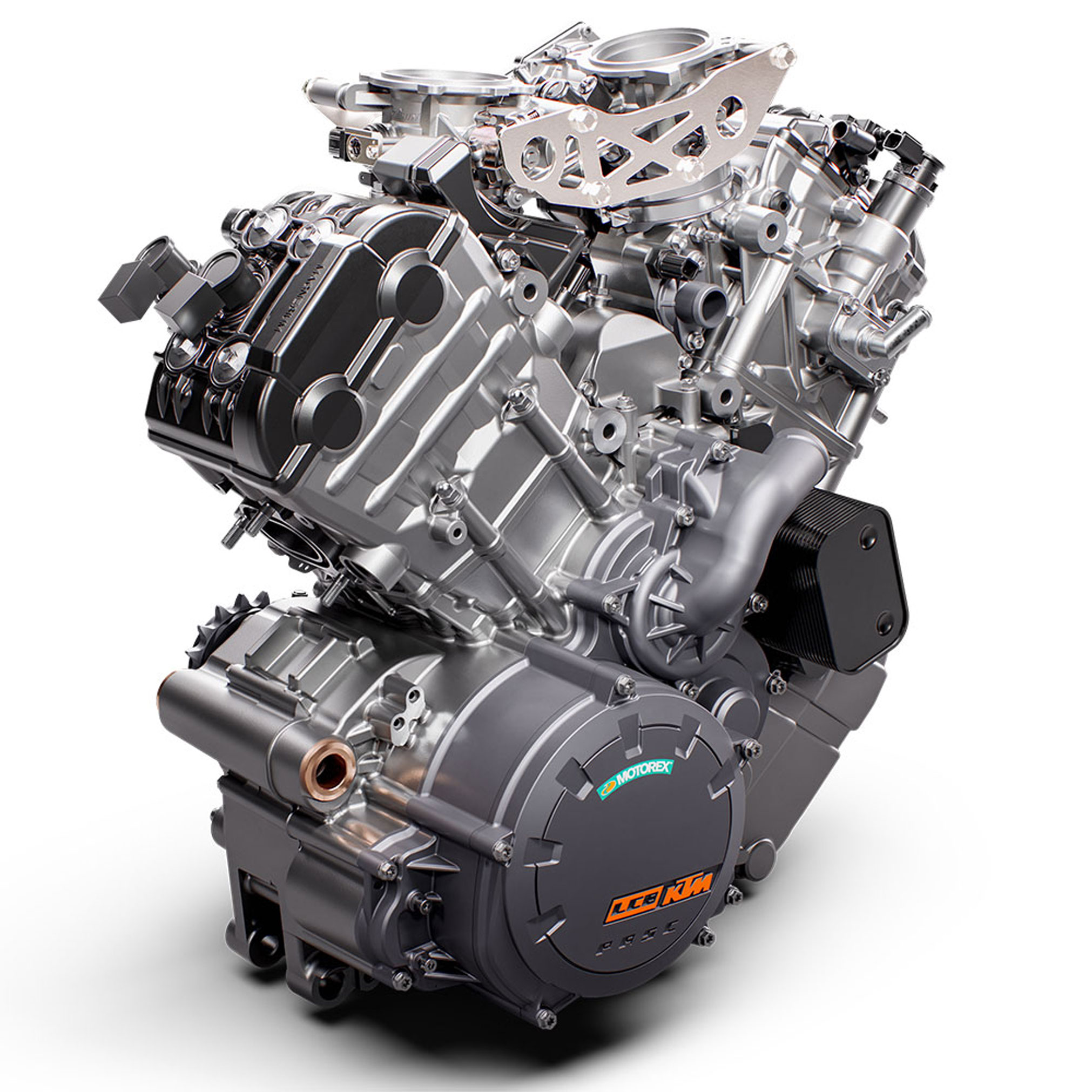

The KTM 1290 SUPER DUKE GT’s BEAST-derived LC8 V-Twin powerplant perfectly fits its sovereign appearance. Now with a EURO5 rating, this 175 hp, 141 Nm lump is as much a superbike slayer as it is a coastal road cruiser. A unique mix of the highest quality components, such as titanium inlet valves, have also combined to create overall reliability and allowing for service intervals of 15,000 km. That’s a lot of touring!

Cylinder head

An absolutely key element in the outstanding performance and smooth response of the 1301 cc 75° V-twin are the unit’s cutting-edge four-valve cylinder heads. These combine twin-plug ignition, flow-optimized ports, lightweight titanium valves and resonator chambers for the smoothest twin in town.

Crankshaft

The responsiveness and free-revving nature of the KTM 1290 SUPER DUKE GT’s engine is thanks to the low reciprocating weight of its crankshaft.

Pistons

We borrowed Formula 1 technology in creating the pistons in the KTM 1290 SUPER DUKE GT. The forged piston structure,results in a high loading capacity, despite the extremely short and lightweight design. Furthermore, the piston skirts have a state-of-the-art, hard-anodized finish. Not only does this reduce friction, it is also particularly hard-wearing with a consequently a positive impact on durability.

Twin ignition

The twin-plug ignition system controls two differently sized spark plugs in each cylinder head independently of each other in such a way that more efficient combustion and a smoother, optimally controlled combustion sequence are achieved at all times. The result: more power, better control, lower fuel consumption and lower emissions.

Ride-by-wire

The ride-by-wire system on the KTM 1290 SUPER DUKE GT goes the extra mile. By electronically translating throttle commands into optimum throttle valve positions for the current riding situation, it processes throttle twist grip movements with the help of electronic sensors and activates the throttle valves accordingly using servo motors. This means smoother throttle response, reducing the chances of low-rev jolting and involuntary wheelies. Voluntary front wheel antics however, could easily be a thing of your future.

Mapping

When you’re traveling two-up, the last thing you want is a jerky throttle. KTM have worked the EFI mapping, in combination with the plain bearing and timing, to transfer low-down power to the road with less vibration and reduced engine noise.

Slipper clutch

Not only does the slipper clutch open when the engine back-torque becomes too high, it also assists when you open up the throttle. The former prevents destabilizing rear wheel chatter when braking sharply or decelerating; the latter reduces the hand force required for changing gear, allowing the clutch to be controlled with one trigger happy finger.

Exhaust

The KTM 1290 SUPER DUKE GT’s exhaust system is made entirely from rustproof stainless steel and is EURO5 homologated. Hundreds of test bench runs and complex simulations ensured that the exhaust system, which is using an exhaust flap, contributes decisively to the extremely smooth torque curve and excellent emission values of the powerful twin-cylinder. And did we mention the sound? While it whispers at low revs, it will take your breath away reaching for the high notes.



Chassis

Frame

The hint is in the name. The KTM 1290 SUPER DUKE GT is built for covering ground quickly and comfortably. Thanks to its refined ergonomics, electronically adjustable suspension and impressive tank range, the KTM 1290 SUPER DUKE GT is the perfect travel companion.

Subframe

Engineered to support a pillion, as well as full-loaded panniers, the subfame on the KTM 1290 SUPER DUKE GT ticks a number of key hyper-touring boxes.

Swingarm

The single-sided swingarm on the KTM 1290 SUPER DUKE GT is not only the lightest in its class, but also meticulously manufactured and generously dimensioned – a reassuring nod to spirited long distance travel.



INTELLIGENT SUSPENSION

Suspension

Innovative WP semi-active suspension serves comfort, safety and adjustability on the KTM 1290 SUPER DUKE GT. This allows the rider to easily adjust suspension settings at the push of a button, with advanced sensor wizardry taking care of the details. Other than the expected “Comfort”, “Street” and “Sport” settings, the rider can also take extra pillion weight into account, with the SCU (Suspension Control Unit) adapting the damping, load and anti-dive rates in real-time. It also monitors rider position, using information provided by a set of stroke sensors and accelerometers to ensure optimal suspension performance in all conditions.

Steering Damper

If you’ve been on the road long enough, you’ll almost definitely come across a rough patch of tarmac. Thanks to a reliable and sensitive WP steering damper fitted as standard to the KTM 1290 SUPER DUKE GT, unpleasant kick-back through the bars is significantly reduced.

Wheels

All new CAD-designed 5 spoke wheels adorn the KTM1290 SUPER DUKE GT, not only looking great, but also saving nearly 1 kg of upsrung weight.

Tires

The KTM 1290 SUPER DUKE GT is equipped with brand new Continental ContiRoadAttack 4 rubber, which have been specifically developed according to KTM requirements. This means the big GT stops, turns, and grips in all road conditions exactly like a Grand Touring motorcycle should.



Brakes

More than adequate deceleration is ensured at the front wheel by the two radially mounted four-piston Monoblock calipers gripping floating 320 mm discs. The spacing between hand brake lever and handlebar is adjustable so that the lever is always within easy reach for every rider. The front brake receives effective support from the disc brake on the rear wheel, which features a 240 mm diameter disc and a two-piston caliper. The enormous potential of the brakes can be exploited to the full thanks to its sportily tuned anti-lock braking system. The ABS even has a supermoto mode, for when you absolutely feel like backing it in while on holiday.

Fuel tank

The 23 liter, long range fuel tank, in combination with the low fuel consumption of the 1290 v-twin engine, easily provides hundreds of kilometers of exciting riding without caring about a fuel station; an important benefit for touring in desolate regions. The fuel tank also protects the rider’s lower body from wind and weather for added comfort mile after mile.



Ergonomics & Comfort

Dashboard

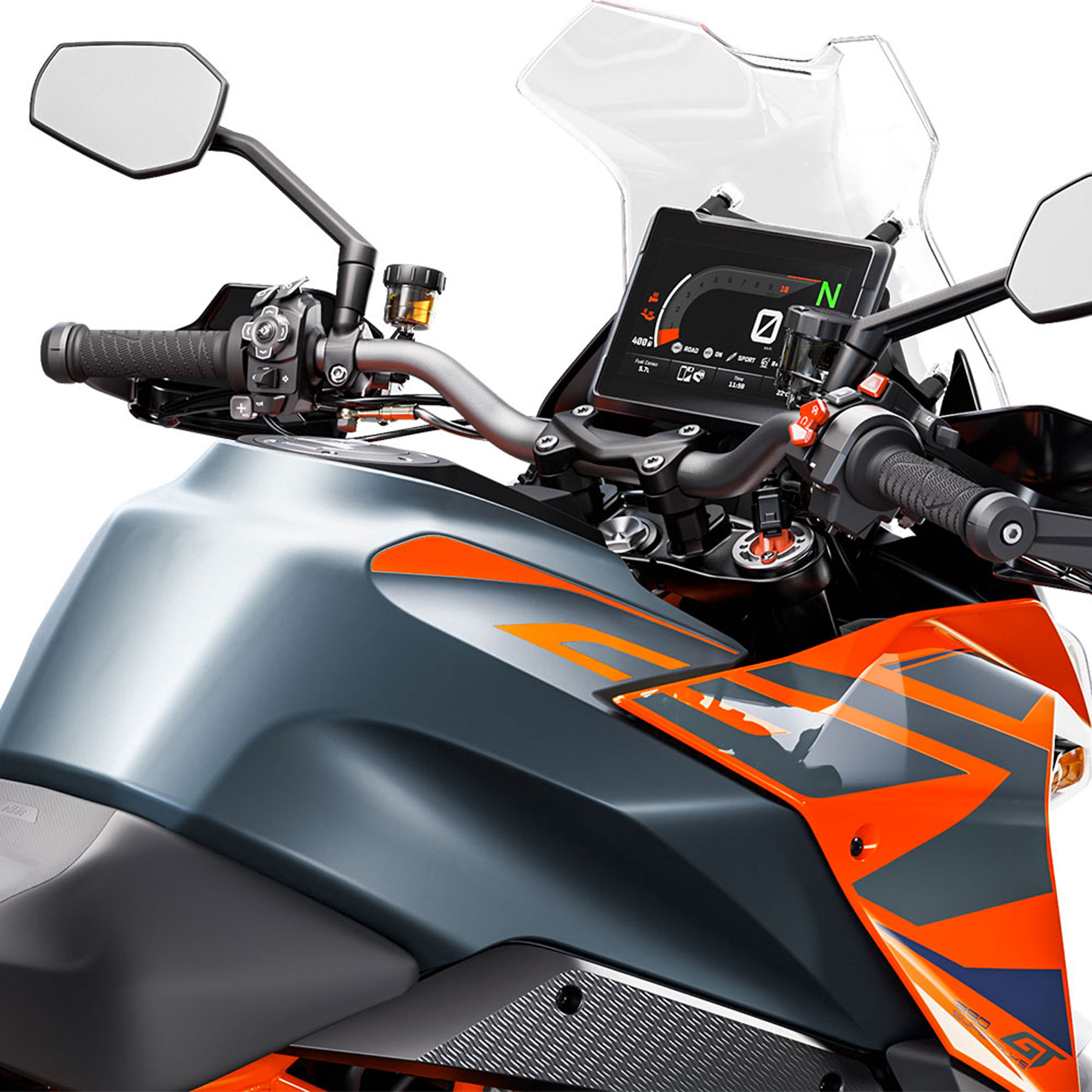

An all-new full color 7” TFT Dashboard lifted from the KTM 1290 SUPER ADVENTURE S takes the KTM 1290 SUPER DUKE GT’s dash into a different realm. Featuring a slew of features, from Turn-by-turn navigation to a dedicated PERFORMANCE MODE, the display layout finds the ultimate balance between information, performance, and style.

Command Centre

Arguably the most important part of the KTM 1290 SUPER DUKE GT, the handlebars give the rider complete control, from small steering inputs to adjusting the suspension and ride modes at a push of a button. Even the handlebars themselves are multi-adjustable, with over 22 mm of movement and four positions. But best yet, the KTM 1290 SUPER DUKE GT comes fitted with heated grips as standard.

Mode switch

All new switchgear means navigating the KTM 1290 SUPER DUKE GT’s impressive TFT functionality is effortless. A great deal of testing and development has gone into the new switch gear on the GT, making it easy for riders to adjust everything from MTC slip settings via the paddles to accessing various menus and widgets.

Heated grips

The KTM 1290 SUPER DUKE GT comes fitted with heated grips. Cosy.



CENTER POINT OF CONTROL

Footpegs

Riders can choose three positions for the brake and shift lever to accommodate a variety of boots sizes, or to simply find their perfect shifting or braking preference.

Windshield

A unique windshield design gives the rider maximum protection from the elements, and reduced wind noise at speed. An improved windscreen adjuster has also been developed, giving riders 9 positions of adjustability, while keeping one hand on the throttle.



Bodywork & Graphics

Bodywork

Don’t be fooled – there is a BEAST hiding under all those touring parts. Build for comfort, speed, and long-distance travel, the GT is 100% true to its namesake – finished in exclusive GT-only graphics and paint package.

LED cornering lights

The KTM 1290 SUPER DUKE GT has cornering lights integrated into its fuel tank. These consist of three LED segments, using the lean angle sensor of the MSC system as a trigger. Depending on the lean angle, the KTM cornering light can use up to all three segments, always giving the rider the perfect view to where he/she is going. Integrated in the cornering lights are also LED indicators, which give the KTM 1290 SUPER DUKE GT a unique and exclusive look.

Integrated pannier mounting

Hard case panniers are offered as KTM PowerParts can be easily fitted to the integrated mounting system of the motorcycle, while keeping the sporty look and unique style of the motorcycle. Remove the panniers in an instant, and instantly be badass.



Software & Electronics

FOR SAFER TOURING

Rider aids

A slew of advanced electronics are fitted to the KTM 1290 SUPER DUKE GT, which enable the rider to explore the GT’s full potential.

MTC (Motorcycle Traction Control)

The MTC (Motorcycle Traction Control) lean-angle sensitive traction control system reacts immediately if the rotational speed of the rear wheel is disproportionate to the riding situation. In a matter of milliseconds, MTC reduces the engine output with an extremely smooth, barely perceptible intervention at the throttle valves, until the system has reduced slippage to optimum proportions for the selected ride mode and current angle of lean. Depending on the selected riding mode, MTC traction control allows different levels of traction slip at the rear wheel. In “Street mode” somewhat more than in “Rain mode”, while slight power slides are allowed when exiting curves in “Sport mode”. All this means that the rider can concentrate on the run of the road and other road users – the guarantee for maximum performance and ultimate riding pleasure, but also a decisive contribution to active safety. For particularly ambitious riders, who feel like enjoying the breathtaking propulsion of the KTM 1290 SUPER DUKE GT without any electronic assistance, the traction control can also be switched off.

MSC (Motorcycle Stability Control) with C-ABS

The ultimate in safe deceleration. One component of the comprehensive BOSCH MSC assistance package is the lean-angle sensitive cornering ABS. Based on the high-quality 9ME modulator, it unites the talents of combined front and rear wheel braking and lightning-quick, efficient pressure modulation with the high quality BREMBO hardware to make the most advanced braking system on the market – no-one brakes more progressively or safely, even at extreme lean angles.

Performance Mode

The optional Performance Mode transforms the KTM 1290 SUPER DUKE GT from a beastly tourer to an all-out apex slaying missile by allowing riders to tailor the level of intervention from the traction control and throttle response, turn off anti-wheelie and dial in launch control.

Supermoto Mode

The GT is still part of the DUKE family. With that in mind, we have carried over “Supermoto mode” to allow keen riders to lock the rear wheel with ABS staying active on the front wheel – a prerequisite for committed cornering with the rear wheel screeching in delight.

Motor Slip Regulation (MSR)

The optionally available MSR (Motor Slip Regulation) works in the opposite direction of the MTC. If, due to quick downshifts or abrupt throttle chopping, the engine drag torque is too high, the ride by wire opens the throttle exactly as much as is needed to prevent the rear wheel from drifting. Safety first, but pleasure that comes with it is always a very close second at KTM.

LED Cornering Lights

The KTM 1290 SUPER DUKE GT has LED cornering lights integrated into its fuel tank. On the left and right side of the fuel tank, the cornering lights consist of three LED segments, using the lean angle sensor of the MSC system. Depending on the lean angle, the KTM cornering light can use up to all three segments, always giving the rider the perfect view of where he is going. Integrated in the cornering lights are the LED indicators, for a unique and exclusive look. Well deserved in a bike like this.

Hill hold control (HHC)

The optional HHC (Hill Hold Control) prevents the motorcycle from accidentally rolling backwards. It identifies if the 1290 Super Duke GT is on a slope and at a standstill. After the rider has released the brake, the function automatically keeps the brakes applied until the bike is moving forward. The rider can then start off without rolling backward, ensuring a smooth start.

TPMS (Tire Pressure Monitoring System)

As its name implies, the TPMS monitors tire pressure, and gives you a view of current pressures in the TFT display. In the event of sudden loss of pressure, for example due to tire damage, a warning will alert the rider on the dash.

Quickshifter+

The KTM 1290 SUPER DUKE GT is equipped with optional race-derived Quickshifter+ with allows for up and down shifts without using the clutch. It reads and responds to your riding, so the shift action is as fast as you are.

Cruise control

Long motorway journeys are made even easier with the KTM 1290 SUPER DUKE GT’s standard cruise control. Switches on the left side of the handlebar and a display in the TFT dashboard allow the rider to intuitively set and change the requested speed, so you’ll arrive at the fun bits with energy to spare.

TURN-BY-TURN Plus

You asked for it – here it is. For the first time in KTM history, the 1290 SUPER DUKE GT will offer improved interaction with navigation directly via the TFT dash. TBT+ will allow riders GPS access while on the fly, allowing up to 5 favorited destinations, keep track of the last 5 set destinations, and even skip a waypoint on your planned route.

ATIR (Automatic Turn Indicator Reset)

After 10 seconds of movement and 150 meters of riding distance, the turn indicator will stop automatically. If pressed again during longer waits at an intersection, it counts from zero again. A big improvement in terms of safety, as it is now impossible to forget to reset the indicators.









2022 KTM 1290 Super Duke GT – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $ See Dealer USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £ See Dealer (On The Road inc 20% Vat)

ENGINE
TORQUE 141 Nm
TRANSMISSION 6-speed
COOLING Liquid cooled
POWER IN KW 128.7 kW
STARTER Electric starter
STROKE 71 mm
BORE 108 mm
CLUTCH PASC (TM) slipper clutch, hydraulically actuated
CO2 EMISSIONS 133 g/km
DISPLACEMENT 1301 cm³
EMS Keihin EMS with RBW and cruise control, double ignition
DESIGN 2-cylinder, 4-stroke, V 75°
FUEL CONSUMPTION 5.7 l/100 km
LUBRICATION Forced oil lubrication with 3 oil pumps
CHASSIS
TANK CAPACITY (APPROX.) 23 l
ABS Bosch 9ME Combined ABS (incl. cornering ABS and supermoto mode, disengageable)
FRONT BRAKE DISC DIAMETER 320 mm
REAR BRAKE DISC DIAMETER 240 mm
FRONT BRAKE Brembo four-piston radial fixed calliper, brake disc
REAR BRAKE Brembo twin-piston fixed calliper, brake disc
CHAIN 525 X-Ring
FRAME DESIGN Chrome-moly tubular space frame, powder-coated
FRONT SUSPENSION WP Semi-active suspension USD Ø 48 mm
GROUND CLEARANCE 141 mm
REAR SUSPENSION WP SAT (semi-active technology) shock absorber
SEAT HEIGHT 835 mm
STEERING HEAD ANGLE 65.1 °
SUSPENSION TRAVEL (FRONT) 125 mm
SUSPENSION TRAVEL (REAR) 156 mm



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
