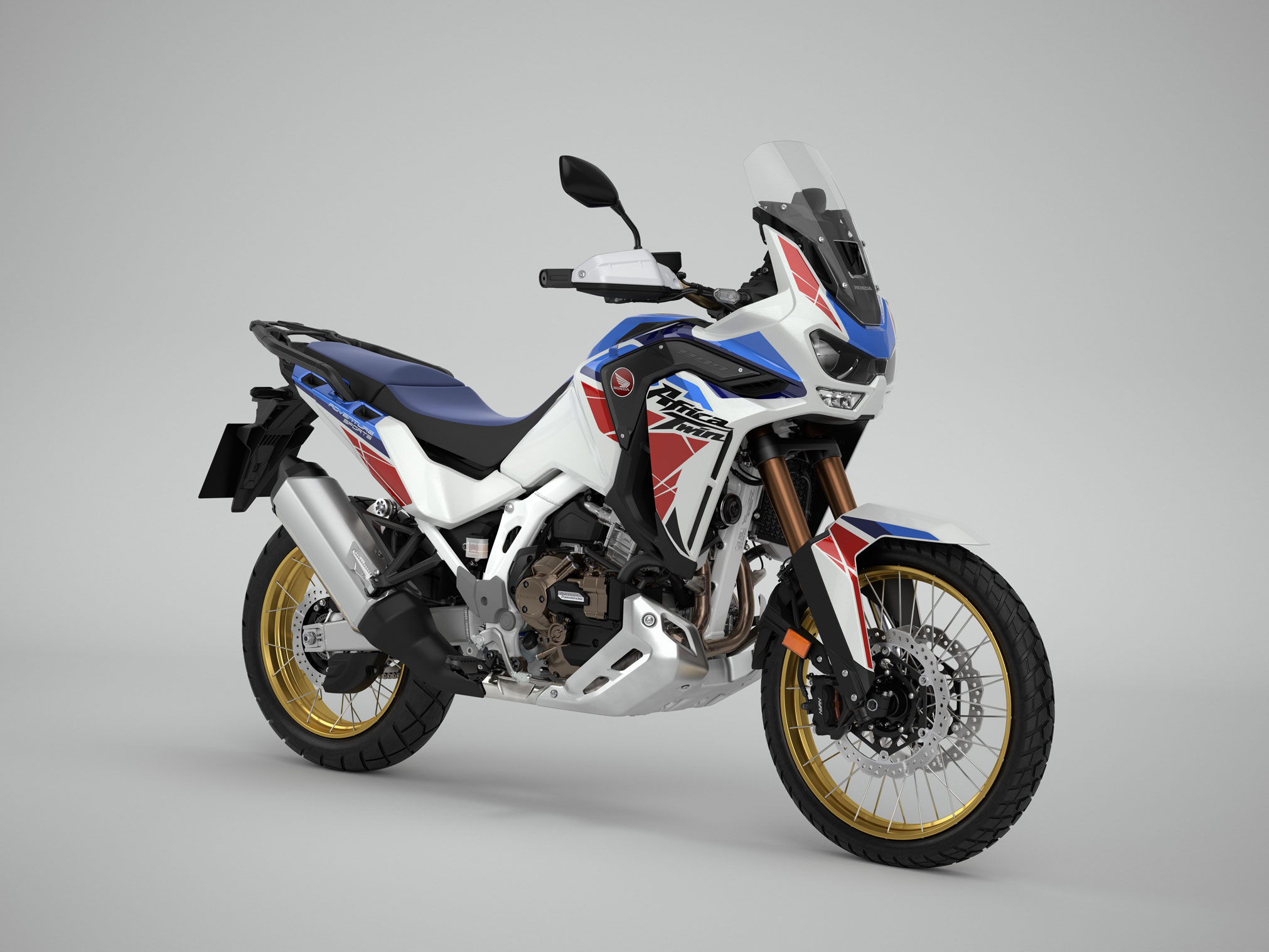

2022 Honda Africa Twin Adventure Sports Guide

2022 Honda Africa Twin Adventure Sports: TRUE MODERN DAY ALL-ROUNDER.

Introducing the 2022 Honda Africa Twin Adventure Sports…

Start with the amazing abilities of the Africa Twin. Add a long-range fuel tank and the comfort to go with it, the choice of Showa EERA™ suspension and six-speed DCT plus new, improved, shorter screen and vibrant Cracked Terrain paint options – inspired by the original Africa Twin – and you have the Africa Twin Adventure Sports. The ultimate bike for the long haul.

It’s been over three decades since the Honda XRV650 Africa Twin first rolled into Europe and while the motorcycle that now bears its name – launched in 2016 as the CRF1000L Africa Twin – was a brand-new motorcycle from the wheels up, it fully inherited the essence and spirit of what made the original so popular.

It was the balance between power and weight that was at the heart of the original bike’s appeal, just as it was for the new model. With its unique, athletic appearance, an enjoyable, usable engine and capable, comfortable chassis, the CRF1000L Africa Twin proved itself a true modern-day all-rounder and has been hugely popular with round-the-world adventurers, around-town commuters and weekend tourers alike.

2018 saw the Africa Twin, in both manual transmission and Dual Clutch Transmission (DCT) form, receive Throttle By Wire (TBW) control plus 4 riding modes, expanded Honda Selectable Torque Control (HSTC) options, as well as intake and exhaust development for improved engine response and sound. The platform also expanded: the Africa Twin Adventure Sports – with the same updates but featuring improved wind protection, greater tank range and longer-travel suspension – extended the machine even further into long-range off-road territory.

For 2022, the introduction of a bigger capacity, longer stroke 1084cc engine marked another landmark in the evolution of the Africa Twin. The CRF1100L Africa Twin* itself was comprehensively redrawn with an aggressive, compact rally style and even sharper off-road focus. Meanwhile, the touring comfort, technology and ability of the CRF1100L Africa Twin Adventure Sports were also further enhanced – including the option of the cutting-edge Showa Electronically Equipped Ride Adjustment (Showa EERA^™) suspension.

The CRF1100L Africa Twin Adventure Sports shares the frame, engine and riding position of the off-road focussed CRF1100L Africa Twin, but has a role very much of its own: to offer riders real continent-crossing long-haul ability and practicality both on and off-road. This comes in the shape of a large 24.8L fuel tank, extensive wind protection (from both the fairing and fairing side panels), height-adjustable screen, large engine sump guard, aluminium rear carrier plus tubeless wheels and tyres. ACC charger and heated grips are also standard fit.

The 2022 change made it smaller, slimmer, lower and 5kg lighter than the previous 998cc model, and offered stronger performance with changes to the engine that produced 7% more peak power, 6% more peak torque and much greater strength everywhere in the rev-range. It was also Honda’s first EURO5 compliant engine. The frame too was completely revised and featured a new bolt-on aluminium subframe. The aluminium swingarm was based on that of the CRF450R moto-crosser.

At the centre of the Africa Twin Adventure Sports, a six-axis Inertial Measurement Unit (IMU) controls not only the 7-level HSTC but also 3-level Wheelie Control, Cornering ABS (with off-road setting), Rear Lift Control and DCT cornering detection. There are four default riding modes: URBAN, TOUR, GRAVEL and OFF-ROAD.

For optimum suspension damping front and rear the Africa Twin Adventure Sports is also available with Showa EERA™ as an option. Four default modes – SOFT, MID, HARD and OFF-ROAD – cover every type of riding situation, and there’s a USER mode for further fine-tuning. Rear spring preload can also be adjusted while stationary.

Tailored for complete control, the riding position features a slim-section seat and high-set handlebars. Dual LED Daytime Running Lights (DRL) feature three-stage Cornering Lights – that automatically adjust the field of illumination depending on the lean angle, giving optimum visibility, improving safety. Cruise control and heated grips are standard-fit. A full colour Multi Information Display (MID) 6.5-inch TFT touch screen brings immersive engagement with the machine’s systems, plus Apple CarPlay® and Bluetooth connectivity, with Android Auto® functionality introduced in early 2021.

For 2022, the CRF1100L Africa Twin Adventure Sport now features refined Dual Clutch Transmission (DCT) settings for even smoother handling in 1st and 2nd gears, a new shorter adjustable screen, and striking new ‘Cracked Terrain’ graphics.

Updates for the 2022 year model of the continent-crossing ‘Adventure Sports’ version of Honda’s definitive full-sized adventurer include a shorter adjustable screen, striking new ‘Cracked Terrain’ graphics and updated DCT settings.

The fundamentals of the enduringly popular package remain: a lightweight chassis and torque-heavy 1084cc engine; a full electronics package using a six-axis Inertial Measurement Unit to manage riding modes and HSTC as well as Cornering ABS, Wheelie Control, Rear Lift Control, plus cornering detection functionality on the DCT version; standard fit cruise control, heated grips, USB port and ACC charger; a full colour 6.5-inch TFT touchscreen that incorporates Apple CarPlay®, Android Auto® and Bluetooth connectivity; dual LED headlights that feature Daytime Running Lights (DRL) technology and Cornering Lights; the option of Showa Electronically Equipped Ride Adjustment (Showa EERA™). And unmistakeable Africa Twin design and styling.

2022 Honda Africa Twin Adventure Sports Totalmotorcycle.com Key Features

Protective bodywork with a *new* shorter height-adjustable screen
*New* ‘Cracked Terrain’ graphics
8L fuel tank, aluminium insert panels, rear rack and engine bash plate
Daytime Running Lights (DRL) with Cornering Lights
Cruise control, heated grips and ACC charger
Multi Information Display (MID) 6.5-inch TFT touch screen
Apple CarPlay®and Android Auto® allow use of a smartphone through the MID

1,084cc engine gives 75kW peak power and 105Nm peak torque
In addition to extra capacity, the 20YM updates included a new cylinder head, valve timing and lift, throttle body and exhaust
The variable Exhaust Control Valve (ECV) offers an engaging low-rpm sound and high-rpm performance
IMU-managed HSTC intervention levels have focus on off-road use
Wheelie Control features 3 levels and IMU management
Four riding modes: TOUR, URBAN, GRAVEL and OFF-ROAD
Two USER modes allow for complete riding modes customisation

‘Easy and direct’ system offers super-fast gear changes in either Manual Transmission (MT) or Automatic D and S modes
S mode (with 3 levels) revs higher and downshifts sooner than D, for more aggressive riding
G switch improves rear wheel traction when off-road
Incline detection adapts shift pattern depending on gradient
IMU allows corning detection function for improved shift timings
For 2022, revised timings allow smoother handling at pull-away and in lower gears

Light frame, with bolt-on aluminium subframe and light rigid CRF450R-style swingarm for outstanding rear wheel traction and feel
A six-axis Inertial Measurement Unit is housed in the centre of the machine
Cornering ABS provides sure-footed feel and features an off-road setting

Honda’s iconic Africa Twin and Africa Twin Adventure Sport receive striking new looks and updates for 2022.

CRF1100L Africa Twin features an aluminum rear carrier as standard
New lower 5-way adjustable screen on the CRF1100L Africa Twin Adventure Sports improves visibility
Striking new look with new ‘Big Logo’ and new ‘Cracked Terrain’ graphics on the Africa Twin and Africa Twin Adventure Sports respectively

Over three decades after first rolling into Europe, the Honda Africa Twin is a name that is still synonymous with history and adventure. For 2022 the CRF1100L Africa Twin and its continent- crossing sibling, the CRF1100L Africa Twin Adventure Sports, both feature new practical upgrades, refined Dual Clutch Transmission (DCT) settings and striking new looks.

For 2022 both the Africa Twin and Africa Twin Adventure Sports receive updates to further increase their daily practicality. The CRF1100L Africa Twin now features an aluminum rear carrier as standard, and the CRF1100L Africa Twin Adventure Sports benefits from a new 110mm lower 5-stage adjustable screen that improves visibility and doesn’t compromise on weather protection.

Both DCT versions of the Africa Twin and Africa Twin Adventure Sports are updated for 2022, with new refined settings to deliver even smoother handling in the first two gears from a standing start and at low speeds. Honda have sold over 200,000 DCT equipped motorcycles across Europe since the system was first introduced on the VFR1200F in 2009, a testament to its broad appeal and acceptance in the marketplace.

To complete the 2022 upgrades, both models receive striking new colour and graphic updates. The CRF1100L Africa Twin Adventure Sports features new ‘Cracked Terrain’ graphics and the CRF1100L Africa Twin now features a new ‘Big Logo’ design with revised colour schemes that feature all-new black aluminum side covers and a bold red rear subframe.

2022 Honda Africa Twin Adventure Sports Totalmotorcycle.com Features and Benefits

TRUE ADVENTURE NEVER ENDS
Start with the amazing abilities of the Africa Twin. Add a long-range fuel tank and the comfort to go with it, the choice of Showa EERA™ suspension and six-speed DCT plus new, improved, shorter screen and vibrant Cracked Terrain paint options – inspired by the original Africa Twin – and you have the Africa Twin Adventure Sports. The ultimate bike for the long haul.

Honda Africa Twin Adventure Sports
Powerful 1100CC Engine
The twin-cylinder engine delivers instant response when you need it, four riding modes tailor output to conditions and there’s the option of six-speed Dual Clutch Transmission (DCT).

Honda Africa Twin Adventure Sports
Smartphhone Connectivity
Keep in touch with the world while exploring it, listen to music or use your device’s navigation apps through Apple CarPlay®, Android Auto® Bluetooth® connectivity and helmet headset.

Honda Africa Twin Adventure Sports
DRL and Cornering Lights
Safety is always important, to you and your passenger. Daytime Running Lights emit piercing visibility marking your road position to other users. Cornering Lights use speed and lean angle to automatically fill in blind spots through a turn.

Honda Africa Twin Adventure Sports
Real Adventure Sports Ability
Ready to go long? A 24.8L fuel tank delivers extended fuel range and, for those huge horizon-to-horizon days, cruise control, heated grips and ACC/USB charging sockets all make a big difference.

Honda Africa Twin Adventure Sports
Showa Electronically Equipped Ride Adjustment
Wherever your adventure leads, on any terrain, for perfect suspension reaction optional Showa Electronically Equipped Ride Adjustment manages damping force relative to riding mode selection.

Honda Africa Twin Adventure Sports

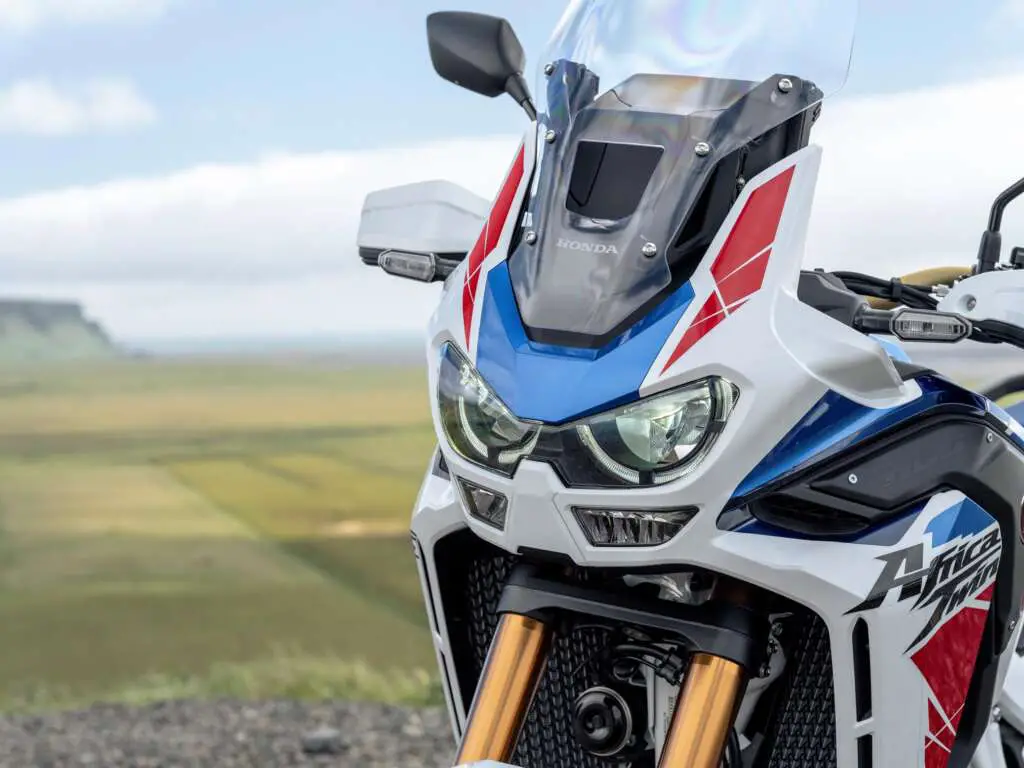

Revised Windscreen
We’ve made the 5-way adjustable screen shorter, opening up visibility, but have ensured it offers the same aerodynamic efficiency and wind deflection as before.

A WHOLE WORLD TO RIDE
Travel moves you. Changes you. New places. People. Experiences. A lifetime of memories. Every journey starts with a feeling of anticipation of what’s to come and ends with a tinge of nostalgia, an innate desire to start planning all over. With its long-range ability and all-round capability, the Africa Twin Adventure Sports opens up a whole world to ride. And will move you like nothing else.

Ready to Go Long
Where to next? That’s up to you. 24.8L of fuel gives a potential range of over 500km. Great when you’re not sure where the next petrol station is. The new 5-way adjustable windscreen is shorter, opening up the view forward but carefully angled so that along with the upper fairing offers the same excellent protection. And because who knows what the weather will be like tomorrow – or around the next corner – heated grips take the cold out.

HONDA MOTORCYCLES EXPERIENCE
Make your favourite Honda your own through the Honda Motorcycles Europe app. It’s easy. Choose the bike you want and select a colour. Then, see how it looks sat in your garage through the AR feature. There’s an Integrated Accessories Catalogue, so you can add the parts you want. And the Honda Motorcycles Europe YouTube channel is now part of the app, with a gallery of videos to enjoy.

HONDA ADVENTURE ROADS 2022
11 days. 30 riders. The Africa Twin Adventure Sports. Iceland. Are you ready to ride some of the most challenging terrain – with the most beautiful scenery – in the whole of Europe? It’s all there, waiting. It’ll be an experience of a lifetime.

Honda Africa Twin Adventure Sports low and high seat
Low and High Seat Options
As standard you can set seat height at either 850 or 870mm. But everybody’s different, so there are two colour-matched seat options available; the 25mm lower 825-845mm low seat, and the 25mm taller 875-895mm high seat.

Honda Africa Twin Adventure Sports aluminium top box
42L Aluminium Top Box
Built tough for the rigours of extended travel, the 42L lightweight aluminium top box can store one full-face helmet with a maximum load of 6kg. It mounts directly to the rear rack, comes complete with pillion back rest and Honda one-key system.

Honda Africa Twin Adventure Sports aluminium panniers
Aluminium Panniers
Offer 33L right, 37L left carrying capacity with a maximum load of 10kg each. Overall width when fitted is less than 100cm; the Honda one-key system ensures convenient access with the ignition key, and waterproof inner bags are also available.

Honda Africa Twin Adventure Sports tank bag
4.5L Tank Bag
A compact size means this tank bag does not get in the way when riding off-road. It features a window pocket for a map, is waterproof and fits both the Africa Twin and Africa Twin Adventure Sports with a one-touch buckle and magnets. Maximum load is 1.5kg.

Honda Africa Twin Adventure Sports Front Side pipes
Front Side Pipes
Finished with a durable electrolytic polishing process for corrosion resistance and easy cleaning. Elevates adventure style while providing valuable protection for engine and fairing. Also mounting point for LED fog lights.

Honda Africa Twin Adventure Sports LED fog lights
LED Fog Lights
The dual LED fog lights improve visibility and mount on the front side pipes (available separately). They emit bright white light with intensity adjustable via a switch on the handlebar. Activation is displayed on the TFT touchscreen.

Styling & Equipment

Designed for the long-haul, the Africa Twin Adventure Sports has an extensive front fairing that for 2022 features a new 110mm shorter 5-level adjustable screen, improving visibility but still offering plenty of wind and weather protection. Sharing the 850-870mm seat height of the Africa Twin, the 1182mm handlebars give an upright, high-visibility riding position and comfortable control, whether standing or seated.

The tail section is extremely slim and the narrow seat is carefully contoured to allow easy back and forth movement as well as good ground reach. Holding 24.8L, the fuel tank offers a potential range of over 500km, thanks to fuel economy of 4.9L/100km (20.4km/L) MT and 4.8L/100km (20.8km/L) DCT (WMTC mode). A large engine sump guard and aluminium rear carrier are included in the specification.

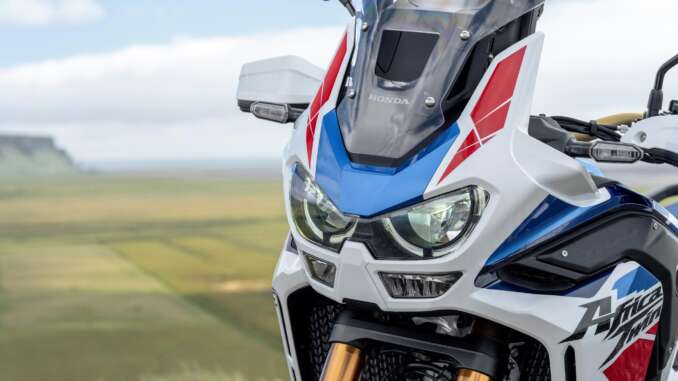

Dual LED headlights are set high, delivering a penetrating beam and also feature Daytime Running Lights (DRL) that automatically adjust to ambient light intensity, improving safety, no matter the conditions. For additional security, the CRF1100L Africa Twin Adventure Sports features three-stage right/left Cornering Lights that use speed and lean angle (controlled by the IMU) to automatically adjust the area illuminated when cornering.

Large knuckle guards are standard.

The full colour Multi Information Display (MID) 6.5-inch TFT touch screen keeps the rider in control of all of the Africa Twin’s systems, with each of the riding modes selectable through the top left of the screen. The MID can also be customised to show various levels of information relative to the riding mode chosen and is easy to use even when wearing gloves.

It also incorporates Apple CarPlay® and Android Auto®, allowing use of a smartphone through the touchscreen. Navigation apps can also be accessed and displayed and via a Bluetooth helmet headset calls can be made or received. The smartphone itself plugs into a USB charging port on the right of the MID. Hands-free wireless Bluetooth connectivity is also an option and all control inputs are made from the left-hand switchgear.

The front and rear indicators have an Emergency Stop Signal function. When braking suddenly over 50kph the hazard lights flash to warn other road users a hard stop is in process. The indicators include an auto-cancel function; rather than using a simple timer, the system compares front and rear wheel speed difference and calculates when to cancel the indication relative to the situation. The auto-cancel feature can be switched off using the MID. Standard-fit cruise control eases long-distance highway travel.

The CRF1100L Africa Twin ‘Adventure Sports’ will be available in the following colours:

Pearl Glare White Tricolour

Matte Ballistic Black Metallic

New for 2022 is the new ‘Cracked Terrain’ design and revised colour schemes which now feature new all-black aluminium side covers and aluminium rear carrier.

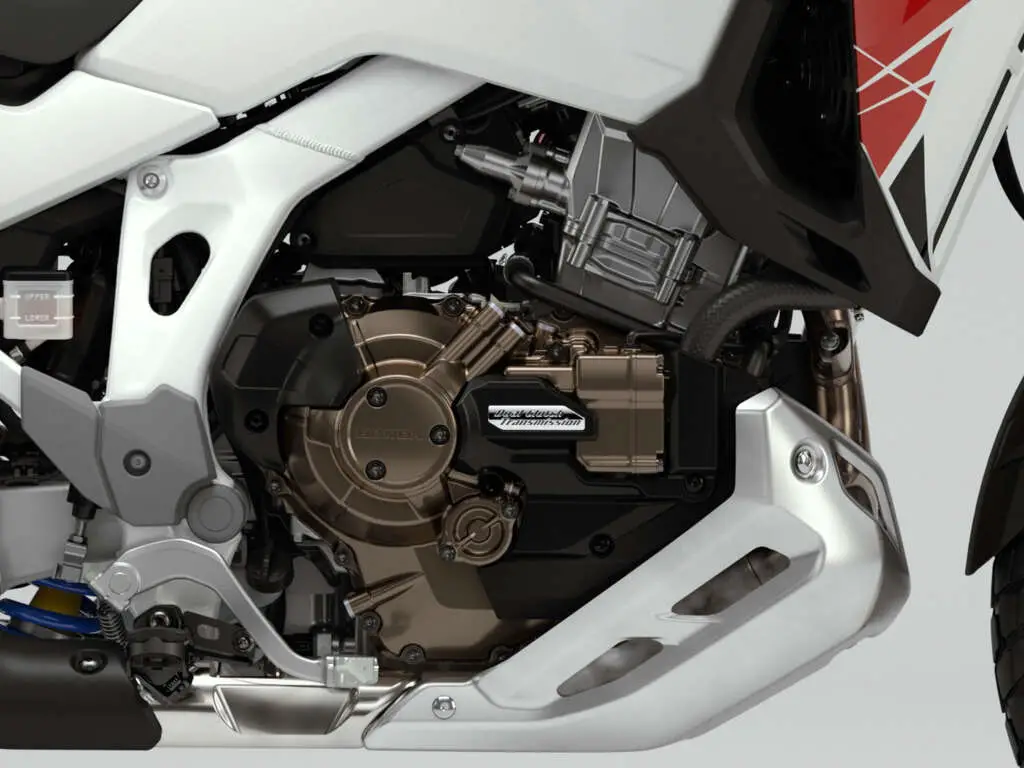

Engine

The SOHC 8-valve parallel-twin engine’s essential architecture remained unchanged for the 20YM update, but displacement increased to 1,084cc, up from 998cc. As a result, peak power increased from 70kW to 75kW @ 7,500rpm and peak torque from 99Nm to 105Nm @ 6,250rpm. Significantly, the obvious increase in both power and torque made itself felt from 2,500rpm all the way through to the redline.

To create the larger capacity, bore remained at 92mm but stroke was lengthened to 81.5mm (from 75.1mm) with a compression ratio of 10.1:1. Aluminium cylinder sleeves saved weight. Thanks to other detailed weight savings in the transmission and elsewhere, the manual transmission version of the 1084cc engine shaved 2.5kg from the previous 998cc power unit, and the DCT version 2.2kg. The cylinder head was also completely revised, and new 46mm throttle bodies introduced. The bore and cylinder pitches were aligned to create a smooth air intake profile, the ECU setting updated and injector angle modified to deliver a more direct spray into re-shaped twin-spark combustion chambers.

Other changes included optimised valve timing and increased inlet (from 9.2 to 10.1mm) and exhaust (from 8.6 to 9.3mm). To match and deal with the uprated intake efficiency and gas flow, the exhaust end-can featured a new variable Exhaust Control Valve (ECV) very similar to the unit fitted to the Fireblade. It offers enhanced engine performance and efficiency as it opens at higher rpm and gives a pleasing exhaust note ‘pulse’ at lower rpm.

The engine’s fundamentals remained unchanged. Honda’s SOHC Unicam valve train is a feature of the MX competition-specification CRF450R and the low-set position of the cast camshaft contributes to the compact nature of the cylinder head and entire engine package.

The 270° phased crankshaft and uneven firing interval create its distinctive ‘throb’.

The crankcases are split vertically; the water pump is housed efficiently within the clutch casing with a thermostat integrated into the cylinder head. Manual and DCT versions of the engine share common crankcases with only minor external differences; the water and oil pumps are both driven by the engine’s balancer shafts.

It’s a semi-dry sump design with in-tank lower crankcase oil storage. This allows a lower pan depth that keeps overall engine height low. As the pressure-fed pump is located within the tank where it delivers its oil from, there is no need for a pressure-feed passage. Secondary vibrations are neutralised by the mutually reciprocating motion of the pistons, while primary inertial and coupling vibrations are cancelled by the use of biaxial balance shafts.

The aluminium clutch centre and pressure plate use ‘assist’ cams to ease upshifts and ‘slipper’ cams for deceleration and downshifting; for 20YM the clutch diameter was reduced in size compared to the previous design, and spring tension reduced for lighter lever feel. The six-speed manual gearbox uses the same shift-cam design as found on the CRF450R to ensure positive changes. For 2022, improved settings for the optional Quickshifter offer even smoother changes in the lower gears.

Engine & Chassis Management Electronics

The Africa Twin Adventure Sports engine received the benefits of Throttle By Wire (TBW) control in 2018, allowing much finer management of engine output and character as well as expanded Honda Selectable Torque Control (HSTC) for rear tyre grip; for 2020 the system evolved to work in conjunction with a six-axis IMU*.

The electronics system offers 4 levels of power and 3 levels of engine braking. There are seven levels of HSTC with each level’s amount of intervention being optimised to work with real-time input (yaw/roll angle and rate) from the IMU. The spacing of the levels has been optimised to allowing the rider a finer choice of the amount of rear tyre slide for off-road riding. HSTC can also be turned off completely.

Wheelie Control is another feature that was introduced in 2020. Again, with the IMU measuring pitch angle and rate, and controlling engine torque via TBW, the rider can choose between 3 levels of input. Level 1 allows for intended wheel lift but suppresses any sudden movement. Level 3 stops any front wheel elevation and level 2 is mid-way between the two. Wheelie Control can also be turned off completely.

There are four default riding mode settings: TOUR, URBAN, GRAVEL and OFF-ROAD to cover most riding conditions and situations, plus two customisable USER settings. Even within the default riding modes, it’s possible to change some parameters – HSTC between levels 1-7 (plus off), Wheelie Control between levels 1-3 (plus off) and DCT S mode shift pattern levels 1-3.

TOUR employs the highest level of Power (1), for touring loaded with pillion and luggage plus mid-range Engine Braking (2) with active on-road Cornering ABS.

URBAN suits wide-ranging riding requirements and uses mid-level Power (2) and Engine Braking (2) with active on-road Cornering ABS.

GRAVEL delivers the lowest level of Power (4) and Engine Braking (3). Cornering ABS is active with an off-road setting; in this setting, the rear brake ABS cannot be switched off.

OFF-ROAD uses lower-mid level Power (3) and the lowest amount of Engine Braking (3). Cornering ABS is active with an off-road setting; the rear brake ABS can be switched off.

USER 1 & 2 modes offer the rider a choice of two distinct personalized setups – choosing between Power levels 1-4 and Engine Braking 1-3, plus HSTC, Wheelie Control and ABS (on-road/off-road) parameters. USER 1 starts out with level 2 Power and Engine Braking, USER 2 uses level 4 Power and 3 Engine Braking.

Dual Clutch Transmission

Honda has sold over 200,000 DCT-equipped motorcycles across Europe since the system first appeared as an option on the VFR1200F in 2009. Testament to its acceptance in the marketplace, in 2020 DCT versions of the Africa Twin (including Adventure Sports version) accounted for 47% of the model’s sales.

The unique DCT system delivers consistent, super-fast seamless gear changes, and very quickly becomes second nature in use. It uses two clutches: one for start-up and 1^st, 3^rd and 5^th gears: the other for 2^nd, 4^th and 6^th, with the mainshaft for each clutch located inside the other for compact packaging.

Each clutch is independently controlled by its own electro-hydraulic circuit. When a gear change occurs, the system pre-selects the target gear using the clutch not currently in use. The first clutch is then electronically disengaged as, simultaneously, the second clutch engages.

The result is a consistent, fast and seamless gear change. Furthermore, as the twin clutches transfer drive from one gear to the next with minimal interruption of the drive to the rear wheel, any gear change shock and pitching of the machine is minimised, making the change feel direct as well as smooth.

The extra benefits of durability (as the gears cannot be damaged by missing a gear), impossibility of stalling, low stress urban riding, reduced rider fatigue and greater ability to focus on cornering lines and braking points add to DCT’s appeal.

Three modes of operation are available. MT mode gives full manual control, allowing the rider to shift with the handlebar trigger control buttons. Automatic D mode is ideal for city and highway riding, and achieves optimum fuel efficiency. Automatic S mode offers three levels of sportier riding, as the ECU lets the engine rev a little higher before shifting up, and shifts down sooner when decelerating for extra engine braking.

In either D or S mode, DCT offers immediate manual intervention if required – the rider simply selects the required gear using the up and down shift triggers on the left handlebar. At an appropriate time, DCT seamlessly reverts back to automatic mode, depending on throttle angle, vehicle speed and gear position.

DCT for the Africa Twin is also fully equipped to operate in an adventure environment, with off-road functionality enhanced by the G switch accessed via the TFT touch screen display. Activating the G switch in any riding mode improves the feel for available traction and machine control by reducing the amount of clutch slip during gear changes.

Further functionality for the DCT system comes in the form of incline detection, by means of which the gear shift pattern is adapted depending on the grade of an incline to provide optimum control.

A new feature for the CRF1100L Africa Twin’s DCT system for the change to the 1084cc model for 2020 was cornering detection. When the IMU recognises the bike is cornering, the system subtly adjusts the shifting programme for the most natural gear changes.

For 2022, the DCT settings have been further optimised in first and second gears to allow smoother handling from a standing start and at very low speeds.

Chassis

At the very heart of the Africa Twin Adventure Sports’ elevated on and off-road performance is a Bosch MM7.10 six-axis Inertial Measurement Unit (IMU) tucked away at the centre of the machine, that measures – in real-time – roll angle/rate, pitch angle/rate and yaw angle/rate. It manages rear wheel traction via TBW and HSTC, front braking grip through Cornering ABS, front wheel lift through Wheelie Control and also adds Rear Lift Control.

In conjunction with the addition of IMU control, for its 2020 evolution the strength and rigidity balance of the steel semi-double cradle frame was completely re-examined by Honda’s development engineers reinforcing its all-round on-road manners and boost off-road ability. Rigidity around the steering head was optimised to enhance feel for front end grip; the main spars were made slimmer and straighter and did away with the front cross pipe. A bolt-on aluminium subframe replaced the integral steel structure of the previous design to reduce width by 40mm to 195mm – crucial for easier ground reach. The lighter aluminium swingarm – taking its direction from the design used by the CRF450R – improved rigidity improves rear wheel traction and rider feel.

To tailor damping force front and rear – and spring preload to suit load and riding conditions – Showa Electronically Equipped Ride Adjustment^™ (Showa EERA^™) is an option on the Africa Twin Adventure Sports. Showa EERA^™ adjusts damping force relative to riding mode selected and aims to deliver high-quality suspension reaction in diverse and opposite conditions – riding comfort at slower speeds and stability at higher speeds.

Input is gathered from stroke sensors plus Inertial Measurement Unit (IMU). There are three road settings: SOFT has the lowest damping force for smoothest reaction, versatile MID operates as an all-round setting with HARD, using the highest damping force through low-to-high stroke speed, designed for sportier riding.

There is an OFF-ROAD setting that gradually raises front fork damping force as stroke speed rises and uses higher damping settings for the rear shock.

Rear spring preload can be electronically adjusted while stationary, through four default settings; 1) riding solo, 2) riding solo with luggage, 3) riding two-up and 4) riding two-up with luggage. A USER option allows for fine-tuning of damping force front and rear and 24 points of rear spring preload.

The Africa Twin Adventure Sports is also available with standard Showa suspension. With stroke length of 230mm, the 45mm cartridge-type inverted front fork offers long-travel bump absorption and features revised internal settings to improve all-round performance. Rebound and compression damping are fully adjustable. A cast aluminium top yoke and forged bottom yoke – with a hollow aluminium stem shaft – clamp the fork legs with two bolts each top and bottom.

Matching the front suspension, the Showa rear shock delivers 220mm axle travel and features a 46mm cylinder and remote reservoir for stable damping control under extreme off-road riding conditions. Spring preload can be adjusted via a dial on the shock body; rebound and compression damping are also fully adjustable.

The swingarm pivot points’ inner plates use 600MPa high-strength steel and the upper cross tube that connects them acts as the rear shock upper mount (through a pillow-ball joint) improving feel for rear wheel traction.

The IMU takes in lean angle, deceleration (from front/rear wheel speed sensors) and incorporates the slip rate of the front and rear wheels to manage braking pressure through the ABS; likewise if it detects sudden rear wheel lift, it finely controls brake force to maintain stability. When stationary the rear ABS can be cancelled for off-road riding.

Compact two-piece radial-mount four-piston calipers work dual 310mm ‘wave’ floating discs through sintered pads. The rear 256mm ‘wave’ disc features hole punching and shaping. 21/18-inch front rear (stainless steel) spoked wheels wear 90/90-21 and 150/70-18 tyres. Block pattern tyres (Continental 90/90-21M/C 54S and 150/70B 18M/C 70Q, rated at 180km/h and 160km/h respectively) are approved for fitment.

Ground clearance is 250mm, with wheelbase of 1575mm and rake and trail of 27.5°/113mm. Wet weight is 238kg, with DCT at 248kg. The Showa EERA^TM adds a further 2kg in both Manual and DCT guises.

To make puncture repair easier when on tour the 21/18-inch front and rear (stainless steel) spoked wheels wear tubeless Bridgestone Battlax Adventurecross Tourer AX41T or Metzeler Karoo Street tyres, sized 90/90-21M/C 54H and 150/70R18 M/C 70H. Block pattern tyres (Continental 90/90-21M/C 54S and 150/70B 18M/C 70Q are also approved for fitment).

Accessories

The range of Honda Genuine Accessories for the Africa Twin Adventure Sports includes premium aluminium top box (42L) and panniers (37L left / 33L right) plus large plastic top box (58L) and panniers (40L left / 30L right), two seat heights (a lower 825-845mm and taller 870-895mm option), screen extender and deflector set, 4.5L tank bag, side tank pads, engine guards, radiator grill, side pipes and LED fog lights and centre stand.

Accessories are available in both a Super Pack and a Travel Pack for convenience.

2022 Honda Africa Twin Adventure Sports – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $ USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

TBA

2022 Honda Africa Twin Adventure Sports – Totalmotorcycle.com Canada Specifications/Technical Details

TBA

2022 Honda Africa Twin Adventure Sports – Totalmotorcycle.com European Specifications/Technical Details

ENGINE
Type	SOHC liquid-cooled 4-stroke 8-valve parallel twin with 270° crank and Uni-cam
Displacement	1084cc
Bore & Stroke	92mm x 81.5mm
Compression Ratio	10.1:1
Max. Power Output	75kW at 7500rpm
Max. Torque	105Nm at 6250rpm
Noise Level	L-urban73.2dB, L-wot78.9dB – MT; L-urban 73.7dB, L-wot 79.6dB – DCT
Oil Capacity	4.8/4.3 (5.2/4.7 DCT)
FUEL SYSTEM
Carburation	PGM-FI
Fuel Tank Capacity	24.8L
CO₂ Emissions	112g/km MT 110g/km DCT
Fuel Consumption	4.9L/100km (20.4km/L) MT 4.8L/100km (20.8km/L) DCT
ELECTRICAL SYSTEM
Starter	Electric
Battery Capacity	12V-6Ah Li-ion battery (20hr)
ACG Output	0.49kW/5000rpm
DRIVETRAIN
Clutch Type	Wet, multiplate with coil springs, aluminium cam assist and slipper clutch DCT – 2 wet multiplate clutches with coil springs
Transmission Type	6 speed manual (6 speed DCT)
FRAME
Type	Semi double cradle
CHASSIS
Dimensions (L´W´H)	2330mm x 960mm x 1490mm (1545mm with screen in uppermost position)
Wheelbase	1575mm
Caster Angle	27.5°
Trail	113mm
Seat Height	850/870mm (low seat option 825mm, high seat option 895mm)
Ground Clearance	250mm
Kerb Weight	238kg (DCT 248kg) With Showa EERA^TM 240kg MT (DCT 250kg)
SUSPENSION
Type Front	Showa 45mm cartridge-type inverted telescopic fork with dial-style preload adjuster and damping adjustment, 230mm stroke EERA^TM – Showa Telescopic inverted fork with an inner tube diameter of 45mm, and Showa EERA^TM with compression and rebound dumping adjustments, 230mm stroke
Type Rear	Monoblock aluminium swing arm with Pro-Link with Showa gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustments, 220 mm rear wheel travel. EERA^TM – Monoblock aluminium swing arm with Pro-Link with Showa gas-charged damper, hydraulic remote control preload adjuster and electric control unit with compression and rebound damping adjustments, 220 mm rear wheel travel
WHEELS
Type Front	21M/C x MT2.15 wire spoke with aluminium rim
Type Rear	18M/C x MT4.00 wire spoke with aluminium rim
Rim Size Front	21″
Rim Size Rear	18″
Tyres Front	90/90-21M/C 54H (tubeless type) Bridgestone Battlax Adventurecross Tourer AX41T Metzler Karoo Street
Tyres Rear	150/70R18M/C 70H (tubeless type) Bridgestone Battlax Adventurecross Tourer AX41T Metzler Karoo Street
BRAKES
ABS System Type	2 channel with IMU Selectable ABS MODE with on-road and off-road setting
Type Front	310mm dual wave floating hydraulic disc with aluminium hub and radial fit 4-piston calipers and sintered metal pads
Type Rear	256mm wave hydraulic disc with single piston caliper and sintered metal pads. 2-Channel with rear ABS off mode.
INSTRUMENTS & ELECTRICS
Instruments	LCD Meter, TFT 6.5inch touch panel multi information display
Security System	Immobiliser, security alarm (optional)
Headlight	LED
Taillight	LED
Electrics	Daytime running lights, Bluetooth audio and Apple CarPlay®, Android Auto®, USB socket, auto turn signal cancel, cruise control, emergency stop signal, IMU, HSTC, cornering lights, wheelie control

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
