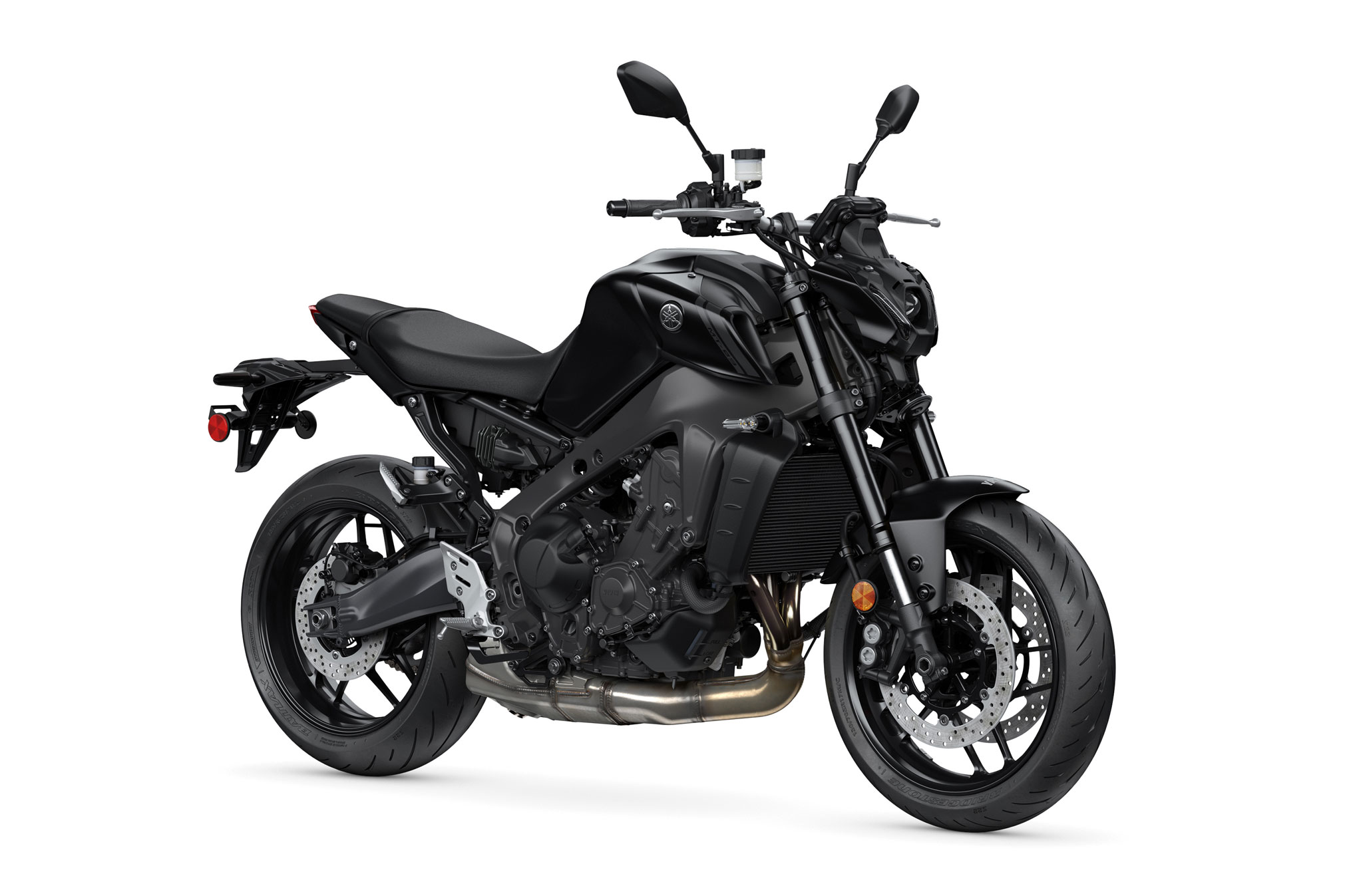

2021 Yamaha MT-09 : REVOLUTION OF THE ICON.
Introducing the new 2021 Yamaha MT-09…
The original MT-09 was a totally new kind of Japanese motorcycle that brought real excitement and pure emotion back to the motorcycle world. Now the all-new MT-09 has arrived, and it’s evolved. An all-new 889 cc high-torque engine and lightweight aluminium chassis give even more thrilling performance and razor-sharp handling; best-in-class electronic rider aids give you total control, and radical next-generation design with premium finish say it all. The new MT-09: Always moving forward.
The industry benchmark in hyper naked performance and razor sharp handling with its new 890cc, triple cylinder engine and radical next‑generation design.
The original MT-09 was a totally new kind of Japanese machine that brought real excitement and pure emotion back to the motorcycle world. It inspired over 50,000 European riders to be a part of the growing Hyper Naked movement. Now the all-new MT-09 has arrived, and it’s built to join the Dark Side of the Japan!
Revolution of the Icon
Its large-capacity 889cc EU5-compliant CP3 engine pushes out higher levels of torque at lower rpm, giving you even more explosive acceleration and stronger road-focused performance. A high-tech 6-axis IMU governs the best-in-class electronic rider aids to give you ultimate control. And the QSS enables superfast upshifting and more stable downshifting.
For razor sharp handling the new model features a compact aluminium chassis along with adjustable suspension and super light wheels. Dual 298mm front brakes with radial master cylinder ensure fingertip control. And the radical next generation styling and pure coverless chassis design confirm the MT-09 as the ultimate Hyper Naked.
The MT story began nearly a decade ago when Yamaha’s top designers set out to create one of the most important new models in the history of Yamaha Motor Co., Ltd. This was to be no ordinary motorcycle. The brief was to build a radical new machine with a big-torque engine and highly agile chassis that would be like no other. And the rest is history.
By defying convention and taking inspiration from Japan’s unique biking subculture, Yamaha succeeded in making a new kind of motorcycle. Inspired by the Dark Side of Japan, the rst that was so di erent that is didn’t t into any existing category. So the company created a new Hyper Naked class that has already won the hearts of over 250,000 riders throughout Europe. With a focus on fun, excitement and emotion – combined with a commitment to giving the rider the best engine and chassis package as well as the most dynamic styling and class-leading rider aids – and all of this at acompetitive price
- New premium speci cation MTEU5 889cc CP3 engine
- All-new lightweight CF aluminium diecast frame
- Next generation design and styling
- 6-Axis IMU plus lean-sensitive rideraids
- Full-colour 3.5-inch TFT display
- Compact, bifunctional LED headlight
- Quick Shift System (QSS)
- Lightweight SpinForged wheels
- Adjustable suspension
- Radial front brake master cylinder
EU5 889cc CP3 engine
The newly developed 889cc liquid-cooled 3-cylinder engine is lighter, quicker and more powerful, with more torque at lower rpm. A new intake and exhaust produce a beautiful sound that enhances the feeling of acceleration. New fuel injectors give increased e ciency, while optimized gear ratios and a re ned A&S clutch match the higher output of the EU5-compliant engine.
All-new lightweight CF
aluminium die-cast frame Entirely new compact CF die-cast aluminium frame design, a modern take on the Deltabox layout. Higher level of chassis sti ness for improved rider feedback, stability and increased dynamic riding window. Optimized swingarm pivot structure, light and slim chassis, and a more laidback feel as a day-to-day partner.
Next generation design and styling
Pure, bare and beautiful, the newgeneration MT design language leads the Hyper Naked line into the new decade. Minimalist ‘coverless’ styling dispenses with unnecessary bodywork and uses only the frame and structural components to express lightness and agility – while the new Crystal
Graphite frame nish accentuates the functional beauty of mechanical parts.
6-Axis IMU plus lean-sensitive rider aids
Developed from the R1, the compact new 6-axis IMU governs the ’s high-tech rider aids, including a lean-sensitive 3-mode Traction Control System (TCS), Slide Control System (SCS) front wheel LIFt Control System (LIF) and Brake Control system (BC). With this best-in-class electronic control technology, the all-new gives you ultimate control in varying weather and surface conditions.
Full-colour 3.5-inch TFT display The 3.5-inch full-colour TFT display features a bar-type tachometer that changes colour as rpm rises or falls, as
well as a clock and displays for fuel, average mileage, water temperature, air temperature and a gearshift indicator.
Handlebar switches enable you to easily change displays and information, as well as adjust the settings on the optional Genuine Yamaha grip heaters.
Compact, bifunctional LED headlight
A compact and handsome bifunctional single LED headlight produces a powerful low and high beam with an excellent beam spread featuring soft edges that are easy on the eye. This single projector headlight gives the all-new a truly distinctive next generation face, and lateral LED position
lights project a signature Y-shape that is matched by the LED taillight.
2021 Yamaha MT-09 Totalmotorcycle.com Key Features
New for 2021
- New EU5-compliant 889 cc CP3 engine
- More power at all engine speeds
- 7% increase in maximum torque at lower RPM
- 4 hp increase in maximum power
- All-new lightweight CF aluminium die-cast frame
- 4 kg reduction in wet weight (lightest in 900 cc naked class)
- Next-generation styling
- Rider aids: traction, slide, lift and brake control
- D-Mode switchable engine modes
- 6-Axis IMU with lean-sensitive rider aids
- Full-colour 3.5-inch TFT display
- Striking new bifunctional LED headlight design
- Quick Shift System (QSS)
- Lightweight Spin Forged wheels
- Revised, adjustable KYB suspension
- Radial front brake master cylinder
- Larger 180-70-17 rear tire
- New EU5-compliant 889 cc CP3 engine
- 7% increase in maximum torque at lower RPM
- 4 hp increase in maximum power
- All-new lightweight CF aluminium die-cast frame
- 4 kg reduction in wet weight (lightest in 900 cc naked class)
- Next-generation styling with striking new LED headlight
- 6-axis IMU with rider aids: traction, slide, lift and brake control
- D-Mode switchable engine modes
- Full-colour 3.5-inch TFT display
- Quick Shift System (QSS)
- Lightweight SpinForged wheels
- All-New 890cc Liquid-Cooled 3-Cylinder DOHC Fuel-Injected Engine
The 2021 MT-09 features a newly developed 890cc liquid-cooled 3-cylinder, DOHC, 4-valve-per-cylinder fuel-injected (YCC-T) engine with a downdraft intake. The bore × stroke of 78 mm × 62.1 mm and 11.5:1 compression ratio provide outstanding torque with strong power delivery characteristics. Almost all of the fundamental parts of the engine, from the pistons and connecting rods to the crankshaft, camshafts and crankcase, have all been redesigned with a reduction in weight. The combination of improved combustion efficiency and lighter weight results in an impressive 11% improvement in fuel efficiency as well, from 44 MPG to 49 MPG. - Eight Pounds Lighter
Weighing in at only 417 pounds, the 2021 MT-09’s new engine, chassis and bodywork extensively incorporate weight-reducing technologies, to weigh in 8 pounds lighter than the former MT-09. - New Lightweight Aluminum Frame
The 2021 MT-09 features a newly developed lightweight aluminum frame which has been further refined to showcase the MT’s signature “agility.” To ensure both straight-line stability and handling performance, the balance of longitudinal, lateral and torsional rigidity has also been improved. Most notably, the lateral rigidity has been increased by approximately 50% for even more straight-line stability. The all-new frame is manufactured using the latest in Yamaha’s controlled filling (CF) die casting technology which contributes to the 2021 MT-09’s reduced weight - 6-Axis IMU
The 2021 MT-09 features a newly developed 6-axis Inertial Measurement Unit (IMU) that retains the base performance of proven IMU in the YZF-R1 but is 50% smaller and 40% lighter due to a thorough review of the sensor layout. The engine control unit (ECU) that receives and reflects the data from the IMU is equipped with three rider aids: a Traction Control System (TCS), Slide Control System (SCS) and front-wheel LIFt control system (LIF). All three systems work together to help the rider concentrate on riding to better extract the machine’s potential. Each of the systems can also be turned on or off and have their levels of intervention adjusted to preference. With this best-in-class electronic control technology, the 2021 MT-09 gives you the ultimate control in varying weather and surface conditions. - 3.5-inch Full-Color TFT Instrument Display
The MT-09 features a 3.5-inch full-color TFT display that features a bar-type tachometer that changes colors as rpm rises or falls, a clock and displays for remaining fuel, average mileage, water temperature, air temperature and a gearshift indicator (color reversed for gear in use). Easily switch between displays and information with the handlebar switches. - Next-Generation Design
2021 represents the 3rd generation of the MT-09. With the 2021 MT-09, the designers sought to better express the major advances made with the machine’s performance by visually accentuating the pure power of the bike. The minimalist design concept delivers an exterior with everything but the essentials stripped away to highlight lightness and agility while stimulating the rider’s senses.
2021 Yamaha MT-09 Totalmotorcycle.com Features and Benefits
ENGINE
- All-New 890cc Liquid-Cooled 3-Cylinder DOHC Fuel-Injected Engine
The 2021 MT-09 features a newly developed 890cc liquid-cooled 3-cylinder, DOHC, 4-valve-per-cylinder fuel-injected (YCC-T) engine with a downdraft intake. The bore × stroke of 78 mm × 62.1 mm and 11.5:1 compression ratio provide outstanding torque with strong power delivery characteristics. Almost all of the fundamental parts of the engine, from the pistons and connecting rods to the crankshaft, camshafts and crankcase, have all been redesigned with a reduction in weight. The combination of improved combustion efficiency and lighter weight results in an impressive 11% improvement in fuel efficiency as well, from 44 MPG to 49 MPG. - Redesigned Fuel Delivery System
The fuel delivery system has been completely redesigned. On former MT-09s, the fuel injectors were attached directly to the cylinder head, but the fuel injectors of the 2021 MT-09 are now attached to the throttle valve side of the throttle bodies. The injectors now spray at the back of the intake valve heads to promote atomization of the fuel and reduce adhesion of fuel particles to the port walls, producing outstanding combustion efficiency. The throttle valve is operated using the Yamaha Chip Controlled Throttle (YCC-T) electronic system which has been widely proven on YZF series models as well as the earlier MT-09 models. - Lightweight Forged Pistons
The lightweight forged pistons allow for smooth, high-revving power. - Fracture-Split Connecting Rods
The forged connecting rods are made using the fracture-split method—where the big-end ring of the connecting rod is purposefully fractured and then reassembled—to ensure an unparalleled degree of manufacturing accuracy. This creates a pair of perfectly matching halves that produce a much more precise mating surface when the rods are bolted together again around the crankshaft. - Offset and Direct-Plated Cylinders
The CP3 engine mounts its three cylinder bores forward, towards the exhaust side. This offset reduces the piston to cylinder wall friction, creating more power and improved fuel economy while the direct-plated ceramic-composite cylinder bores provide excellent heat dissipation and reduced friction. - New Symmetrical Muffler with Dual Outlets
The new muffler on the 2021 MT-09 contributes to a lower overall weight and mass centralization but also produces a low-frequency exhaust note at low speeds. The exhaust tailpipes are left-right symmetrical which directs sound pressure to both sides of the machine, creating an exhaust note that delivers a sense of torque to the rider. The newly designed stainless steel header pipes are each given a different curvature and length for an excellent pulse effect. - New Intake System
The new intake system has been designed to suit the new engine and provides linear response when the rider opens and closes the throttle. The three intake ducts also contribute to the excellent engine sound at midrange and high rpm. These ducts are designed with different cross sections and lengths so that the intake sounds they produce individually resonate harmoniously at varying wavelength ranges. At the same time, the sound pressure has also been tuned to create a pleasing sound in the mid- and high-rpm range. The result is an air cleaner box that achieves both good intake efficiency and a pleasing sound that enhances the feeling of acceleration. - Assist and Slipper Clutch
The 2021 MT-09 features an Assist and Slipper (A&S) clutch that has specifications selected to best match the new engine for a lighter clutch lever pull and smoother chassis behavior during downshifts. - Optimized Transmission Ratios
The transmission ratios have been optimized, with the gear ratios for 1st and 2nd gear slightly higher than on previous models (1st gear: from 2.666 to 2.571; 2nd gear: from 2.000 to 1.947). Working in combination with the increased momentum of inertia of the crankshaft and the fuel injection settings, the transmission provides the right balance of a powerful torque feeling and ease of use, from acceleration to stopping.
CHASSIS/SUSPENSION
- Eight Pounds Lighter
Weighing in at only 417 pounds, the 2021 MT-09’s new engine, chassis and bodywork extensively incorporate weight-reducing technologies, to weigh in 8 pounds lighter than the former MT-09. - New Lightweight Aluminum Frame
The 2021 MT-09 features a newly developed lightweight aluminum frame which has been further refined to showcase the MT’s signature “agility.” To ensure both straight-line stability and handling performance, the balance of longitudinal, lateral and torsional rigidity has also been improved. Most notably, the lateral rigidity has been increased by approximately 50% for even more straight-line stability. The all-new frame is manufactured using the latest in Yamaha’s controlled filling (CF) die casting technology which contributes to the 2021 MT-09’s reduced weight - Aluminum Die Cast Subframe
Replacing the steel subframe from the previous model, the 2021 MT-09 employs a controlled filling aluminum die-cast subframe that reduces weight, contributing to the model’s signature feeling of agility. - New Lightweight, High-Rigidity Swingarm
The 2021 MT-09 features a newly developed swingarm that uses a welded box shape of aluminum plate to achieve both high rigidity and is 250g lighter than former models. The 2021 MT-09’s swingarm pivot structure connects to the frame from the outside, compared to the previous model that hosts the reversed arrangement. Together, with the changes to the chassis’ rigidity and thorough engineering of the shapes of parts and components around the seat, the new design retains the MT-09’s slim feel while still delivering outstanding straight-line stability at high speeds with greater cornering stability. - Lightweight Spin Forged Aluminum Wheels
The 2021 MT-09 employs lightweight wheels. Manufactured using Yamaha-exclusive spinforging technology, these wheels contribute to outstanding handling. With a notable 11% decrease in the momentum of inertia at the rear, these wheels make for a big contribution to the MT-09’s agile handling character. - Braking for Sporty Riding
To support more spirited, sporty riding, the 2021 MT-09’s state-of-the-art brake features a radial Nissin master cylinder for the front brake. The piston in the master cylinder moves in a direction parallel to brake lever travel, contributing to a more linear supply of hydraulic pressure for excellent controllability. Following the YZF-R1, the 2021 MT-09 is only the second Yamaha model to use this technology that can be controlled with just a fingertip. - Adjustable Riding Position
The riding position was designed to accommodate riders of varying physiques. The handlebars and footpegs can be adjusted to two different positions, allowing riders to set a position that gives them a secure feeling the moment they get on the bike. The handlebar clamps can be rotated 10mm forward, and the footpeg mounts can be raised 14mm higher as well as 4mm rearward. - New KYB Front Fork and KYB Rear Shock
The 2021 MT-09 features an 41mm KYB inverted front fork with optimized settings to match the character of the new compact frame for a smoother, more controlled ride. These settings slightly reduce movement in the pitch direction but make it easier for the rider to feel the suspension working while riding. Both the front and rear suspension are adjustable for preload and rebound damping while the front fork is also adjustable for compression.
ADDITIONAL FEATURES
- Next-Generation Design
2021 represents the 3rd generation of the MT-09. With the 2021 MT-09, the designers sought to better express the major advances made with the machine’s performance by visually accentuating the pure power of the bike. The minimalist design concept delivers an exterior with everything but the essentials stripped away to highlight lightness and agility while stimulating the rider’s senses. - Full LED Lighting
A compact bifunctional – low and high beam in one – LED headlight with excellent beam spread is featured on the 2021 MT-09. The edges of the beam have a softer contrast to be easy on the eyes while emitting a soft and even spread of illumination. Instead of the conventional “mono-focus” type headlight, this bike utilizes a projector design with a built-in internal lens in addition to the thick outer lens. Since the MT-09 uses not one but multiple LEDs to produce light, it can project a complex distribution of illumination across a broad field. The position lights use LEDs and light-guides to create an impressive, distinctive new front face design for the 2021 MT-09 while the turn signals and newly designed LED taillight are LED as well. - Ready to Accessorize
A rear fender eliminator, fly screen, comfort seat, engine guards and more can all be added to the MT-09 to support and enhance the look of the bike.
ELECTRONICS
- 6-Axis IMU
The 2021 MT-09 features a newly developed 6-axis Inertial Measurement Unit (IMU) that retains the base performance of proven IMU in the YZF-R1 but is 50% smaller and 40% lighter due to a thorough review of the sensor layout. The engine control unit (ECU) that receives and reflects the data from the IMU is equipped with three rider aids: a Traction Control System (TCS), Slide Control System (SCS) and front-wheel LIFt control system (LIF). All three systems work together to help the rider concentrate on riding to better extract the machine’s potential. Each of the systems can also be turned on or off and have their levels of intervention adjusted to preference. With this best-in-class electronic control technology, the 2021 MT-09 gives you the ultimate control in varying weather and surface conditions. - Rider-Supporting Traction Control System
The Traction Control System (TCS) has three modes: Mode 1, Mode 2 and Mode M for manual settings. Each mode integrates the three rider support systems by changing the degree of intervention for the TCS, SCS and LIF all at once. With Mode M, the user can select his/her preferred levels of intervention for the TCS, SCS and LIF individually. - Lean Angle-Sensitive Traction Control System
The Traction Control System (TCS) detects the difference in speed between the front and rear wheels and helps to efficiently extract drive force from the rear tire during acceleration. The new TCS on the 2021 MT-9 uses this data for the lean angle, estimated by the IMU to adjust the degree of intervention by the TCS. As the lean angle increases, so does the amount of TCS intervention (1 = little intervention; 2 = moderate intervention; 3 = strong intervention). - Lift Control System (LIF)
The LIFt Control System (LIF) smooths the machine’s behavior during starts and acceleration. When the IMU predicts front-wheel lift, the system adjusts the engine’s output to compensate and assist the rider. On the 2021 MT-09, the system settings are focused on providing smooth behavior once the intervention ceases. The LIFt system’s intervention is set up to work together with the other rider aids, and with Mode M, the level of intervention can be chosen manually by the rider. - MotoGP®-Developed Slide Control System (SCS)
The 2021 MT-09 features the Slide Control System (SCS), just like the one on the acclaimed YZF-R1. When the IMU predicts that a sideward slide is occurring at the rear tire, the SCS responds by adjusting the power output to help the rider focus on riding. The degree of intervention is pre-set for the TCS with Mode 1 and Mode 2, but Mode M allows for the level of intervention to be selected or for the system to be turned off. - Brake Control System with ABS
With the Brake Control (BC) system, data for the front and rear wheel speed as well as data from the IMU is compiled and calculated in real-time in the hydraulic unit assembly (including the ABS control unit) to independently control and modulate the front and rear brake pressure. The rider can select between two intervention modes: BC1 and BC2. BC1 is a standard ABS-active mode that accommodates hard emergency braking in upright, straight-line braking conditions while BC2 controls the brake pressure in addition to ABS and operates in situations where machine behavior is likely to become unsettled, such as unavoidable panic braking mid-corner. - Quick Shift System for Clutchless Upshifts and Downshifts
The QSS on the MT-09 enhances the sport riding experience by enabling super-fast upshifts for outstanding acceleration. The downshift allows for smoother shifting that stabilizes the chassis – even when cornering – and gives a more controlled feeling when decelerating. When the sensor on the shift rod detects movement in the gearshift pedal, adjustments are made in the engine output according to ECU calculations to instantly cancel out the drive torque of the engaged gear to promote swifter shifting of gears. - Ride-by-Wire YCC-T Throttle System with New APSG
The MT-09’s Yamaha Chip Controlled Throttle (YCC-T) electronically governs the throttle valves, but unlike the system on former models that use a cable to relay throttle inputs via a pulley, the 2021 MT-09 features the new Accelerator Position Sensor Grip (ASPG) ride-by-wire unit that reduces weight while providing excellent throttle feel at the same time. With the APSG, the degree of throttle opening is detected by a sensor and magnet and reflected with signals to the throttle valve motor. For good operational feel, the APSG is comprised of a spring, slider and gear and produces varying degrees of friction (resistance) to recreate a natural throttle feel during use. The construction of the APSG for the 2021 MT-09 is the same as the one on the 2020 YZF-R1/R1M but has model-specific settings for the degree of friction and throttle opening. - 3.5-inch Full-Color TFT Instrument Display
The MT-09 features a 3.5-inch full-color TFT display that features a bar-type tachometer that changes colors as rpm rises or falls, a clock and displays for remaining fuel, average mileage, water temperature, air temperature and a gearshift indicator (color reversed for gear in use). Easily switch between displays and information with the handlebar switches.
2021 Yamaha MT-09 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $9399 USD
Canada MSRP Price: Starting at $10799 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Engine Type 890cc liquid-cooled, DOHC, inline 3-cylinder; 4
valves per cylinder
Bore x Stroke 78.0mm x 62.1mm
Compression Ratio 11.5:1
Fuel Delivery Fuel injection with YCC-T
Ignition TCI: Transistor Controlled Ignition
Transmission 6-speed; multiplate assist and slipper clutch
Final Drive Chain
Suspension / Front 41mm inverted fork, adjustable preload,
compression and rebound; 5.1-in travel
Suspension / Rear Single shock, adjustable preload and rebound
damping; 4.8-in travel
Brakes / Front Dual 298mm hydraulic disc; ABS
Brakes / Rear 245mm hydraulic disc; ABS
Tires / Front 120/70ZR17M/C
Tires / Rear 180/55ZR17M/C
L x W x H 82.3 in x 31.3 in x 46.9 in
Seat Height 32.5 in
Wheelbase 56.3 in
Rake (Caster Angle) 25.0°
Trail 4.3 in
Maximum Ground
Clearance
5.5 in
Fuel Capacity 3.7 gal
Fuel Economy** 49 MPG
Wet Weight*** 417 lb
Warranty 1 Year (Limited Factory Warranty)
Color Storm Fluo; Matte Raven Black; Team Yamaha
Blue
2021 Yamaha MT-09 – Totalmotorcycle.com Canada Specifications/Technical Details
| ENGINE | Liquid-cooled, DOHC, 12-valve (4-valves/cyl), inline-three cylinder |
| DISPLACEMENT | 889 cc |
| BORE AND STROKE | 78 x 62.1 mm |
| COMPRESSION RATIO | TBD |
| MAXIMUM TORQUE | TBD |
| ENGINE MANAGEMENT | YCC-T & D-Modes |
| FUEL DELIVERY | Mikuni 41mm throttle body F.I. |
| ESTIMATED FUEL CONSUMPTION± | TBD |
| LUBRICATION | Wet sump |
| IGNITION / STARTING | TCI / Electric |
| TRANSMISSION | 6-speed |
| FINAL DRIVE | O-ring chain |
CHASSIS
| SUSPENSION (FRONT) | Adjustable 41mm inverted fork / 137mm (5.4″) wheel travel |
| SUSPENSION (REAR) | Adjustable link Monocross / 130mm (5.1″) wheel travel |
| BRAKES (FRONT) | Dual 298 mm discs / radial mount 4-piston calipers / ABS |
| BRAKES (REAR) | 245 mm disc / single piston caliper / ABS |
| TIRES (FRONT) | 120/70ZR17 |
| TIRES (REAR) | 180/55ZR17 |
CRITICAL DATA
| LENGTH | 2,090 mm (82.3″) |
| WIDTH | 795 mm (31.3″) |
| HEIGHT | 1,190 mm (46.9″) |
| WHEELBASE | 1,430 mm (56.3″) |
| RAKE / TRAIL | 25° / 108 mm |
| GROUND CLEARANCE | 140 mm (5.5″) |
| SEAT HEIGHT | 825 mm (32.5″) |
| FUEL CAPACITY | 14 litres (3.1 imp. gallons) |
| WET WEIGHT | 189 kg (417 lb.) |
| COLOUR(S) | Yamaha Racing Blue Ice Fluo Tech Black |
2021 Yamaha MT-09 – Totalmotorcycle.com European Specifications/Technical Details
Engine
Engine type Liquid-cooled;4-stroke;4-valves;3-Cylinder;DOHC
Displacement 890 cm³
Bore x stroke 78.0 × 62.1 mm
Compression ratio 11.5 : 1
Maximum power 87.5kW (119.0PS) @10,000 rpm
Maximum Torque 93.0Nm (9.5kg-m) @ 7,000 rpm
Lubrication system Wet sump
Clutch Type Wet;Multiple Disc
Ignition system TCI
Starter system Electric
Transmission system Constant Mesh;6-speed
Final transmission Chain
Fuel consumption 5.0 L/100 km
CO2 emission 116 g/km
Carburettor Fuel Injection
Chassis
Frame Diamond
Caster Angle 25º
Trail 108 mm
Front suspension system Telescopic fork
Rear suspension system Swingarm;(link suspension)
Front travel 130 mm
Rear Travel 122 mm
Front brake Hydraulic dual disc, Ø 298 mm
Rear brake Hydraulic single disc, Ø 245 mm
Front tyre 120/70 ZR17M/C (58W) Tubeless
Rear tyre 180/55 ZR17M/C (73W) Tubeless
Dimensions
Overall length 2,090 mm
Overall width 795 mm
Overall height 1,190 mm
Seat height 825 mm
Wheel base 1,430 mm
Minimum ground clearance 140 mm
Wet weight (including full oil and fuel tank) 189 kg
Fuel tank capacity 14 L
Oil tank capacity 3.50 L
