2021 Kawasaki KLX140RL : LARGER WHEELS. MORE CLEARANCE.

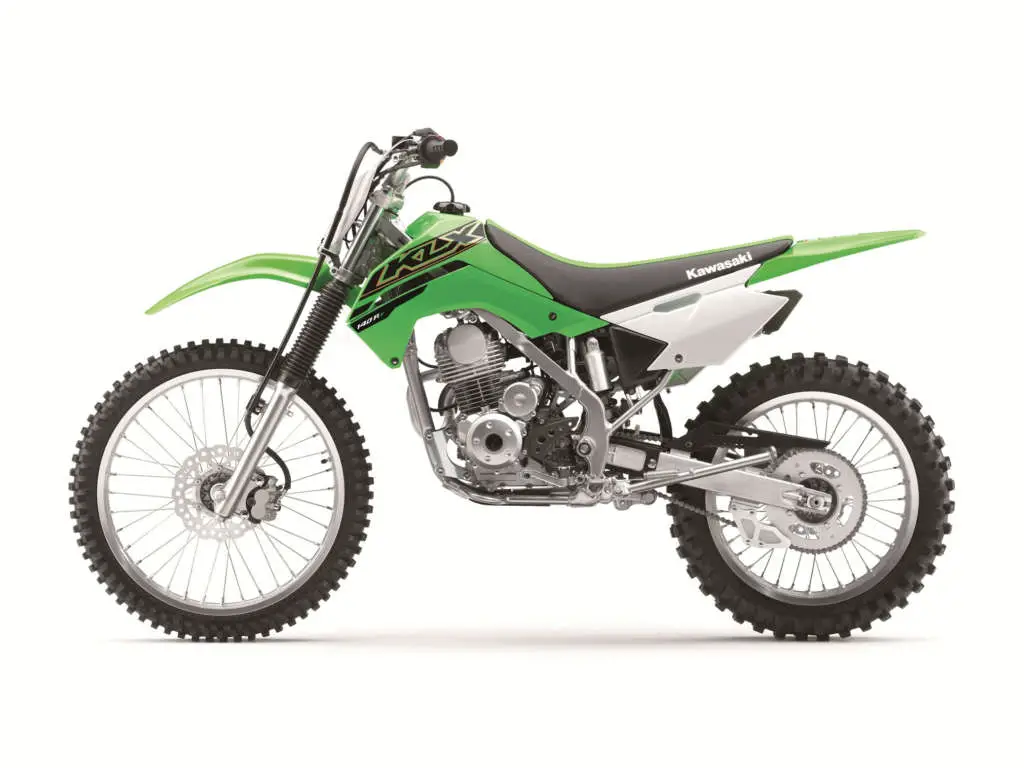

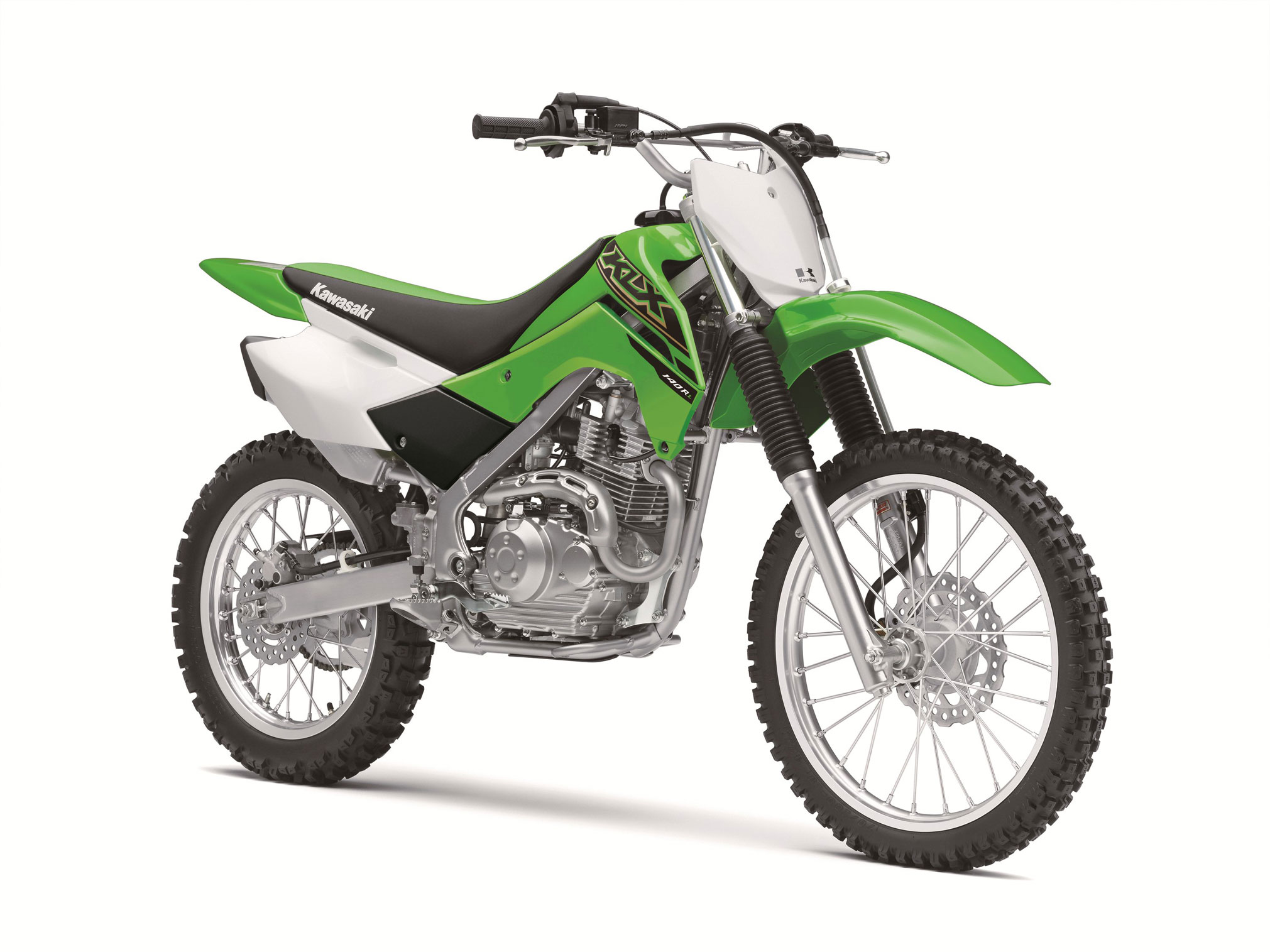

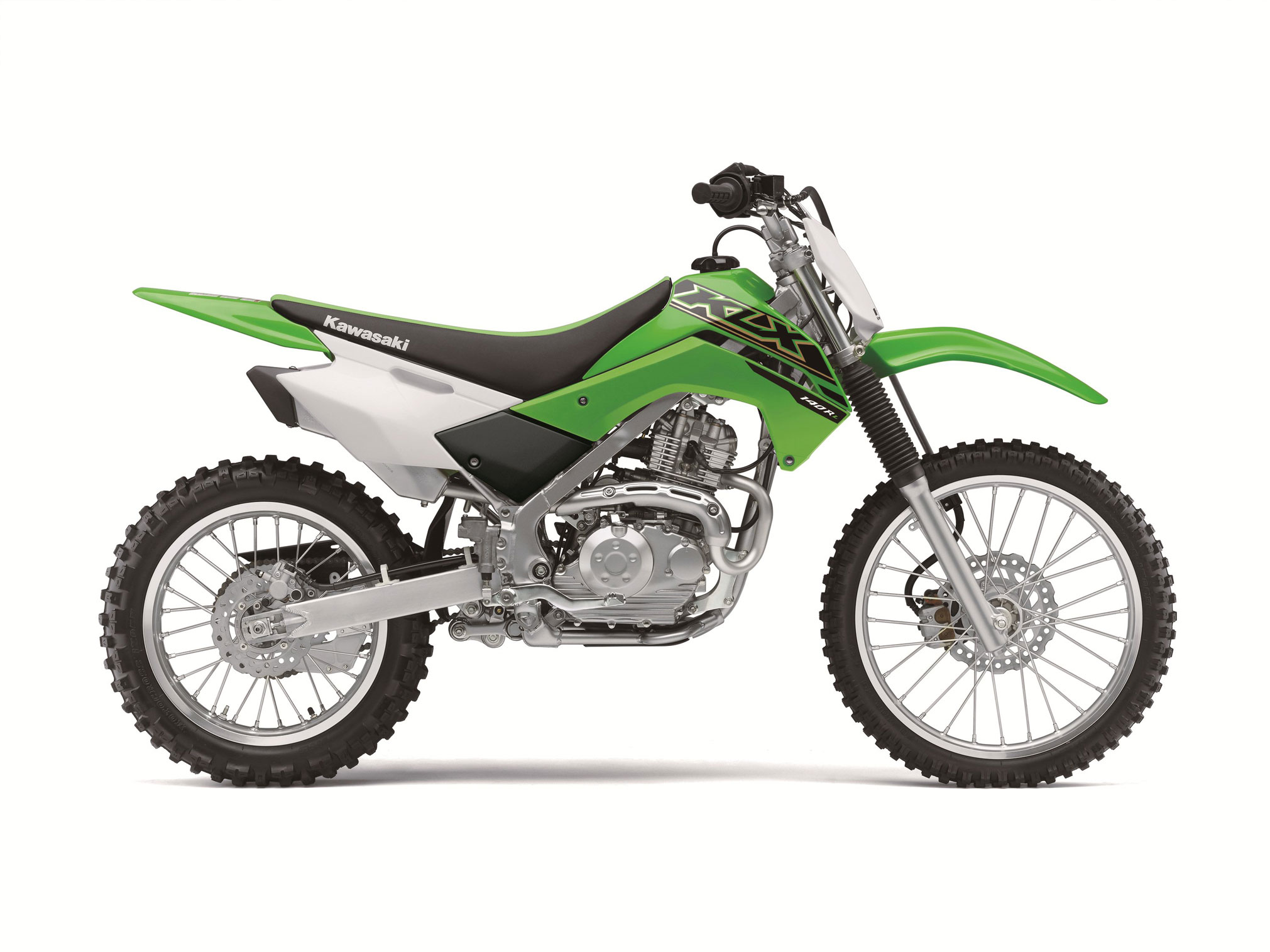

Introducing the 2021 Kawasaki KLX140RL.
The KLX140R motorcycles are the third variation of the KLX 140 models and is designed to provide a natural terrain experience with memories to last a lifetime. The powerful 144cc, four-stroke, air-cooled, single-cylinder engine features an electric starter and keyless ignition. Its broad and smooth high-revving 144cc engine utilizes a manual clutch and five-speed transmission to offer an efficient and user-friendly feel.
Featuring confident handling, KLX®140R motorcycles are the ideal entry into off-road riding. The easy-to-ride KLX140R lineup offers a 144cc engine, plush suspension and a push button electric start, making for great trailblazers.
ADDITIONAL VEHICLE FEATURES:
Larger wheels (19F, 16R), taller seat height (31.5-inch) and higher 10-inch ground clearance
7.1 inches of front and rear suspension travel
2021 Kawasaki KLX140RL Totalmotorcycle.com Key Features
Larger wheels (F19”, R16”) contribute to a taller seat height (800 mm [31.5 in]) and higher 255 mm (10.0 in) ground clearance
180 mm (7.1 in) of front and rear suspension travel
Disc brakes front and rear
PUSH BUTTON ELECTRIC START
HIGH-REVVING 144cc AIR-COOLED, SOHC, FOUR-STROKE ENGINE
5-SPEED TRANSMISSION WITH MANUAL CLUTCH
FRONT AND REAR DISC BRAKES
A fan favorite, the Kawasaki KLX® family of off-road motorcycles are widely popular for their low maintenance, easy-to-ride character, and incredible capabilities while out on the trails. Completing the rest of the 2021 KLX family line up are five additional models, which consist of four engine configurations and are built to suit a variety of riders.
2021 Kawasaki KLX140RL Totalmotorcycle.com Features and Benefits
CONFIDENT HANDLING
LIGHTWEIGHT RIGID FRAME
A lightweight box-section perimeter frame made from high-tensile steel provides exceptional rigidity and strength. The narrow profile contributes to an easier rider grip and smoother movement on the bike. Working together, the highly capable suspension and lightweight chassis deliver handling that exudes confidence.
SMOOTH POWER
ELECTRIC START
The high-revving, 144cc, air-cooled SOHC 4-stroke engine easily starts with the push of a button. Air-cooling eliminates the need for radiators, keeping the chassis slim and lightweight while a 5-speed transmission with manual clutch delivers smooth shifting and acceleration.
RELIABLE BRAKING
FRONT AND REAR DISC BRAKES
Front and rear disc brakes provide strong progressive stopping power. The 220mm front petal disc with a dual-piston caliper is complemented by a 186mm rear petal disc with single-piston caliper, inspiring confidence on the trails.
2021 Kawasaki KLX140RL – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3,449 USD
Canada MSRP Price: $4249 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
2021 Kawasaki KLX140RL – Totalmotorcycle.com Canadian Specifications/Technical Details
POWER
| Engine | 144cc, air-cooled, 4-stroke, SOHC 2-valve single |
| Bore x Stroke | 58.0 x 54.4 mm |
| Compression Ratio | 9.5:1 |
| Fuel System | Carburettor: Keihin PB20 |
| Ignition | Digital DC-CDI |
| Starting | Electric |
| Lubrication | Forced lubrication, wet sump |
| Transmission | 5-speed, return |
| Clutch | Wet multi-disc, manual |
| Final Drive | Chain |
PERFORMANCE
| Frame | Perimeter, box-section, high-tensile steel |
| Front Suspension / Wheel Travel | ø33 mm telescopic fork / 180 mm (7.1 in) |
| Rear Suspension / Wheel Travel | Uni Trak, single shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable preload / 180 mm (7.1 in) |
| Rake / Trail | 27.0° / 96 mm |
| Steering Angle (L/R) | 41° / 41° |
| Front Tire | 70/100-19 42M |
| Rear Tire | 90/100-16 52M |
| Front Brake | Single ø220 mm petal disc with dual-piston caliper |
| Rear Brake | ø186 mm petal disc with single-piston caliper |
DETAILS
| Dimensions (L x W x H) | 1,895 x 790 x 1,075 mm (74.6 x 31.1 x 42.3 in) |
| Wheelbase | 1,285 mm (50.6 in) |
| Road Clearance | 255 mm (10.0 in) |
| Seat Height | 800 mm (31.5 in) |
| Curb Mass** | 95 kg (209 lb) |
| Fuel Capacity | 5.8 litres |
| Warranty | 6 months |
| Kawasaki Protection Plus | 12 / 24 / 36 / 48 months |
**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2019 Canadian Kawasaki Motors, Inc.
Specifications subject to change.
2021 Kawasaki KLX140RL – Totalmotorcycle.com European Specifications/Technical Details
NA
