2021 Harley-Davidson Iron 1200: FINE TUNED.
Introducing the 2021 Harley-Davidson Iron 1200…

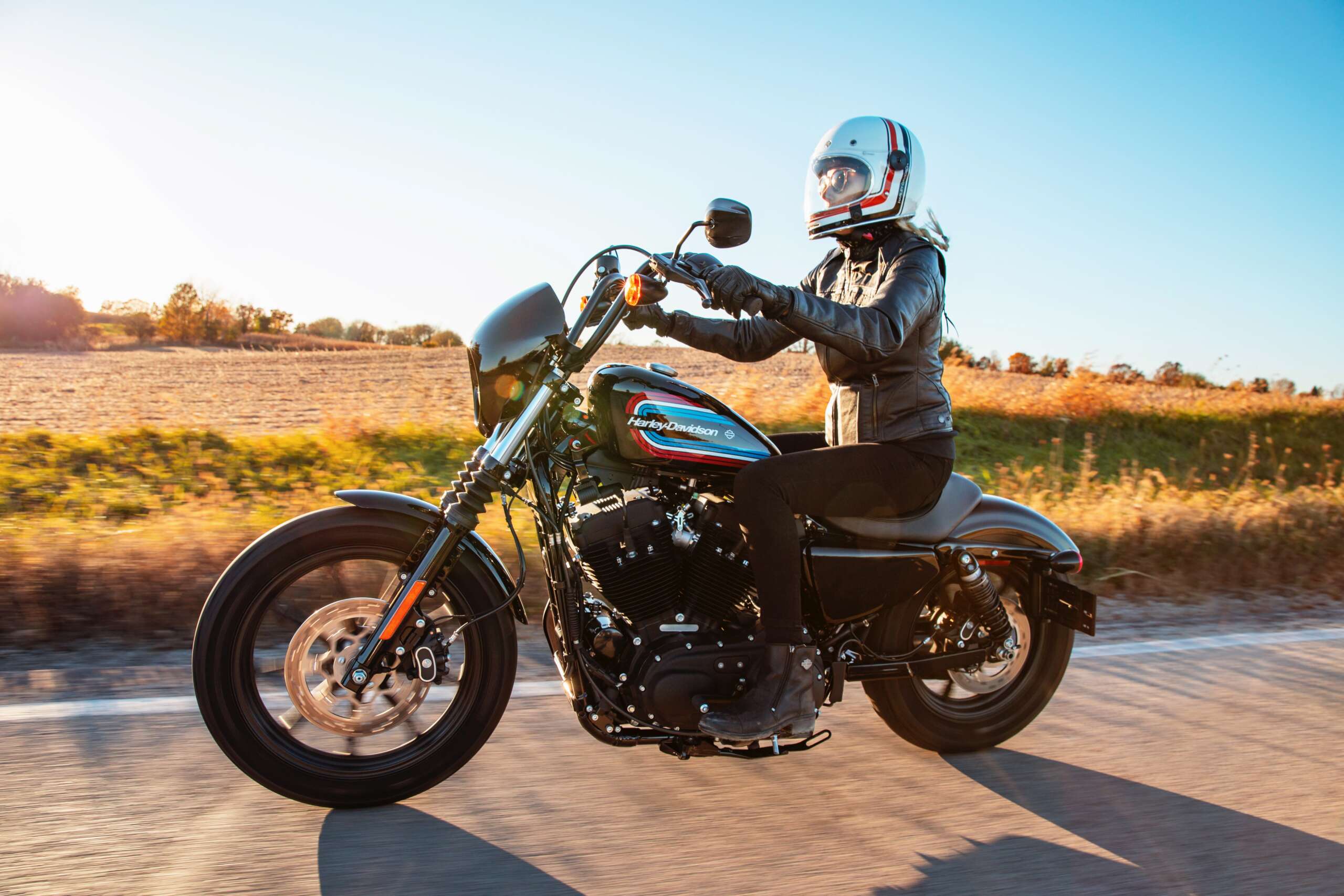

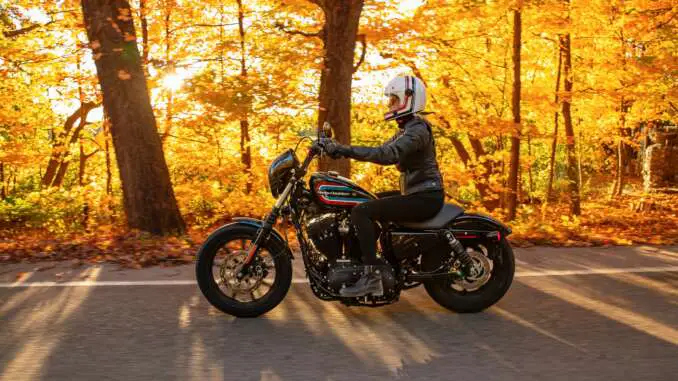

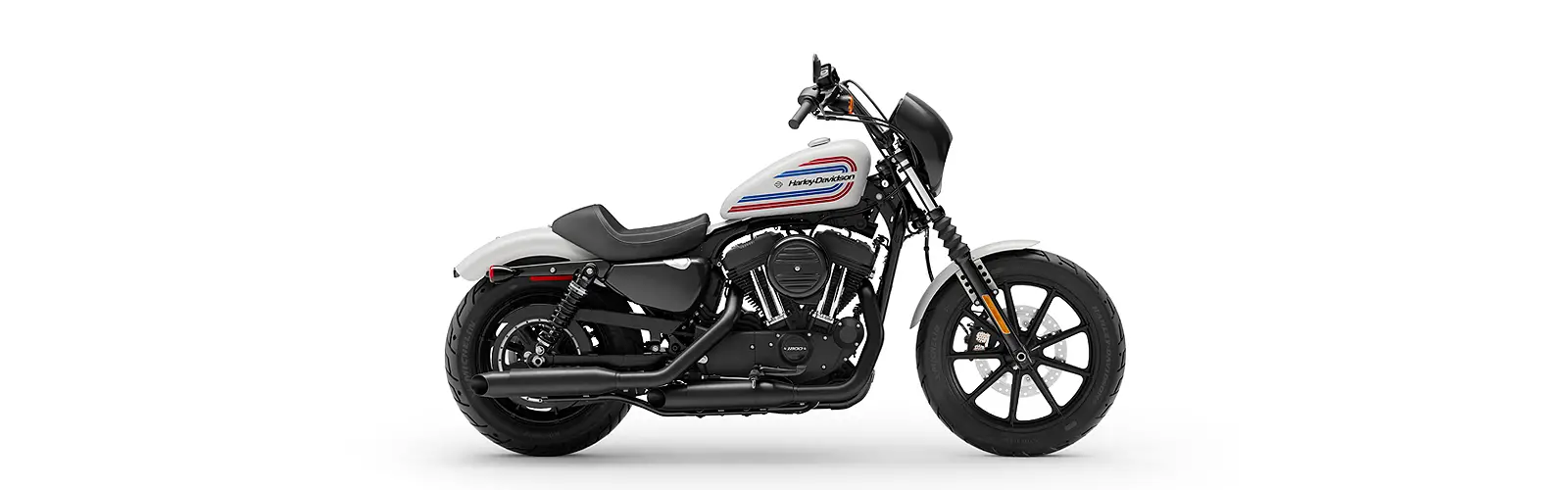

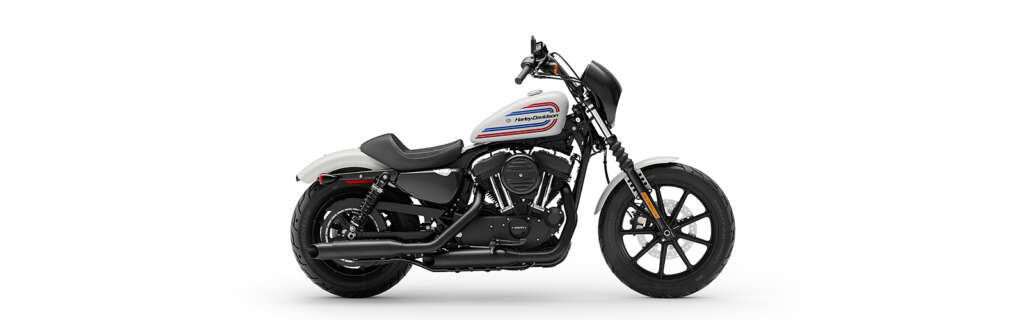

The Iron 1200™ starts with the 1200cc Evolution engine that gives loads of famous Sportster torque. It’s got a throwback look that goes right to the roots of Sportster motorcycle, thanks to 70’s-inspired tank graphics. It also features a low-slung Café solo seat, mid-mount controls, and mini ape hanger handlebars for an aggressive, two-fists-in-the-wind riding position.
Blacked-out chopper profile with the power to go beyond the city limits.
2021 Harley-Davidson Iron 1200 Totalmotorcycle.com Key Features
THIS IS THE RIGHT BIKE FOR
Riders looking for an edgy factory-custom chopper
Bold throwback styling updated with dark, modern finishes
1200cc Air-Cooled Evolution® V-Twin and Mini-Ape bars
Upright riding position
Mid-mount foot controls
2021 Harley-Davidson Iron 1200 Totalmotorcycle.com Features and Benefits

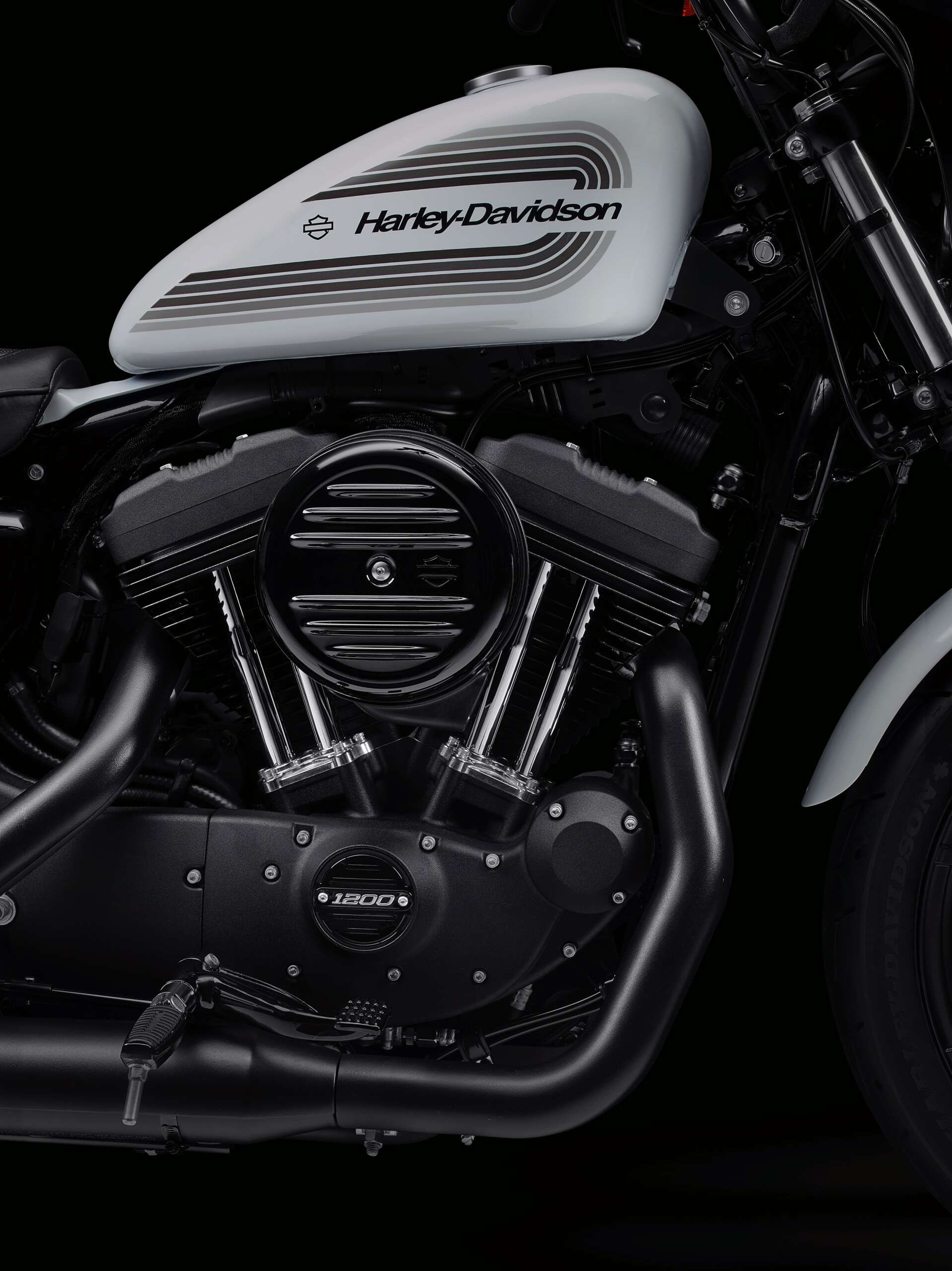

1200CC EVOLUTION® ENGINE
1200cc at your command to deliver tons of torque for an unforgettably fun ride.
BLACKED-OUT FINISHES
Blacked-out finishes from its powertrain to its air cleaner cover to its exhaust. Equipped to take on the urban grid.
THROWBACK 70’S CUSTOM TANK ART
Authentic bold 70’s-inspired tank graphic shows the bike’s retro roots.
CAFÉ SOLO SEAT
Sit “in” the bike while your hands and feet reach naturally to the controls. This seat pays homage to the heritage of the iconic Cafe Racer style.
BLACK MINI-APE HANDLEBARS
Fists in the wind attitude with a conservative rise and bend for rider comfort.
9-SPOKE CAST ALUMINUM WHEELS
Nine-spoke wheels that are black as night from rim to rubber to complement the Dark Custom look.
FIXED SPEED SCREEN
The fixed black speed screen leaves no question as to the attitude of the motorcycle. Get behind it and hang on.
The Sportster motorcycle has been a feature on the motorcycling landscape since it first hit the scene in 1957. This is the machine that’s done it all. Drag racing, flat track racing, land speed records, and every kind of street riding or cross-country trek riders could dream up. Simple, righteous, bare-knuckle style. Legendary engine. Easily affordable. Infinitely customizable. Updated for the modern era. Take it wherever you want to go.
2021 Harley-Davidson Iron 1200 – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $ 9999 to 10,349 USD (ABS +$795)
Canada MSRP Price: $ 12,499 to 12899 CDN (ABS +$615)
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
| Model | XL 1200NS Iron 1200™ | Notes |
| Dimensions | ||
| Length | 86.6 in. (2,200 mm) | |
| Overall Width | 36 in. (915 mm) | |
| Overall Height | 48.8 in. (1,240 mm) | |
| Seat Height, Laden | 25.7 in. (653 mm) | 2 |
| Seat Height, Unladen | 28.9 in. (735 mm) | |
| Ground Clearance | 4.3 in. (110 mm) | |
| Rake (steering head) (deg) | 30 | |
| Fork Angle (deg) | 30 | |
| Trail | 4.6 in. (117 mm) | |
| Wheelbase | 59.6 in. (1,515 mm) | |
| Tires, Type | Michelin® Scorcher® “31” front and rear | |
| Tires, Front Model | Scorcher® “31” | |
| Tires, Front Specification | 100/90B19 57H | |
| Tires, Rear Model | Scorcher® “31” | |
| Tires, Rear Specification | 150/80B16 77H | |
| Fuel Capacity | 3.3 gal. (12.5 l) | |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 0.8 gal. (3 l) | |
| Oil Capacity (w/filter) | 2.8 qt. (2.6 l) | |
| Transmission Capacity | 1 qt. (.95 l) | |
| Primary Chain Case Capacity | N/A | |
| Coolant Capacity | N/A | |
| Weight, As Shipped | 547 lb. (248 kg) | |
| Weight, In Running Order | 564 lb. (256 kg) | |
| Gross Vehicle Weight Rating | 1,000 lb. (454 kg) | |
| Gross Axle Weight Rating, Front | 335 lb. (152 kg) | |
| Gross Axle Weight Rating, Rear | 665 lb. (302 kg) | |
| Luggage Capacity -Volume | N/A | |
| Engine | ||
| Engine | Air-cooled, Evolution® | |
| Valves | Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two-valves per cylinder | |
| Bore | 3.5 in. (88.9 mm) | |
| Stroke | 3.8 in. (96.8 mm) | |
| Displacement | 73.4 cu in (1,202 cc) | |
| Compression Ratio | 10:01 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | 3 |
| Air Cleaner | Paper cartridge type | |
| Exhaust | Black, staggered exhaust and headers with black slash-cut mufflers | |
| Lubrication System | Dry-sump | |
| Drivetrain | ||
| Primary Drive | Chain, 38/57 ratio | |
| Final Drive | Belt, 29/68 ratio | |
| Clutch | Multi-plate, wet | |
| Transmission | 5-speed | |
| Gear Ratios (overall) 1st | 9.315 | |
| Gear Ratios (overall) 2nd | 6.653 | |
| Gear Ratios (overall) 3rd | 4.948 | |
| Gear Ratios (overall) 4th | 4.102 | |
| Gear Ratios (overall) 5th | 3.517 | |
| Gear Ratios (overall) 6th | N/A | |
| Chassis | ||
| Frame | Mild steel, tubular frame; circular sections; cast junctions | |
| Swingarm | Mild steel, rectangular tube section, stamped junctions; MIG welded | |
| Front Fork | 39 mm | |
| Rear Shocks | Coil-over; preload dual-adjustable | |
| Wheels, Front Type | Black, 9-spoke | 4 |
| Wheels, Front Width | 2.15 in. (55 mm) | |
| Wheels, Front Height | 19 in. (483 mm) | |
| Wheels, Rear Type | Black, 9-spoke | 4 |
| Wheels, Rear Width | 3 in. (76 mm) | |
| Wheels, Rear Height | 16 in. (406 mm) | |
| Brakes, Caliper Type | Dual-piston front, Dual-piston rear | |
| Brakes, Rotor Type | Solid, uniform expansion rotors (Floating front) | |
| Brakes, Front Diameter | 11.8 in. (300 mm) | |
| Brakes, Front Thickness | 0.2 in. (5 mm) | |
| Brakes, Front is dual | No | |
| Brakes, Rear Diameter | 10.24 in. (260 mm) | |
| Brakes, Rear Thickness | 0.28 in. (7.1 mm) | |
| Brakes, Anti-Lock Braking System (ABS) | Optional | |
| Suspension Travel, Front | 3.6 in. (92 mm) | |
| Suspension Travel, Rear | 1.6 in. (41 mm) | |
| Performance | ||
| Engine Torque Testing Method | J1349 | |
| Engine Torque | 73 ft-lb (99 Nm) | 5 |
| Engine Torque (rpm) | 3,500 | |
| Lean Angle Testing Method | J1168 | |
| Lean Angle, Right (deg.) | 27 | |
| Lean Angle, Left (deg.) | 28 | |
| Fuel Economy Testing Method | Estimated City/Hwy | |
| Fuel Economy | 48 mpg (4.9 l/100 km) | 6 |
| Electric | ||
| Battery | Sealed lead acid, maintenance-free, 12V, 12 amp/hour, 200 cca (per Battery Council International Rating) | |
| Charging | Single-phase, 30-amp system (375W @ 13.5V, 2000 rpm, 405W max power @ 13.5V) | |
| Starting | 1.2 kW electric with solenoid shift starter motor engagement | |
| Lights (as per country regulation), Headlamp | 55-watt low beam, 60-watt high beam | |
| Lights (as per country regulation), Tail/Stop | Incandescent | |
| Lights (as per country regulation), Front Signal Lights | Incandescent bullet turn signals | |
| Lights (as per country regulation), Indicator Lamps | High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (if equipped), ABS (if equipped) | 7 |
| Lights, Rear Turn Signals | Incandescent bullet turn signals | |
| Gauges | Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights | |
| Auxiliary Lamps | N/A | |
| Electric Power Outlet | N/A | |
| GPS System | N/A | |
| Reverse Gear | N/A | |
| Warranty And Service | ||
| Warranty | 24 months (unlimited mileage) | 8 |
| Service Interval | First 1,000 miles (1600 km), every 5,000 miles (8,000 km) thereafter | 9 |
Footnotes1Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty. 2Measurement reflects 180 lb. (81.7 kg) operator weight. 3Recommended 91 octane or higher fuel (R+M)/2. 4Standard and optional wheels may vary by country and region. 5Values shown are nominal. Performance may vary by country and region. 6The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary. 7North America security system includes immobilizer; outside North America the security system includes immobilizer and siren. 8See motorcycle owner’s manual for complete details. 9Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
