2020 Suzuki GSX-S1000F : POWERED BY THE SOUL OF GSX-R.
2020 Suzuki GSX-S1000F Guide.
As much as the GSX-R1000 owns the racetrack, the Suzuki GSX-S1000F owns the road. This tour-capable sportbike carries Suzuki engine performance to the street, with technology and components packaged into a chassis designed for all-day riding comfort.
The 2020 GSX-S1000F is powered by a 999cc, inline-four-cylinder powerplant that provides the torque-rich power that’s ideal for street riding. It’s no surprise that this powerhouse is based on the legendary long-stroke GSX-R1000 engine, which is known for making big power through the low- and mid-range to deliver street-dominating performance.
Equipped with a powerful engine, Suzuki’s Advanced Traction Control System*, a balanced KYB suspension, plus ABS-equipped** Brembo and Nissin brakes, the GSX-S1000F is a street bike packed with some serious performance. Top that performance off with a new, glossy paint treatment on a wind-cheating full fairing and you have a sportbike ready for the open road or corner carving.
GSX-S1000F, a comfortable package built for serious on-road pleasure. Meet the road with legendary performance.
LEGENDARY PERFORMANCE
From the DNA of a supersport legend comes the GSX-S1000F, a motorcycle built for real-world excitement. Beneath the slim fairing of this thrilling machine are the genuine engine and main components of the world-beating GSX-R1000. All in a comfortable package built for serious on-road pleasure. Meet the road with legendary performance.
PERFORMANCE UNLIMITED
The GSX-S1000F is powered by a street-tuned version of the four-stroke, liquid-cooled, DOHC, 999cc, inline-four engine that became a legend in the 2005 GSX-R1000. The newly honed engine delivers smooth throttle response and immediate, controlled acceleration, so the sport rider experiences adrenaline-rushing performance.
COMPACT, LIGHTWEIGHT CHASSIS
Suzuki designed a new chassis in a compact, lightweight package that makes the GSX-S1000F agile and fun to ride. Every aspect of the chassis reflects a focus on great handling and control in real-world conditions from city streets to twisty mountain roads. The main frame helps to ensure nimble handling and great roadholding.
HIGH PERFORMANCE
BRAKING TECHNOLOGY
The GSX-S1000F has the same top-of-the-line radial-mount Brembo monobloc calipers as the GSX-R1000. The calipers each have four opposed 32mm pistons acting on a 310mm floating-mount disc for strong stopping power.
KYB INVERTED FRONT FORKS
Newly specified 43mm KYB inverted front forks give a ride that is sporty yet plush. They have fully adjustable damping, rebound, compression and spring preload.
ADVANCED RIDER TECHNOLOGY
The GSX-S1000F is equipped with some of the most advanced rider technology available, including an Advanced Traction Control System², Low RPM Assist and Suzuki Easy Start System.
THE WILD SIDE
The GSX-S1000F is designed to look wild, rugged, and aggressive. And to keep the rider comfortable at all times. The bike’s overall shape evokes a crouching beast. And a combination of black plastics and painted parts emphasises the bike’s assertive, sporty personality. And the fairing features a low slung, sharply shaped nose and forward-leaning side fairing panels.
THE PURE SPORT ROADSTER.
From the DNA of a supersport legend comes the pure sport roadster. The GSX-S1000F is a motorcycle built for real-world excitement. Derived from the legendary, championship-winning 2005-2008 generation GSX-R1000 the new GSX-S lineup carries the spirit of the Suzuki GSX-R to the street, with shared technology and components packaged into a chassis designed specifically for street riding comfort.

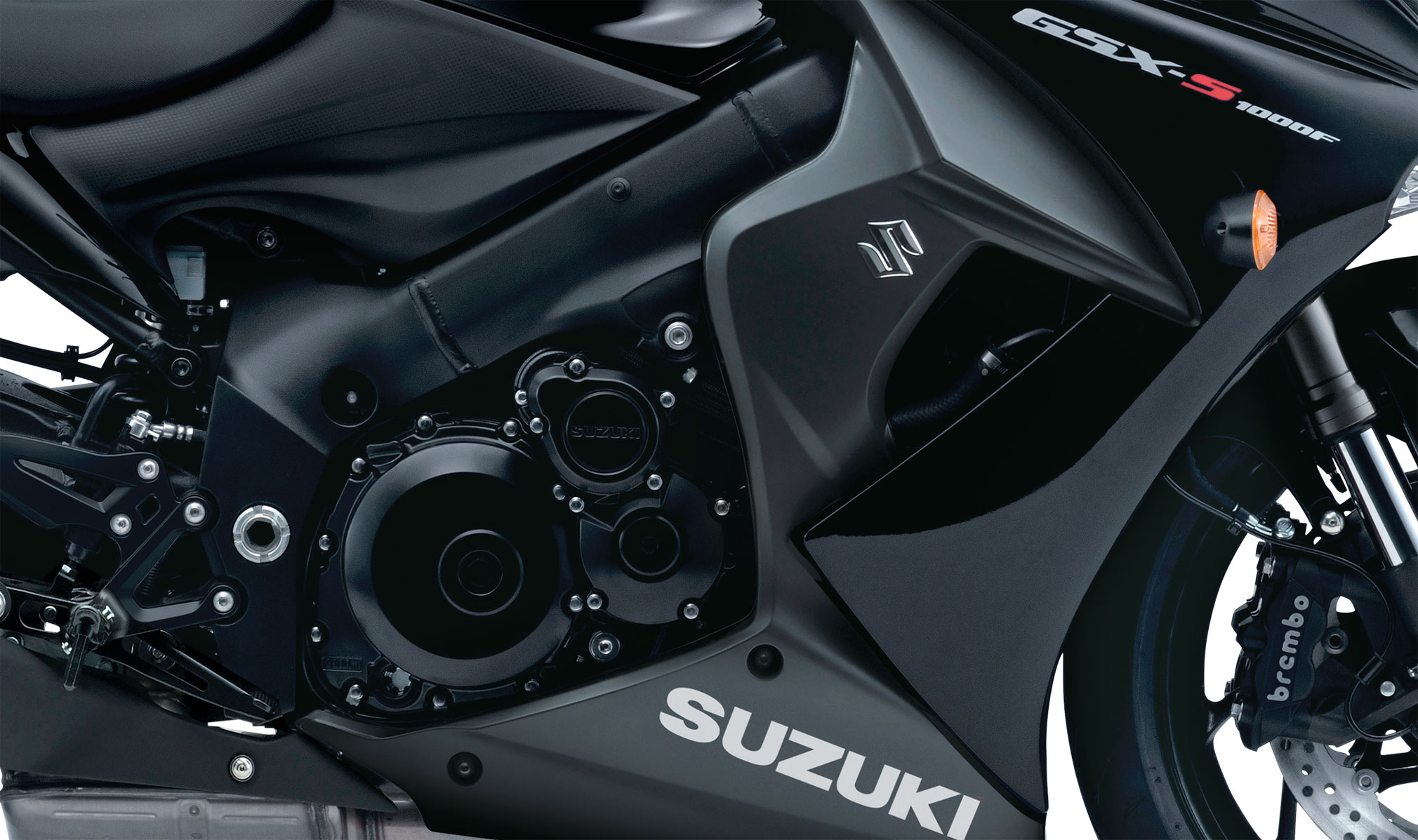

Found beneath the slim fairing of this thrilling machine is the legendary heritage of the GSX-R family, the ALL NEW GSX-S1000F was born to deliver heart pounding performance on every road you ride. The GSX-S1000F is powered by a 999cc inline four-cylinder powerplant that’s based on the long-stroke GSX-R1000F engine, which makes for ideal street-riding power and torque curve. Focused on making big power through the low and mid-range, this engine uses cams which are optimized for street-dominating power.
Ground beating power is paired with Suzuki’s Advanced Traction Control System*, Brembo brakes, and standard ABS** the 2020 GSX-S1000F is a street bike packed with serious all-around performance. Wild, aggressive styling compleates the street fighter package to deliver a naked roadster ready to dominate the streets.
＊The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.
＊＊The ABS is a supplemental device for brake operation, not a device for shortening stopping distance. Always remember to reduce speed sufficiently before approaching curves.
2020 Suzuki GSX-S1000F Totalmotorcycle.com Key Features
POWERED BY THE SOUL OF GSX-R
GSX-S1000F, a comfortable package built for serious on-road pleasure. Meet the road with legendary performance.
Built to own the racetrack and let loose on the streets. Since 1985, the GSX-R has been continuously refined to deliver new levels of performance and agility. This legacy of innovation continues with over 1 million legends made.
| KEY FEATURES |
| The GSX-S1000F brings eye-catching style with new Glass Sparkle Black paint that has contrasting silver logos on the bodywork. |
| Fuel-injected, 999cc, GSX-R-based engine features a throttle control mechanism that smooths the power delivery for a stimulating sportbike experience. |
| Using a design similar to the GSX-R1000R, the GSX-S1000F’s Suzuki Clutch Assist System (SCAS) drive line smooths shifting and engine braking. |
| Suzuki Advanced Traction Control* lets the rider select sensitivity on the fly so engine power to the rear wheel matches road conditions. |
| Twin-spar aluminum frame and fully adjustable KYB-supplied suspension delivers controlled handling. |
| Dual floating front brake rotors and Brembo Monobloc brake calipers, plus an Anti-lock Brake System (ABS)**, deliver controlled stopping power. Recent refinements, such as new front brake hoses, yield improved stopping performance with better feel at the lever. |
2020 Suzuki GSX-S1000F Totalmotorcycle.com Features and Benefits
| ENGINE FEATURES |
| The strong, four-stroke, liquid-cooled, DOHC, 999cc, inline-four engine is designed to provide smooth throttle response and controlled acceleration. |
| Ventilation holes between the cylinders reduce pumping loss within the crankcase so the engine can deliver more power and torque. |
| Long-stroke GSX-R engine design has broad low- to mid-range power and torque that is ideal for street riding. |
| The profiles of the dual overhead camshafts were designed to enhance street performance while preserving peak racetrack-capable power. |
| Aluminum pistons, engineered with use of FEM (Finite Element Method) analysis, are cast with optimal rigidity and weight. |
| Suzuki Composite Electrochemical Material (SCEM)-plated cylinders integrated into the upper crankcase reduce friction and improve heat transfer and durability. |
| A special throttle mechanism is used so engine response is smooth and controlled during spirited riding or cruising. |
| The EFI system uses Suzuki’s proprietary SDTV (Suzuki Dual Throttle Valve) throttle bodies, where the secondary throttle valves are controlled by a servo motor for smooth power delivery. |
| Long tip, 10-hole fuel injectors on each 44mm throttle body improve fuel atomization while the automatic Idle Speed Control (ISC) improves cold starting and stabilizes the engine idle. |
| The digital ignition fires iridium-type spark plugs that increase spark strength and combustion efficiency, contributing to higher power, more linear throttle response, easier engine start-up, and a more stable idle. These quality components also last longer than conventional spark plugs. |
| The stainless steel 4-2-1 exhaust system helps the engine deliver a strong low-to mid-range punch with an exciting rush to redline. |
| The Suzuki Exhaust Tuning (SET) system-equipped mid-muffler design enhances style and aids in mass centralization for great chassis balance. |
| The sculpted muffler has a pleasing appearance that’s not common to under-chassis exhausts while creating an exciting, distinctive sound. |
| Suzuki’s Advanced Traction Control System* lets the rider control the throttle with more confidence in various riding conditions. As a result, the rider can enjoy sport riding with less anxiety. There are four traction control modes (1, 2, 3, and OFF) that the rider can easily adjust at rest or on the fly via a handlebar-mounted control. The difference between the modes is their sensitivity to road conditions.
• Mode 1 is the lowest sensitivity level-most suitable for skilled riders or in conditions that have good road surface grip (sport riding on good, smooth roads). • Mode 2 is a moderate sensitivity level-suitable for most riders or in conditions that have varied road surface grip (city riding, regular road conditions). • Mode 3 is the highest sensitivity level-suitable for road conditions where the grip may be limited (wet or cold surfaces). • OFF disengages all traction control features. |
| The sides of the fairing efficiently guide cooling air to the high-capacity curved radiator. Additional heat is removed from the engine via the use of a lightweight and compact liquid-cooled oil cooler (like those used on the GSX-R models). |
| TRANSMISSION FEATURES |
| The race-proven six-speed close-ratio transmission features vertically staggered shafts to reduce overall engine length. |
| The SCAS clutch increases plate pressure under acceleration, yet acts as a slipper clutch to smooth the engine response during engine braking and corner entry. |
| This large diameter, wet multi-plate clutch uses a precise cable-activated release, providing the rider with superb friction-point feel. |
| The transmission’s shift linkage helps the rider easily and quickly select the best gear for the riding conditions. |
| The strong, RK-supplied drive chain uses O-rings to preserve internal lubrication so power is transmitted smoothly and quietly. |
| CHASSIS FEATURES |
| Styled to complement the rest of the chassis and to house a bright dual headlight, the GSX-S1000F’s full fairing slices through the wind so the rider benefits from the upright, sporty ergonomics. |
| The lightweight and compact chassis is engineered to be agile and fun to ride for a wide range of riders. This ability starts with the low-mass rigid aluminum main frame coupled with the strong aluminum alloy swingarm. |
| The 43mm inverted KYB forks have adjustable compression and rebound damping, and spring preload with a generous 120mm (4.7 inch) of front wheel travel. |
| Link-type rear suspension, with arched aluminum swingarm and a single shock absorber, features spring preload that is seven-way adjustable, with rebound damping force adjustment. |
| Dual front brakes with fully floating 310mm discs and Brembo Monobloc calipers with four 32mm opposed pistons provide strong and consistent stopping power. |
| The front brakes are complemented by a 240mm rear disc brake with a Nissin single-piston caliper to help make sure you can have controlled stops. |
| Refined front brake hoses yield improved stopping performance with better feel at the lever. |
| Both the front and rear brakes can be modulated by a compact Anti-lock Brake System (ABS)** controller to match stopping force to the available traction. |
| Unique to the GSX-S1000 models, the TRP six-spoke, lightweight cast aluminum wheels are shod with Dunlop radial tires (120/70ZR17 front and 180/50ZR17 rear). |
| Matte black aluminum Renthal Fatbar handlebar is standard equipment offering excellent riding ergonomics with great vibration damping. |
| The reasonable sport riding position is created by a carefully crafted relationship between the Renthal Fatbar, footrests, and seat. |
| The black finish on the shifter, rear brake, and both hand levers matches the performance nature of the motorcycle. |
| The low seat height of 815mm (32 inches) contributes to the sporty, yet upright riding position and aids rider confidence at stops. |
| ELECTRICAL FEATURES |
| The GSX-S1000F is equipped with Suzuki’s Easy Start System that requires just a simple touch of the starter button to fire up the engine (without pulling the clutch lever if the transmission is in neutral). |
| The dual headlight assembly in the full fairing uses a pair of 55-watt H7 halogen bulbs – one for the low beam, while both illuminate for the high beam. The tail section houses an integrated LED tail light with clear lens. |
| The lightweight and compact instrument set uses an LCD display that includes speedometer, tachometer, odometer, dual trip meters, gear position, coolant temperatures, driving range, average fuel consumption, instantaneous fuel consumption, traction control, and clock functions. |
| The display has an adjustable intensity, white-color backlight for great nighttime visibility, and is flanked by LED indicators for the turn signals, high beam, malfunction, traction control*, ABS**, plus coolant temperature and oil pressure alerts. |
| ADDITIONAL FEATURES |
| A variety of Genuine Suzuki Accessories are available, such as a tank bag and taller touring screen, plus a large selection of logo apparel. |
| 12-month unlimited mileage limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP). |
| *The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip. |
| **Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS. |
2020 Suzuki GSX-S1000F – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ TBA USD
Canada MSRP Price: $ 14399 CDN
Europe/UK MSRP Price: £9499 GBP (On The Road inc 20% Vat)
| 2020 GSX-S1000FBASE MSRP◊: TBA | 2020 GSX-S1000BASE MSRP◊: TBA |
| ENGINE | |
| Engine | 999cc, 4-stroke, liquid-cooled, 4-cylinder, DOHC |
| Bore x Stroke | 73.4 mm x 59.0 mm (2.890 in. x 2.323 in.) |
| Compression Ratio | 12.2:1 |
| Fuel System | Fuel injection with SDTV |
| Starter | Electric |
| Lubrication | Wet sump |
| DRIVE TRAIN | |
| Clutch | Wet, multi-plate type |
| Transmission | 6-speed constant mesh |
| Final Drive | Chain, RK525GSH, 116 links |
| CHASSIS | |
| Suspension Front | Inverted telescopic, coil spring, oil damped |
| Suspension Rear | Link type, single shock, coil spring, oil damped |
| Brakes Front | Brembo, 4-piston, twin disc |
| Brakes Rear | Nissin, 1-piston, single disc |
| Tires Front | 120/70ZR17M/C (58W), tubeless |
| Tires Rear | 190/50ZR17M/C (73W), tubeless |
| Fuel Tank Capacity | 17.0 L (4.5 US gal.) |
| Color | Glass Sparkle Black |
| ELECTRICAL | |
| Ignition | Electronic ignition (transistorized) |
| Spark Plugs | NGK CR9EIA-9 or DENSO IU27D |
| Headlight | 12V 55W (H7) x 2 |
| Tail Light | LED |
| DIMENSIONS | |
| Overall Length | 2115 mm (83.3 in.) |
| Overall Width | 795 mm (31.3 in.) |
| Overall Width | 1180 mm (46.5 in.) |
| Wheelbase | 1460 mm (57.6 in.) |
| Ground Clearance | 140 mm (5.5 in.) |
| Seat Height | 810 mm (31.9 in.) |
| Curb Weight | 215 kg (474 lb.) |
| WARRANTY | |
| Warranty | 12-month unlimited mileage limited warranty |
| Extension | Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP). |
Manufacturer’s Suggested Retail Price (also referred to as “MSRP”, “Base MSRP” or the “Starting At” price), excludes taxes, title, license and registration fees, destination freight and delivery charges, dealer fees, and optional equipment.
2020 Suzuki GSX-S1000F – Totalmotorcycle.com Canada Specifications/Technical Details
| ENGINE | |
| Type | four-stroke, liquid-cooled, DOHC, inline-four |
| Displacement | 999cc |
| Bore x Stroke | 73.4 mm x 59.0mm (2.9 in x 2.3 in) |
| Compression Ratio | 12.2 : 1 |
| Transmission | 6-speed constant mesh |
| Final Drive | O-ring type, sealed drive chain |
| CHASSIS | |
| Overall Length | 2115 mm (83.3 in) |
| Overall Width | 795 mm (31.3 in) |
| Overall Height | 1,080 mm (42.5 in) |
| Wheelbase | 1460 mm (57.4 in) |
| Ground Clearance | 140 mm (5.5 in) |
| Seat Height | 810 mm (31.9 in) |
| Curb Mass | 214 kg (472 lb) |
| Suspension Front | Inverted telescopic, coil spring, oil damped |
| Suspension Rear | Link type, coil spring, oil damped |
| Brakes Front | Brembo, disc brake, twin rotor |
| Brakes Rear | Disc brake, single rotor |
| Tires Front | 120/70ZR17M/C (58W) tubeless |
| Tires Rear | 190/50ZR17M/C (73W) tubeless |
| Ignition Type | Electronic ignition (Transistorized) |
| Fuel Tank | 17.0 L |
| WARRANTY | |
| Standard Warranty | 12 Month unlimited mileage limited warranty |
2020 Suzuki GSX-S1000F – Totalmotorcycle.com European Specifications/Technical Details
DIMENSIONS AND WEIGHTS
| Overall length | 2115 mm (83.27 in) | Overall width | 795 mm (31.30 in) |
| Overall height | 1180 mm (46.46 in) | Wheelbase | 1460 mm (57.48 in) |
| Ground clearance | 140 mm (5.51 in) | Seat height | 810 mm (31.9 in) |
| Kerb mass | 214 kg (472 lbs) | Fuel capacity | 17.0 litres (3.7 UK gallons) |
ENGINE SPECIFICATIONS
| Engine capacity | 999 cc | Engine | 4-stroke, 4-cylinder, liquid-cooled, DOHC |
| Bore | 73.4 mm X 59.0 mm (2.89 in x 2.32 in) | Compression ratio | 12.2 : 1 |
| Lubrication | Wet sump | Ignition | Electronic ignition |
| Fuel system | Fuel Injection | Transmission | 6-speed constant mesh |
| Drive | Chain | Starter | Electric |
| MPG* | 53.30 | CO2 | 122 g/km |
| Power | 110.0 kW @ 10000 rpm (150 PS) | Torque | 108.0 Nm @ 9,500rpm (79.66 lb. ft)† |
CHASSIS SPECIFICATION
| Front suspension | Inverted telescopic, coil spring, oil damped | Rear suspension | Link type, coil spring, oil damped |
| Front brakes | Disc, twin | Rear brakes | Disc |
| Front tyres | 120/70ZR17M/C (58W) | Rear tyres | 190/50ZR17M/C (73W) |
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
