A STEP UP BEFORE YOU STEP OUT.

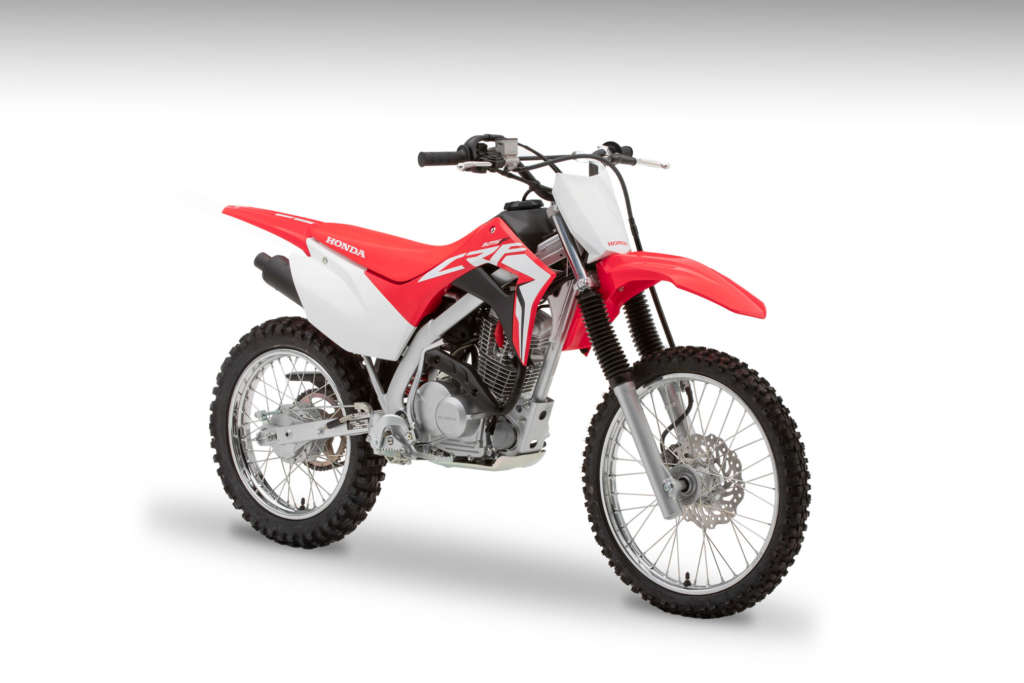

2020 Honda CRF125FB Big Wheel:

BUILT FOR BIG LITTLE RIDERS
Riding is all about feel, and that can be a problem for riders who outgrow their bike. That’s why Honda has perfected the CRF125F Big Wheel, to deliver all the performance of our CRF125F with a more comfortable ride for taller riders. We took our CRF125F and set it up with larger diameter wheels and a longer swingarm that raises the seat height by two-inches. The proven single-cylinder engine with a four-speed transmission comes with fuel injection for broader power and better running in cold weather and high altitudes. There’s also a twin-spar steel frame, and plenty of suspension travel for an even more plush ride. Plus, an electric starter. The perfect size for many riders with just the right features, the CRF125F Big Wheel is sure to feel just right.

Be A Responsible Rider: All parents need to consider their youngsters’ age, size, ability and maturity before allowing them to ride. Obtain a copy of “Off-Road Safety Tips” from your local Honda Dealer.

A mid-sized trail bike with power for full-sized trail obstacles, the CRF125F is available in both a standard version and the Big Wheel, which accommodates taller riders via larger front- and rear wheels, longer-travel suspension and a higher seat. The SOHC 124cc engine delivers its power smoothly, and Keihin electronic fuel injection offers dependability and clean running for 50-state off-road legality, while the steel twin-spar frame and Showa suspension deliver a smooth, nimble ride. With their fun performance and CRF Performance line looks, both versions of the CRF125F promise years of recreational trail-riding enjoyment.

Standard Features

• 124.9cc air-cooled single-cylinder engine

• Fuel injection

• Electric starter

• Twin-spar steel frame

• 19-/16-inch front/rear wheels

• 30.9-inch seat height

• Front disc brake

2020 Honda CRF125FB Big Wheel Totalmotorcycle.com Key Features

2020 Honda CRF125FB Big Wheel Totalmotorcycle.com Features and Benefits

Engine/Drivetrain

• The 124.9cc SOHC engine returns with smooth, linear power delivery.
• Electronically controlled Keihin fuel-injection system. FI delivers linear and hesitation-free power for controllable delivery at all points in the powerband.
• Four-speed gearbox is well matched to the broad power spread.
• Electric starter makes getting going a breeze, with kick-start backup included.

Chassis/Suspension

• CRF125F and CRF125F Big Wheel have seat heights of 29.1 inches and 30.9 inches, respectively.
• CRF125F has wheel sizes of 17 and 14 inches front and rear, respectively. CRF125F Big Wheel has 19- and 16-inch wheels.
• Twin-spar steel frame, with heavy-duty design inspired by the frame architecture of the CRF Performance Line, provides the right balance of rigidity and suppleness for trail-bike comfort.
• 1-gallon steel fuel tank with integrated fuel pump and fuel filter. Low-fuel indicator on handlebar illuminates when .2 gallons remain. Frame design shields tank in the event of a fall.
• Modern bodywork and graphics match styling of CRF Performance Line.
• Handlebar-mounted, multiple-function switch incorporates starter button, ignition “key on” indicator, fuel-injection system status, and low-fuel indicator light.
• Half-waffle grips have a small circumference for a good fit with small hands.
• Front brake lever is adjustable to work with varying hand sizes.
• The 31mm fork provides plush front-suspension action.
• Pro-Link® rear-suspension design with sophisticated single shock for consistent action.
• Smooth stopping power provided by hydraulic front brake with 220mm rotor and 95mm rear drum brake.
• Meets CARB and EPA off-road emissions standards. (Green-sticker-compliant in California.)

COMFORT
BIGGER WHEELS
With a 19-inch front wheel and a 16-inch wheel in the rear, the CRF125F Big Wheel will fit taller riders a little better. The right-sized bike is as important as wearing the right-sized boots or helmet.

HALF-WAFFLE GRIPS
Just like the pros use, the CRF125F Big Wheel gets half-waffle pattern grips. Might as well start them off right!

INTERMEDIATE SEAT HEIGHT
It’s important to have a bike that’s sized right for your rider. The CRF125F Big Wheel’s 30.9-inch seat height helps build confidence right from the start.

MORE FRONT SUSPENSION TRAVEL
In addition to the rear-suspension travel increase, we also gave the CRF125F Big Wheel more travel up front for a balanced, plush ride.

PRO-LINK® REAR SUSPENSION
Progressive linkage connects a single heavy-duty shock to the swingarm, delivering an excellent combination of spring and damping rates over a wide range of riding conditions. This year the CRF125F Big Wheel gets nearly an extra ¾ inch of suspension travel, too.

PERFORMANCE
RELIABLE ENGINE
The CRF125F Big Wheel’s dependable four-stroke single-cylinder engine offers good performance with a wide powerband—perfect for a wide range of riders, including beginners. Fuel injection makes it even better and more efficient.

HANDLING
PROVEN MANUAL CLUTCH
Honda’s heavy-duty clutch is durable and helps promote smooth shifting.

ENGINEERING
FOUR-SPEED TRANSMISSION
The four-speed gearbox is just like a full-sized motorcycle’s, giving your younger rider all the control they need.

STEEL FRAME AND SWINGARM
Less experienced riders are hard on equipment, especially when they’re just starting out. That’s why we gave the CRF125F Big Wheel a strong, twin-spar-type steel frame and swingarm that are built to handle the bumps and dings of off-road riding.

CLEAN-RUNNING ENGINE
Another benefit of fitting the CRF125F Big Wheel with fuel injection? Now it even meets California’s stringent CARB emissions standards for off-road motorcycles—good news for everyone.

FRONT DISC BRAKE
The front disc brake provides superior stopping power with the front disc rotor drilled for lightness and better wet-weather performance.

FUEL INJECTION
Fuel injection means the CRF125F Big Wheel starts right up, even in cold weather. Compared to a carbureted bike, it also helps reduce emissions and enhance performance and fuel efficiency. And say goodbye to clogged pilot jets when you put this bike away for storage.

TOUGH BODYWORK
Riders can be tough on equipment, and taking a spill is a natural part of learning. But the CRF125F Big Wheel can handle it: with tough plastic fenders, tank and other body parts inspired by our bigger CRF motocross bikes, the CRF125F Big Wheel is engineered to shrug off the minor dings of the real world.

CONVENIENCE
ELECTRIC STARTER
Push-button starting makes getting started easier in all kinds of conditions, and the efficient design adds minimal weight.

KEYED IGNITION SWITCH
For added security, the keyed ignition switch lets you control who goes riding and when, important if you have younger riders in the house.

SEALED BATTERY
The maintenance-free sealed battery helps ensure that your CRF125F Big Wheel is ready to ride when you are.

2020 Honda CRF125FB Big Wheel – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: starting from $3499 USD
Canada MSRP Price: $4099 CDN
Europe/UK MSRP Price:  £ GBP (On The Road inc 20% Vat)

ENGINE
Engine Type 124.9cc air-cooled single-cylinder four-stroke
Bore And Stroke 52.4mm x 57.9mm
Compression Ratio 9.0:1
Valve Train SOHC; two-valve
Induction Fuel-injection, 22mm throttle bore
Ignition Full Transistorized
DRIVE TRAIN
Transmission Four-speed
Final Drive Chain
CHASSIS SUSPENSION BRAKES
Front Suspension 31mm telescopic fork; 5.9 inches of travel
Rear Suspension Pro-Link® single-shock; 6.6 inches of travel
Front Brake 220mm hydraulic disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16
DIMENSIONS
Rake 27°30′ (Caster Angle)
Trail 94mm (3.7 inches)
Wheelbase 49.4 inches
Seat Height 30.9 inches
Curb Weight
199 pounds (Includes all standard equipment, required fluids and full tank of fuelready to ride)
Fuel Capacity 1.0 gallon
Ground Clearance 10.3 inches
OTHER
Emissions Meets California Air Resources Board (CARB) and EPA off-road emissions
standards.
Available Colors Red
Model ID CRF125FB
FACTORY WARRANTY INFORMATION
Duration
Six Months transferable limited warranty; extended warranty available with a Honda
Protection Plan.

2020 Honda CRF125FB Big Wheel – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain

Engine Type

Air-cooled, single-cylinder, 4-stroke

Displacement

125 cc

Bore & Stroke

52.4 mm x 57.9 mm

Compression Ratio

9:1

Valve Train

SOHC; 2-valve

Fuel Delivery

PGM-FI electronic fuel injection with 22 mm throttle body

Transmission

Four-speed with manual clutch

Final Drive

#428 chain, 13T/49T

Chassis & Suspension

Front Suspension

37 mm leading-axle Showa fork; 151 mm (5.9 in.) travel

Rear Suspension

Pro-Link^® Showa single shock; 168 mm (6.6 in.) travel

Dimensions & Additional Information

Tires

Front: 70/100-19
Rear: 90/100-16

Brakes

Front: 220 mm hydraulic wave disc
Rear: Drum

Ground Clearance

260 mm (10.2 in.)

Seat Height

785 mm (30.9 in.)

Wheelbase

1,255 mm (49.4 in.)

Curb Weight

90 kg (198 lb.) including required fluids and full tank of gas—ready to ride

Fuel Capacity

3.7 litres; low-fuel light comes on at 0.7 litres

Colour

Extreme Red

Warranty

6 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus

2020 Honda CRF125FB Big Wheel – Totalmotorcycle.com European Specifications/Technical Details

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
