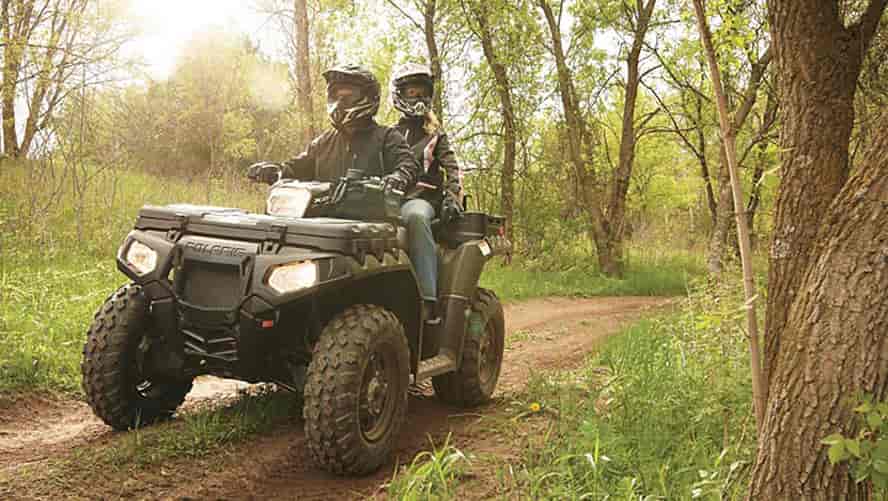

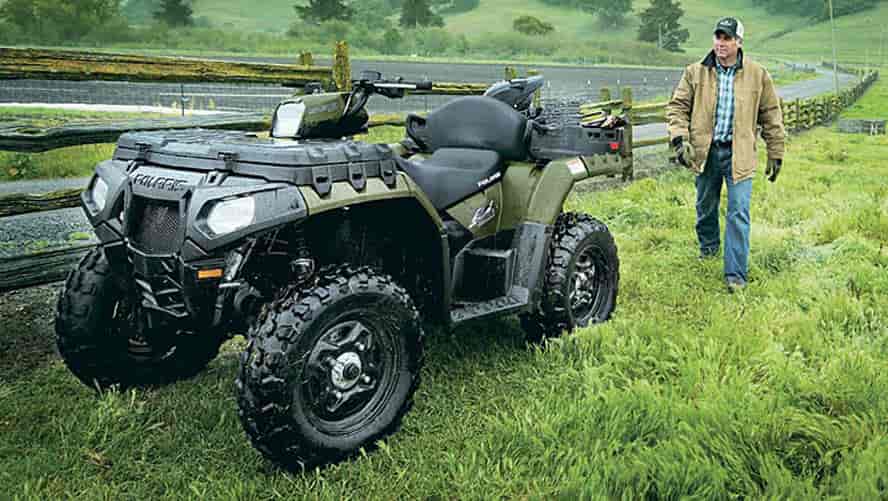

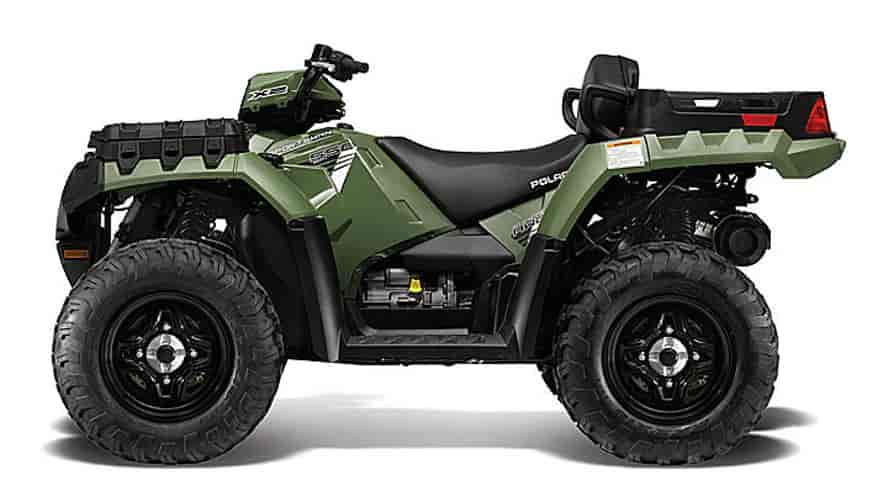

2013 Polaris Sportsman X2 550 Sage Green
2013 Polaris Sportsman X2 550 Sage Green

2013 Polaris Sportsman X2 550 Sage Green
2013 Polaris Sportsman X2 550 Sage Green

2013 Polaris Sportsman X2 550 Sage Green
2013 Polaris Sportsman X2 550 Sage Green


– 2013 Polaris Sportsman X2 550 Sage Green Review

2013 Polaris Sportsman X2 550 Sage Green

1-UP AND 2-UP VERSATILITY IN SECONDS – Switches from work to play in seconds. Rear dump box features a 400-lb. capacity and, in three easy steps, goes from 1-up work mode to 2-up play mode in less than 10 seconds…

• 550 engine for smooth, efficient power
• On-demand true 4-wheel drive
• Rolled IRS with 10.25” travel





2013 Polaris Sportsman X2 550 Sage Green Key Features

•Two lights are located in the front bumper and one mounted in the handlebar pod. Maximize your lighting with the ability to have all three on at once for 150 W of power.



2013 Polaris Sportsman X2 550 Sage Green Features and Benefits

Hardest Working

1-UP AND 2-UP VERSATILITY IN SECONDS – Switches from work to play in seconds. Rear dump box features a 400-lb. capacity and, in three easy steps, goes from 1-up work mode to 2-up play mode in less than 10 seconds.

ON-DEMAND TRUE ALL-WHEEL DRIVE (AWD) – True AWD keeps you moving, automatically engaging all four wheels when you need more forward traction and reverting back to 2WD when you don’t. When in 2WD, the VersaTrac Turf Mode switch unlocks the rear differential for easier, tighter turns to minimize damage to sensitive terrain.

Unrivaled 550 Engine – The liquid-cooled, single-cylinder 550 engine delivers smooth, efficient power and plenty of it for working, hunting and trail riding.

ACTIVE DESCENT CONTROL (ADC) AND ENGINE BRAKING SYSTEM (EBS) – Work together to monitor and control downhill braking to give you optimum control and smooth, even deceleration during descents (less than 15 mph).

MAXIMUM POWER AND FUNCTIONALITY – With the power to tow 1,500 lbs. and carry a total of 120 lbs. on the front rack and 400 lbs in the box, plus the ability to accessorize in seconds with the Lock & Ride cargo system.

STANDARD FRONT STORAGE – Huge Front Storage Box With 8.2-Gallon Storage Capacity let’s you pack all your gear for those long rides, and keep it secure and out of the elements.

HIGH CAPACITY, HIGH-MOUNTED RADIATOR – The radiator is raised high to keep it out of the mud. It’s large surface area provides more cooling capacity to your machine. And with removable Lock & Ride® front box, it’s easily accessible and easier to clean.



Smoothest Riding

LEGENDARY SMOOTH ROLLED IRS – Years of innovation and relentless tuning have refined the ride to a level unmatched in the industry. Rolled Independent Rear Suspension (IRS) angles the shocks rearward for 10.25″ of travel leading to a smoother ride and less squat during acceleration.

ANTI-KICKBACK STEERING – Placing the steering axis near the neutral center of the tire and having the long Dual A-Arm 9″ Front Suspension travel dramatically reduces kickback and minimizes rider fatigue that comes with jolts to the handlebars from trail and ground obstacle

PASSENGER SEAT COMFORT – 4″ of seat padding, to increase passenger comfort on those long rides.











2013 Polaris Sportsman X2 550 Sage Green – United States of America Specifications / Technical Details
USA MSRP: $8,999 USD

Engine

Engine Type4-Stroke SOHC Single Cylinder
Displacement549cc
Fuel SystemElectronic Fuel Injected
CoolingLiquid

Drivetrain

Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System / Active Descent ControlStandard/Standard

Suspension

Front SuspensionDual A-Arm 9″ (22.9 cm) Travel
Rear SuspensionDual A-Arm, Rolled 10.25″ (26 cm) Travel

Brakes

Front/Rear BrakesSingle Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark in Transmission/Lockable Hand Lever

Tires / Wheels

Front Tires26 x 8-14; Maxxis M9805
Rear Tires26 x 10-14; Maxxis M9806
WheelsStamped Steel

Dimensions / Capacities

Wheelbase57″ (144.8 cm)
Dry Weight799 lb (362.3 kg)
Overall Vehicle Size (L x W x H)93.25 x 47.6 x 49.5″ (236.8 x 120.9 x 125.73 cm)
Ground Clearance11.25″ (28.5 cm)
Seat Height35.75″ (90.8 cm)
Fuel Capacity5.25 gal (19.9 L)
Bed Box Dimensions (L x W x H)37.5″x19.5″x6.5″ (95×49.5×16.5 cm)
Front/Rear Rack or Box Capacity120 lb (55 kg)/400 lb (180 kg)
Payload Capacity735 lbs (333 kg)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity1,995 lb (905 kg)
Hitch/TypeStandard/1.25″ Receiver

Features

Cargo SystemLock & Ride
LightingTriple 50w High Beam, Dual 50w Low Beam Headlights; Dual Brakelights/Taillights
Electronic Power SteeringNot Equipped
InstrumentationAnalog Speedometer, Digital Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Indicator, Diagnostic Indicator, Gear Indicator, Fuel Gauge, AWD Indicator, TURF Indicator, Hi-Temp/Low-Batt Lights, DC Outlet





2013 Polaris Sportsman X2 550 Sage Green – Canada Specifications / Technical Details
Canadian MSRP: $10,199 CDN

Engine

Engine Type4-Stroke SOHC Single Cylinder
Displacement549cc
Fuel SystemElectronic Fuel Injected
CoolingLiquid

Drivetrain

Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System / Active Descent ControlStandard/Standard

Suspension

Front SuspensionDual A-Arm 9″ (22.9 cm) Travel
Rear SuspensionDual A-Arm, Rolled 10.25″ (26 cm) Travel

Brakes

Front/Rear BrakesSingle Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark in Transmission/Lockable Hand Lever

Tires / Wheels

Front Tires26 x 8-14; Maxxis M9805
Rear Tires26 x 10-14; Maxxis M9806
WheelsStamped Steel

Dimensions / Capacities

Wheelbase57″ (144.8 cm)
Dry Weight799 lb (362.3 kg)
Overall Vehicle Size (L x W x H)93.25 x 47.6 x 49.5″ (236.8 x 120.9 x 125.73 cm)
Ground Clearance11.25″ (28.5 cm)
Seat Height35.75″ (90.8 cm)
Fuel Capacity5.25 gal (19.9 L)
Bed Box Dimensions (L x W x H)37.5″x19.5″x6.5″ (95×49.5×16.5 cm)
Front/Rear Rack or Box Capacity120 lb (55 kg)/400 lb (180 kg)
Payload Capacity735 lbs (333 kg)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity1,995 lb (905 kg)
Hitch/TypeStandard/1.25″ Receiver

Features

Cargo SystemLock & Ride
LightingTriple 50w High Beam, Dual 50w Low Beam Headlights; Dual Brakelights/Taillights
Electronic Power SteeringNot Equipped
InstrumentationAnalog Speedometer, Digital Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Indicator, Diagnostic Indicator, Gear Indicator, Fuel Gauge, AWD Indicator, TURF Indicator, Hi-Temp/Low-Batt Lights, DC Outlet



Specifications, appearance, and price of product are subject to change without notice.
