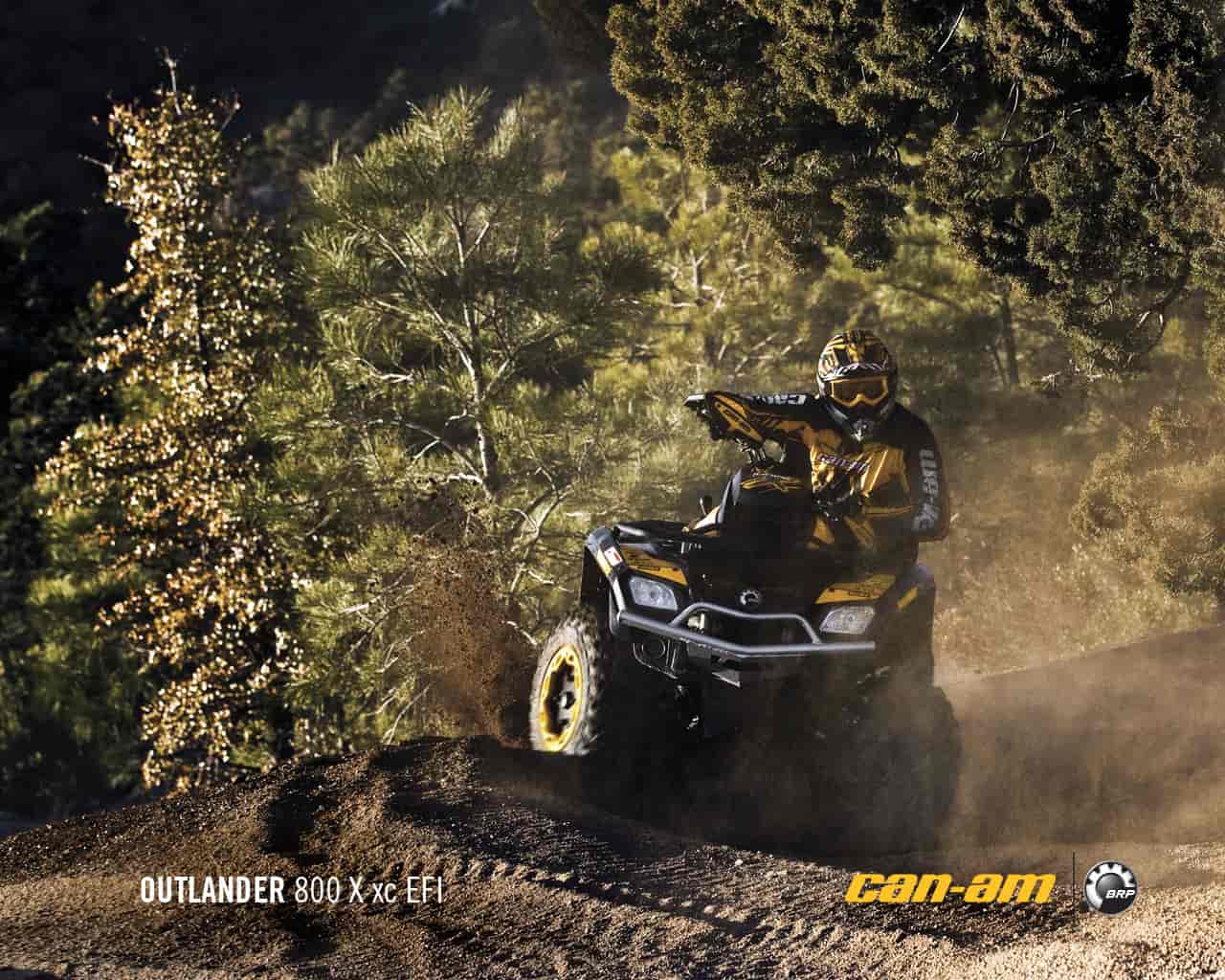

2011 Can-Am Outlander 800R X XC
2011 Can-Am Outlander 800R X XC
– 2011 Can-Am Outlander 800R X XC
2011 Can-Am Outlander 800R X XC
YOUR RIGHT THUMB. THE ONLY SPOKESPERSON WORTH LISTENING TO.
We could tell you all about the 2011 Outlander 800R X XC’s industry-leading 71-hp engine. Or how the front suspension geometry allows for easier steering. The thing is, none of it really matters until you’re on one.
Key Features:
Outlander 800R Features
Rotax V-twin 799.9 cc EFI engine
TTI independent rear suspension
Double A-arm front suspension
CVT transmission
Multi-function digital gauge
X xc Added Features
Dual-mode Dynamic Power Steering (DPS)
Visco-Lok† QE 4×4 with front differential
Beadlock wheels
Front KYB HPG shocks
Rear KYB HPG shocks
Aluminum skid plate
Front sway bar
Pre-runner front bumper
650-watt magneto
Handlebar wind deflectors
Aluminum taper-profile handlebar
X xc-package graphics and seat cover
Other Features
Digitally Encoded Security System (D.E.S.S.)
ITP Holeshot ATR radial tires
2011 Can-Am Outlander 800R X XC – Specifications
American MSRP $12,449 USD
Canadian MSRP $14,749 CDN
Engine
Type
799.9 cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Bore & Stroke
91 x 62 mm
EFI System / Carburetor
46-mm Throttle Body, 2 Siemens? VDO injectors
Starting System
Electric
Transmission
CVT, sub-transmission with high, low, park, neutral & reverse. Standard engine braking
Drive Train
Selectable 2w/4w shaft driven with Visco-lok† front differential
Chassis
Frame
SST
Front Suspension Type
Double A-arm
Front Suspension Travel
8 in (203 mm)
Rear Suspension Type
TTI independent
Rear Suspension Travel
9 in (229 mm)
Front Brake
2 inboard hydraulic discs
Rear Brake
1 inboard hydraulic disc
Tires/Front
26 x 8 x 12 in
660 x 203 x 305 mm
Tires/Rear
26 x 10 x 12 in
660 x 254 x 305 mm
Wheels
Cast-aluminum
Dimensions
L x W x H (in)
86 x 46 x 45 in
L x W x H (mm)
2,184 x 1,168 x 1,143 mm
Wheelbase
51 in (1,295 mm)
Seat Height
34.5 in (877 mm)
Ground Clearance
12 in (305 mm)
Dry Weight
669 lbs (303 kg)
Towing Capacity
1,300 lbs (590 kg)
Rack Capacity
Front: 100 lbs (45 kg)
Rear: 200 lbs (90 kg)
Storage
Rear storage 5.3 US gal (20 L)
Fuel Capacity
4.3 US gal (16.3 L)
Features
Instrumentation
Multi-function digital LCD gauge: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4×4 indicator, temperature and engine lights, fuel gauge, clock, auto shut off after 15 minutes
Anti-Theft
D.E.S.S. (Digital Encoded Security System)
Electrical
Prewired for winch
Lighting
2 fender mounted headlamps (35W) with tail light / brake light
DC Outlet
Lighter type in console, standard connector in the back (15A)
Color(s) available
Yellow & Black with X package graphics
Warranty
Basic
6 months limited factory warranty
Extended
B.E.S.T. available from 12 to 36 months
Package
X xc package:
Dual-mode Dynamic Power Steering (DPS)
Beadlock wheels
ITP Holeshot ATR sport radial tires
Front KYB HPG aluminum piggyback shocks with dual-speed compression, rebound and threaded preload adjustments
Rear KYB HPG remote reservoir shocks with dual-speed compression, rebound and threaded preload adjustments
Front sway bar
Visco-Lok QE
Aluminum pre-runner front bumper
Aluminum skid plate
Aluminum taper-profile handlebar with wind deflectors
650-watt magneto
X xc package coloration, graphics and seat cover
